Shure MXCWAPT-A Access Point Receiver (US Only)

Product Overview

The Shure MXCWAPT-A is the access point transceiver at the center of the Microflex Complete Wireless conference system, designed for boardrooms, council chambers, and multi-purpose rooms that need cable-free discussion audio. As the system hub, this wireless conference system access point manages audio routing, RF coordination, and control for up to 125 MXCW640 wireless conference units from a single Ethernet connection. It automatically selects the clearest channel across the 2.4 GHz and 5 GHz bands, making the MXCWAPT-A conference system hub a practical core for rooms where running fixed microphone cabling is impractical.

Product Description

The MXCWAPT-A access point transceiver is the device every Microflex Complete Wireless deployment is built around. During setup it scans the 2.4 GHz and 5 GHz frequency bands to identify the clearest channel and communicates that selection to all conference units; where permitted, it can use limited-access DFS spectrum to expand the pool of available channels. If a potential RF conflict is detected, the access point instructs all units to change channels without interrupting the meeting, and the wireless link is protected with AES-128 encryption for closed-door discussions in government and corporate spaces.

For integration into a larger AV system, the unit provides a Dante networked audio connection supporting up to 10 input and 10 output channels, plus an analog XLR audio input and output for connecting a presenter's wireless microphone or feeding an external sound reinforcement system. A single PoE connection from a standard switch or power injector carries power, audio, and control, which simplifies installation and commercial deployment. An onboard information display and basic controls allow first-line configuration without a laptop. Explore the full Shure Microflex conferencing range at Creation Networks to build out a complete system.

Key Features

• Manages up to 125 conference units — A single MXCWAPT-A coordinates audio, RF, and control for as many as 125 MXCW640 units, scaling from a small boardroom to a large council chamber.
• Automatic dual-band frequency coordination — The access point continuously evaluates the 2.4 GHz and 5 GHz bands and moves units to the clearest channel to avoid interference during live meetings.
• DFS spectrum support — Where regionally permitted, the unit uses limited-access DFS channels to expand the number of usable frequencies in congested RF environments.
• AES-128 encrypted wireless — Discussion audio is encrypted over the air, supporting confidentiality requirements in government and corporate boardrooms.
• Dante networked audio — Up to 10 input and 10 output Dante channels integrate the conference system directly into a networked AV signal chain.

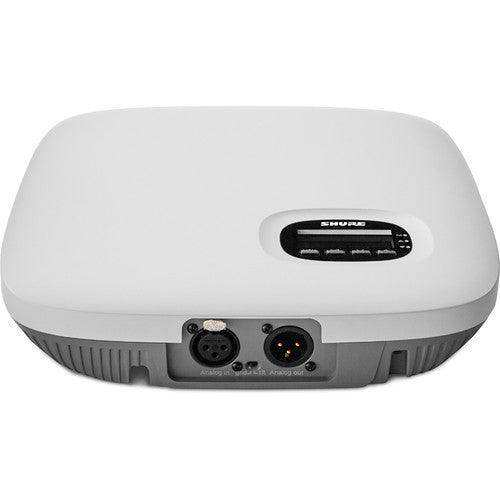

• Analog XLR I/O — A balanced XLR input and output connect a presenter microphone or an external sound reinforcement feed without additional interfaces.
• Single-cable PoE operation — Power, audio, and control travel over one Ethernet connection from a standard PoE switch or injector, reducing installation labor.

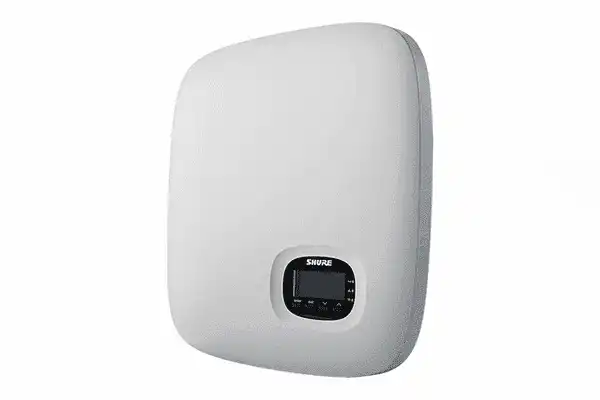

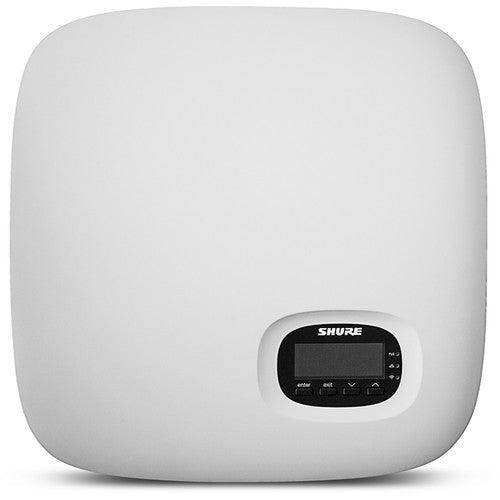

• Onboard display and controls — Basic system configuration and status checks are available at the unit, so commissioning does not require a connected laptop.

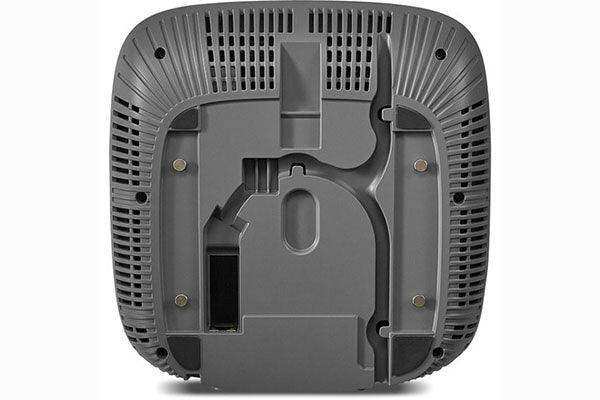

• Flexible mounting — The included bracket and paintable cover allow discreet wall or ceiling installation, or the unit can sit on a table for temporary meeting setups.

Typical Applications

• Boardroom
• Conference room
• Government space
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Specifications sourced from Shure. Confirm regional RF/DFS availability for your deployment.

Competitor Comparison

Comparison reflects published architecture of each platform and is provided to aid system design. Verify current competitor specifications with the respective manufacturer before specifying.

Frequently Asked Questions

Which conference units does the MXCWAPT-A work with?
The MXCWAPT-A is the access point for the Microflex Complete Wireless system and controls up to 125 MXCW640 wireless conference units.

How is the access point powered and cabled?
It uses a single Ethernet connection for power, audio, and control via a standard PoE switch or power injector, which keeps installation cabling minimal.

How does it integrate into an existing AV system?
The unit offers a Dante networked audio connection with up to 10 input and 10 output channels, plus analog XLR input and output for a presenter microphone or an external sound reinforcement feed.

Can it be ceiling or wall mounted in a finished room?
Yes. An included mounting bracket and paintable cover support discreet wall or ceiling installation, and the unit can also sit on a table for temporary setups.

Is the wireless audio secure for confidential meetings?
The wireless link uses AES-128 encryption, supporting privacy requirements common in government and corporate boardrooms.

What support and warranty apply?
This is a current, commercial-grade Shure product backed by Shure's manufacturer warranty and support. Contact Creation Networks for warranty terms, lead times, and system design assistance.
