Shure MXA920W-S-60CM-TA Microflex Advance Square 60cm Ceiling Microphone Array (White) (TAA-Compliant)

Shure SKU: MXA920W-S-60CM-TA
No reviews

Description

Please call or email our sales for team for pricing, consultation, and more info

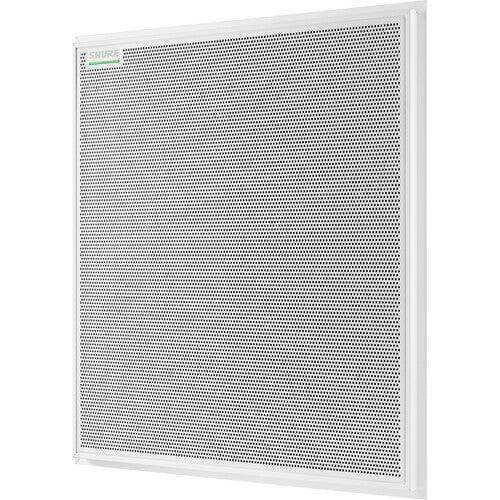

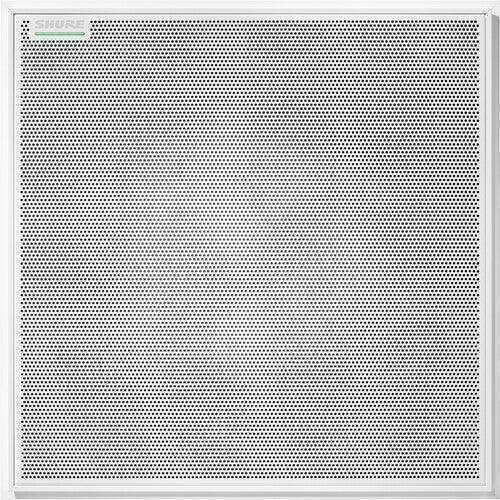

The white Shure MXA920-S is a 60cm square ceiling array microphone that is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement applications. The unit offers a powerful feature set, including Automatic Coverage and Steerable Coverage technology, that focuses audio capture to make sure everyone gets heard clearly for more productive meetings and presentations.

This 60cm version of the MXA920-S is designed for use with 60cm European ceiling tiles.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

  • For Meetings, Conferences, Presentations
  • Covers 30 x 30' Area, Requires No Setup
  • Automatic and Steerable Coverage Options
  • Captures Multiple Talkers, Encryption
  • Automatic Mixing and Gain Control
  • Noise Reduction and Echo Cancellation
  • Dante, PoE, and Audio via Single Cable
  • 8 Pickup Lobes with Individual Outputs
  • Designer System Configuration Software
  • For Use with 60cm European Ceiling Tiles
General
Compatibility Shure Microflex Advance
Microphone Frequency Response: 125 Hz to 20 kHz
Sensitivity: −1.74 dBFS/Pa (at 1 kHz)
Maximum SPL: 95.74 dB SPL (Relative to 0 dBFS Overload)
Signal-to-Noise Ratio: 75.76 dB A-Weighted (Ref. 94 dB SPL at 1 kHz)
Latency: 26.6 ms (Automix Output, Includes IntelliMix Processing, Does Not Include Dante Latency)
Self Noise: 18.24 dB SPL-A
Dynamic Range: 77.5 dB
DSP: Automatic Mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)
Acoustic Echo Cancellation Tail Length: Up to 250 ms
Coverage Coverage Type: Automatic or Steerable
Inputs / Outputs
Audio I/O 1x RJ45 AES67 Input/Output
Digital AES67 or Dante Digital Output
Channel Count
Automatic Coverage On: 2 Total Channels (1 Output, 1 AEC Reference in Channel)
Automatic Coverage Off: 10 Total Channels (8 Independent Transmit Channels, 1 Automix Output, 1 AEC Reference in Channel)
Sampling Rate: 48 kHz
Bit Depth: 24
Power
Power Source PoE
Power Consumption 10.1 W (Maximum)
Supported Cable Types Cat5e or Higher (Shielded Cable Recommended)
Environmental
Environmental Protection Dust-Resistant (IP5X)
Certifications FCCPart 15, ICES-003, CE, PlenumUL2043 (Suitable for Air Handling Spaces)
Operating Temperature 20 to 104°F / -6 to 40°C
Storage Temperature -20 to 165°F / -28 to 73°C
Physical
Mounting Multiple x Ceiling
Color White
Dimensions 9.2 x 9.2 x 2.1" / 23.38 x 23.38 x 5.4 cm
Weight 11.9 lb / 5.4 kg

At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.

  • Most in-stock orders placed Monday-Friday before 1PM PST ship the same day. Orders placed after 1PM will ship the next day of business. General restrictions apply; please see our full shipping policy here.
  • We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
