Shure MXA920W-R Microflex Advance Ceiling Microphone Array (White, Round)
Shure MXA920W-R Microflex Advance Ceiling Microphone Array (White, Round) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MXA920W-R Microflex Advance Ceiling Microphone Array (White, ...

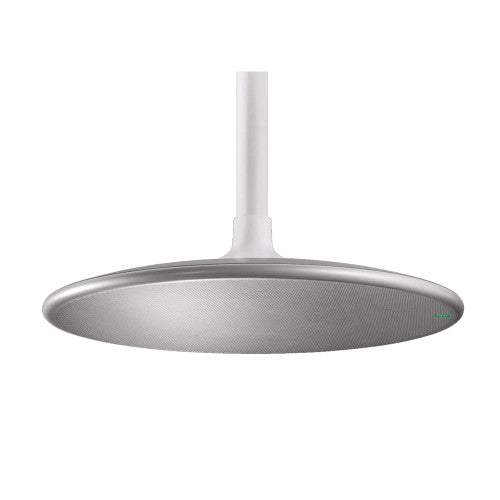

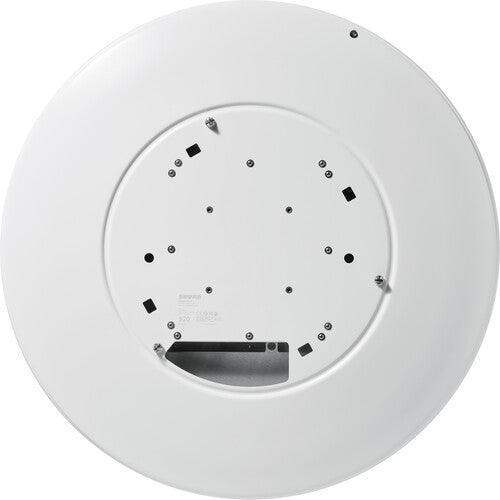

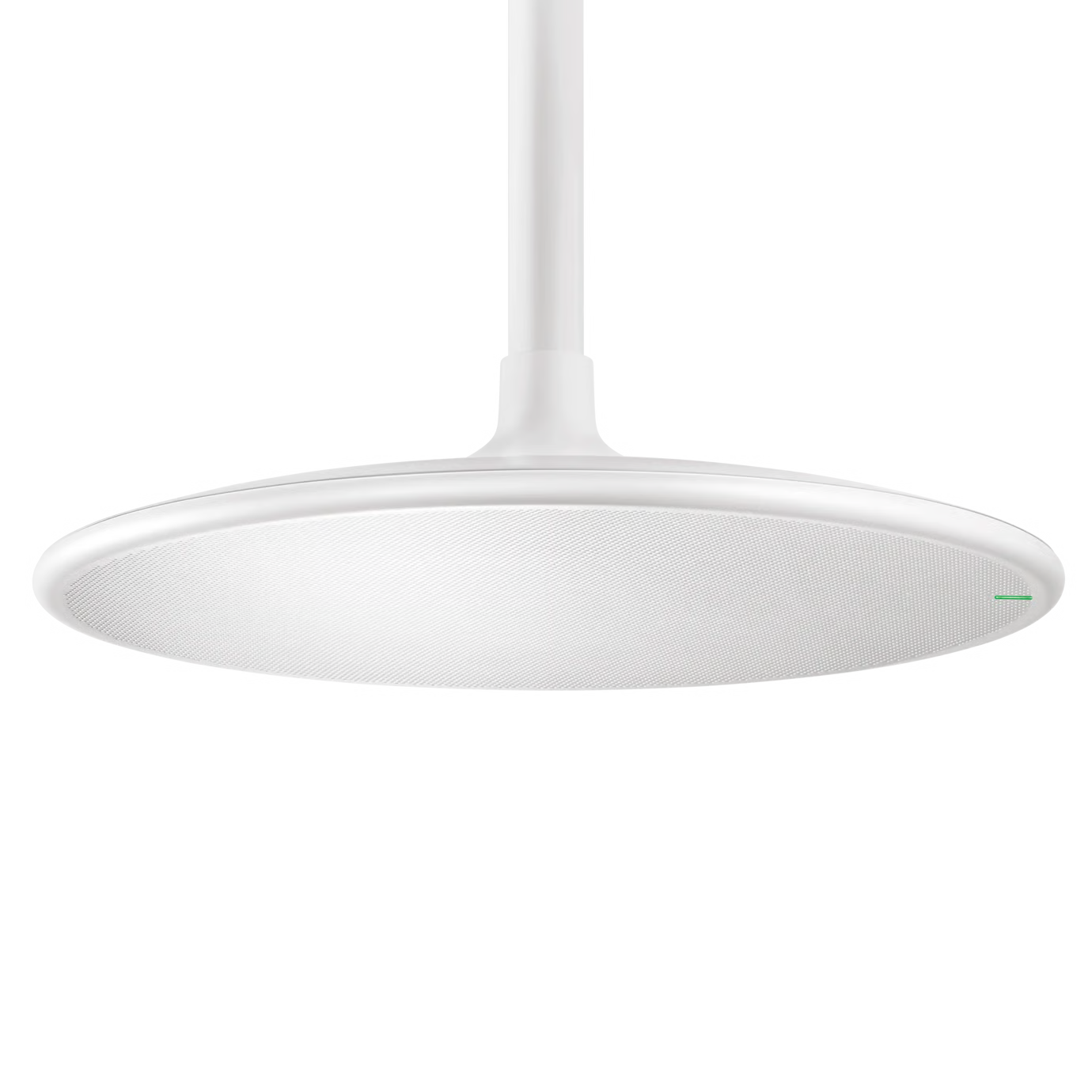

The Shure MXA920W-R is a round ceiling microphone array from the Microflex Advance series, engineered for professional conferencing and meeting spaces. It features Automatic Coverage technology that provides consistent room-wide pickup without manual lobe aiming, along with steerable pickup lobes for precise focus on specific areas or talkers when needed. This ensures clear, intelligible speech capture even in large or complex rooms.

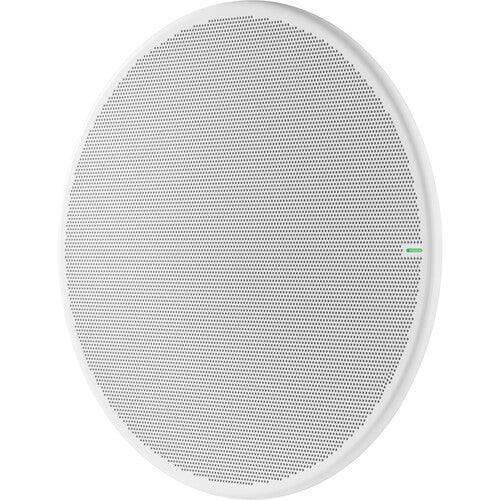

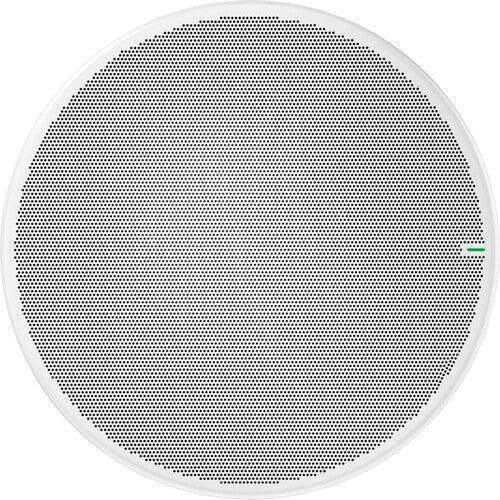

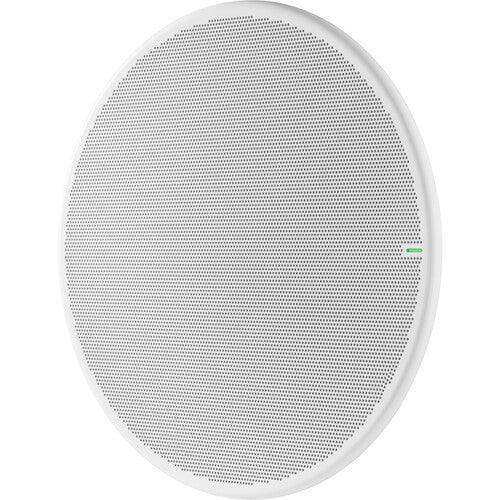

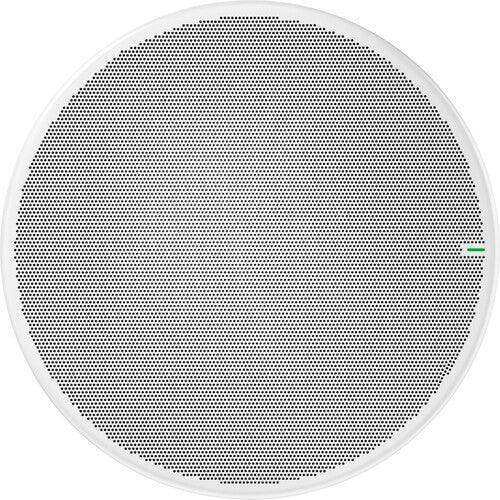

The low-profile round design with a paintable white grille blends discreetly into modern ceilings, while Dante/AES67 networked audio and PoE+ power simplify installation with a single cable for audio, control, and power. Onboard IntelliMix DSP delivers automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control, reducing the need for external processors.
| Feature | Benefit |
|---|---|
| Automatic Coverage Technology | Delivers consistent room-wide pickup without manual configuration |
| Steerable Pickup Lobes | Allows precise targeting of specific areas or talkers |
| Low-Profile Round Design | Blends seamlessly into modern ceiling architecture |
| Paintable White Grille | Supports custom color matching for architectural integration |
| Dante/AES67 Networked Audio | Enables single-cable installation for audio, control, and power |
| PoE+ Powered Operation | Simplifies deployment without separate power supplies |
| Onboard IntelliMix DSP | Provides automatic mixing, echo cancellation, noise reduction, and AGC |
| Shure Audio Encryption | Protects audio content in secure enterprise environments |
| Specification | Details |
|---|---|
| Microphone Type | Ceiling Array Microphone |
| Coverage | Automatic Coverage with steerable lobes |
| Polar Pattern | Cardioid per lobe |
| Network Connectivity | Dante / AES67 |
| Power Requirement | PoE+ (Class 4) |
| Mounting | Drop ceiling installation |
| Color | White (paintable grille) |
| Applications | Conference rooms, boardrooms, hybrid collaboration spaces |
| Compatibility | Microflex Ecosystem, Microsoft Teams, Zoom Rooms |
| Aspect | Shure MXA920W-R | Shure MXA920B-R | Shure MXA710W-4FT |
|---|---|---|---|
| Form Factor | Round ceiling array | Round ceiling array | Linear ceiling array |
| Coverage Technology | Automatic Coverage + steerable lobes | Automatic Coverage + steerable lobes | Steerable Coverage |
| Channel Count | 8 channels | 8 channels | 8 channels |
| Primary Use | Large/medium rooms | Large/medium rooms | Linear coverage |
| Installation | Drop ceiling | Drop ceiling | Ceiling or suspended |
| DSP | Onboard IntelliMix | Onboard IntelliMix | Onboard IntelliMix |
FAQ
- What room sizes is the MXA920W-R best suited for? It is optimized for medium to large conference rooms and collaboration spaces.
- Does it require manual lobe aiming? No, Automatic Coverage provides consistent pickup; lobes can be steered when needed.
- Is networking required? Yes, it uses Dante/AES67 for single-cable installation of audio, control, and power via PoE+.
- Can the grille be painted? Yes, the white grille is paintable to match the ceiling.
- Does it include onboard DSP? Yes, it features IntelliMix DSP for automatic mixing, echo cancellation, and noise reduction.
- Is it compatible with major conferencing platforms? Yes, it integrates seamlessly with the Microflex Ecosystem and supports Microsoft Teams, Zoom, and other platforms.
