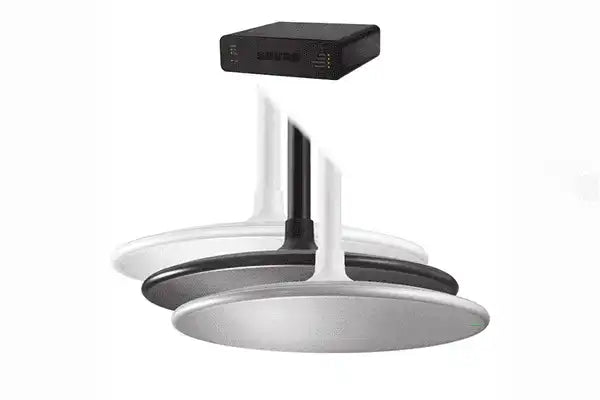

Shure MXA920-R and P300 Bundle includes:
- (1) MXA920-R
- (1) ANIUSB-MATRIX
MXA920-R
Automatic Coverage™ technology requires no setup yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 ceiling array microphone is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.
This new addition to the Microflex® Ecosystem portfolio brings a simplified deployment experience and enhanced audio performance, all packed in a familiar square as well as new round form factor that opens up more architectural possibilities.
The MXA920 introduces Automatic Coverage™ technology that no longer requires the aiming of lobes, minimizing setup time and effort. In addition to 9x9 m (30x30 ft) out-of-box room coverage, deploy up to 8 fully-adjustable coverage zones to capture only the talkers you want, in multiple areas of the room, while avoiding areas you don’t.
The microphone employs redesigned, next generation array architecture that provides enhanced directionality and more natural speech, plus onboard IntelliMix® DSP for noise- and echo-free performance.
It delivers unrivaled scalability and flexibility to address challenging user demands in applications ranging from AV conferencing to camera tracking and voice lift in premium meeting spaces.

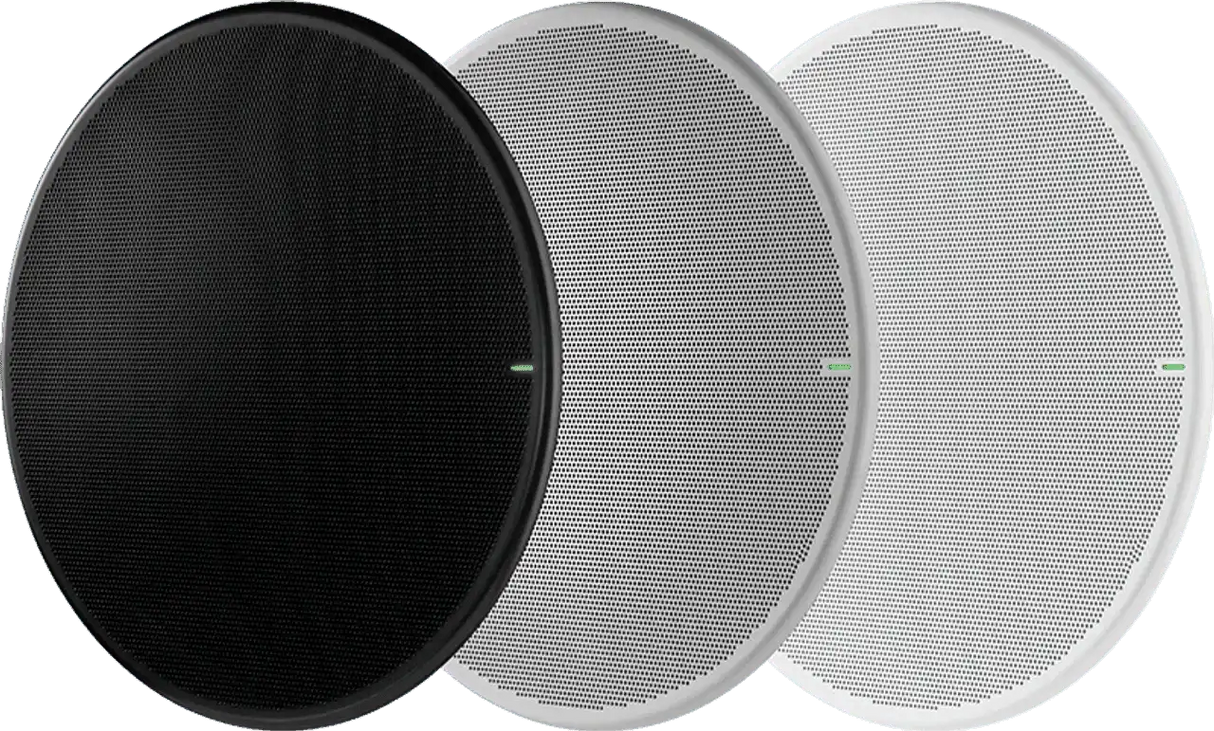

The new Ceiling Array Microphone is available in both square and round form factors with multiple mounting options. The square form factor is available in white only, while the round form factor is available in three color options (all paintable).
At launch, the MXA920 is certified for Microsoft Teams Rooms when used with the IntelliMix® P300 Audio Conferencing Processor and Microflex™ MXN5W-C Networked Loudspeaker. Further certification testing is in progress and will be announced later.
MXA920 Spec Sheet
ANIUSB-MATRIX

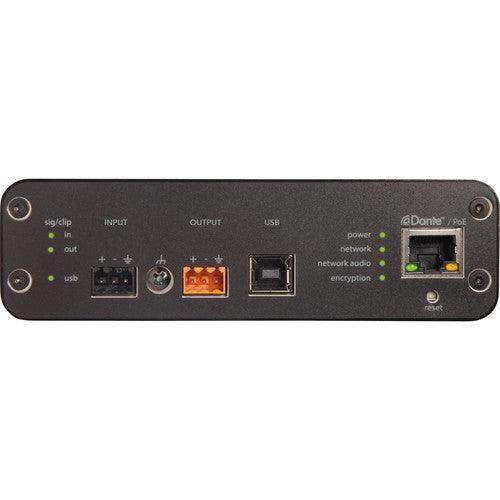

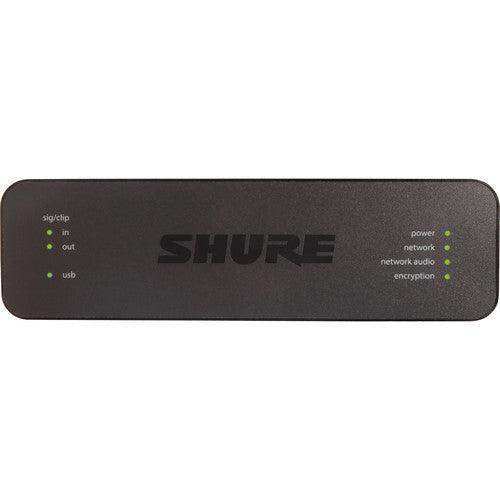

The ANIUSB-MATRIX USB Audio Network Interface from Shure is designed for audio/video conferencing installations in small and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs. The ANIUSB-MATRIX is compact and easy to mount without an equipment rack.
- Connects 4 Dante audio inputs and 1 analog input to an A/V conferencing system or a PC-based videoconferencing application
- Flexible signal routing and connectivity: analog audio (1 block in/1 block out) to room A/V conferencing system; USB (1 in/out) to connect to laptop or room PC
- Power over Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
ANIUSB-MATRIX Spec Sheet
