Shure MXA902W-S-TA Microflex Advance Ceiling Array Microphone & Loudspeaker (24", White) (TAA-Compliant)

Shure SKU: MXA902W-S-TA
No reviews

Description

Please call or email our sales for team for pricing, consultation, and more info

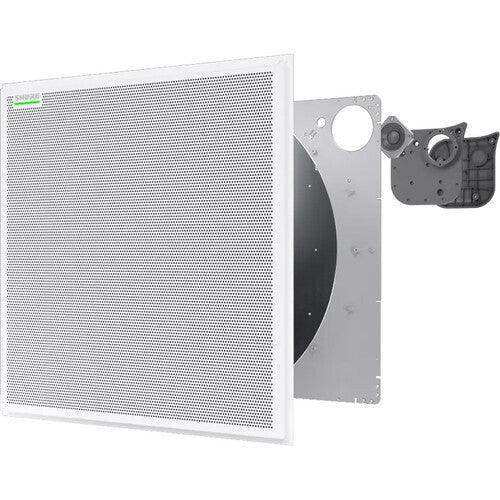

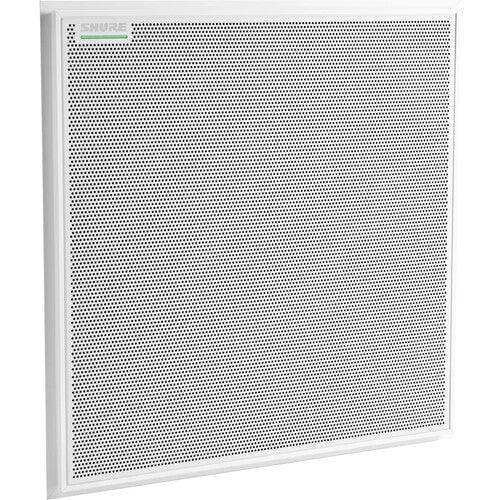

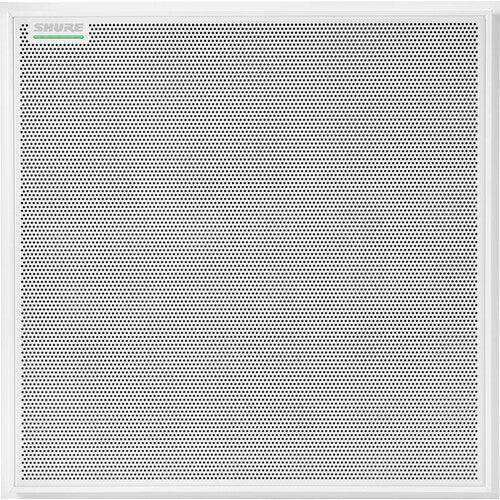

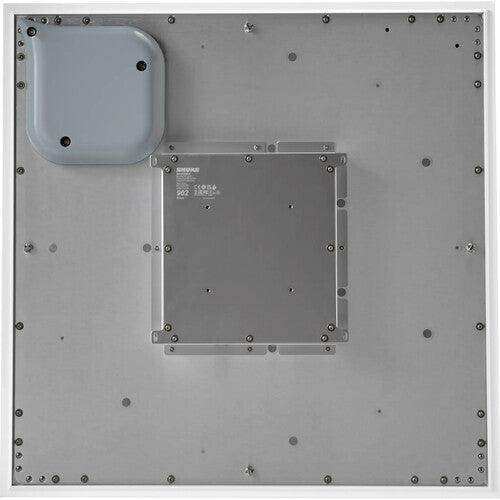

The 24", square, white MXA902 from Shure combines a microphone array and loudspeaker in one elegant solution—ready for ceiling installation in boardrooms, meeting spaces, and similar environments. The mic and speaker are designed to cover a 20 x 20' area right out of the box, and the unit requires only a single network connecting cable for power, control data, and encrypted audio.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

  • For Conferencing & Meeting Applications
  • Microphone & Loudspeaker in One Unit
  • Single Zone Coverage of 20 x 20' Area
  • 1 Cable for Power (PoE+), Audio & Data
  • Supports Dante and AES67
  • Speaker Optimized for Voice Reproduction
  • IntelliMix DSP for Clear, Natural Speech
  • Configurable LED Status Bar, Encryption
  • Fits Standard 24" USA Ceiling Tiles
  • Ceiling, Pole, or Wire Rope Suspension
General
Compatibility Shure Microflex Advance
Inputs / Outputs
Audio I/O 1x RJ45 Input/Output
Coverage Coverage Area Size: 20 x 20" / 6.1 x 6.1 m
Microphone Frequency Response: 125 Hz to 20 kHz
Sensitivity: −1.74 dBFS/Pa (at 1 kHz)
Maximum SPL: 95.74 dB SPL (Relative to 0 dBFS Overload)
Signal-to-Noise Ratio: 75.76 dB A-Weighted (Ref. 94 dB SPL at 1 kHz)
Latency: 26.6 ms (Does Not Include Dante Latency)
Self Noise: 18.24 dB SPL-A
Dynamic Range: 77.5 dB
DSP: Automatic Mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)
Acoustic Echo Cancellation Tail Length: Up to 250 ms
Digital Microphone
AES67 or Dante Digital Output
Channel Count: 1 Output Channel
Sampling Rate: 48 kHz
Loudspeaker
AES67 or Dante Digital Input
Channel Count:2 Input Channels
Bit Depth: 24
Speaker Frequency Range (−10 dB): 120 Hz to 20 kHz
Maximum Output Level at 3.3' / 1 m
Pink Noise: 86 dB SPL
1 kHz Sine Tone: 88 dB SPL
Coverage Angle: 80° (Average of 1 Octave Band Centered on 4 kHz)
DSP: Delay, Compressor, Signal Generator, Equalizer (4-Band Parametric)
Latency: 6.3 ms (Not Including Dante Latency)
Power
Power Source PoE
Power Consumption 24 W (Maximum)
Environmental
Certifications REACH, FCC, WEEE, CE, UKCA, ICES-003, PlenumUL2043
Operating Temperature 20 to 104°F / -6 to 40°C
Storage Temperature -20 to 165°F / -28 to 73°C
Physical
Color White
Dimensions 23.8 x 2.21 x 0.4" / 603.8 x 56.04 x 10.5 mm
Weight 12.7 lb / 5.8 kg
