Shure MXA902W-S – 60cm Ceiling Array Audio Kit

Product Overview

The Shure MXA902W-S is an integrated ceiling microphone and loudspeaker system designed for small to medium conference room audio installations where minimizing visible AV hardware matters. This ceiling microphone conferencing kit combines an array microphone, a wide-dispersion loudspeaker, and onboard DSP into a single 60cm ceiling tile, paired with the ANIUSB-MATRIX for USB connectivity to a room PC or codec. It is built for AV integrators handling a commercial conference room installation who need a pre-configured, single-cable audio solution rather than separate microphone, speaker, and processor components.

Product Description

The MXA902W-S is a combination ceiling array microphone and loudspeaker in one enclosure, using Single-Zone Automatic Coverage technology to capture audio from a 20 x 20 ft (6 x 6 m) area right out of the box, with no manual lobe configuration required. An integrated 2.5-inch wide-dispersion loudspeaker handles playback from the same unit, and onboard IntelliMix DSP applies acoustic echo cancellation, noise reduction, automatic gain control, and equalization directly on the device. This makes the MXA902W-S well suited to conference room AV installation projects where reducing the number of individually mounted components is a priority, since the microphone, speaker, and processing all live in a single ceiling tile footprint.

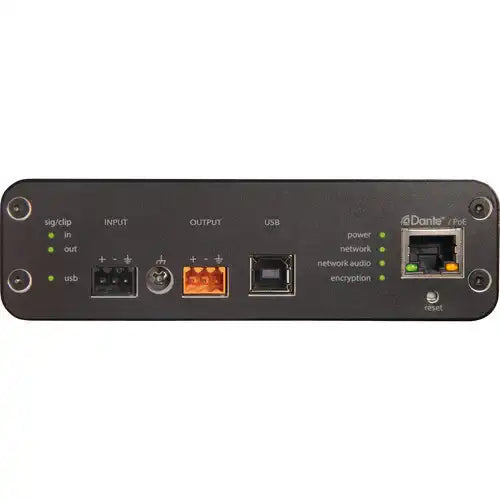

The bundle pairs the MXA902W-S with the ANIUSB-MATRIX USB audio network interface, which provides the USB connection to a laptop, room PC, or USB-based conferencing codec along with 4-band parametric EQ on the USB and analog outputs. The kit is certified for Microsoft Teams and Zoom Rooms and is compatible with Google Meet, covering the majority of commercial deployment scenarios. Power over Ethernet Plus (PoE+) runs both devices on standard network cabling. The MXA902W-S ships with a paintable white finish designed to blend into ceiling tiles, and its pre-configured, pre-routed design reduces on-site commissioning time compared to assembling a microphone, speaker, and DSP from separate SKUs. This makes it a practical option for huddle room and small conference room commercial deployment where install speed and a clean ceiling aesthetic both matter.

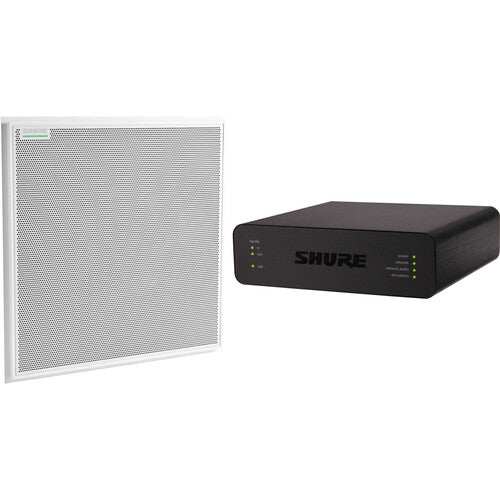

Included in the box: (1) MXA902W-S ceiling array microphone/loudspeaker, (1) ANIUSB-MATRIX USB audio network interface, mounting hardware and cables.

Key Features

• Integrated Mic, Speaker, and DSP — Array microphone, 2.5-inch loudspeaker, and IntelliMix DSP combined in a single ceiling-mounted unit.
• Single-Zone Automatic Coverage — Captures audio across a 20 x 20 ft (6 x 6 m) area with no manual lobe setup.
• Onboard IntelliMix DSP — Acoustic echo cancellation, noise reduction, automatic gain control, and EQ processed directly on the device.
• Platform Certification — Certified for Microsoft Teams and Zoom Rooms, compatible with Google Meet.
• ANIUSB-MATRIX USB Interface — USB connectivity with 4-band parametric EQ for connection to a PC or conferencing codec.
• Single-Cable PoE+ Installation — One network cable delivers power and data to the ceiling unit.

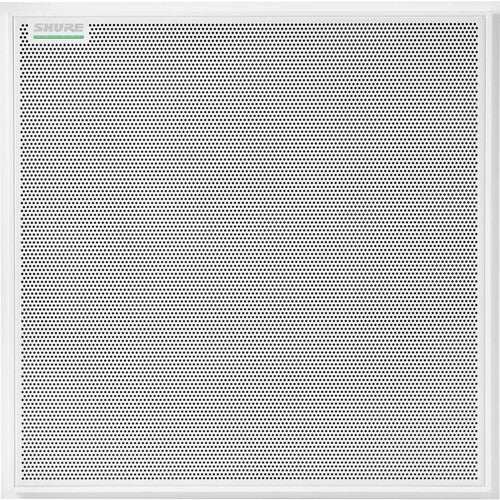

• Paintable White Finish — Blends into standard drop-ceiling installations for a clean aesthetic.

Typical Applications

• Huddle room
• Conference room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does this kit require configuring microphone coverage zones after installation?
No. Single-Zone Automatic Coverage is active out of the box, covering a 20 x 20 ft area without manual lobe configuration, though settings can be fine-tuned in Shure Designer if needed.

Is this kit compatible with Microsoft Teams and Zoom Rooms?
Yes. The MXA902W-S plus ANIUSB-MATRIX kit is certified for Microsoft Teams and Zoom Rooms and is compatible with Google Meet.

What ceiling types does the MXA902W-S fit?

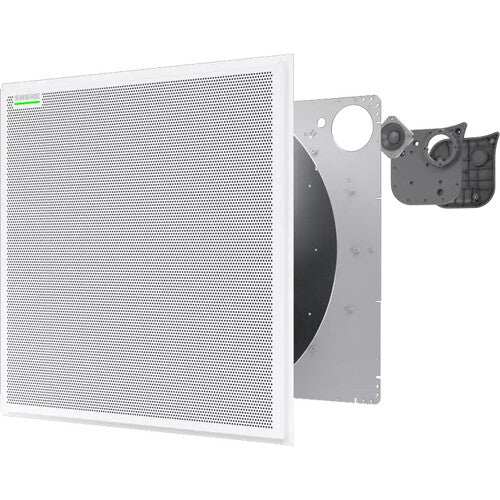

It is sized for standard 60cm (24 in) ceiling tiles, with optional pole or wire rope suspension mounting for spaces without a compatible drop ceiling.

What network infrastructure is required for installation?
Both the MXA902W-S and the ANIUSB-MATRIX are PoE+ powered, so a PoE+ capable network switch is needed at each device location.

Can additional Shure microphones be added to the ANIUSB-MATRIX?
Yes. The ANIUSB-MATRIX supports up to 4 Dante channels from compatible Microflex Advance or Microflex Wireless devices, allowing expansion within its channel limit.

What warranty applies to the MXA902W-S?
The MXA902W-S carries a 2-year limited warranty from Shure. Contact Creation Networks for current ANIUSB-MATRIX warranty terms.

Does Creation Networks support commercial deployment of this kit?
Yes. Our AV consultants can help with network planning, PoE+ switch sizing, and Shure Designer configuration for this kit.
