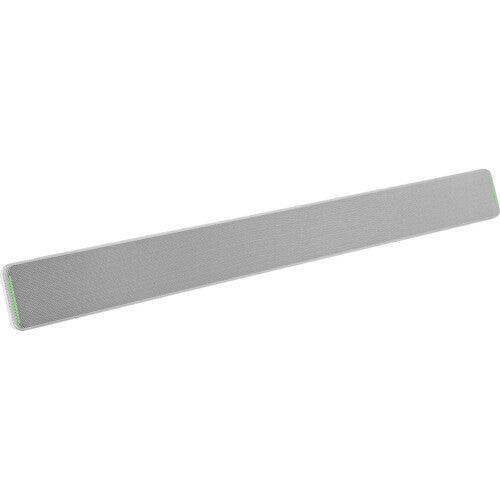

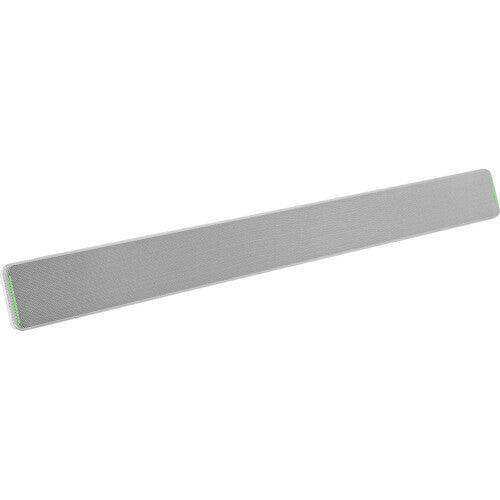

Shure MXA710W-2FT Linear Array Microphone (White, 2 Ft)
The Shure MXA710W-2FT is a 2-foot linear ceiling microphone array from the Microflex Advance series, designed for professional conferencing and meeting spaces. It features Steerable Coverage technology with up to eight independent cardioid pickup lobes that can be precisely aimed at participants, providing excellent off-axis rejection and reducing unwanted room noise.
The low-profile 2-foot linear design with a paintable white grille blends discreetly into modern ceilings or can be suspended, while Dante/AES67 networked audio and PoE+ power simplify installation with a single cable for audio, control, and power. Onboard IntelliMix DSP delivers automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control, reducing the need for external processors.
| Feature | Benefit |
|---|---|
| Steerable Coverage Technology | Allows precise aiming of up to eight cardioid lobes at participants |
| Excellent Off-Axis Rejection | Reduces unwanted room noise and improves speech intelligibility |
| Low-Profile 2-Foot Linear Design | Blends discreetly into modern ceilings or can be suspended |
| Paintable White Grille | Supports custom color matching for architectural integration |
| Dante/AES67 Networked Audio | Enables single-cable installation for audio, control, and power |
| PoE+ Powered Operation | Simplifies deployment without separate power supplies |
| Onboard IntelliMix DSP | Provides automatic mixing, echo cancellation, noise reduction, and AGC |
| Shure Audio Encryption | Protects audio content in secure enterprise environments |
| Specification | Details |
|---|---|
| Microphone Type | Linear Ceiling Array Microphone |
| Coverage | Steerable Coverage with up to 8 lobes |
| Polar Pattern | Cardioid per lobe |
| Network Connectivity | Dante / AES67 |
| Power Requirement | PoE+ (Class 2) |
| Mounting | Ceiling or suspended |
| Length | 2 ft (0.61 m) |
| Color | White (paintable grille) |
| Applications | Conference rooms, boardrooms, hybrid collaboration spaces |
| Compatibility | Microflex Ecosystem, Microsoft Teams, Zoom Rooms |
| Aspect | Shure MXA710W-2FT | Shure MXA710AL-2FT | Shure MXA920W-S |
|---|---|---|---|
| Form Factor | 2 ft linear array | 2 ft linear array | Square ceiling array |
| Coverage Technology | Steerable Coverage | Steerable Coverage | Automatic Coverage + steerable lobes |
| Channel Count | 8 channels | 8 channels | 8 channels |
| Primary Use | Smaller linear coverage | Smaller linear coverage | Large/medium rooms |
| Installation | Ceiling or suspended | Ceiling or suspended | Drop ceiling |
| DSP | Onboard IntelliMix | Onboard IntelliMix | Onboard IntelliMix |
FAQ
- What room sizes or layouts is the MXA710W-2FT best suited for? It is ideal for smaller or narrower tables and linear coverage in conference rooms.
- How many pickup lobes does it support? It supports up to eight independent steerable cardioid lobes.
- Is networking required? Yes, it uses Dante/AES67 for single-cable installation of audio, control, and power via PoE+.
- Can the grille be painted? Yes, the white grille is paintable to match the ceiling.
- Does it include onboard DSP? Yes, it features IntelliMix DSP for automatic mixing, echo cancellation, and noise reduction.
- Is it compatible with major conferencing platforms? Yes, it integrates seamlessly with the Microflex Ecosystem and supports Microsoft Teams, Zoom, and other platforms.
