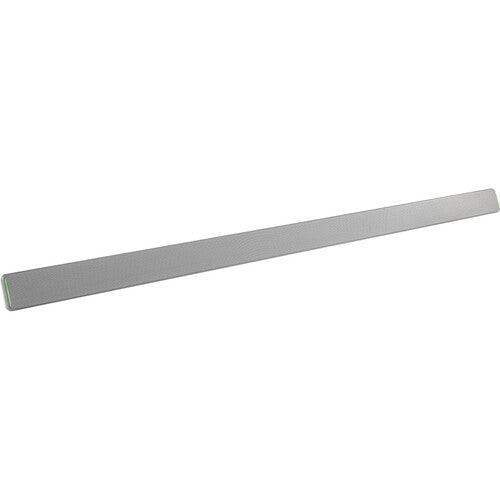

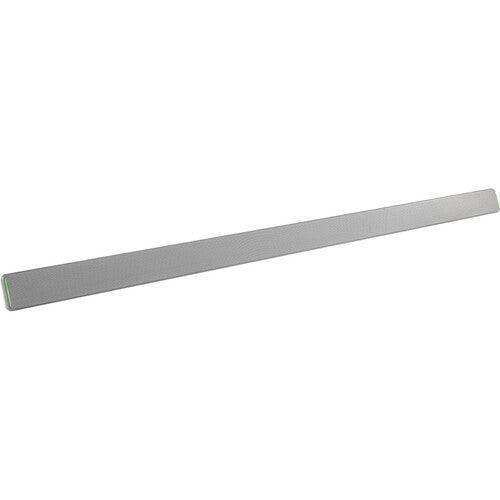

Shure MXA710AL-4FT-TA Microflex Advance Linear Array Microphone (4', Aluminum) (TAA-Compliant)
Roll over image to zoom in Click on image to zoom
Shure MXA710AL-4FT-TA Microflex Advance Linear Array Microphone (4', Aluminum) (TAA-Compliant)
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Shure MXA710AL-4FT-TA Microflex Advance Linear Array Microphone (4', Aluminum) (TAA-Compliant)

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: MXA710AL-4FT-TA
No reviews

Description

Please call or email our sales for team for pricing, consultation, and more info

With an aluminum finish and a sleek design that's well suited to today's modern workspaces, the 4' Shure MXA710 linear array microphone is easy to install and delivers high-quality audio capture for AV conferencing. The versatile, linear form factor can be placed on the wall, ceiling, or tabletop, and a single cable provides Power over Ethernet (PoE) and Dante networking for audio and control data transfer. Built-in proprietary IntelliMix DSP and Autofocus technology provides all the processing needed for echo- and noise-free audio in small spaces, while the unit can be used with the Intellimix P300 DSP (available separately) or Intellimix Room software-based DSP for larger spaces with additional components.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

  • For Premium AV Conferencing Environments
  • 8 Lobes of Steerable Coverage
  • 100 Built-In MEMS Microphones
  • Autofocus Optimizes Pickup
  • Onboard IntelliMix DSP for Clear Speech
  • Sleek Form for Ceiling, Wall, or Table
  • Vertical or Horizontal Wall Orientation
  • Single Cable for Dante and Power (PoE)
  • AES-256 Encryption
  • Quick & Easy Default Coverage Templates
General
Compatibility Shure Microflex Advance
Frequency Response 100 Hz to 20 kHz
Sensitivity -7.9 dBFS/Pa
Maximum SPL 101.9 dB
Signal to Noise Ratio 71.2 dB A-Weighted (Ref. 94 dB SPL at 1 kHz)
Latency Does Not Include Dante Latency
Direct Outputs:8.7 ms
Automix Output (Includes IntelliMix Processing)19.3 ms
Noise Self Noise: 22.8 dB SPL-A
Dynamic Range 79.1 dB
DSP Automatic Mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)
Acoustic Echo Cancellation Tail Length: Up to 250 ms
Network Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended)
Digital AES67 or Dante Digital Output
10 Total Channels (8 Independent Transmit Channels, 1 Automix Output, 1 AEC Reference in Channel)
Sampling Rate 48 kHz
Bit Depth 24
Type of Microphone 100 MEMS
Angle of Coverage Adjustable
Narrow: 30 degrees
Medium: 40 degrees
Wide: 70 degrees
Inputs / Outputs
Audio I/O 1x RJ45 Input/Output
Wireless
Mobile App Compatible No
Power
Power Source PoE
Power Consumption 10 W (Maximum)
Environmental
Environmental Protection Dust-Resistant (IP5X)
Certifications CE, UL2043, IEC60529
Operating Temperature 20 to 104°F / -6 to 40°C
Storage Temperature -20 to 165°F / -28 to 73°C
Physical
Mounting Back: Multiple x Keyholes and Screw Holes
Color Black
Dimensions 49.1 x 2.4 x 0.9" / 1247.8 x 60 x 22.1 mm
Weight 3.7 lb / 1.7 kg
