Shure MXA320AL
Product Overview

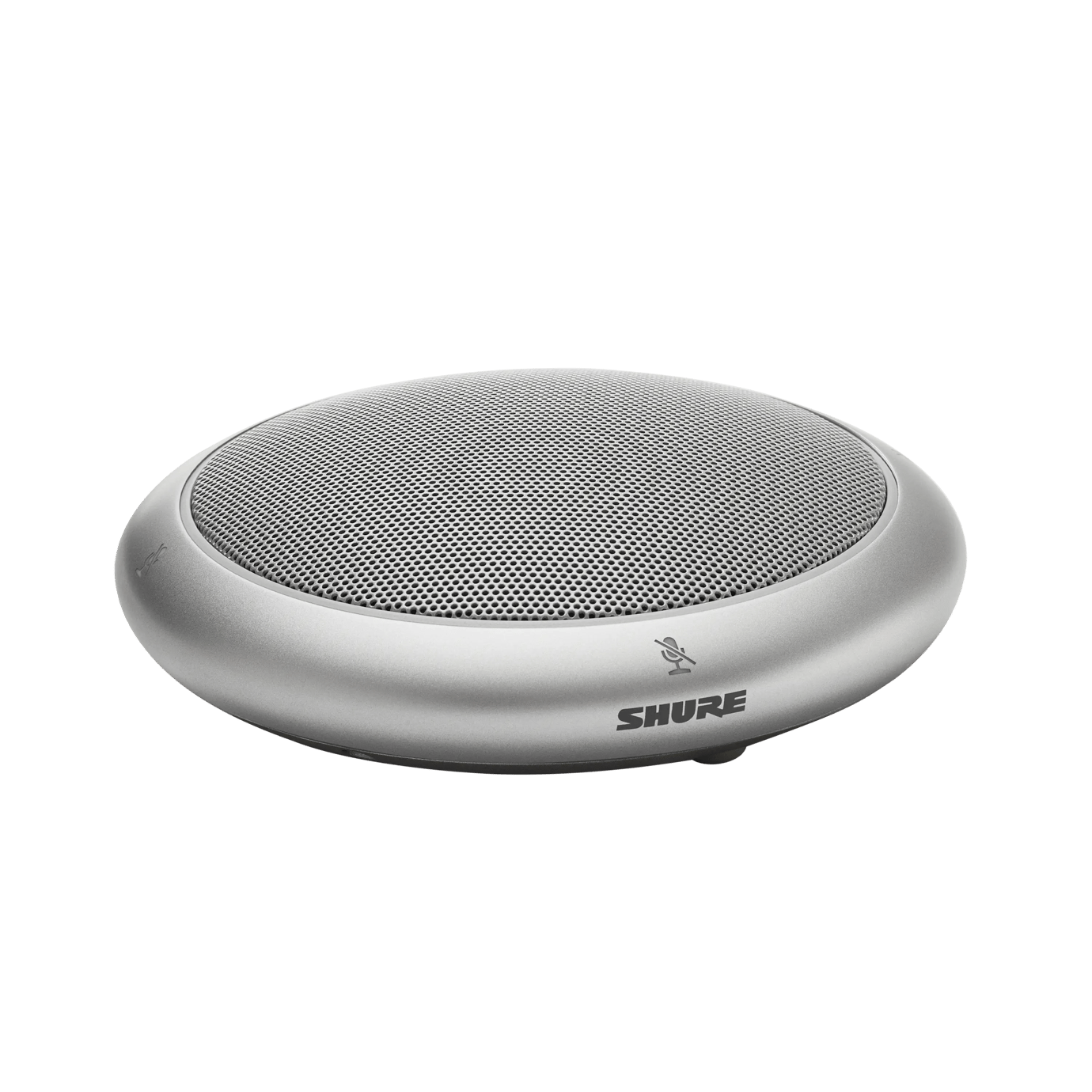

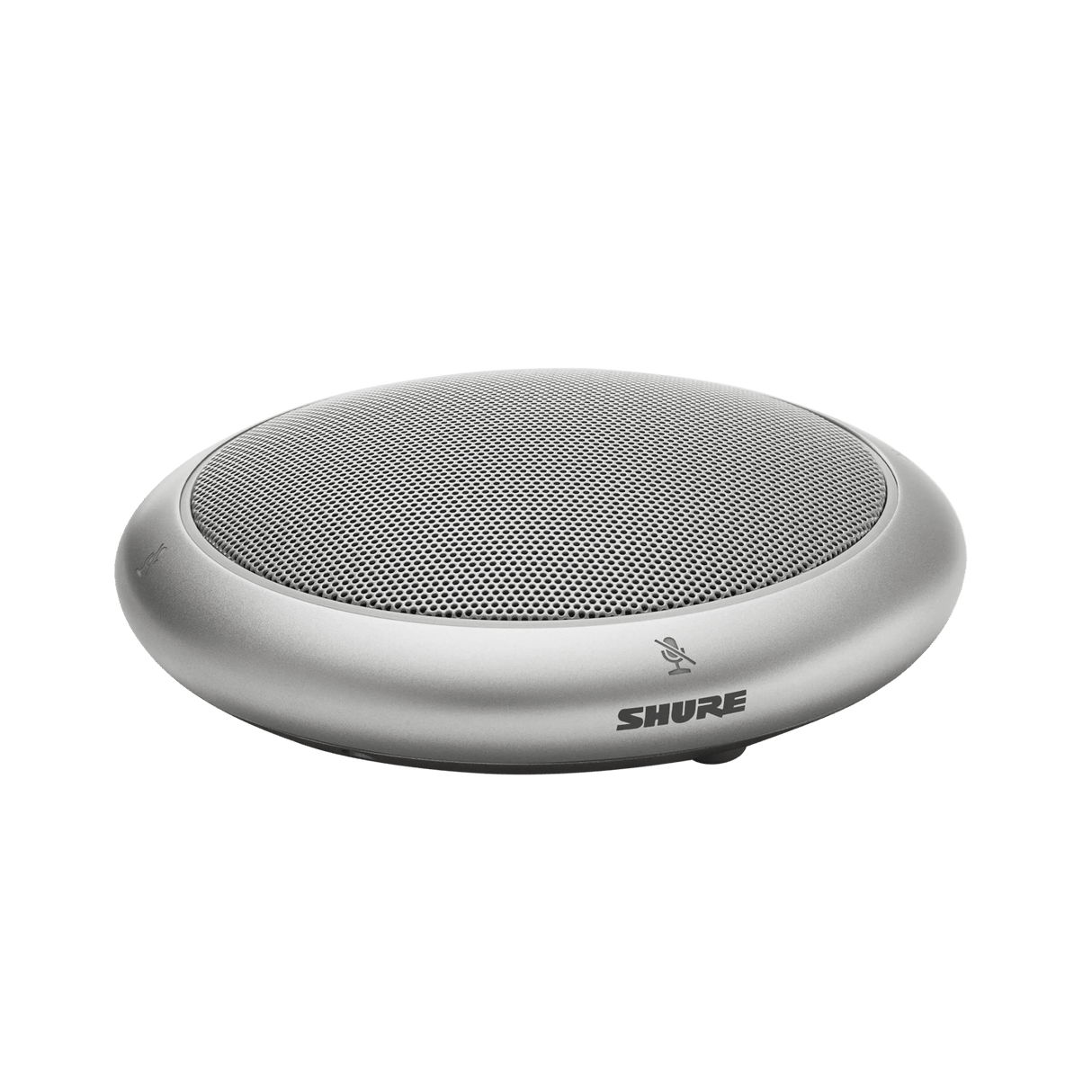

The Shure MXA320AL is a table array microphone built for boardroom, huddle room, and conference room installation projects that need Steerable Coverage pickup with onboard DSP in a compact tabletop device. This aluminum-finish table array microphone pairs Shure's Steerable Coverage technology with onboard IntelliMix DSP, giving AV integrators echo cancellation and noise reduction built into the microphone rather than requiring a separate rack-mount processor for smaller rooms.
Product Description
The MXA320 uses Steerable Coverage technology to configure up to four simultaneous polar patterns from a single tabletop device, with pattern options including cardioid, supercardioid, hypercardioid, bidirectional, omnidirectional, and Shure's toroid pattern, which captures table-level sound while rejecting overhead HVAC and projector noise. Onboard IntelliMix DSP handles acoustic echo cancellation, speech gating threshold, and noise reduction directly on the microphone, reducing the need for a separate DSP appliance in smaller room installations.
The MXA320AL connects over a single Ethernet cable carrying Dante audio networking, standard Class 0 PoE power, and device control, simplifying cable runs compared to a legacy analog table microphone requiring separate power and audio cabling. This aluminum finish suits boardrooms and conference rooms where a modern, understated tabletop microphone finish is preferred.
Key Features
- Steerable Coverage Technology — Configures up to four simultaneous polar patterns from a single tabletop device.
- Toroid Polar Pattern — Captures table-level sound while rejecting overhead HVAC and projector noise.
- Onboard IntelliMix DSP — Acoustic echo cancellation, speech gating, and noise reduction built into the microphone.
- Single-Cable Dante/PoE Networking — One Ethernet cable carries audio, power, and control.
Typical Applications
- Boardroom
- Conference room
- Huddle room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Coverage Technology | Steerable Coverage, up to 4 simultaneous polar patterns |
| Polar Patterns | Cardioid, supercardioid, hypercardioid, bidirectional, omnidirectional, toroid |
| Onboard DSP | IntelliMix DSP: acoustic echo cancellation, speech gating threshold, noise reduction |
| Networking | Dante audio networking; standard Class 0 PoE power and control over single Ethernet cable |
| Finish | Aluminum |
Frequently Asked Questions
Does the MXA320AL require a separate DSP appliance?
No. Onboard IntelliMix DSP handles echo cancellation and noise reduction directly on the microphone for smaller room installations.
What is the toroid polar pattern used for?
The toroid pattern captures table-level sound while rejecting overhead noise sources such as HVAC systems and projector fans.
What network infrastructure does installation require?
A PoE-capable network switch with Dante support; power, audio, and control all travel over a single Ethernet cable.
What warranty applies to this microphone?
Shure covers the MXA320AL under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.
