Shure MXA310AL Microflex Advance Table Array Microphone - Black
Shure MXA310AL Microflex Advance Table Array Microphone - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MXA310AL Microflex Advance Table Array Microphone - Black

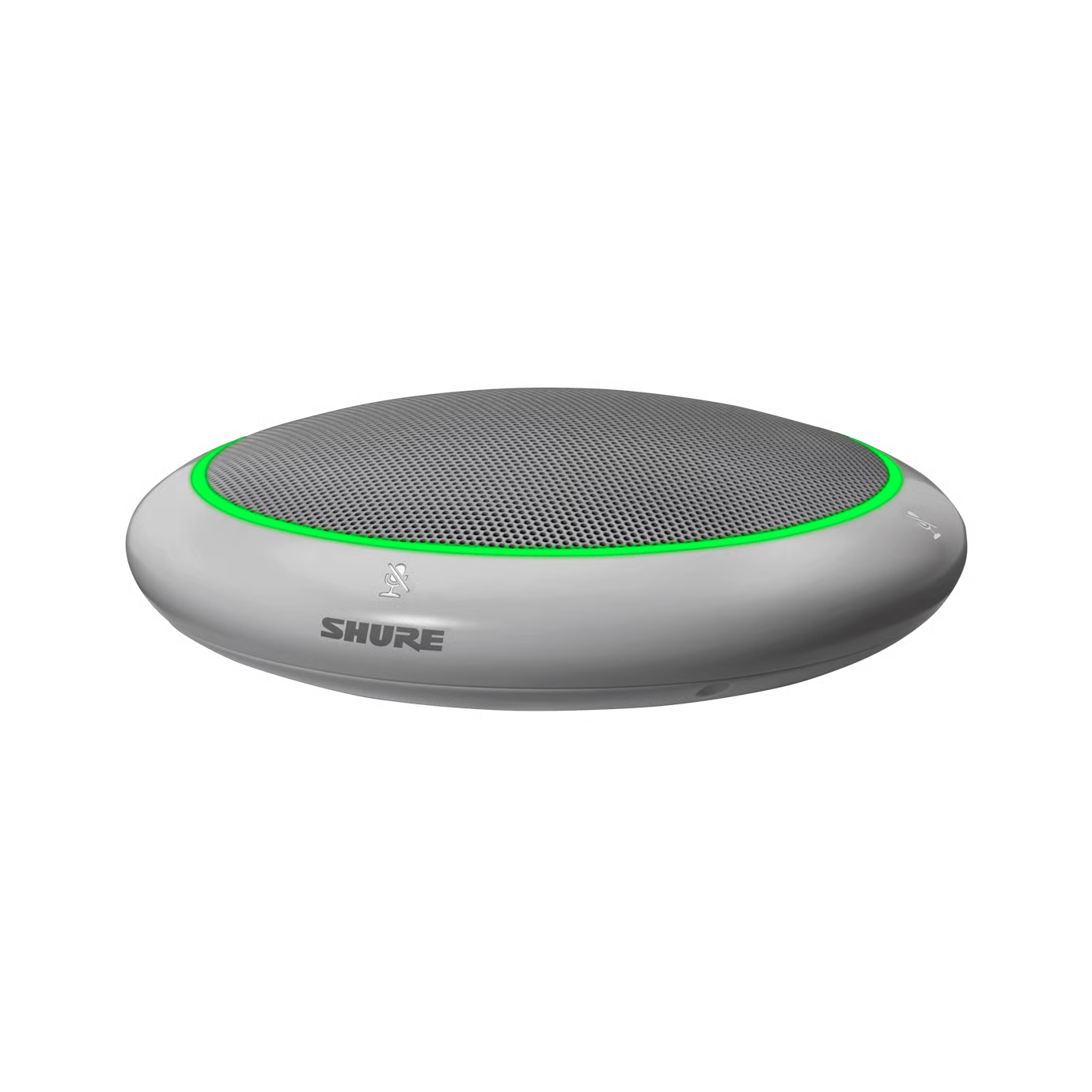

The Shure MXA310AL delivers premium audio capture for conferencing in boardrooms, huddle rooms, and multi-purpose spaces through its low-profile table array design and Steerable Coverage technology. It supports up to four simultaneous independent coverage zones with selectable polar patterns, including a unique toroid ring-shaped pattern that rejects overhead noise from HVAC systems or projectors while focusing on table-level voices. Built-in automatic mixing and 4-band parametric EQ ensure clear, intelligible sound with minimal setup effort.
This Dante-enabled microphone operates on a single Ethernet cable with Power over Ethernet, providing networked digital audio, control, and power in one connection. The configurable multi-color LED ring indicates mute status clearly, and programmable capacitive-touch mute switches offer flexible operation. Browser-based control software includes intuitive templates and presets for quick configuration, while compatibility with third-party systems like Crestron and AMX allows seamless integration into existing AV setups.
| Feature | Benefit |
|---|---|
| Steerable Coverage Technology | Allows independent aiming of up to four coverage zones in 15-degree increments for precise voice pickup around tables |
| Toroid Polar Pattern | Rejects unwanted overhead noise from HVAC or projectors while capturing clear table-level audio |
| Up to Four Simultaneous Polar Patterns | Supports Omnidirectional, Cardioid, Supercardioid, Hypercardioid, Bidirectional, and Toroid patterns for flexible room coverage |
| Built-in Automatic Mixing | Simplifies multi-participant audio management without external processors |
| Dante Networked Audio with PoE | Enables single-cable installation for audio, power, and control with AES67 support |

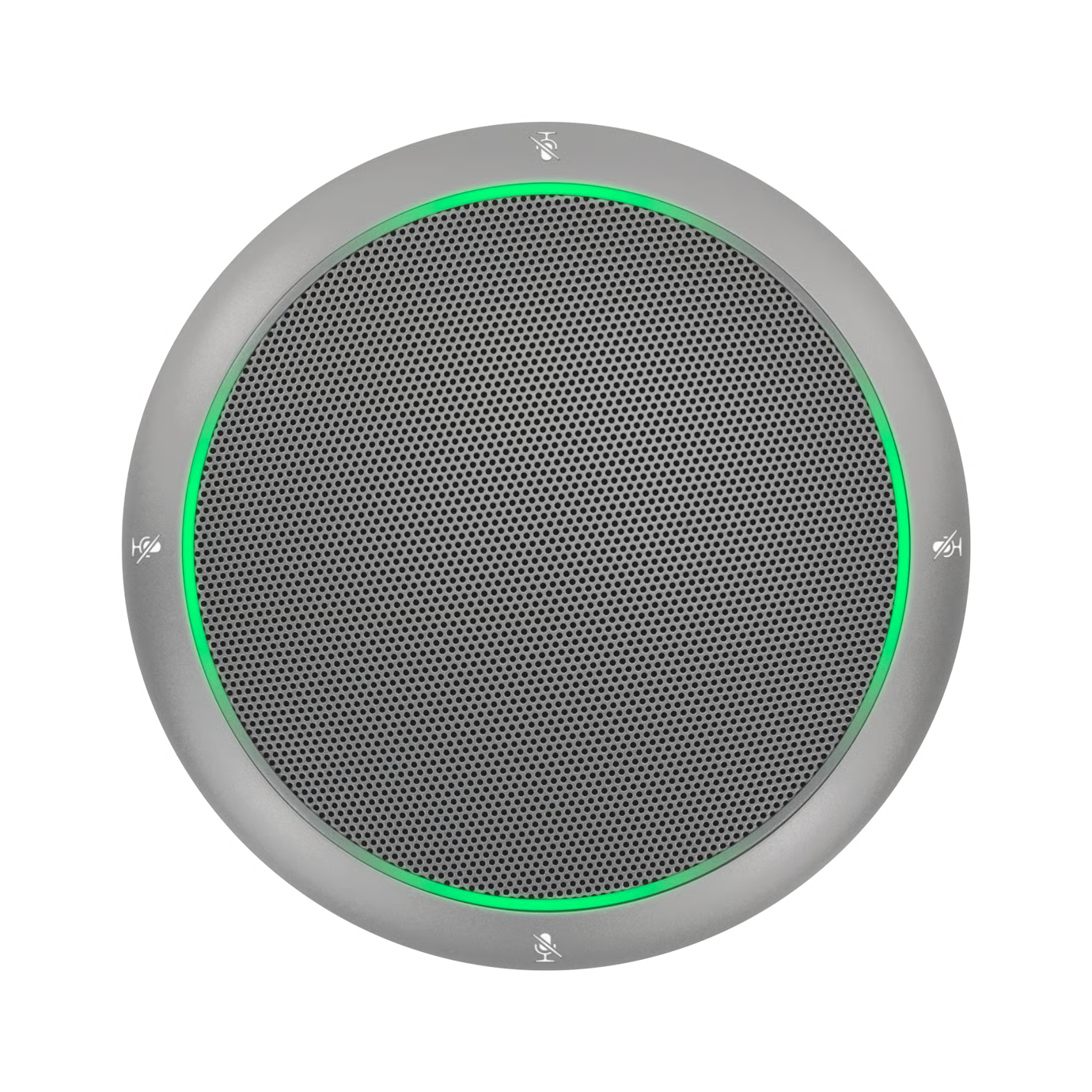

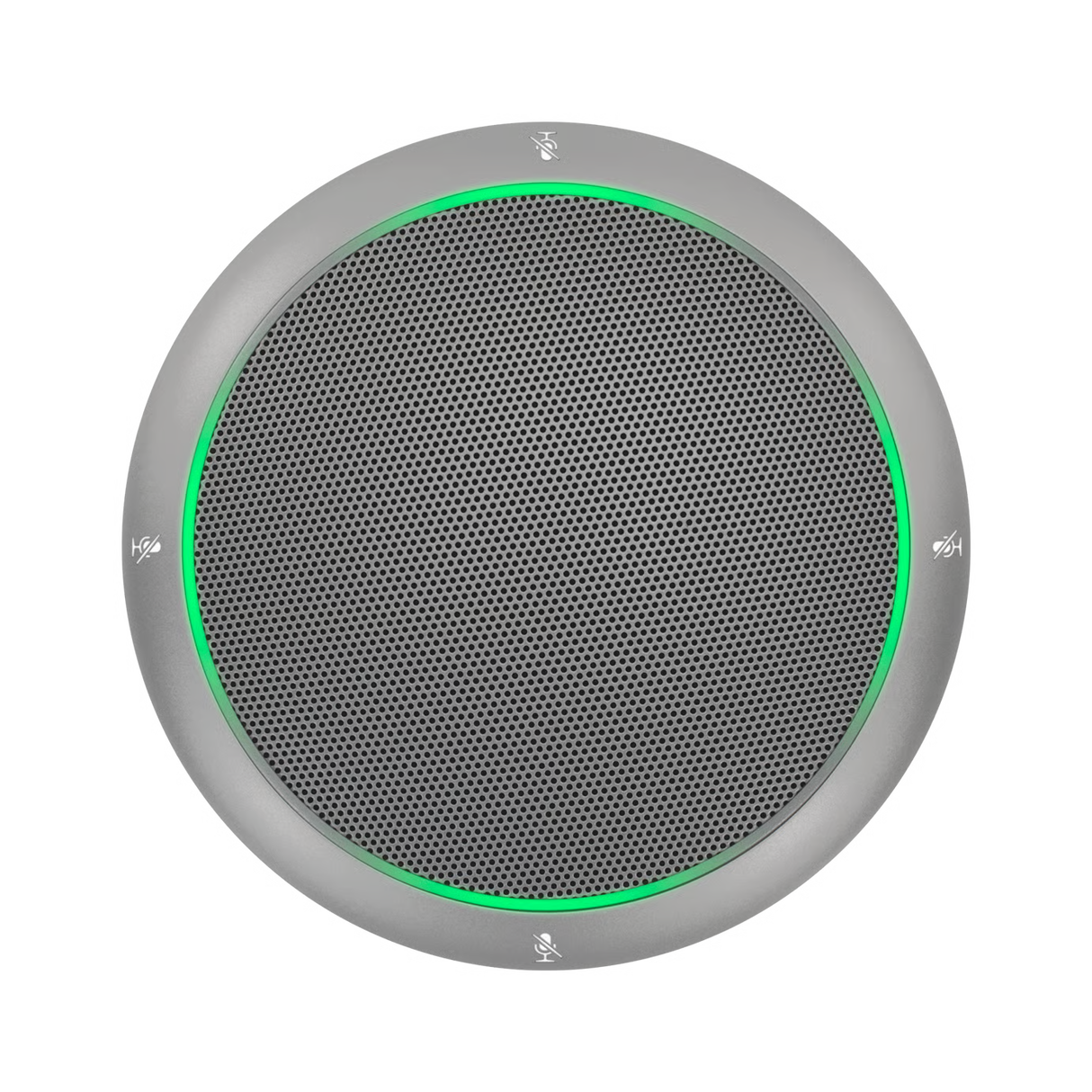

| Configurable Multi-Color LED Ring | Provides clear visual mute and status indication with multiple display modes and brightness options |
| Browser-Based Control Software | Offers intuitive setup with polar pattern templates and 10 user presets for fast deployment |
| Programmable Capacitive-Touch Mute Switches | Delivers reliable local control with multiple operating modes including toggle, push-to-talk, and push-to-mute |
| Specification | Details |
|---|---|
| Channels | 5 total (4 independent transmit + 1 automatic mixing transmit) |
| Polar Patterns | Omnidirectional, Cardioid, Supercardioid, Hypercardioid, Bidirectional, Toroid (all steerable) |
| Frequency Response | 100 Hz to 20,000 Hz |
| Sensitivity | -21 dBFS/Pa at 1 kHz (-15 dB gain setting) |
| Maximum SPL | 115.2 dB SPL (1 kHz at 1% THD, -15 dB gain setting) |
| Signal-to-Noise Ratio | 75 dB (Cardioid), 67 dB (Toroid) ref. 94 dB SPL |
| Self Noise | 19.2 dB SPL-A (Cardioid), 26.8 dB SPL-A (Toroid) |
| Dynamic Range | 96 dB (Cardioid), 90 dB (Toroid) at -15 dB gain setting |
| Power Requirement | Power over Ethernet (PoE), Class 0; maximum 4 W |
| Network Interface | Single RJ45 port; Dante and AES67 compatible |
| Dimensions (H x W x D) | 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 inches) |
| Weight | 362 g (0.8 lb) |
| Color | Aluminum |
| Mounting | Table surface or optional flush mount kit; cable exit for through-table installation |
| Aspect | Shure MXA310AL | Sennheiser TeamConnect Ceiling 2 | Biamp Parlé TCM-1 |
|---|---|---|---|
| Form Factor | Low-profile table array | Ceiling array | Ceiling array |
| Coverage Zones | Up to 4 steerable independent zones | Beamforming with multiple lobes | Multiple beamforming zones |
| Unique Pattern | Toroid for overhead noise rejection | Dynamic beamforming | Adaptive beamforming |
| Network Audio | Dante / AES67 with single-cable PoE | Dante / AES67 | AVB / Dante options |
| Built-in DSP | Automatic mixing, 4-band PEQ, low-cut filter | Noise suppression and processing | Advanced room processing via ecosystem |
| Mute Control | Capacitive touch with multi-color LED ring | Software or control system | Via control system |
| Installation | Table mount with through-table cable option | Ceiling tile integration | Ceiling tile mount |
| Scalability | Multiple units combinable | Room-based with expansion | Highly scalable in networked systems |
| Security | AES-256 encryption support | Enterprise security features | Network security protocols |
FAQ
- How many coverage zones does the MXA310AL support? It provides up to four independent steerable coverage zones that can be configured with different polar patterns for optimal table pickup.
- What is the toroid polar pattern used for? The toroid pattern rejects noise from overhead sources such as HVAC systems or projectors while focusing on voices at table level.
- Does it require external DSP for basic operation? No, it includes built-in automatic mixing, 4-band parametric EQ, and a low-cut filter for direct use in many setups.
- How is power and audio delivered? It uses a single Ethernet cable with Power over Ethernet (PoE) for Dante digital audio, control, and power.
- Can the mute status be integrated with conferencing platforms? Yes, it supports LED mute sync with solutions like Microsoft Teams and Zoom Rooms when paired with compatible Shure processors.
- Is it suitable for retrofitting existing installations? Yes, the cable exit design allows easy replacement of prior Shure boundary microphones with minimal table modification.
