Shure MXA310B-TA Microflex Advance Table Array Conferencing Microphone (Black) (TAA-Compliant)
Shure MXA310B-TA Microflex Advance Table Array Conferencing Microphone (Black) (TAA-Compliant)
Roll over image to zoom in Click on image to zoom
Shure MXA310B-TA Microflex Advance Table Array Conferencing Microphone (Black) (TAA-Compliant)
Shure MXA310B-TA Microflex Advance Table Array Conferencing Microphone (Black) (TAA-Compliant)
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Shure MXA310B-TA Microflex Advance Table Array Conferencing Microphone (Black) (TAA-Compliant)

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: MXA310B-TA
No reviews

Description

Please call or email our sales for team for pricing, consultation, and more info

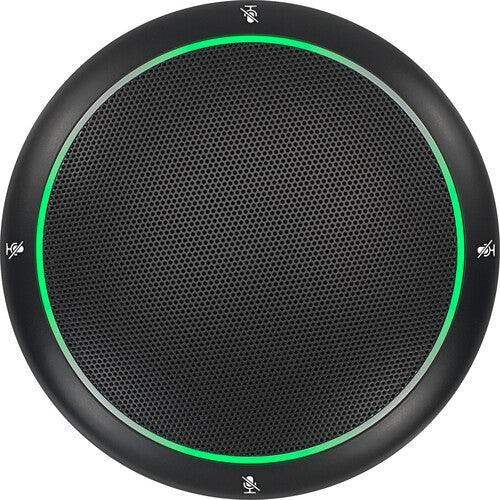

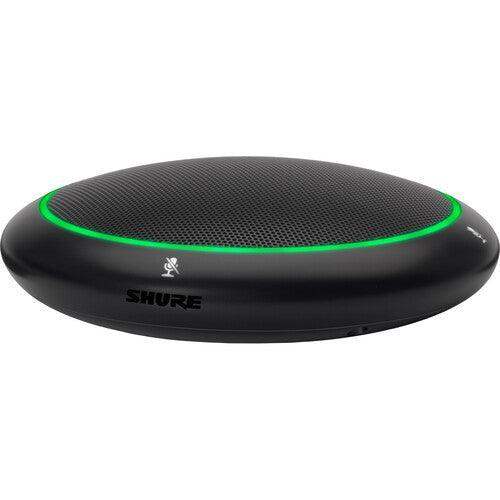

The Black MXA310 from Shure is a tabletop array microphone with an aluminum finish designed to integrate smartly into any conference or meeting space, including boardrooms, huddle rooms, and multipurpose areas. A powerful feature set, including Steerable Coverage, multiple pickup patterns, auto-mixing, and more ensures speech is captured accurately and intelligibly, while the configurable color LED shows mute and channel statuses. The elegant, low-profile design requires only a single connecting cable and discreetly integrates into your room with two permanent mounting options: either on the table with the included hardware or via the A310-FM flush mount (available separately).

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

  • For Meeting Rooms and Conference Spaces
  • Single Cable for Dante, Audio, and Power
  • Steerable Coverage for Accurate Audio
  • Multiple Pickup Patterns, Auto-Mixing
  • Torrid Pickup for Table-Level Sound
  • Multiple Mute Switch Modes
  • Configurable Multicolor LED
  • Software Control
General
Compatibility Shure Microflex Advance MXA910 / Microflex Advance MXA920 / Microflex Advance MXA710 / Microflex Advance MXA310 / IntelliMix P300 / IntelliMix Room Software / ANIUSB-MATRIX / MXN5-C / MXA Network Mute Button
Polar Pattern All Channels Independently Adjustable
Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
Control HTML5 Browser-Based
Frequency Response 100 Hz to 20 kHz
Digital AES67 or Dante Digital Output
Channel Count: 5 Total Channels (4 Independent Transmit Channels, 1 Automatic Mixing Transmit Channel)
Sampling Rate: 48 kHz
Bit Depth: 24
Sensitivity -21 dBFS/Pa (at 1 kHz, -15 dB Gain Setting)
Maximum SPL 115.2 dB SPL (1 kHz at 1% THD, -15 dB Gain Setting)
Signal to Noise Ratio Cardioid: 75 dB
Toroid:67 dB
(Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)
Latency <1 ms (Not Including Dante Latency)
Noise Level Cardioid: 19.2 dB SPL-A
Toroid: 26.8 dB SPL-A
(-15 dB Gain Setting)
Dynamic Range Cardioid: 96 dB
Toroid: 90 dB
(-15 dB Gain Setting)
DSP Per Channel: Equalizer (4-Band Parametric), Mute, Gain ( 140 dB Range)
System: Automatic Mixing, Low-Cut Filter ( -12 dB/Octave at 150 Hz)
Inputs / Outputs
Audio I/O 1x RJ45 Dante Output
Power
Power Source PoE
Power Consumption 4 W (Maximum)
Environmental
Certifications CANICES-3 (B)/NMB-3(B), FCCPart 15, CE
Operating Temperature 20 to 104°F / -6 to 40°C
Storage Temperature -20 to 165°F / -28 to 73°C
Physical
Mounting Bottom: 1 x Surface Mount
Color Black
Dimensions 5.3 x 5.3 x 1.4" / 13.4 x 13.4 x 3.6 cm
Weight 12.8 oz / 362 g
