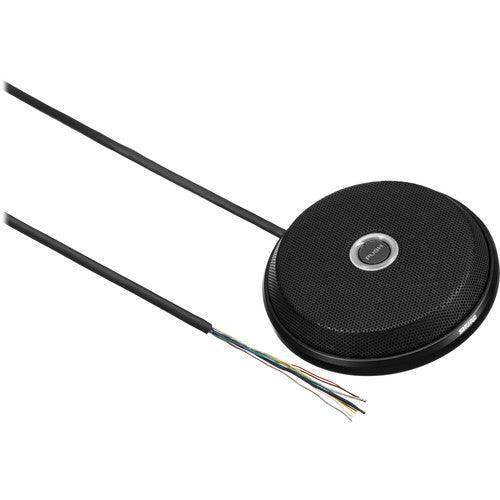

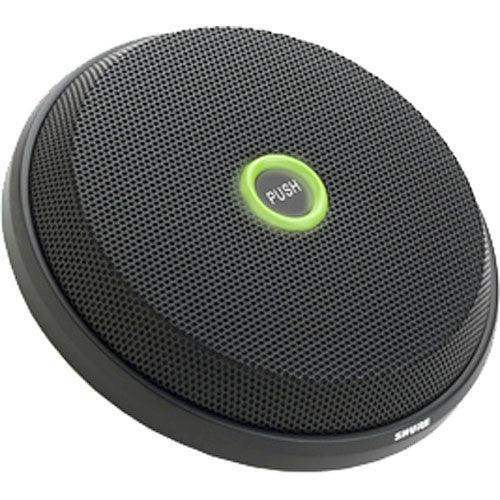

Shure MX396/C-TRI Microflex Tri-Element Boundary Microphone (Cardioid)
The Shure MX396/C-TRI is a tri-element boundary condenser microphone from the Microflex series, designed for clear speech capture in conference rooms, boardrooms, and large meeting spaces. It combines three cardioid elements into a single low-profile unit, providing versatile coverage patterns including end-of-table, center-of-table, or multi-zone pickup. This allows comprehensive table coverage from one compact microphone.
The microphone features individual audio outputs for each element, a programmable mute switch with bi-color status indicator, and logic input/output for remote control and integration with automatic mixing systems. CommShield technology delivers superior RF filtering to reduce interference from mobile devices. Its low-profile design and wide dynamic range ensure natural sound with minimal visual impact in professional installations.
| Feature | Benefit |
|---|---|
| Tri Cardioid Elements | Provides expanded coverage and flexible zone options in a single unit |
| Individual Audio Outputs | Allows separate channel processing or multi-zone mixing |
| Programmable Mute Switch | Enables convenient local control with bi-color LED indicator |
| Logic Input/Output | Supports remote mute control and integration with mixers |
| CommShield Technology | Reduces RF interference from wireless devices |
| Low-Profile Boundary Design | Delivers discreet installation with excellent table-top pickup |
| Wide Dynamic Range | Ensures smooth, natural frequency response for speech |
| Specification | Details |
|---|---|
| Microphone Type | Tri-Element Boundary Condenser |
| Polar Pattern | 3 x Cardioid |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | 18 mV/Pa |
| Maximum SPL | 122 dB SPL |
| Self Noise | Not specified (wide dynamic range) |
| Impedance | 170 ohms |
| Connector | Individual outputs (preamp dependent) |
| Power Requirement | 11-52 V DC phantom power |
| Coverage Patterns | End-of-table, center-of-table, multi-zone configurations |
| Color | Black |
| Applications | Conference rooms, boardrooms, large meeting spaces |

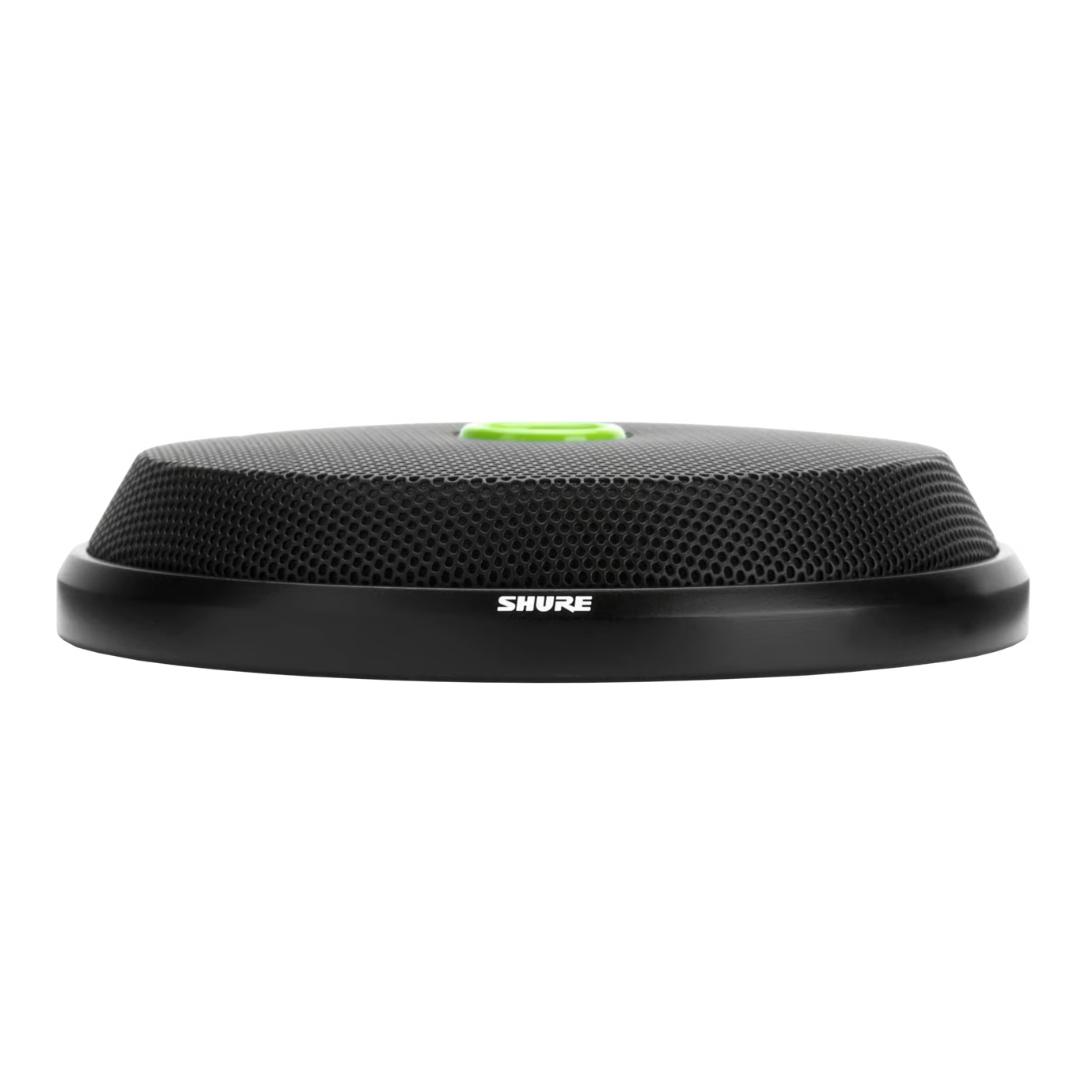

| Aspect | Shure MX396/C-TRI | Shure MX396/C-DUAL | Shure MX410RLP/C |
|---|---|---|---|
| Element Count | Tri | Dual | Single |
| Coverage Options | Expanded multi-zone | 300° / 360° / bidirectional | Single cardioid |
| Primary Use | Larger table coverage | Versatile table coverage | Compact gooseneck speech |
| Mute/Logic | Programmable with LED | Programmable with LED | None |
| Design | Low-profile boundary | Low-profile boundary | Low-profile gooseneck |
| RF Rejection | CommShield | CommShield | CommShield |
FAQ
- What applications is the MX396/C-TRI best suited for? It is ideal for larger conference rooms and boardrooms requiring expanded table coverage from a single discreet boundary microphone.
- How many elements does it have? It features three independent cardioid elements with individual outputs.
- Does it require phantom power? Yes, each element operates on standard 11-52 V DC phantom power.
- What coverage patterns are available? It supports end-of-table, center-of-table, and multi-zone configurations for flexible room layouts.
- What is CommShield technology? It provides superior RF filtering to minimize interference from mobile devices.
- Is it compatible with automatic mixers? Yes, the logic input/output supports remote control and integration with automatic mixing systems.
