Shure MX396/C-DUAL-TA Dual-Element Boundary Microphone (TAA-Compliant)

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: MX396/C-DUAL-TA
No reviews
Price:
$551.10 $772.20

Description

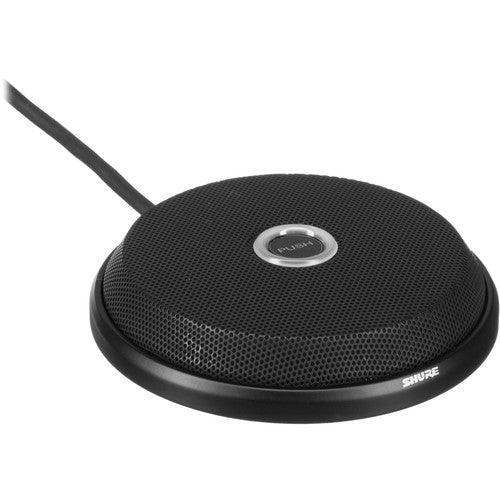

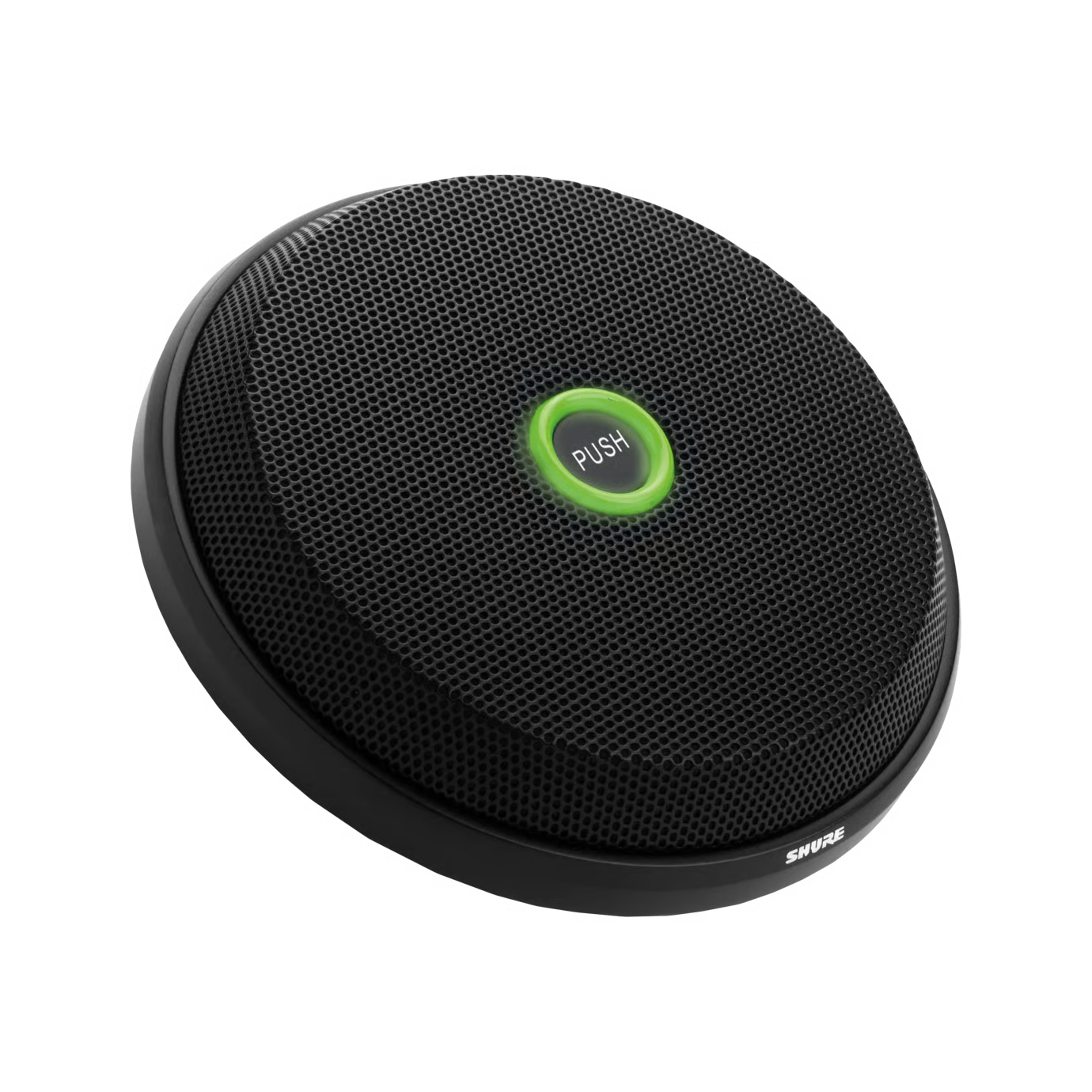

The MX396/C Boundary Microphone from Shure is capable of 0 to 180 degrees of coverage for excellent speech pick up between two people seated across from each other, or groups seated within the 180 degree range. The MX396/C is designed for capturing speeches in conference settings, education, telecommunication and more. The capsules feature cardioid polar patterns for maximum surface reflection and off-axis noise rejection. The mounting hardware allows for the attached (unterminated) cable to be side or bottom mounted. Also features are a Mute switch and Logic connections.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

  • 0 to 180 Degree Coverage

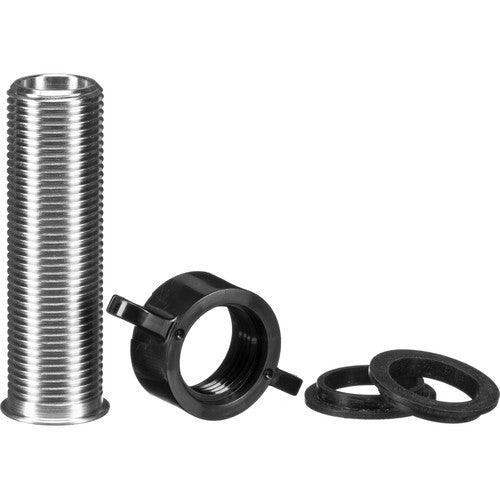

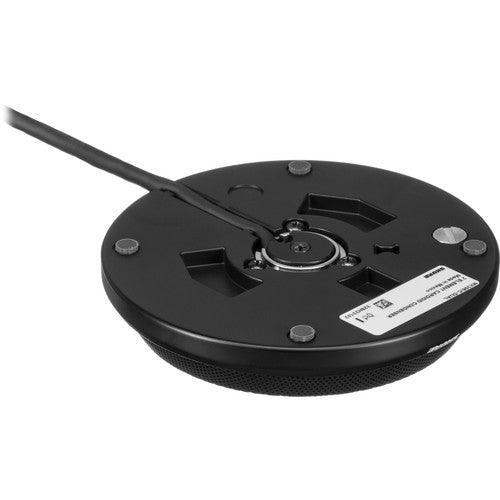

  • Back or Bottom Exit Cable
  • Mute Output
  • LED Input
Microphone
Element Type Electret Condenser
Performance
Frequency Range 50 Hz to 17 kHz
Maximum SPL 122 dB SPL
Impedance 170 Ohms
Sensitivity 18 mV/Pa
Dynamic Range 94 dB
Signal-to-Noise Ratio 66 dB
Equivalent Noise Level 28 dB A-Weighted
THD 1%
Power
Operating Current Consumption 10 mA
Physical
Operating Temperature 0 to 135°F / -18 to 57°C
Operating Humidity 0 to 95%
Storage Temperature -20 to 165°F / -28 to 73°C
Weight 1.29 lb / 0.59 kg
Packaging Info
Package Weight 2.05 lb
Box Dimensions (LxWxH) 10.3 x 6.1 x 3.4"
