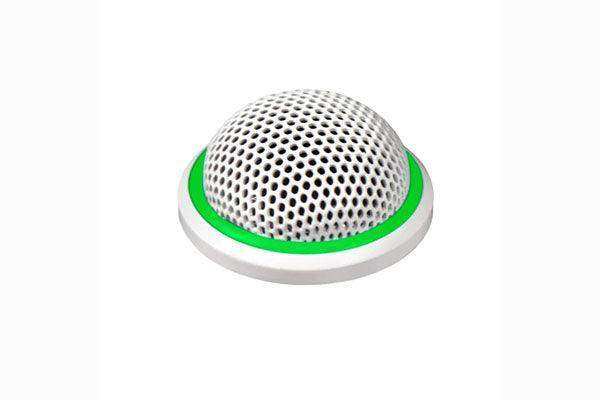

Shure MX395W/O-LED Microflex Low-Profile Omnidirectional Boundary Microphone with Logic-Control LED for Installs (White)
Shure MX395W/O-LED Microflex Low-Profile Omnidirectional Boundary Microphone with Logic-Control LED for Installs (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Shure MX395W/O-LED Microflex Low-Profile Omnidirectional Boundary M...
Description
This white Shure MX395-LED Microflex with Logic Control LED is a omnidirectional boundary microphone designed to capture high-quality speech and voice for sound-reinforcement and teleconferencing installations in governmental, institutional, religious, and business settings.

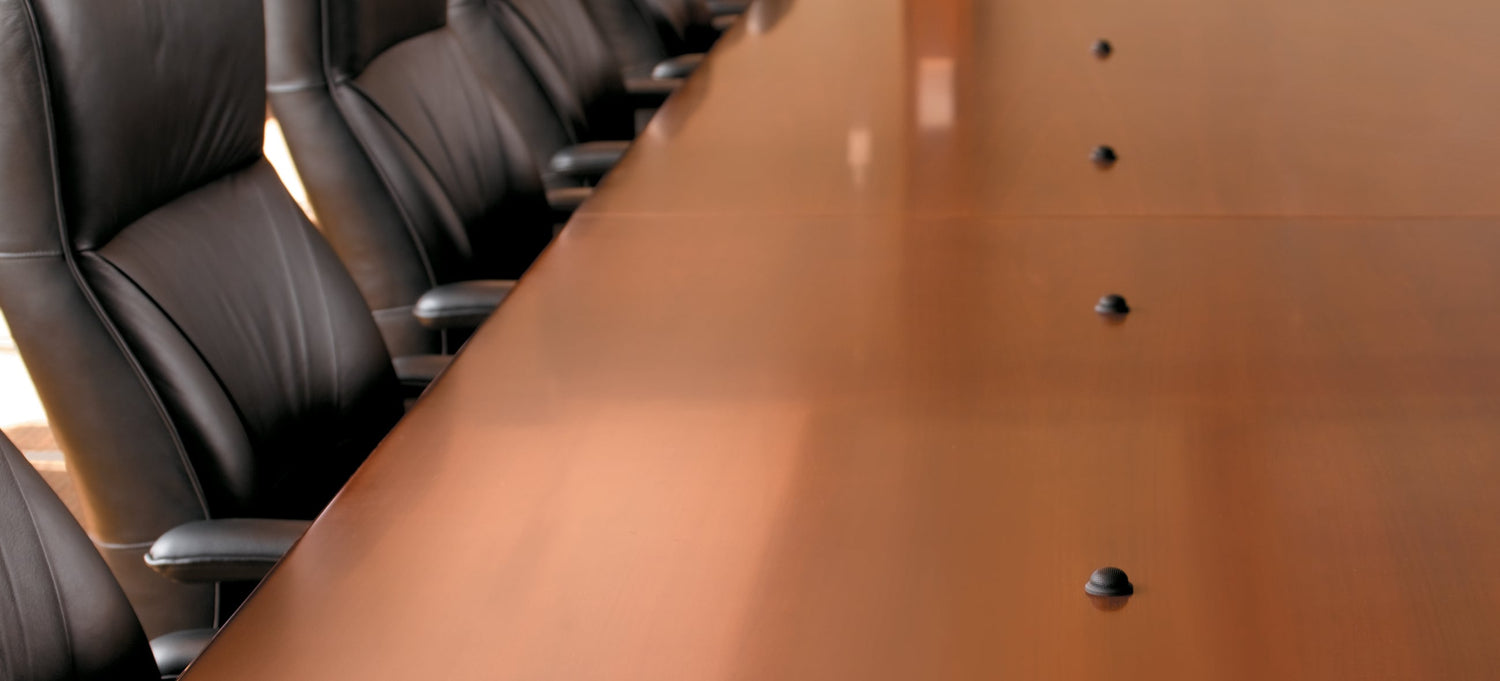

The MX395-LED can be permanently installed on conference tables, desks, or lecterns using the included mounting hardware. Its low-profile design is only 1" in diameter and extends just 0.8" above the mounting surface, ideal for boardrooms and other sites where minimal mic visibility is of high priority and aesthetics are important.
Cartridge polar pattern indicated by model number suffix:
- C = Cardioid
- BI = Bidirectional
- O = Omnidirectional
Features
- For Speech and Vocal Capture
- Logic Control with Bi-Color Status LED
- Low-Visibility Design
- Omnidirectional Polar Pattern
- Resists Cell Phone Interference
Specification
| Form Factor | Boundary/Surface Mount |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| High-Pass Filter | 150 Hz, 6 dB/Octave |
| Indicators | 1 x Green/Red Ring LED (Status) |
| Frequency Range | 50 Hz to 17 kHz |
| Maximum SPL | 114 dB SPL |
| Off-Axis Rejection | 45 dB |
| Impedance | 170 Ohms |
| Sensitivity | -28 dBV/Pa |
| Dynamic Range | 93 dB |
| Signal-to-Noise Ratio | 75 dB |
| Equivalent Noise Level | 21 dB A-Weighted |
| THD | 1% |
| CMRR | 45 dB |
| Output Connectors (Analog) | 1 x XLR 5-Pin Female |
| Operating Voltage | 48 to 52 V (Phantom Power) |
| Operating Current Consumption | 8 mA |
| Color | White |
| Mounting | Surface-Mount (with Included Hardware) |
| Operating Temperature | 0 to 135°F / -17.78 to 57.22°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -20 to 165°F / -28 to 74°C |
| Dimensions | ø: 1.26H: 4.02" / ø: 32H: 102 mm |
| Weight | 0.3 lb / 136 g |
