CN_MX395W-BI-TA

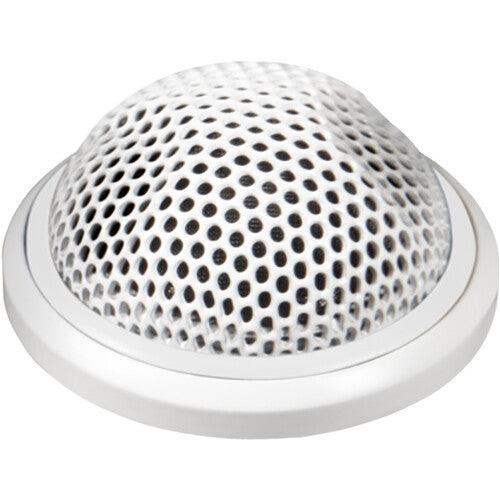

The Shure MX395W/BI is a low-profile boundary condenser microphone from the Microflex series, designed for clear speech capture in conference rooms, boardrooms, and meeting spaces where minimal visual presence is preferred. It features a bidirectional (figure-8) polar pattern that provides focused pickup along the table axis while rejecting sound from the sides, making it suitable for end-of-table or interview-style applications.
The white finish and ultra-compact 1.25-inch diameter design deliver a clean, discreet appearance that blends well with light-colored surfaces. It includes CommShield Technology for superior RF rejection and supports wide dynamic range with smooth frequency response for natural, high-quality audio.
| Feature | Benefit |
|---|---|
| Bidirectional Polar Pattern | Focused pickup along the table with side rejection for targeted coverage |
| Ultra Low-Profile Design | Only 1.25 inches in diameter for minimal visual impact |
| White Finish | Provides a clean, discreet appearance on light-colored surfaces |
| CommShield Technology | Reduces RF interference from mobile devices and wireless systems |
| Wide Dynamic Range | Delivers smooth, natural frequency response for speech |
| Surface Mount Boundary | Ensures stable, discreet table or surface installation |
| Specification | Details |
|---|---|
| Microphone Type | Low-Profile Boundary Condenser |
| Polar Pattern | Bidirectional (Figure-8) |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | –37 dBV/Pa (14 mV) at 1 kHz |
| Maximum SPL | 123 dB SPL (1 kHz at 1% THD) |
| Self Noise | 29 dB SPL-A (typical) |
| Output Impedance | 150 ohms (170 ohms actual) |
| Connector | 3-Pin XLR Male |
| Power Requirement | 11–52 V DC phantom power (2.0 mA) |
| Diameter | 1.25 inches (3.8 cm) |
| Color | White |
| Applications | Conference rooms, boardrooms, meeting spaces, table installations |
| Aspect | Shure MX395W/BI | Shure MX395B/BI | Shure MX395AL/BI |
|---|---|---|---|
| Polar Pattern | Bidirectional | Bidirectional | Bidirectional |
| Primary Use | End-of-table or zone-focused | End-of-table or zone-focused | End-of-table or zone-focused |
| Diameter | 1.25 inches | 1.25 inches | 1.25 inches |
| Finish | White | Matte Black | Brushed Aluminum |
| RF Rejection | CommShield | CommShield | CommShield |
| LED Option | Available | Available | Available |
FAQ
- What applications is the MX395W/BI best suited for? It is ideal for conference rooms and boardrooms where bidirectional pickup is needed for end-of-table or specific zone coverage with a clean white low-profile design.
- Does it require phantom power? Yes, it operates on standard 11–52 V DC phantom power.
- What is the polar pattern? It features a bidirectional pattern for focused table pickup with side rejection.
- Is the LED indicator available? Yes, bi-color LED models are available for visual status feedback.
- What is CommShield Technology? It provides enhanced RF filtering to minimize interference from wireless devices.
- Is it compatible with standard mixers? Yes, the 3-pin XLR connector makes it compatible with most professional audio mixers and interfaces.
