Shure MX395W/BI-LED Microflex Low-Profile Boundary Microphone (Bidirectional)
Shure MX395W/BI-LED Microflex Low-Profile Boundary Microphone (Bidirectional) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MX395W/BI-LED Microflex Low-Profile Boundary Microphone (Bidi...

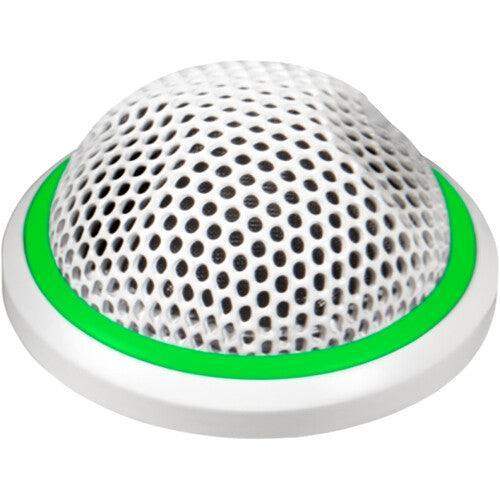

The Shure MX395W/BI-LED is a low-profile boundary condenser microphone from the Microflex series, designed for clear speech capture in conference rooms, boardrooms, and meeting spaces where minimal visual presence is preferred. It features a bidirectional (figure-8) polar pattern that provides focused pickup along the table axis while rejecting sound from the sides, making it suitable for end-of-table or interview-style applications.
The white finish and ultra-compact 1.25-inch diameter design deliver a clean, discreet appearance that blends well with light-colored surfaces. It includes a remoteable bi-color LED status indicator with logic input for remote control and CommShield Technology for superior RF rejection. The microphone supports wide dynamic range with smooth frequency response for natural, high-quality audio.
| Feature | Benefit |
|---|---|
| Bidirectional Polar Pattern | Focused pickup along the table with side rejection for targeted coverage |
| Ultra Low-Profile Design | Only 1.25 inches in diameter for minimal visual impact |
| White Finish | Provides a clean, discreet appearance on light-colored surfaces |
| Remoteable Bi-Color LED Indicator | Clear visual status with remote logic control |
| CommShield Technology | Reduces RF interference from mobile devices and wireless systems |
| Wide Dynamic Range | Delivers smooth, natural frequency response for speech |
| Surface Mount Boundary | Ensures stable, discreet table or surface installation |
| Specification | Details |
|---|---|
| Microphone Type | Low-Profile Boundary Condenser |
| Polar Pattern | Bidirectional (Figure-8) |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | –37 dBV/Pa (14 mV) at 1 kHz |
| Maximum SPL | 123 dB SPL (1 kHz at 1% THD) |
| Self Noise | 29 dB SPL-A (typical) |
| Connector | 5-Pin XLR Female |
| Power Requirement | 48–52 V DC phantom power (8.0 mA for LED model) |
| Diameter | 1.25 inches (3.8 cm) |
| Color | White |
| Applications | Conference rooms, boardrooms, meeting spaces, table installations |
| Aspect | Shure MX395W/BI-LED | Shure MX395B/BI-LED | Shure MX395AL/BI-LED |
|---|---|---|---|
| Polar Pattern | Bidirectional | Bidirectional | Bidirectional |
| Primary Use | End-of-table or zone-focused | End-of-table or zone-focused | End-of-table or zone-focused |
| LED Indicator | Bi-color, remoteable | Bi-color, remoteable | Bi-color, remoteable |
| Connector | 5-Pin XLR | 5-Pin XLR | 5-Pin XLR |
| Finish | White | Matte Black | Brushed Aluminum |
| RF Rejection | CommShield | CommShield | CommShield |
FAQ
- What applications is the MX395W/BI-LED best suited for? It is ideal for conference rooms and boardrooms where bidirectional pickup is needed for end-of-table or specific zone coverage with a clean white low-profile design.
- Does it require phantom power? Yes, it operates on standard 48–52 V DC phantom power for the LED model.
- What does the LED indicator do? The bi-color LED provides status feedback and supports remote control via logic input.
- What is the polar pattern? It features a bidirectional pattern for focused table pickup with side rejection.
- Is it suitable for light-colored installations? Yes, the white finish makes it discreet on light surfaces.
- Is it compatible with standard mixers? Yes, the 5-pin XLR connector makes it compatible with most professional audio mixers and interfaces.
