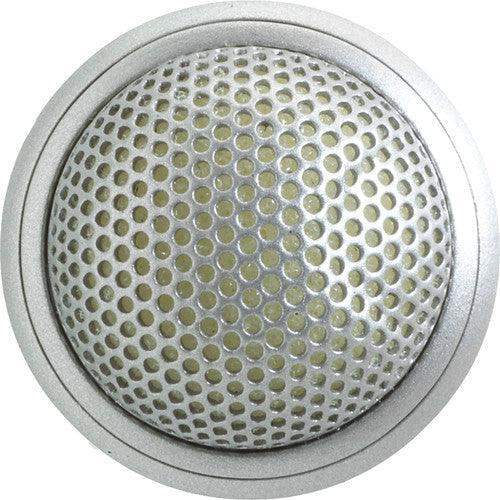

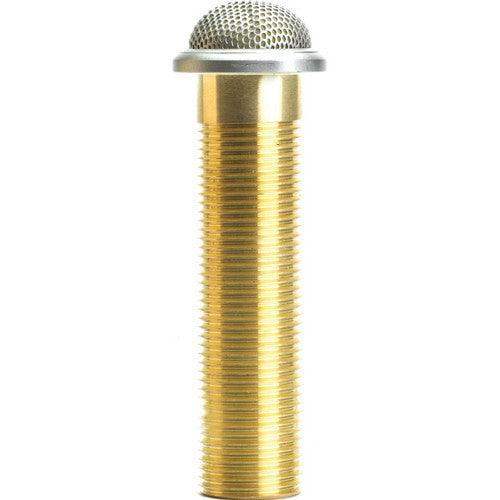

Shure MX395AL/BI Microflex Low-Profile Boundary Microphone (Bidirectional)
Shure MX395AL/BI Microflex Low-Profile Boundary Microphone (Bidirectional) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MX395AL/BI Microflex Low-Profile Boundary Microphone (Bidirec...
The Shure MX395AL/BI is a low-profile boundary condenser microphone from the Microflex series, designed for clear speech capture in conference rooms, boardrooms, and meeting spaces where minimal visual presence is critical. It features a bidirectional polar pattern that provides focused pickup along the table axis while rejecting sound from the sides, making it suitable for end-of-table or specific zone applications.
The brushed aluminum finish and ultra-compact 1.25-inch diameter design deliver a modern, discreet appearance. It includes CommShield Technology for superior RF rejection and supports wide dynamic range with smooth frequency response. The microphone is available with optional bi-color LED status indicator models for visual feedback.
| Feature | Benefit |
|---|---|
| Bidirectional Polar Pattern | Focused pickup along the table with excellent side rejection |
| Ultra Low-Profile Design | Only 1.25 inches in diameter for minimal visual impact |
| Brushed Aluminum Finish | Provides a modern, professional aesthetic |
| CommShield Technology | Reduces RF interference from mobile devices and wireless systems |
| Wide Dynamic Range | Delivers smooth, natural frequency response for speech |
| Surface Mount Boundary | Ensures stable, discreet table or surface installation |
| Interchangeable Cartridge Compatibility | Allows flexibility across Microflex boundary models |
| Specification | Details |
|---|---|
| Microphone Type | Low-Profile Boundary Condenser |
| Polar Pattern | Bidirectional |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | –37 dBV/Pa (14 mV) at 1 kHz |
| Maximum SPL | 123 dB SPL (1 kHz at 1% THD) |
| Self Noise | 29 dB SPL-A (typical) |
| Output Impedance | 150 ohms (170 ohms actual) |
| Connector | 3-Pin XLR (standard model) or 5-Pin XLR (LED model) |
| Power Requirement | 11–52 V DC phantom power (2.0 mA standard; 8.0 mA LED model) |
| Diameter | 1.25 inches (3.8 cm) |
| Color | Brushed Aluminum |
| Applications | Conference rooms, boardrooms, meeting spaces |
| Aspect | Shure MX395AL/BI | Shure MX395AL/C | Shure MX395AL/O |
|---|---|---|---|
| Polar Pattern | Bidirectional | Cardioid | Omnidirectional |
| Primary Use | End-of-table or zone-focused | General focused speech | Natural ambient sound |
| Diameter | 1.25 inches | 1.25 inches | 1.25 inches |
| Finish | Brushed Aluminum | Brushed Aluminum | Brushed Aluminum |
| RF Rejection | CommShield | CommShield | CommShield |
| LED Option | Available | Available | Available |
FAQ
- What applications is the MX395AL/BI best suited for? It is ideal for conference rooms and boardrooms where bidirectional pickup is needed for end-of-table or specific zone coverage with minimal visual impact.
- Does it require phantom power? Yes, it operates on standard 11–52 V DC phantom power.
- What is the polar pattern? It features a bidirectional pattern for focused table pickup with side rejection.
- Is the LED indicator available? Yes, bi-color LED models are available for visual status feedback.
- What is CommShield Technology? It provides enhanced RF filtering to minimize interference from wireless devices.
- Is it compatible with standard mixers? Yes, the 3-pin or 5-pin XLR connector makes it compatible with most professional audio mixers and interfaces.
