Shure MX395AL/BI-LED Microflex Low Profile Boundary Microphone (Brushed Aluminum, Bidirectional with LED)

Product Overview

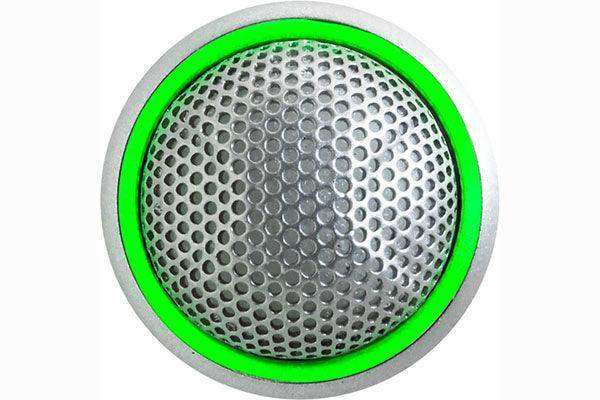

The Shure MX395AL/BI-LED is a low-profile bidirectional boundary microphone with integrated bi-color status LED, designed for installed AV applications in conference rooms, boardrooms, and commercial meeting spaces where both audio pickup and visual mute status indication are required. The bi-color LED provides clear on/off or mute status feedback to meeting participants without requiring a separate indicator panel or room control touchscreen. Like the standard MX395AL/BI, the LED model captures speech from both sides of a conference table in a single 1.25-inch (3.8 cm) brushed aluminum housing with CommShield RF interference immunity. The LED requires 48–52 V DC phantom power; verify your preamp or DSP output meets this requirement before specifying.

Product Description

AV system designers specifying boundary microphones for commercial meeting rooms increasingly require integrated mute status indicators, enabling participants to confirm whether microphones are active or muted without referring to a separate control panel. The MX395AL/BI-LED addresses this need by integrating a bi-color LED directly into the microphone housing—the LED changes color based on logic control signals from room control systems, DSP platforms, or conference management processors. The bidirectional (figure-8) polar pattern captures participants on both sides of a rectangular conference table with a single microphone, reducing the total microphone count and simplifying cable routing in table installations. CommShield technology maintains audio integrity in meetings where smartphones and wireless devices are present. The logic input accepts standard control signals from commercial room control systems for seamless integration into Crestron, Extron, AMX, and similar AV control architectures.

Key Features

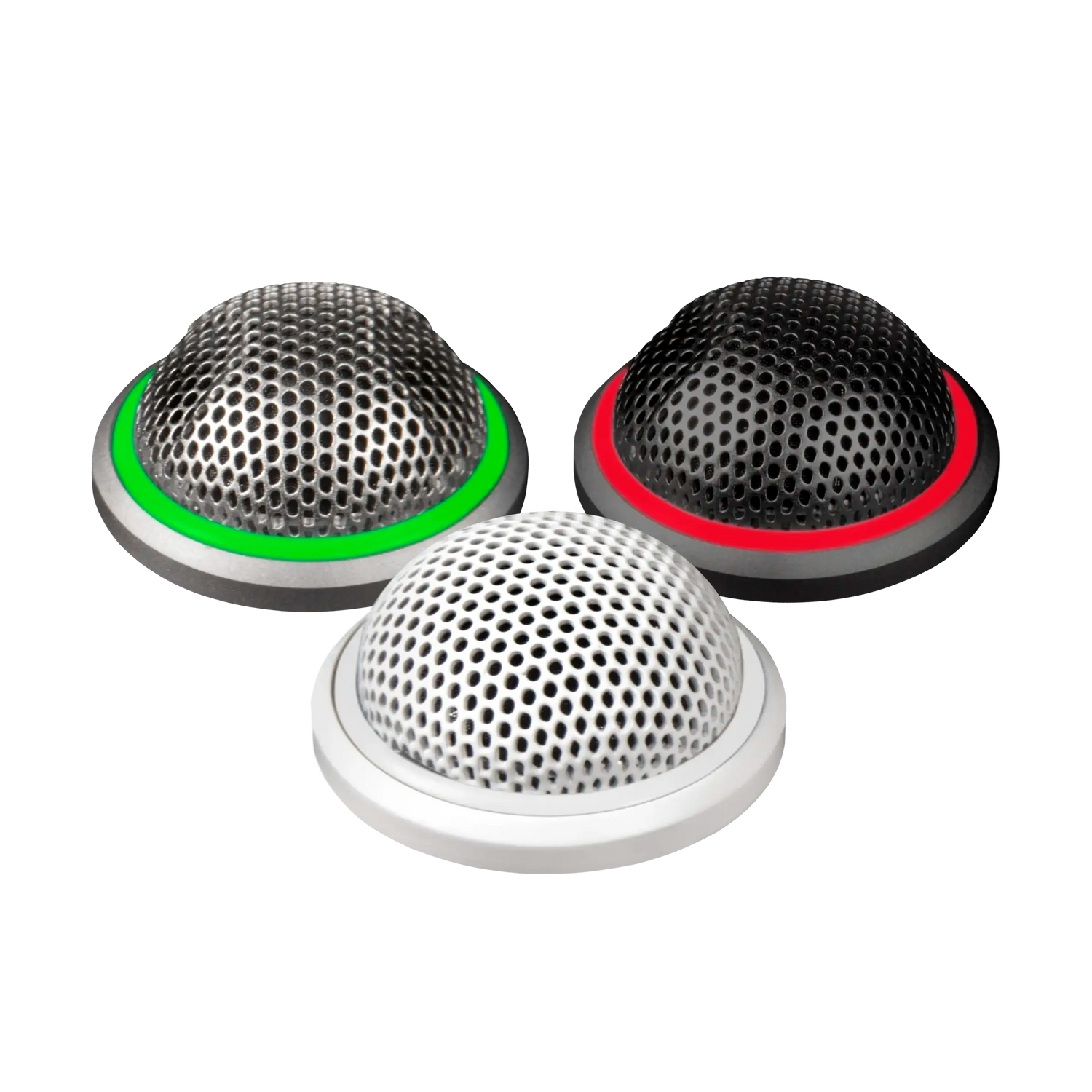

• Bi-Color Status LED — Integrated LED changes color via logic control input to display microphone mute status to meeting participants, eliminating the need for a separate indicator light or dedicated mute button device.
• Bidirectional (Figure-8) Polar Pattern — Captures speech from both sides of a conference table with a single microphone, reducing microphone count and simplifying table cable management in commercial installations.
• Logic Input for Room Control Integration — Compatible with standard logic control signals from commercial AV control systems (Crestron, Extron, AMX, and similar platforms) for centralized mute control and status indication.

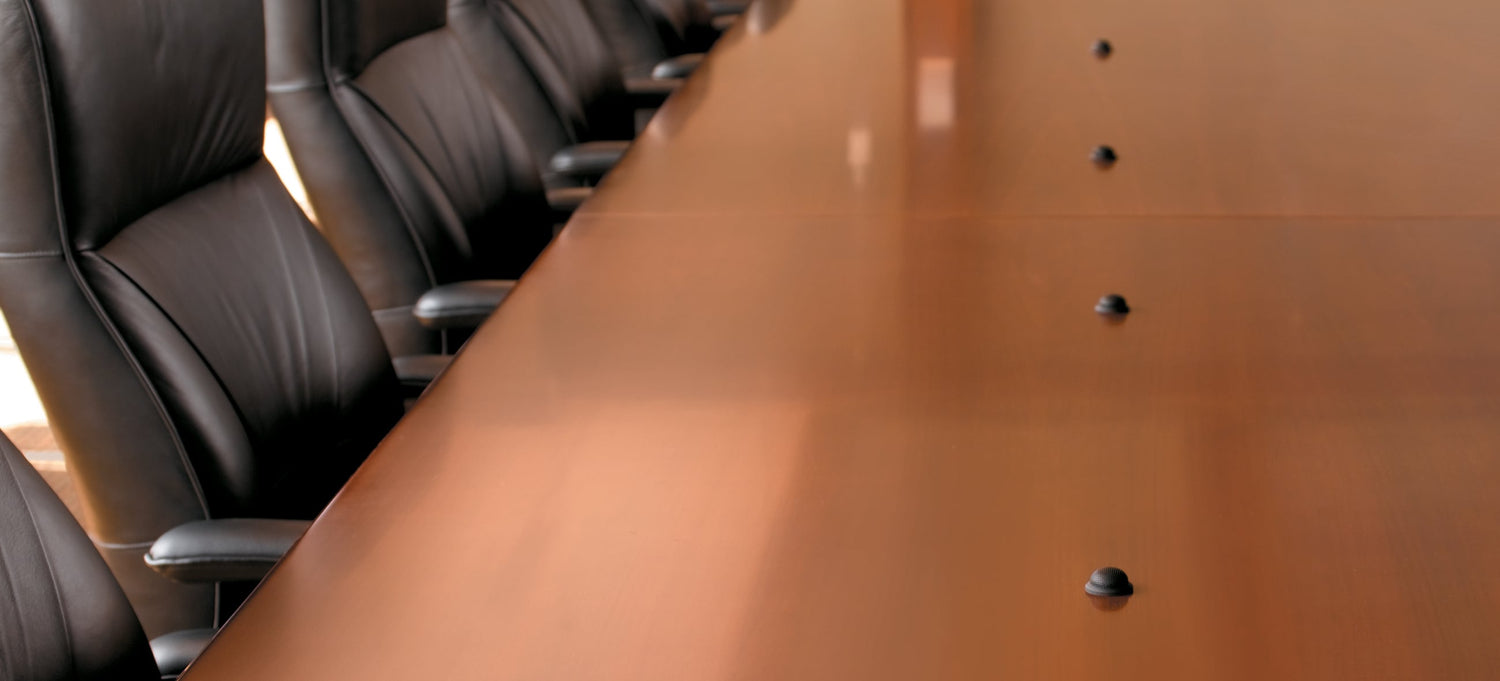

• Ultra-Low Profile Housing — At 1.25 inches (3.8 cm) in diameter, the microphone installs virtually flush with the table surface, preserving sightlines and maintaining the clean aesthetic of boardrooms and executive meeting spaces.
• Brushed Aluminum Finish — Professional aluminum housing coordinates with commercial-grade conference furniture and AV millwork specified in corporate, government, and executive environments.
• CommShield RF Interference Immunity — Guards against interference from smartphones and portable wireless devices, maintaining audio quality in high-traffic commercial meeting environments.
• Wide Frequency Response — 50 Hz to 17 kHz captures full-range speech for conferencing systems, recording applications, and integrated sound reinforcement.
• 123 dB Maximum SPL — Handles high-SPL environments without distortion, providing headroom in rooms with ambient noise or where close-miking may occur.

Technical Specifications
