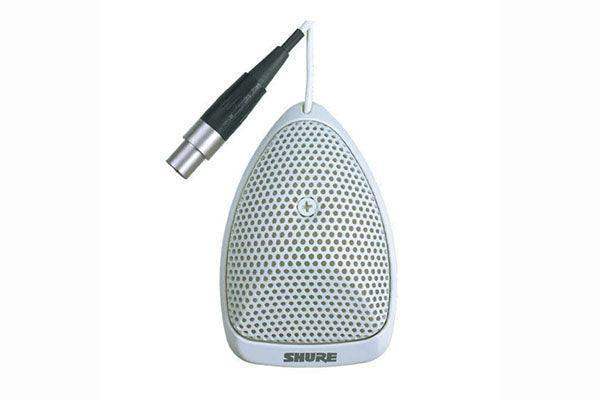

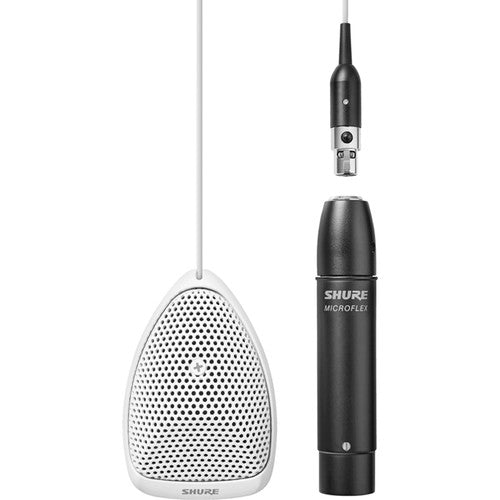

Shure MX391W/A/C Microflex Miniature Boundary Condenser Microphone Cardioid White
Shure MX391W/A/C Microflex Miniature Boundary Condenser Microphone Cardioid White - Supercardioid is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MX391W/A/C Microflex Miniature Boundary Condenser Microphone ...
Product Overview
The Shure MX391W/A is a Microflex miniature surface-mount electret condenser microphone in White, designed for conference table, lectern, and stage floor installations where a white surface finish is required. Leveraging the boundary effect principle, the MX391W/A achieves higher sensitivity and improved direct-to-reverberant sound ratio compared to an overhead microphone at equivalent distance from the source, improving speech intelligibility in acoustically challenging commercial spaces. The MX391W/A ships with the RK100PK inline RF-resistant preamplifier, an Allen wrench, and a carrying/storage bag. Available with cardioid (/C), supercardioid (/S), or omnidirectional (/O) cartridges for pattern-matched coverage across installation scenarios.
Product Description
The MX391W/A uses an electret condenser transducer with a frequency response of 50 Hz to 17,000 Hz and active balanced output. Like the MX392 series, the MX391 platform uses interchangeable cartridges from Shure's Microflex range, allowing the integrator to select the polar pattern appropriate for the room geometry and coverage requirement — cardioid for single-direction conference table capture, supercardioid for rooms with higher reverberance, or omnidirectional for round-table configurations. The included RK100PK inline preamp optimizes RF immunity for installation in facilities with dense wireless infrastructure. The sleek, low-profile white housing integrates with white conference tables and surface-mount installations in commercial meeting rooms and worship facilities.
For surface-mount boundary microphones with an integrated preamplifier, programmable mute button, and logic output for automatic mixer integration, see the Shure MX392 Microflex boundary condenser microphone at Creation Networks.
Key Features
- Boundary Effect Surface-Mount Design — Placement on a flat conference table or lectern surface achieves 6 dB higher sensitivity and approximately 3 dB better direct-to-reverberant sound ratio versus overhead placement, improving speech intelligibility in reverberant commercial spaces.
- Interchangeable Cartridges — Cardioid, supercardioid, and omnidirectional cartridges are field-swappable to allow polar pattern reconfiguration as room layout or use changes without replacing the installed housing.
- White Finish for White Surface Installations — Low-profile white housing integrates with white conference tables, lecterns, and architectural surfaces in commercial meeting and worship environments.
- Includes RK100PK Inline Preamp — The shipped RK100PK RF-resistant inline preamplifier optimizes RF immunity for reliable operation in facilities with dense cellular and wireless infrastructure.
- Flat Frequency Response Across Vocal Range — 50 Hz to 17,000 Hz electret condenser performance for natural, uncolored speech capture in conferencing and sound reinforcement applications.
- RF Filtering — RF filtering provides stable audio in installations with dense wireless microphone, cellular, and IT infrastructure.
Technical Specifications
| Specification | Cardioid (/C) | Supercardioid (/S) | Omnidirectional (/O) |
|---|---|---|---|
| Transducer Type | Electret Condenser | ||
| Frequency Response | 50–17,000 Hz | ||
| Output Impedance | 180 Ω | ||
| Output Configuration | Active Balanced | ||
| Sensitivity (1 kHz) | −30 dBV/Pa | −28 dBV/Pa | −22 dBV/Pa |
| Maximum SPL (1 kHz, 1% THD) | 119 dB | 118 dB | 111 dB |
| Self Noise (A-weighted) | 23 dB SPL | 21 dB SPL | 15 dB SPL |
| Signal-to-Noise Ratio | 71 dB | 73 dB | 80 dB |
| Dynamic Range | 96 dB | ||
| Common Mode Rejection | ≥45 dB | ||
| Power Requirements | 11–52 V DC, 2.0 mA (phantom power) | ||
| Finish | White | ||
| Operating Temperature | −18°C to 57°C (0°F to 135°F) | ||
| Included Preamp | RK100PK RF-resistant inline preamplifier | ||
