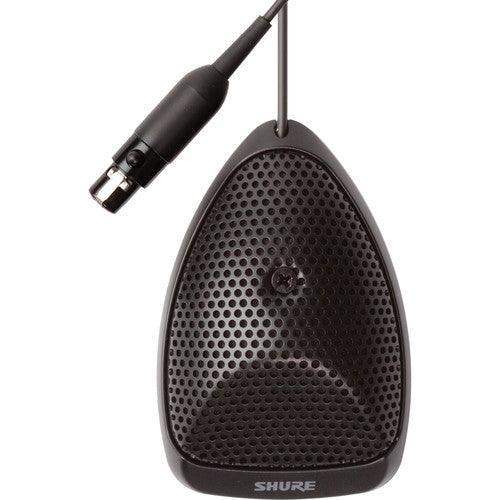

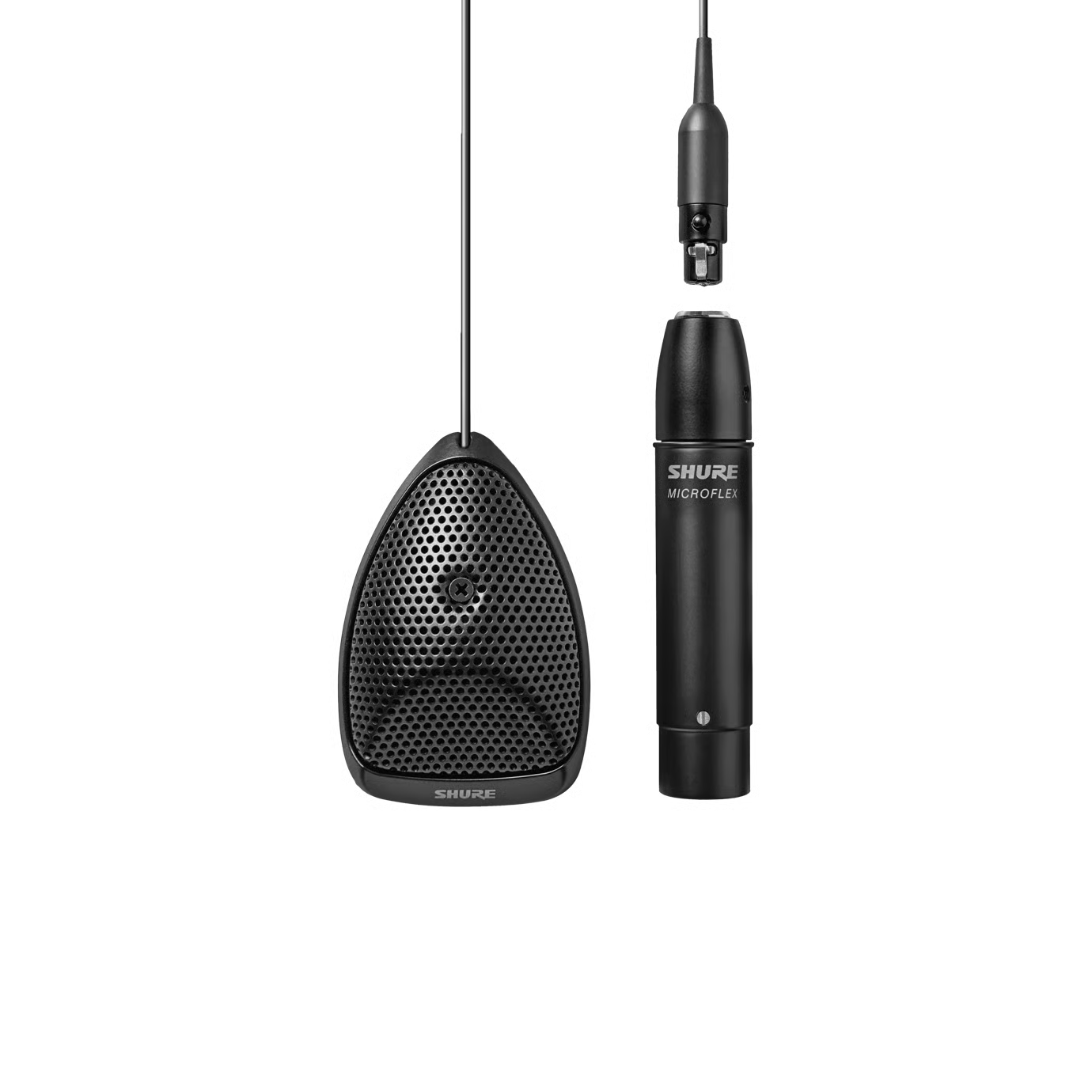

Shure MX391/C Microflex Boundary Microphone (Cardioid)
The Shure MX391/C is a professional boundary condenser microphone from the Microflex series, designed for clear, focused speech capture in conference rooms, boardrooms, houses of worship, altars, and distance learning centers. It features a cardioid polar pattern that provides good off-axis rejection, helping to isolate the speaker’s voice while reducing background noise and feedback.
The low-profile design ensures a discreet, professional appearance on any surface. It includes a programmable silent membrane switch with multiple modes (push-to-talk, push-to-mute, push on/push off), LED indicator, and logic connections for integration with automatic mixing systems. CommShield Technology delivers superior RF rejection. A paint mask is provided for custom-color installations, and the microphone uses interchangeable condenser cartridges for flexibility.
| Feature | Benefit |
|---|---|
| Cardioid Polar Pattern | Good off-axis rejection and reduced background noise/feedback |
| Programmable Silent Membrane Switch | Offers push-to-talk, push-to-mute, or push on/push off modes with silent operation |
| LED Indicator | Provides clear visual status feedback |
| Logic Connections | Supports remote control and integration with automatic mixing systems |
| Low-Profile Boundary Design | Delivers discreet, professional appearance on surfaces |
| CommShield Technology | Reduces RF interference from mobile devices and wireless systems |
| Paint Mask Included | Facilitates custom color matching for installations |
| Interchangeable Cartridges | Allows easy change to other polar patterns if needed |
| Specification | Details |
|---|---|
| Microphone Type | Boundary Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | –27.5 dBV/Pa (42.2 mV) at 1 kHz |
| Maximum SPL | 117 dB SPL (1 kHz at 1% THD) |
| Self Noise | 23 dB SPL-A (typical) |
| Output Impedance | 180 ohms |
| Connector | Miniature 4-pin connector (TA3F) with attached cable to male XLR |
| Power Requirement | 11–52 V DC phantom power, 2.0 mA |
| Cable | 3.7 m (12 ft) attached |
| Color | Black with paint mask for custom colors |
| Applications | Conference rooms, boardrooms, altars, distance learning centers |
| Aspect | Shure MX391/C | Shure MX393/C | Shure MX392/C |
|---|---|---|---|
| Polar Pattern | Cardioid | Cardioid | Cardioid |
| Switch/Logic | Programmable silent membrane with LED | Programmable silent membrane with LED | Programmable silent membrane with TTL logic |
| Cable/Connector | Attached cable with TA3F to XLR | Attached cable with TA3F to XLR | Attached unterminated cable with screw terminals |
| Primary Use | Standard boundary applications | Standard boundary applications | Standard boundary with full logic |
| Paint Mask | Included | Included | Not included |
| RF Rejection | CommShield | CommShield | CommShield |
FAQ
- What applications is the MX391/C best suited for? It is ideal for conference rooms, boardrooms, altars, and distance learning centers requiring clear speech capture from a low-profile boundary microphone.
- Does it require phantom power? Yes, it operates on standard 11–52 V DC phantom power.
- What switch modes are available? The programmable silent membrane switch supports push-to-talk, push-to-mute, push on/push off, and logic modes.
- What is the polar pattern? It features a cardioid pattern for good off-axis rejection.
- Does it support custom colors? Yes, it includes a paint mask for easy custom-color installations.
- Is it compatible with automatic mixers? Yes, the logic connections support integration with automatic mixing systems.
