Shure MX202W-A/MS Microflex Overhead Condenser Microphone (Omnidirectional)
Shure MX202W-A/MS Microflex Overhead Condenser Microphone (Omnidirectional) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MX202W-A/MS Microflex Overhead Condenser Microphone (Omnidire...

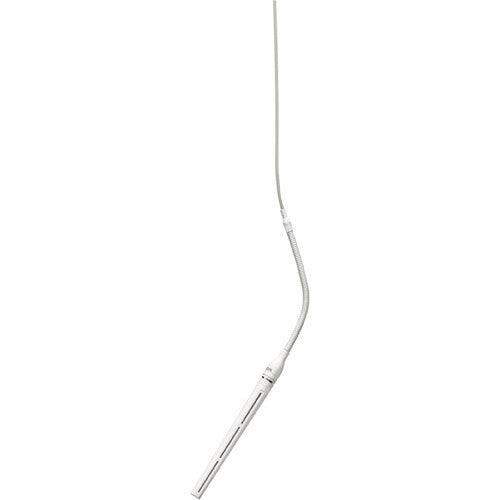

The Shure MX202W-A/MS is a miniature overhead condenser microphone from the Microflex series, designed for high-quality speech and vocal pickup in conference rooms, boardrooms, houses of worship, and performance venues. Its omnidirectional polar pattern provides uniform sound capture from all directions, making it ideal for capturing natural room sound or when the sound source moves.
The microphone features a flexible 4.6 m (15 ft) cable with an in-line preamp terminated in a 3-pin XLR connector for easy integration with mixers. It is supplied with a versatile snap-fit windscreen and a plate mount with a microphone stand adapter (MS) for flexible ceiling or wall installation. The compact size and white finish allow the microphone to blend seamlessly into light-colored environments while delivering clear, intelligible audio.
| Feature | Benefit |
|---|---|
| Omnidirectional Polar Pattern | Provides uniform pickup from all directions for natural sound reproduction |
| Miniature Overhead Design | Discreet ceiling or wall mounting with minimal visual impact |
| Flexible 4.6 m (15 ft) Cable | Allows convenient placement above the sound source |
| In-Line Preamp | Ensures consistent output level and signal integrity |
| Snap-Fit Windscreen | Reduces wind and breath noise |
| 3-Pin XLR Connector | Compatible with most professional mixers and audio interfaces |
| Plate Mount with Stand Adapter | Offers flexible mounting options for ceiling or wall installation |
| Specification | Details |
|---|---|
| Microphone Type | Overhead Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | –35 dBV/Pa (17.8 mV) at 1 kHz |
| Maximum SPL | 124 dB SPL (1 kHz at 1% THD) |
| Self Noise | 28 dB SPL-A (typical) |
| Connector | 3-Pin XLR Male (via in-line preamp) |
| Cable Length | 4.6 m (15 ft) |
| Power Requirement | 11–52 V DC phantom power |
| Color | White |
| Applications | Conference rooms, boardrooms, houses of worship, performance venues |
| Aspect | Shure MX202W-A/MS | Shure MX202BP/MS | Shure MX202B/N |
|---|---|---|---|
| Polar Pattern | Omnidirectional | Omnidirectional | Omnidirectional |
| Color | White | Black | Black |
| Mounting | Plate mount with stand adapter | Plate mount with stand adapter | Ceiling/wall plate |
| Primary Use | Natural ambient overhead (white finish) | Natural ambient overhead | Natural ambient sound overhead |
| Cable Length | 4.6 m (15 ft) | 4.6 m (15 ft) | 4.6 m (15 ft) |
FAQ
- What applications is the MX202W-A/MS best suited for? It is ideal for overhead sound capture in conference rooms, boardrooms, houses of worship, and performance venues where natural room sound is desired and a white finish is preferred for light-colored ceilings.
- Does it require phantom power? Yes, it operates on standard 11–52 V DC phantom power through its in-line preamp.
- Is a windscreen included? Yes, it comes with a snap-fit windscreen to reduce wind and breath noise.
- What is the polar pattern? It features an omnidirectional pattern for uniform pickup from all directions.
- How long is the cable? The attached cable measures 4.6 m (15 ft) and terminates with a 3-pin XLR connector via the in-line preamp.
- Is it compatible with standard mixers? Yes, the 3-pin XLR connector makes it compatible with most professional audio mixers and interfaces.
