Shure MXN5W-C Microflex Networked Ceiling Loudspeaker - White
The Shure MXN5W-C delivers high-quality speech reproduction optimized for AV conferencing in boardrooms, huddle rooms, and meeting spaces. Its low-profile, shallow-can design installs easily into most drop ceilings with included accessories, while the pre-tuned frequency response ensures clear, intelligible voice performance. Powered via PoE or PoE+, it eliminates the need for separate amplifiers or outboard DSP, with integrated Shure DSP utilities including 4-band parametric EQ, delay, limiter, and signal/tone generator for streamlined setup and control through Shure Designer software.

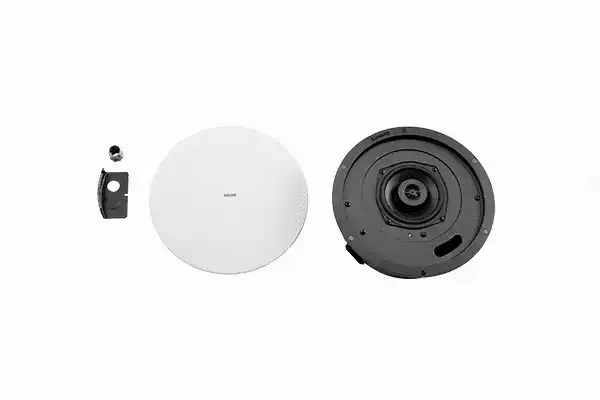

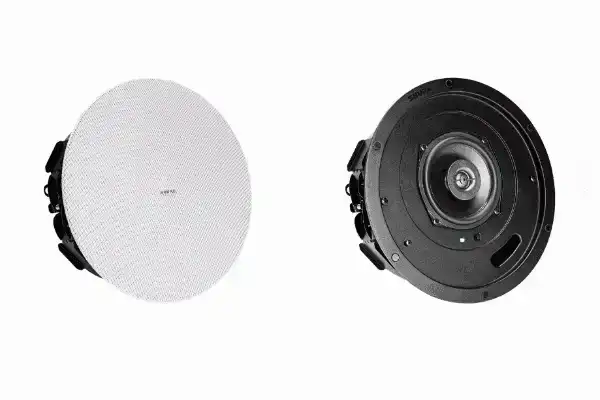

This networked loudspeaker features a 2-way driver system with a 5.25-inch woofer and 0.75-inch tweeter, supporting 2 Dante inputs and 1 Dante output with AES67 compatibility. The aesthetic design includes a removable magnetic paintable grille and Shure logo for seamless blending into ceiling environments. UL 2043 plenum rating supports air-handling spaces, and advanced security protocols such as 802.1x, secure boot/storage, and AES encryption provide reliable protection in enterprise deployments.
| Feature | Benefit |
|---|---|
| PoE/PoE+ Powered Operation | Simplifies installation with single-cable power and audio delivery, no external amplifier required |
| Integrated Shure DSP Utilities | Provides EQ, delay, limiter, and signal/tone generator directly in the loudspeaker for optimized voice clarity |
| 2 Dante Inputs and 1 Dante Output | Enables flexible networked audio routing with AES67 support for broad system compatibility |
| Pre-Tuned Frequency Response | Optimized specifically for speech intelligibility in conferencing applications |
| Low-Profile Shallow-Can Design | Fits most drop ceiling installations with minimal depth for discreet placement |
| Removable Magnetic Paintable Grille | Allows easy customization and seamless aesthetic integration into any environment |
| UL 2043 Plenum Rated | Suitable for use in air-handling spaces for code-compliant commercial installations |
| Software-Based Control via Shure Designer | Streamlines configuration, deployment, and monitoring across the entire audio system |
| Specification | Details |
|---|---|
| Driver Configuration | 2-way system with 5.25 in (13.3 cm) woofer and 0.75 in (1.9 cm) tweeter |
| Frequency Response | 120 Hz to 20 kHz |
| Network Connectivity | 2 Dante inputs, 1 Dante output; AES67 compatible |
| Power Requirements | Power over Ethernet (PoE Class 0) or PoE+ (Class 4) |
| Control Software | Shure Designer System Configuration |
| Mounting Options | Tile bridge or new construction bracket (accessories available); drop ceiling compatible |
| Plenum Rating | UL 2043 (suitable for air handling spaces) |
| Dimensions (H x W x D) | 4 x 12 x 12 in (101.6 x 304.8 x 304.8 mm) |
| Weight | 6.5 lb (2.95 kg) |
| Color | White with paintable grille |
| Security Features | 802.1x, secure boot/storage, AES encryption for control and audio data |
| Operating Temperature Range | −6°C to 40°C (21°F to 104°F) |
| Aspect | Shure MXN5W-C | Bose Professional DM3C | Q-SYS AD-C4T |
|---|---|---|---|
| Power Source | PoE/PoE+ (no external amp) | PoE+ | 70V/100V or low-impedance |
| Network Audio | Dante (2 in / 1 out), AES67 | Dante | Dante via Q-SYS ecosystem |
| Integrated DSP | EQ, delay, limiter, tone generator | Limited onboard processing | Full Q-SYS DSP ecosystem |
| Driver Size | 5.25 in woofer + 0.75 in tweeter | 3 in full-range | 4 in full-range |
| Frequency Response | 120 Hz – 20 kHz (voice-optimized) | 80 Hz – 20 kHz | 70 Hz – 20 kHz |
| Installation Profile | Low-profile shallow-can ceiling | Ceiling mount | Ceiling tile compatible |
| Grille Design | Magnetic, paintable, full coverage | Standard grille | Standard with optional accessories |
| Security | 802.1x, AES encryption, Dante Domain Manager | Standard network security | Enterprise network security |
| Plenum Rating | UL 2043 | Plenum rated | Plenum rated |
FAQ
- Does the MXN5W-C require a separate amplifier? No, it is PoE/PoE+ powered with a built-in amplifier, eliminating the need for external amplification.
- What audio networking does it support? It features 2 Dante inputs and 1 Dante output with AES67 compatibility for seamless integration into Dante-enabled systems.
- Is it suitable for drop ceiling installations? Yes, the low-profile shallow-can design and optional tile bridge or new construction bracket ensure easy mounting in most drop ceilings.
- Can the grille be customized? Yes, the removable magnetic grille is paintable and covers the entire loudspeaker for a clean, blended appearance.
- What DSP capabilities are built-in? Integrated utilities include 4-band parametric EQ, delay, limiter, and signal/tone generator, all configurable via Shure Designer software.
- Does it meet plenum space requirements? Yes, it carries a UL 2043 plenum rating, making it suitable for air-handling spaces in commercial buildings.
