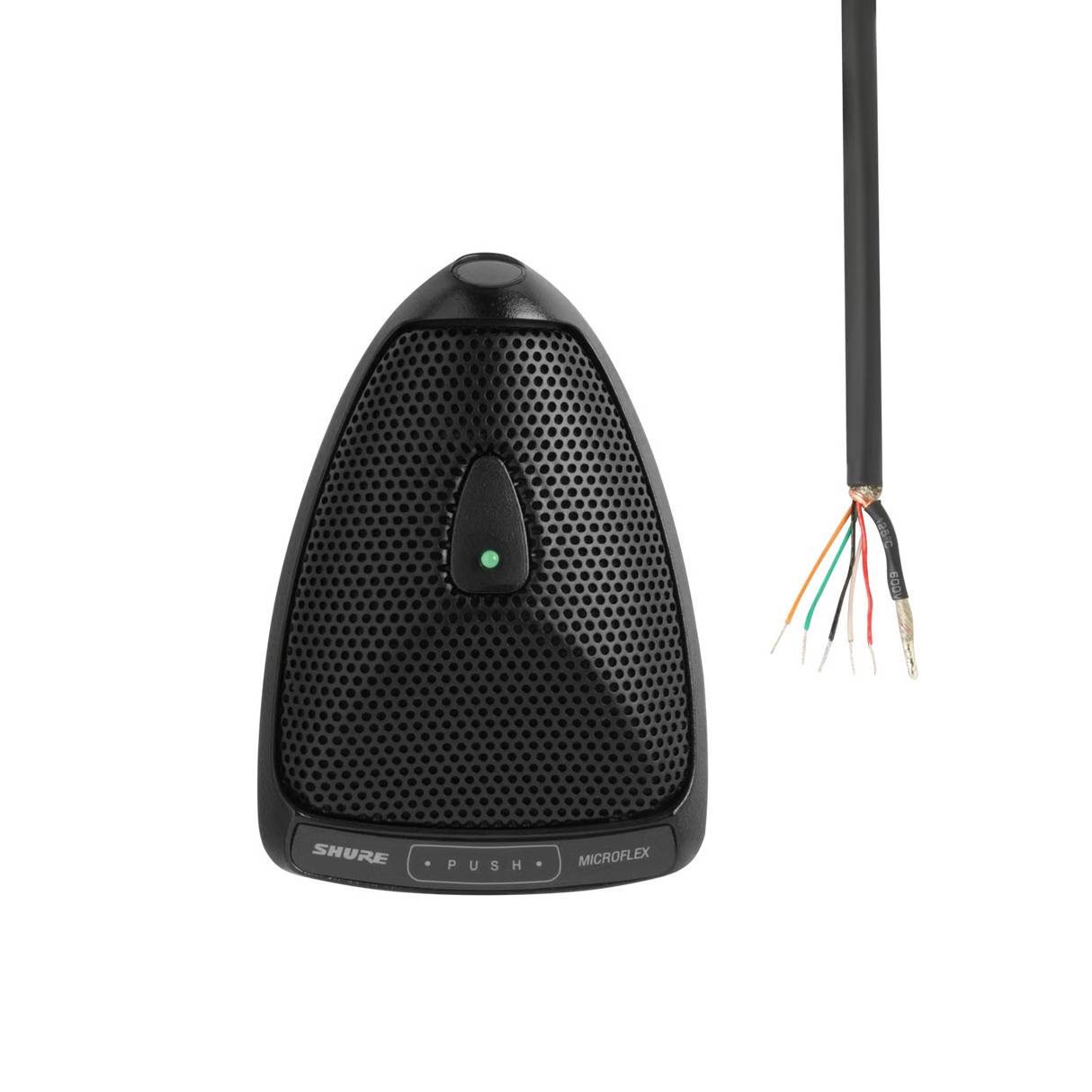

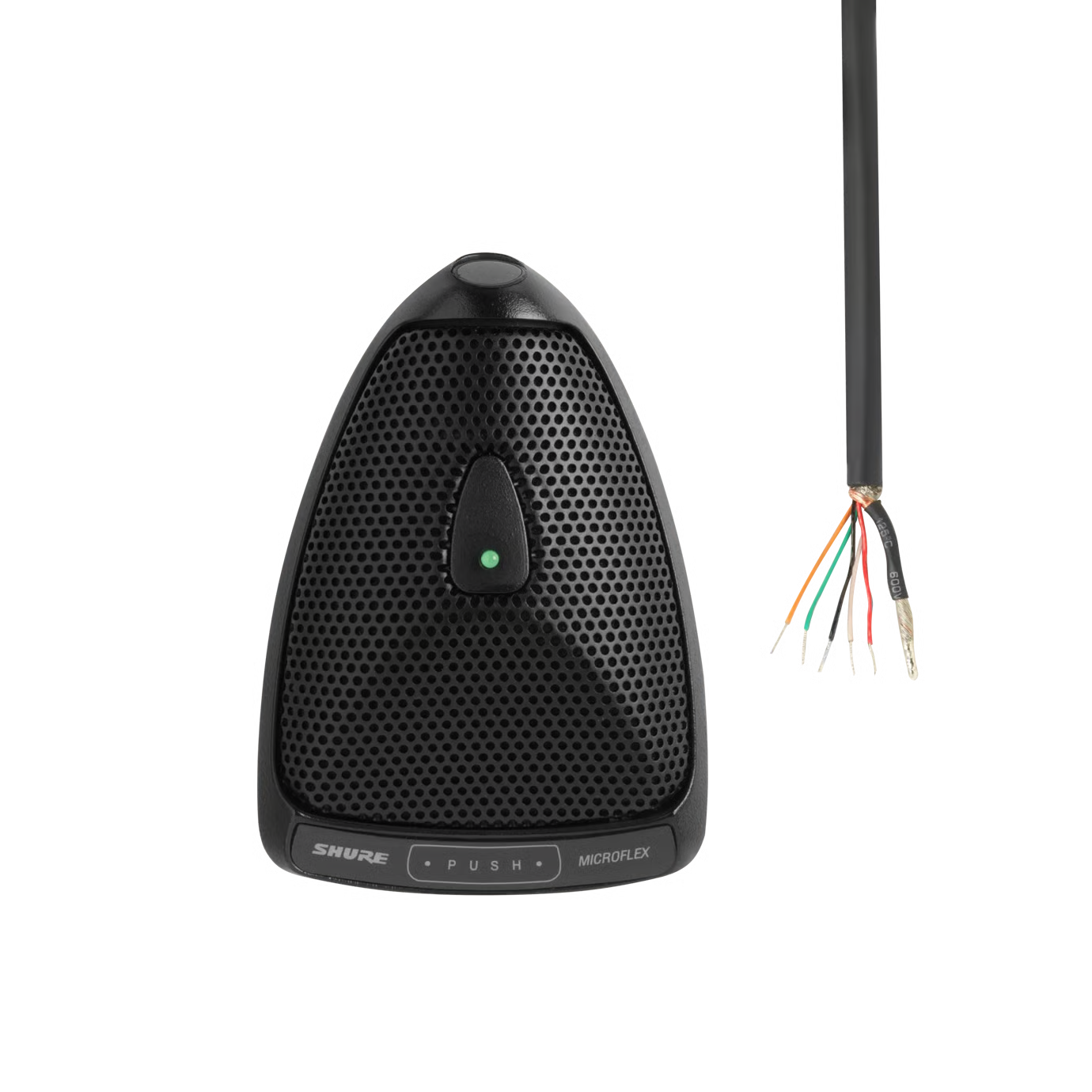

Shure MX392BE/S Microflex Boundary Microphone (Supercardioid)
The Shure MX392BE/S is a professional boundary condenser microphone from the Microflex series, designed for clear, focused speech capture in conference rooms, boardrooms, altars, and distance learning centers. It features a supercardioid polar pattern that provides excellent off-axis rejection, helping to isolate the speaker’s voice and reduce background noise or feedback.

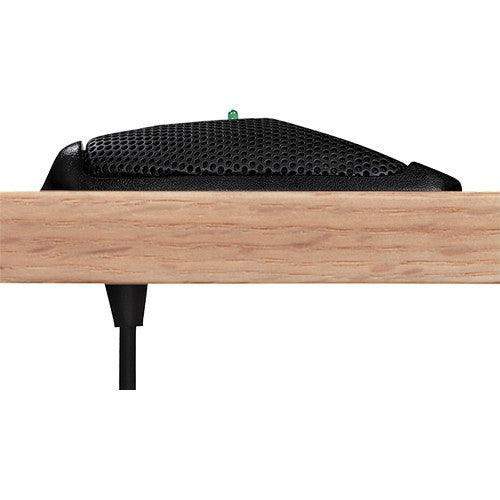

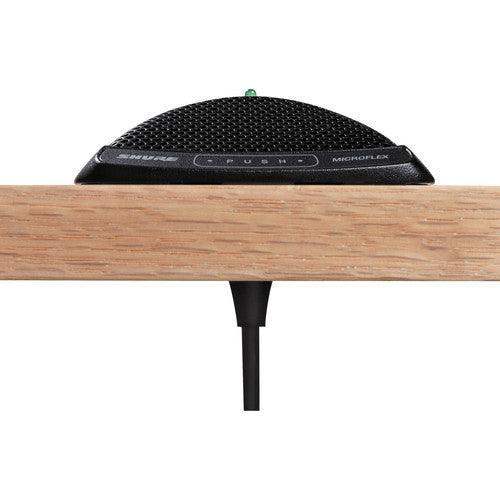

The low-profile design ensures a discreet, professional appearance on any surface. It includes a programmable silent membrane switch with multiple modes, TTL logic for integration with automatic mixing systems, LED indicator, and CommShield Technology for superior RF rejection. The BE variant includes an easy-to-use paint mask for custom-color installations and a bottom cable exit.
| Feature | Benefit |
|---|---|
| Supercardioid Polar Pattern | Excellent off-axis rejection and reduced background noise/feedback |
| Programmable Silent Membrane Switch | Offers push-to-talk, push-to-mute, or push on/push off modes with silent operation |
| TTL Logic Input/Output | Supports remote control and integration with automatic mixing systems |
| LED Indicator | Provides clear visual status feedback |
| Low-Profile Boundary Design | Delivers discreet, professional appearance on surfaces |
| CommShield Technology | Reduces RF interference from mobile devices and wireless systems |
| Paint Mask Included | Facilitates custom color matching for installations |
| Bottom Cable Exit | Allows clean cable routing in permanent setups |
| Specification | Details |
|---|---|
| Microphone Type | Boundary Condenser |
| Polar Pattern | Supercardioid |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | –28 dBV/Pa (approx. 38.5 mV) at 1 kHz |
| Maximum SPL | 118 dB SPL (1 kHz at 1% THD) |
| Self Noise | 21 dB SPL-A (typical) |
| Output Impedance | 180 ohms |
| Connector | Screw terminal with attached unterminated cable |
| Power Requirement | 11–52 V DC phantom power, 2.0 mA |
| Cable | 3.7 m (12 ft) attached unterminated cable, bottom exit |
| Color | Black with paint mask for custom colors |
| Applications | Conference rooms, boardrooms, altars, distance learning centers |
| Aspect | Shure MX392BE/S | Shure MX392BE/C | Shure MX396/C-DUAL |
|---|---|---|---|
| Polar Pattern | Supercardioid | Cardioid | Dual Cardioid |
| Element Count | Single | Single | Dual |
| Cable Exit | Bottom | Bottom | N/A |
| Paint Mask | Included | Included | Not included |
| Primary Use | High-isolation boundary applications | Focused boundary applications | Versatile table coverage |
| Switch/Logic | Programmable silent with TTL logic | Programmable silent with TTL logic | Programmable mute with logic |
| RF Rejection | CommShield | CommShield | CommShield |
FAQ
- What applications is the MX392BE/S best suited for? It is ideal for conference rooms, boardrooms, altars, and distance learning centers requiring high off-axis rejection from a low-profile boundary microphone with custom color options.
- Does it require phantom power? Yes, it operates on standard 11–52 V DC phantom power.
- What switch modes are available? The programmable silent membrane switch supports push-to-talk, push-to-mute, push on/push off, and logic modes.
- What is the polar pattern? It features a supercardioid pattern for excellent off-axis rejection.
- Does it support custom colors? Yes, it includes a paint mask for easy custom-color installations.
- Is it compatible with automatic mixers? Yes, the TTL logic input/output supports remote control and integration with automatic mixing systems.
