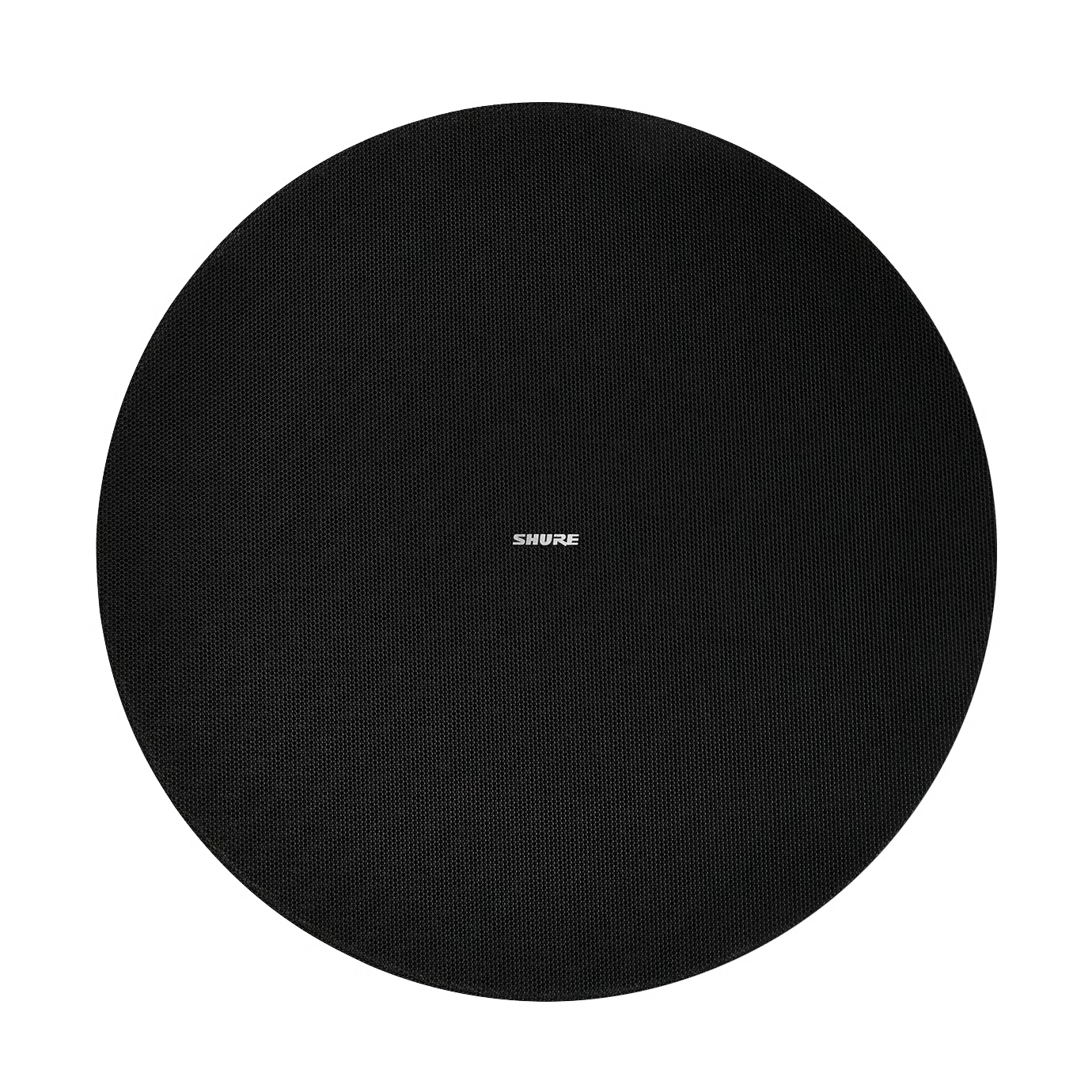

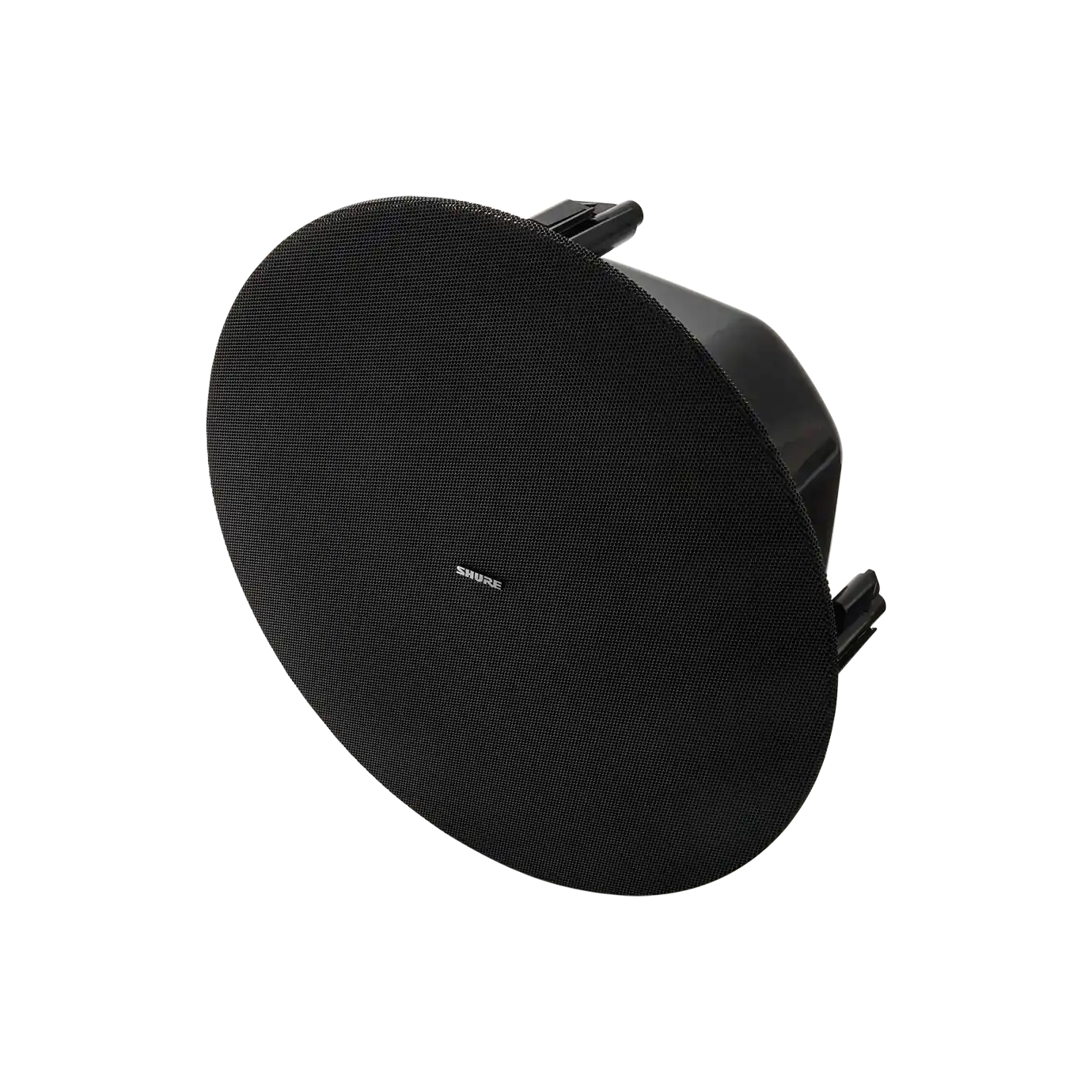

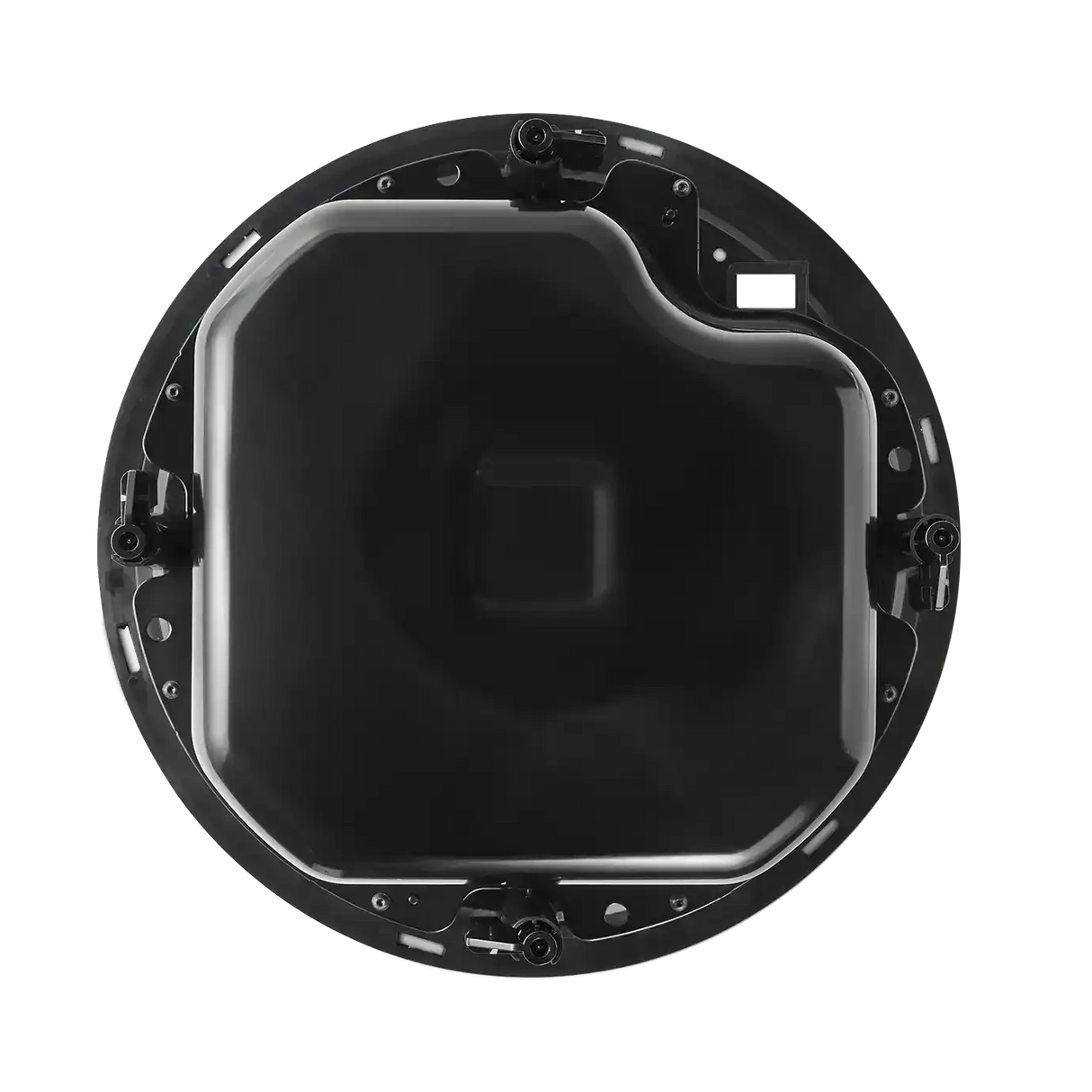

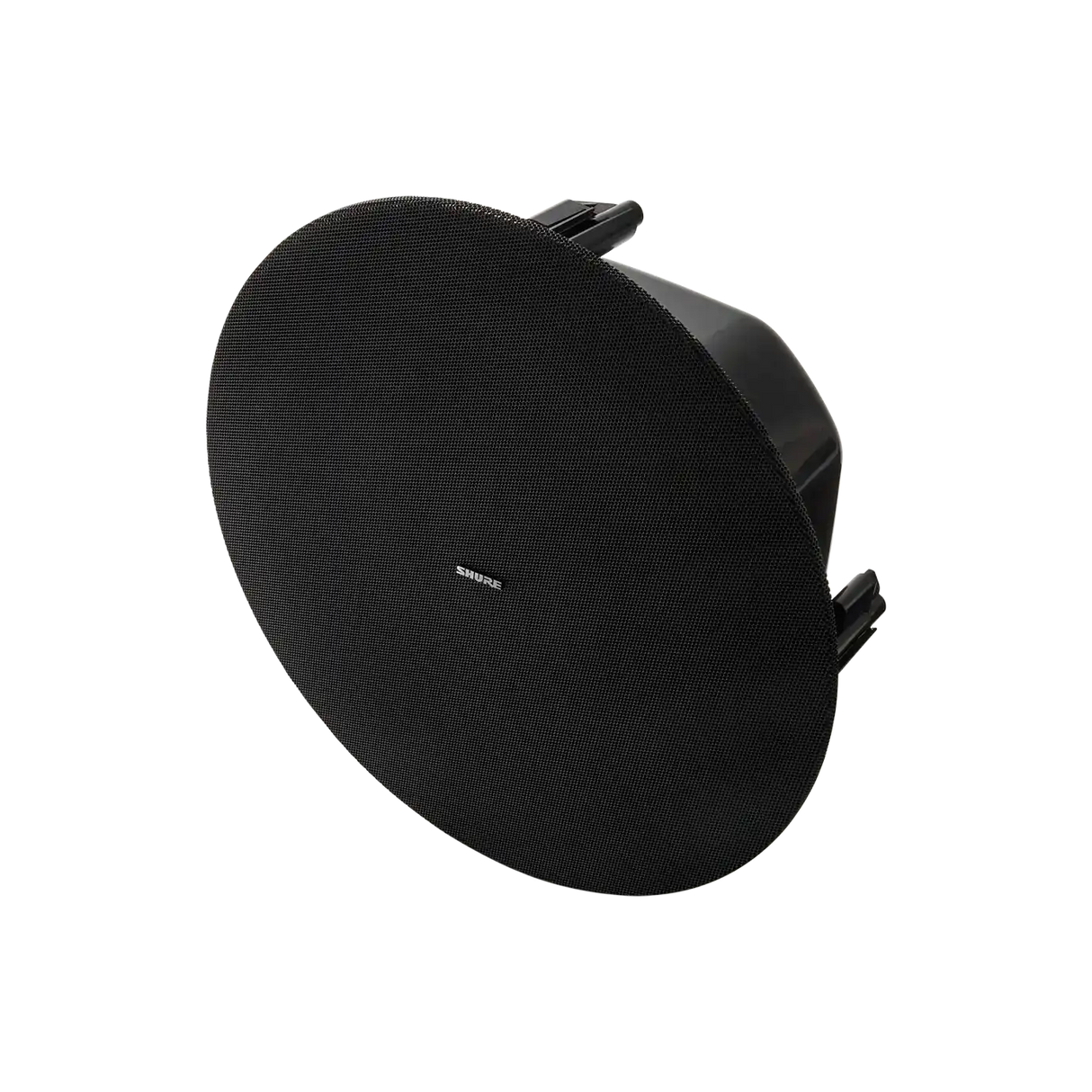

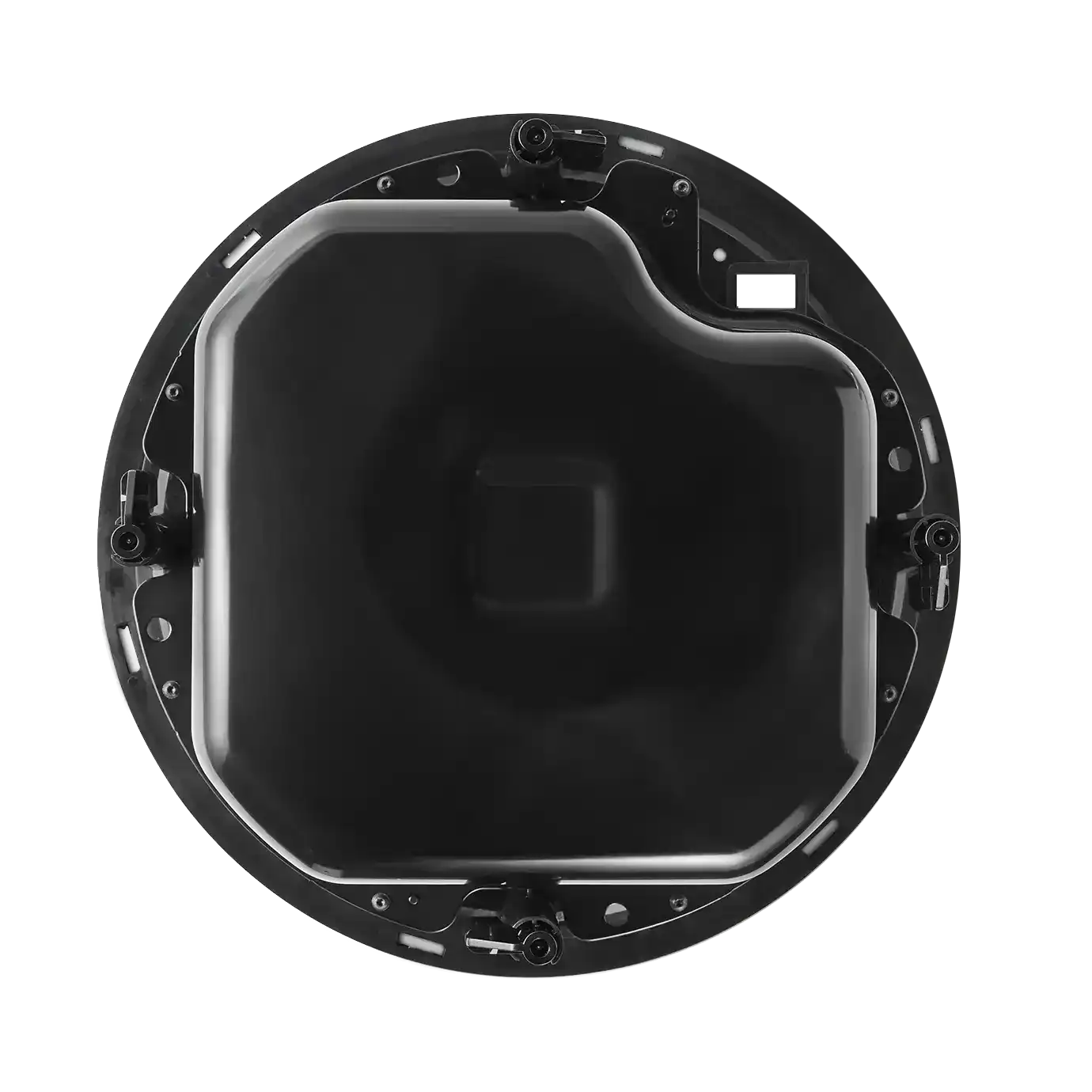

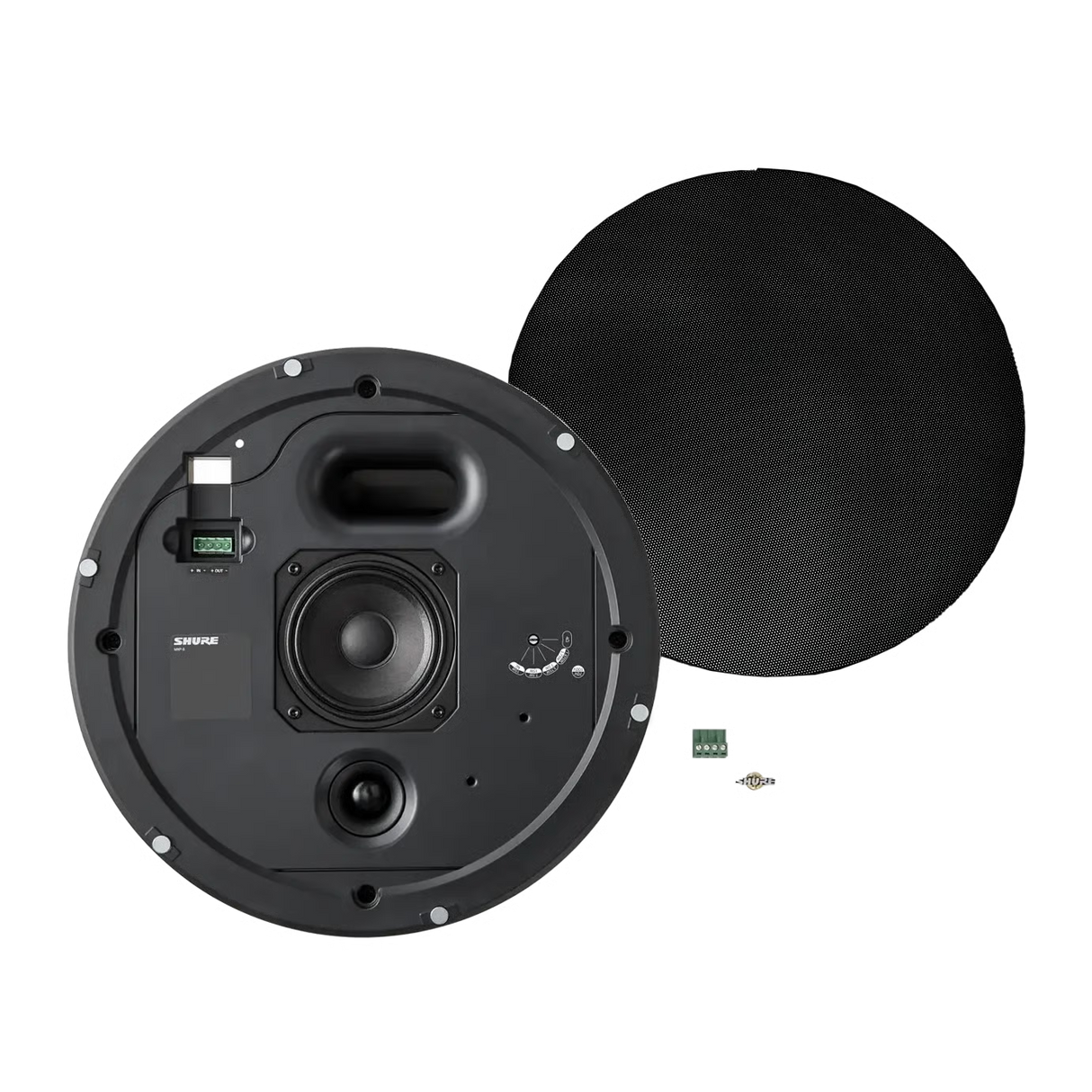

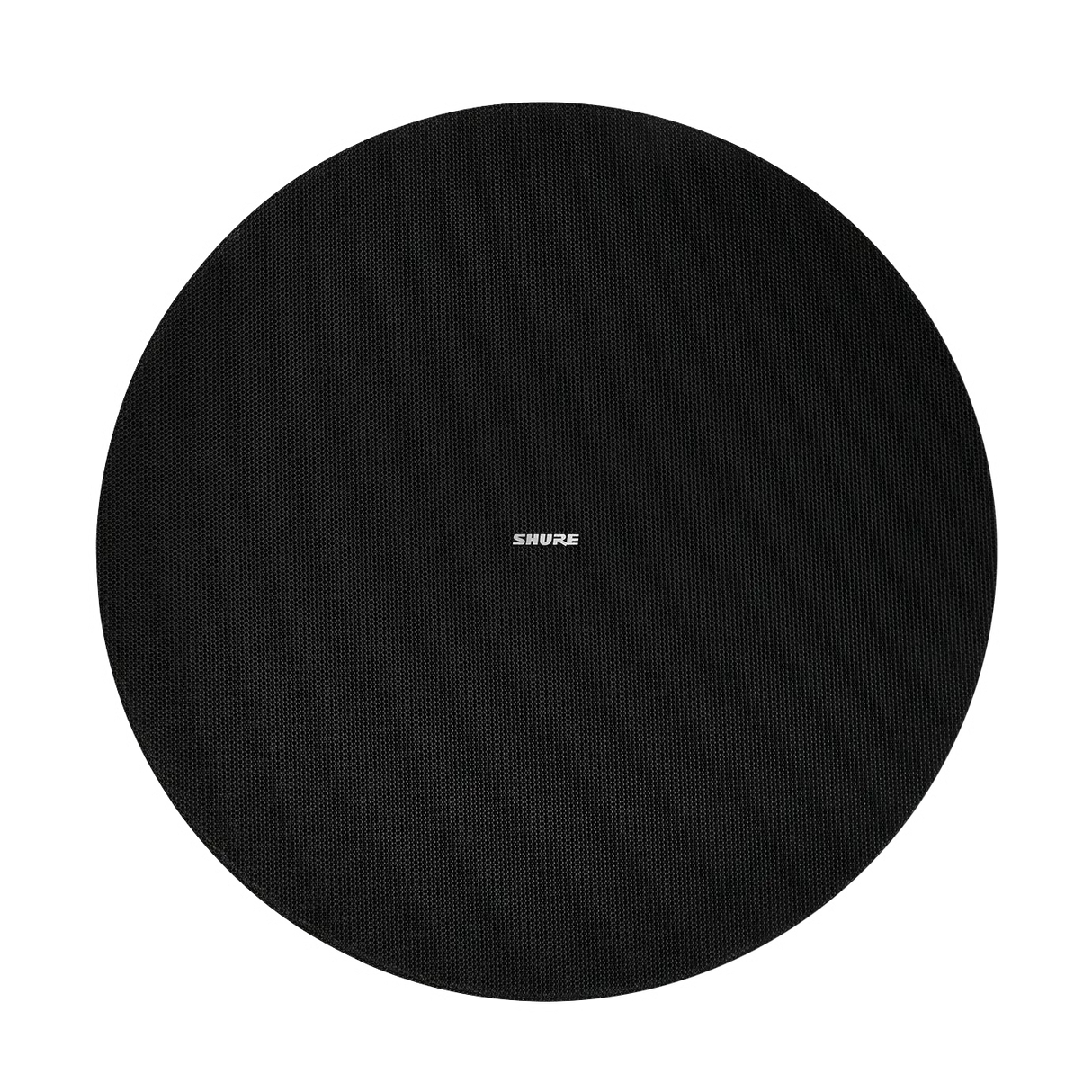

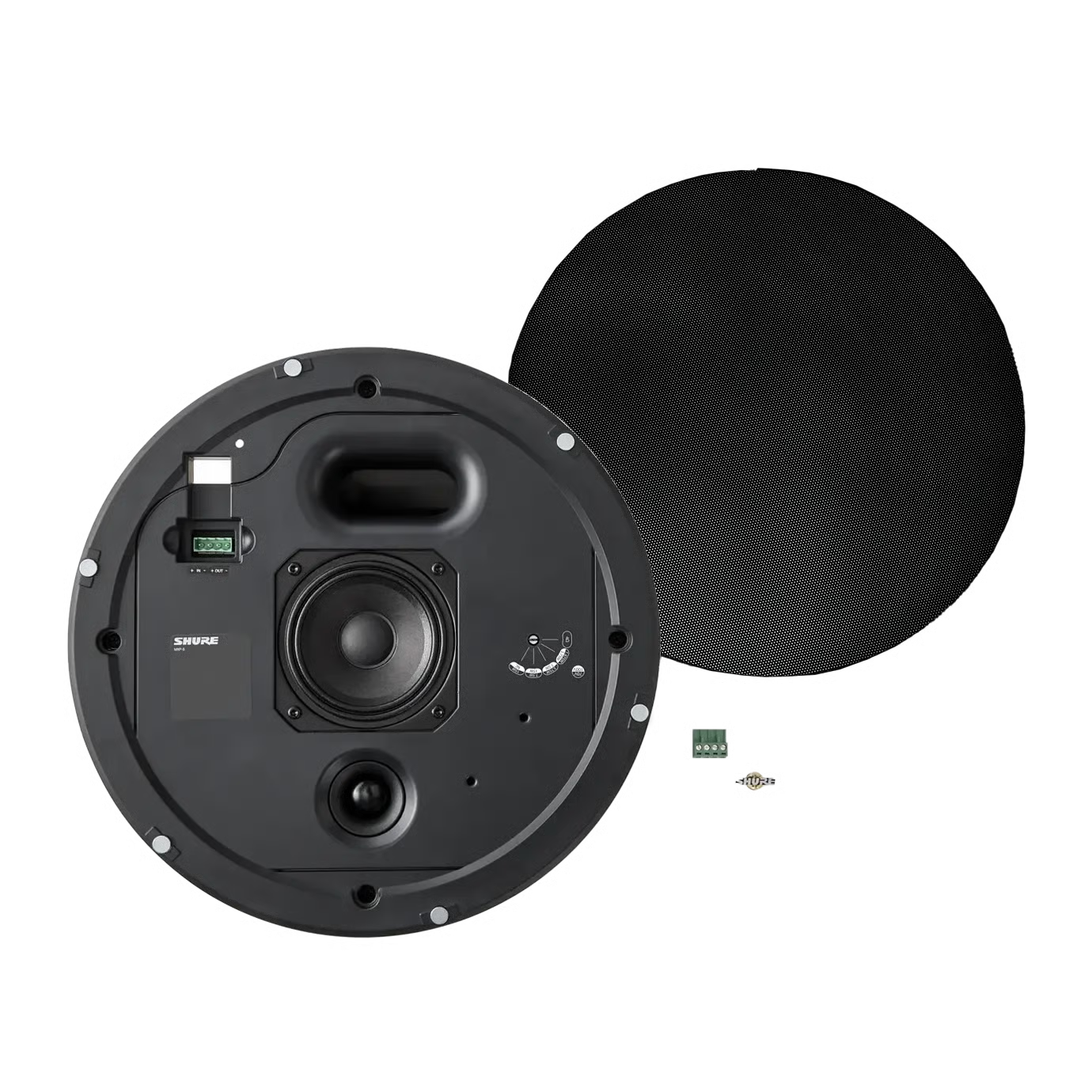

Shure MXP-5B Microflex Ceiling Array Microphone and Loudspeaker System (Black)
Shure MXP-5B Microflex Ceiling Array Microphone and Loudspeaker System (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MXP-5B Microflex Ceiling Array Microphone and Loudspeaker Sys...
The Shure MXP-5B is a complete ceiling-mounted audio solution that integrates a high-performance microphone array and loudspeaker in a single low-profile unit. It is designed for clear, intelligible speech reproduction and capture in conferencing and meeting spaces. The system features Automatic Coverage technology with steerable pickup lobes and onboard IntelliMix DSP for automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. The integrated loudspeaker delivers optimized voice reproduction with wide dispersion.
This networked version includes Dante/AES67 connectivity and PoE+ power, allowing single-cable installation for audio, control, and power. The black finish with paintable grille blends seamlessly into modern ceiling environments, and the included ceiling bracket simplifies installation in standard drop ceilings.
| Feature | Benefit |
|---|---|
| Integrated Microphone Array and Loudspeaker | Combines capture and playback in one discreet ceiling unit for simplified room audio |
| Automatic Coverage Technology | Provides consistent room-wide pickup without manual lobe aiming |
| Onboard IntelliMix DSP | Delivers automatic mixing, echo cancellation, noise reduction, AGC, and EQ without external processors |
| Dante/AES67 Networked Audio | Enables single-cable PoE+ installation for audio, control, and power |
| Wide Dispersion Loudspeaker | Ensures even voice coverage throughout the meeting space |
| Paintable Black Grille | Allows seamless architectural integration into any ceiling |
| Included Ceiling Bracket | Simplifies installation in standard drop ceilings |
| Shure Audio Encryption | Protects audio content within the Microflex Ecosystem |
| Specification | Details |
|---|---|
| System Type | Ceiling Array Microphone and Loudspeaker (Networked) |
| Microphone Coverage | Automatic Coverage with steerable lobes |
| Loudspeaker | Integrated wide-dispersion driver optimized for voice |
| Network Connectivity | Dante / AES67 with PoE+ |
| Mounting | Drop ceiling with included bracket |
| Color | Black (paintable grille) |
| Depth | Low-profile design |
| Applications | Conference rooms, meeting spaces, hybrid collaboration |
| Compatibility | Microflex Ecosystem, Microsoft Teams, Zoom Rooms |
| Aspect | Shure MXP-5B | Shure MXP-3B | Typical Ceiling Array System |
|---|---|---|---|
| Integrated Loudspeaker | Yes | Yes | Often separate |
| Coverage Technology | Automatic Coverage + steerable lobes | Wide dispersion | Varies |
| DSP | Onboard IntelliMix | Requires external amp | Varies |
| Networked Audio | Dante / AES67 + PoE+ | Dante / AES67 + PoE+ | Varies |
| Installation Depth | Low-profile | Very low-profile | Varies |
| Paintable Grille | Yes | Yes | Varies |
| Primary Use | Full-room conferencing | Speech reproduction | Conferencing |
FAQ
- What room sizes is the MXP-5B designed for? It is optimized for medium to large conference and meeting spaces requiring both high-quality microphone capture and loudspeaker playback.
- Does it require an external amplifier? No, the integrated loudspeaker is driven by the networked system (typically paired with compatible Shure amplification or DSP).
- Is networking required? The networked version uses Dante/AES67 for single-cable installation of audio, control, and power via PoE+.
- Can the grille be painted? Yes, the black grille is paintable to match the ceiling for seamless integration.
- Does it include mounting hardware? Yes, the ceiling bracket is included for installation in standard drop ceilings.
- Is it compatible with major conferencing platforms? Yes, it integrates with the Microflex Ecosystem and supports Microsoft Teams, Zoom, and other platforms.
