Shure IMXRK70Z

Product Overview

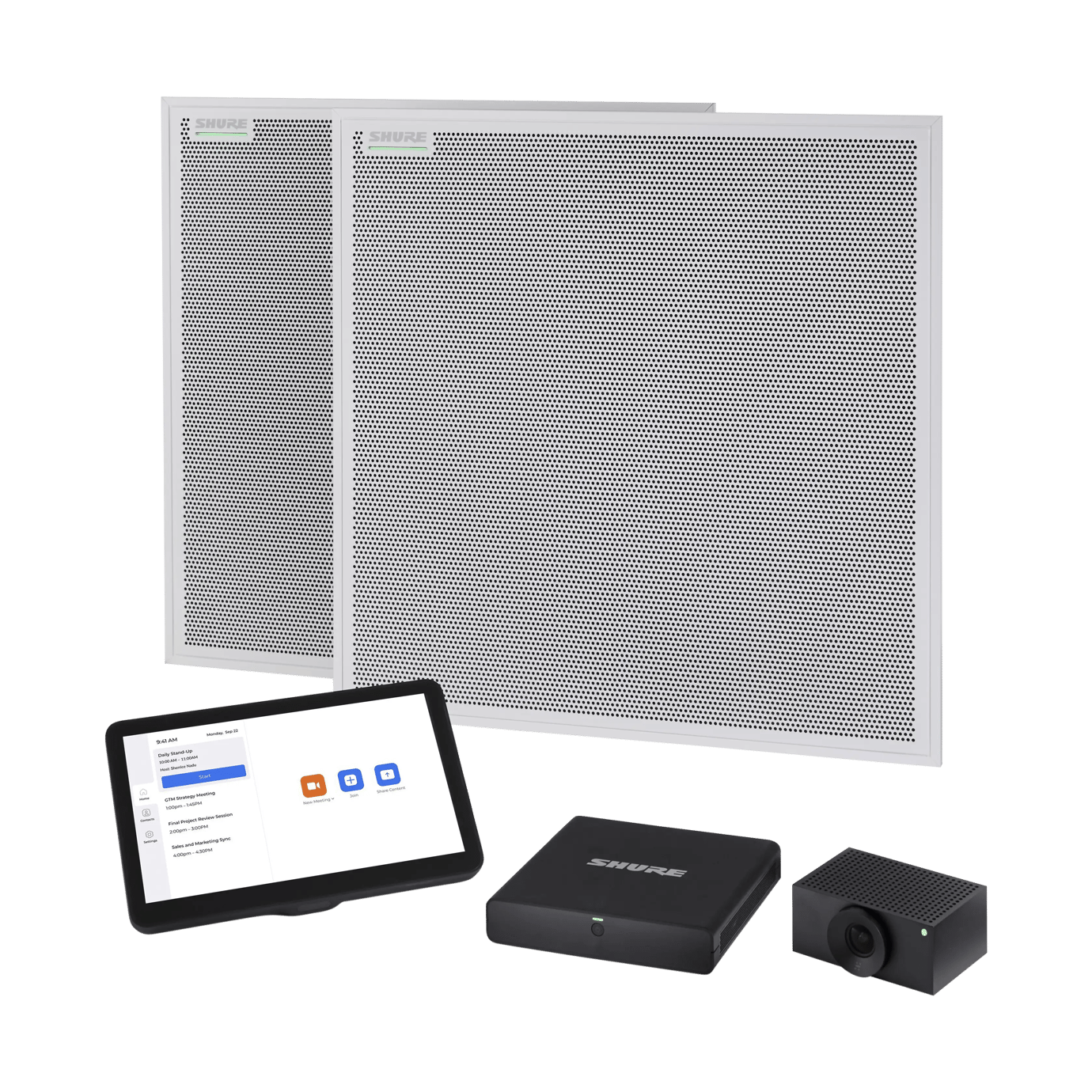

The Shure IMXRK70Z is a complete Zoom Rooms kit built for large conference room and boardroom installation where an integrator needs multi-microphone audio coverage, video, compute, and touch control delivered as one tested package. This IntelliMix Room Kit pairs two MXA902 integrated ceiling array microphones and loudspeakers with a Windows-based Zoom Room compute, an IntelliMix touch panel, and a Huddly L1 camera, so AV teams can deploy a Zoom-certified large conference room without separately sourcing and matching a multi-channel DSP, ceiling speakers, and camera. Zero-touch provisioning and pre-configured IntelliMix Room DSP make this a practical large room AV conferencing kit for IT teams standardizing on Zoom Rooms across a facility.

Product Description

The IMXRK70Z doubles the MXA902 count found in the IMXRK50Z to extend even microphone and loudspeaker coverage across a large room footprint. Each MXA902 combines beamforming microphone pickup and a wide-dispersion loudspeaker in a single ceiling-mounted device, so this large room kit installation avoids running separate microphone and speaker cable pathways across the extended ceiling plan.

Audio processing runs through IntelliMix Room DSP, pre-installed and pre-configured on the kit's Windows-based compute, delivering AI-enhanced echo, noise, and reverberation reduction across both MXA902 units without on-site DSP tuning. The compute auto-configures connected devices on first boot, and integrators sign in through the included touch panel using Zoom Room credentials for a streamlined deployment. A Huddly L1 camera, connected over CAT5/6 and HDMI per Shure's reference design, provides Huddly Director and Group Framing so remote participants see every seat in a large room naturally.

Because this large room configuration ships as a matched hardware and software bundle, integrators avoid the compatibility troubleshooting that comes from combining multiple DSPs, ceiling speakers, a camera, and compute from different vendors. ShureCloud and Zoom's device management tools give IT teams centralized provisioning, monitoring, and remote support across every IMXRK70Z deployed in a building.

Key Features

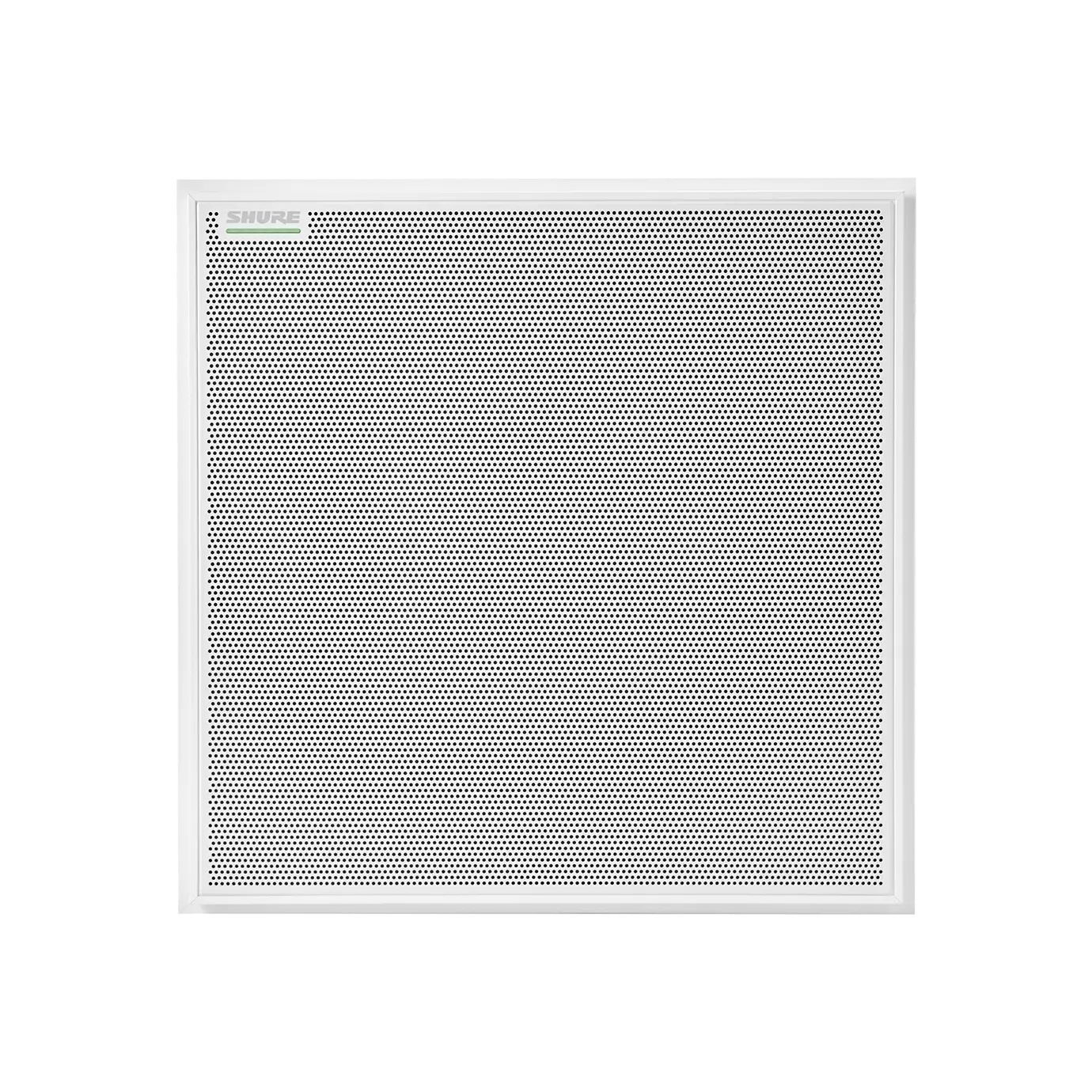

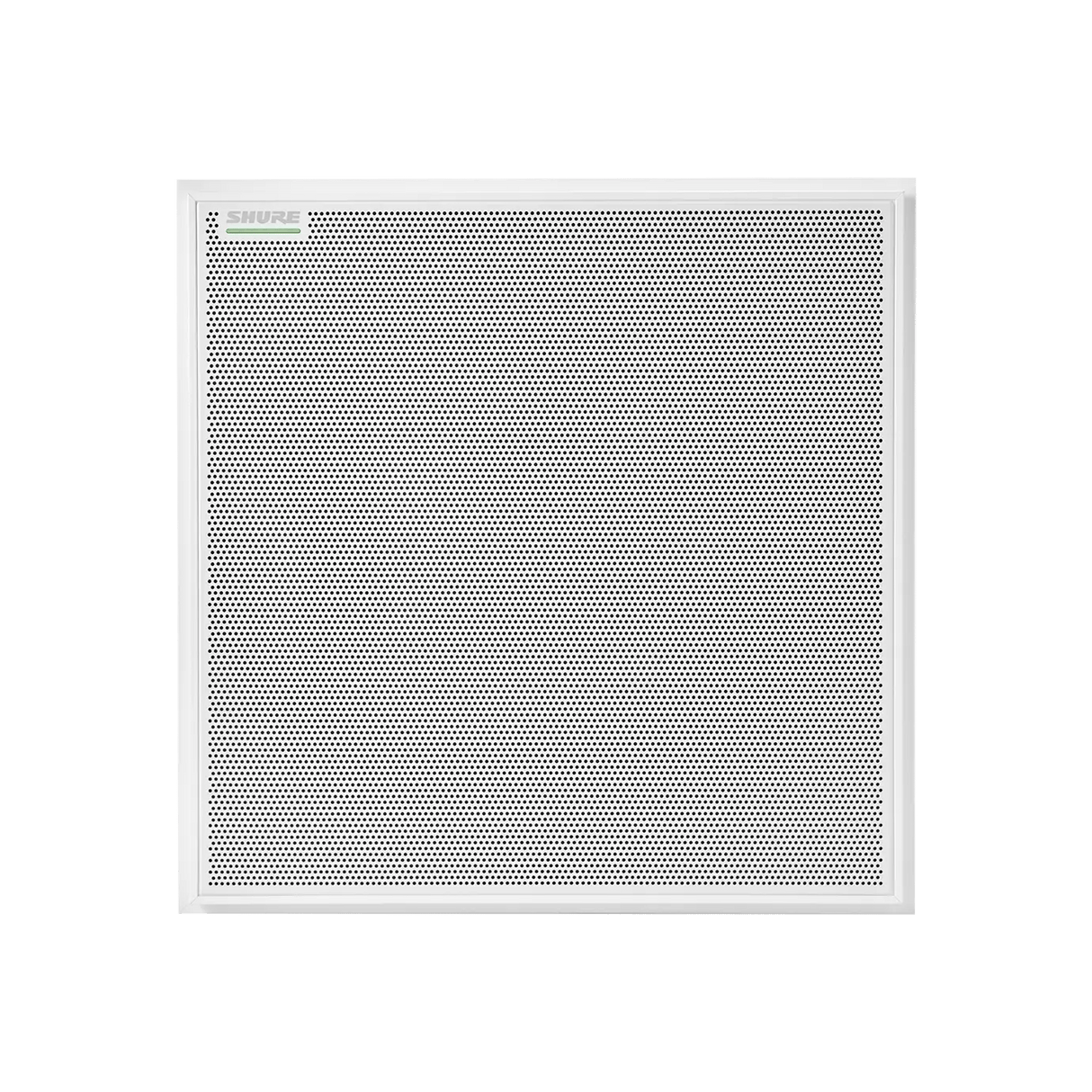

• Two MXA902 Integrated Ceiling Arrays + Loudspeakers — Extends even microphone and loudspeaker coverage across a large room footprint.
• Pre-Configured IntelliMix Room DSP — AI-enhanced echo, noise, and reverberation reduction across both microphone arrays with no on-site tuning.

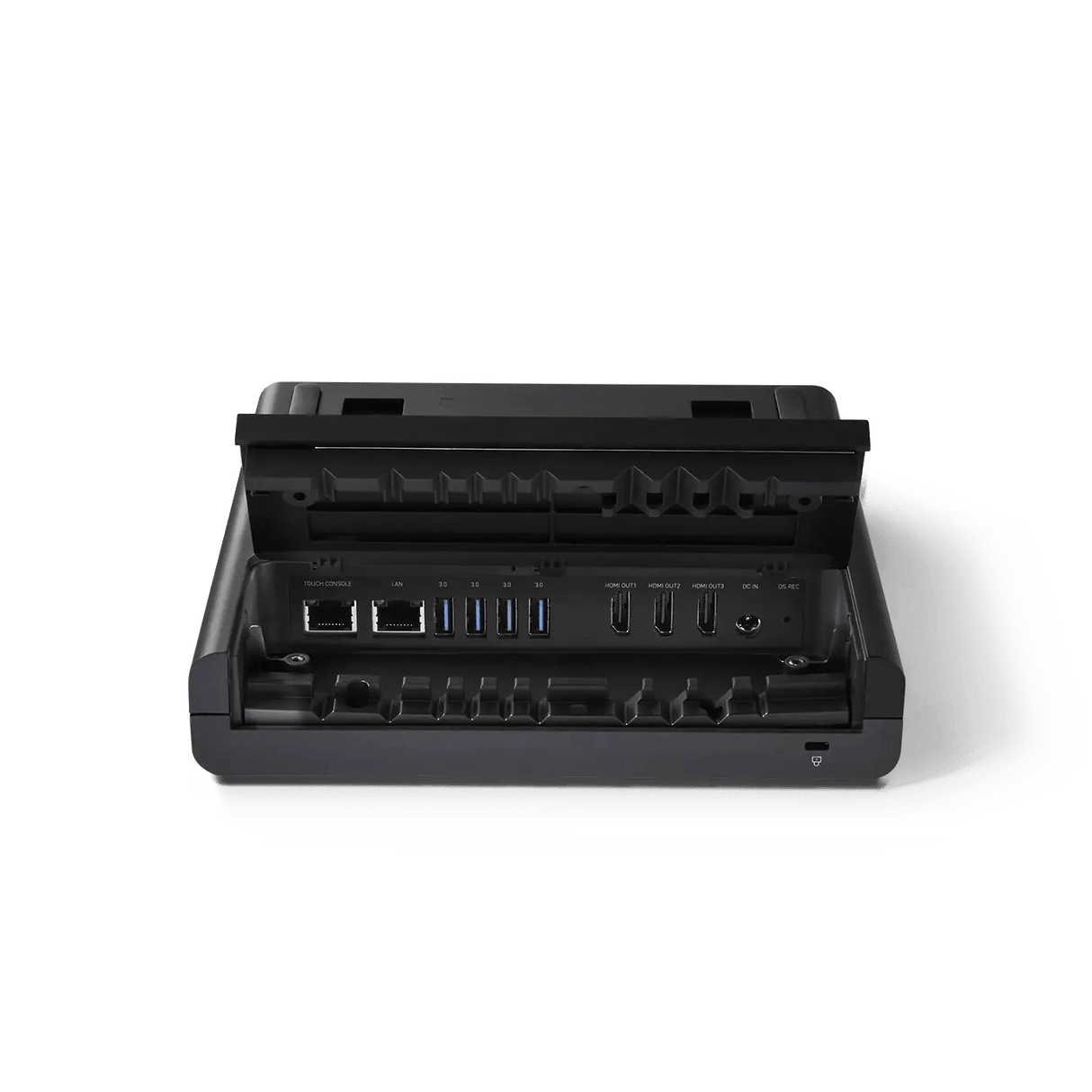

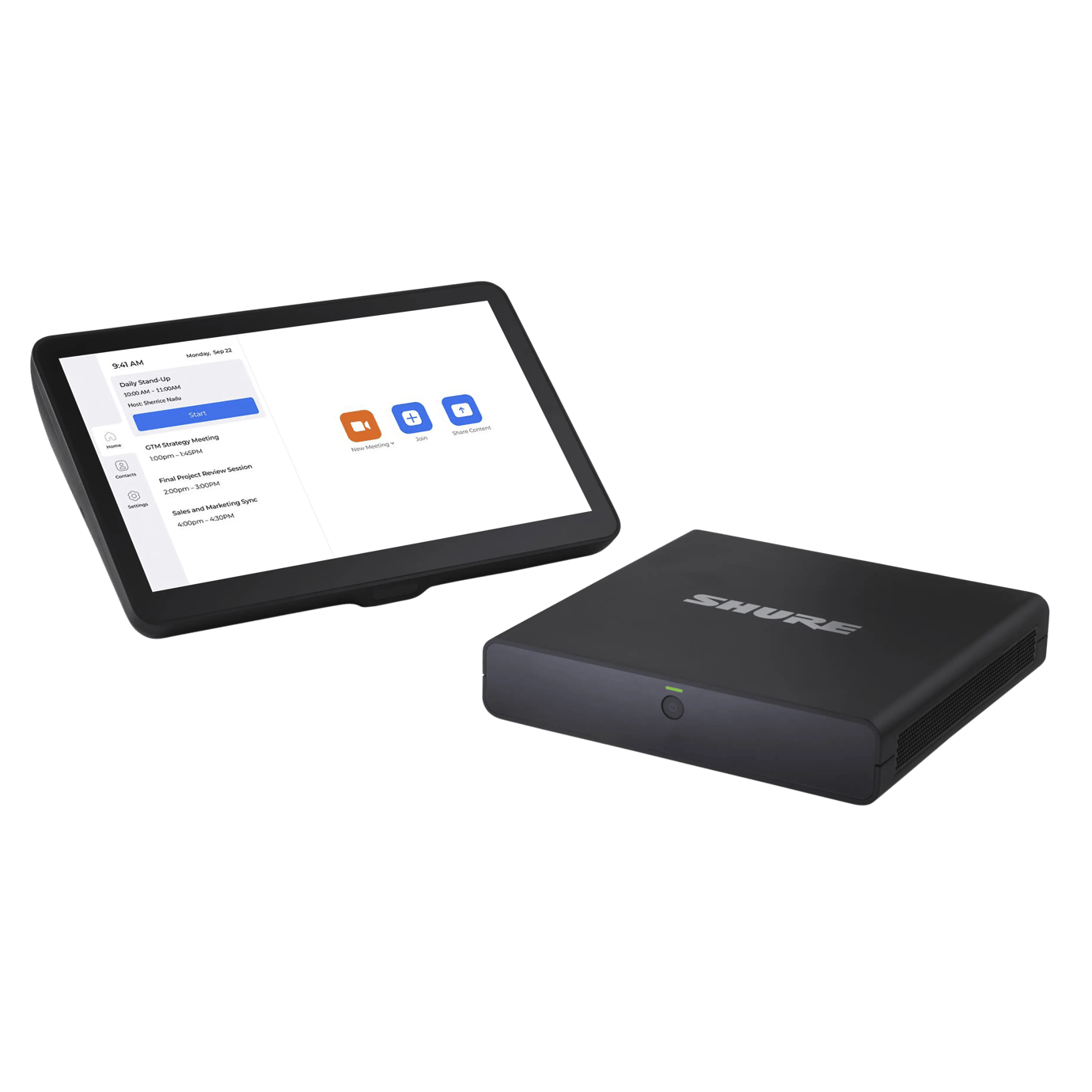

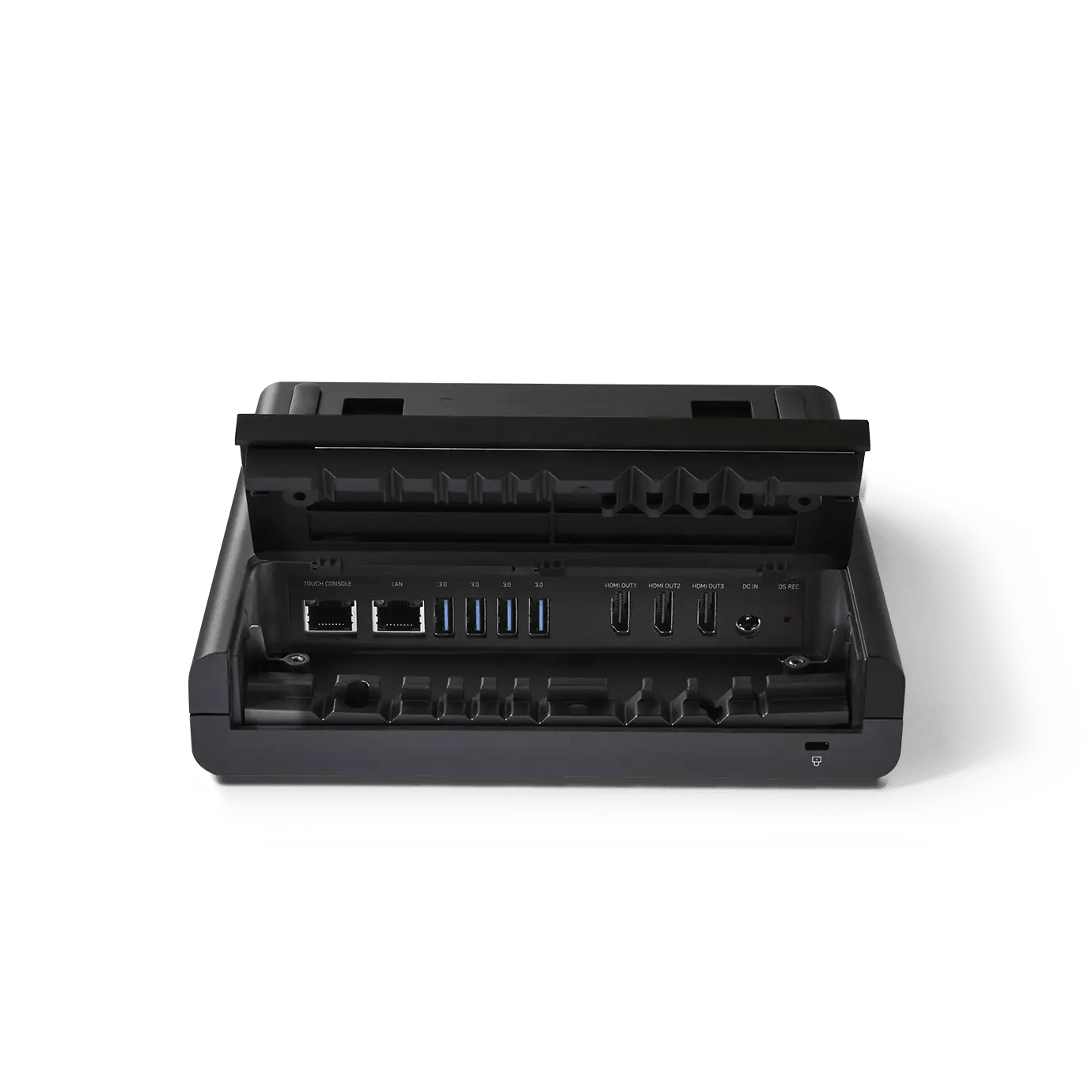

• Windows-Based Zoom Room Compute — Auto-configures connected devices on first boot for fast setup.
• Huddly L1 Camera — Huddly Director and Group Framing automatically present participants across a large room.

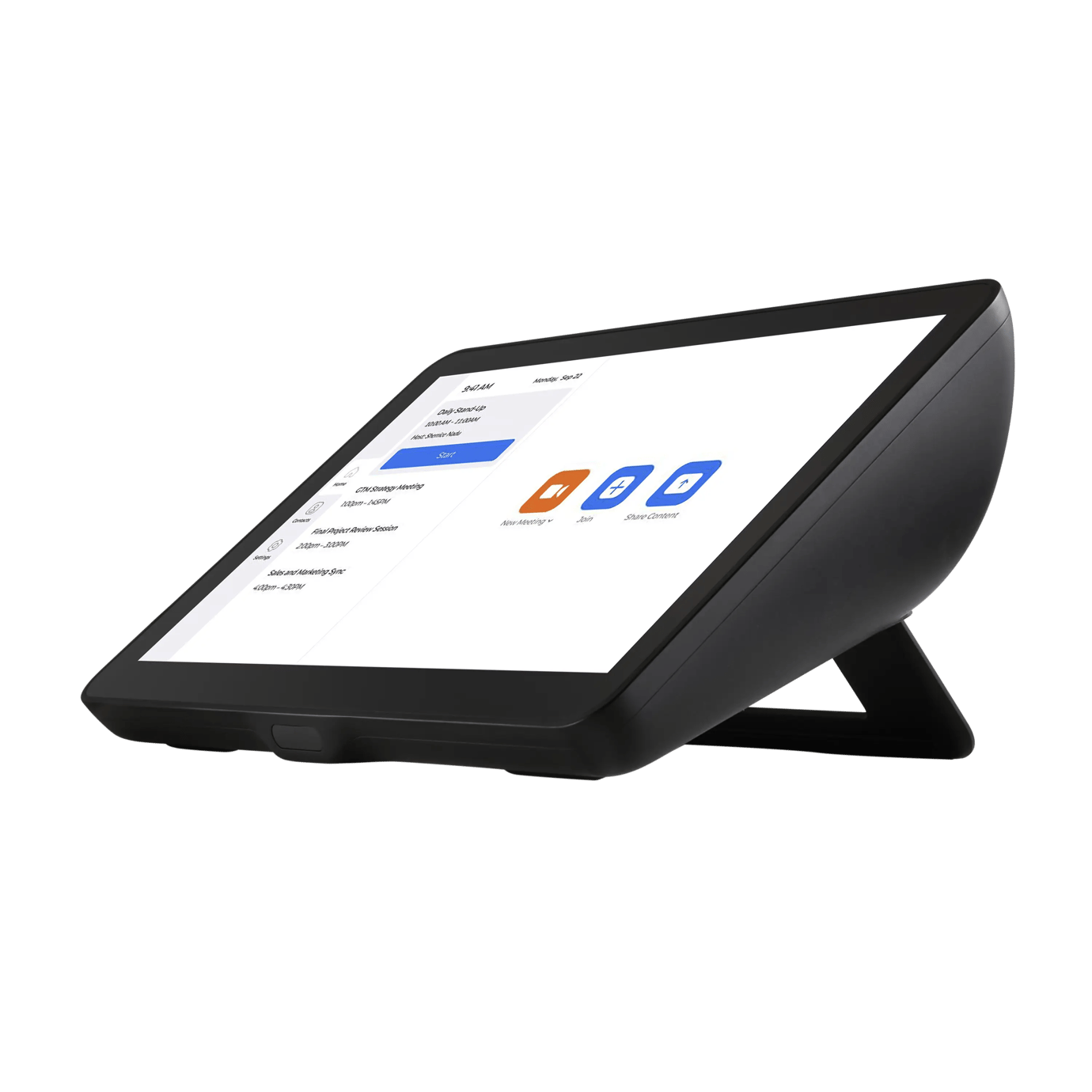

• IntelliMix Touch Panel — Sign in with Zoom Room credentials for a streamlined room launch.
• Zero-Touch Provisioning — Reduces on-site configuration time for IT and AV integration teams.
• Centralized Management — ShureCloud and Zoom device management support multi-room monitoring.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Training room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What room size is the IMXRK70Z designed for?
The IMXRK70Z is Shure's large room configuration, built around two MXA902 ceiling arrays and a Huddly L1 camera for large conference rooms and boardrooms.

Does this kit require separate DSP configuration?
No. IntelliMix Room DSP ships pre-installed and pre-configured on the kit's compute, and the system auto-configures connected devices on first boot.

Is this kit certified for Zoom Rooms?
Yes. The IMXRK70Z includes a Windows-based Zoom Room compute and is designed for a Zoom-certified deployment.

What network infrastructure does installation require?
A PoE+ capable switch and standard CAT5/6 structured cabling to both MXA902 units and the touch panel, on an enterprise network segment.

Can this kit be provisioned remotely across multiple rooms?
Yes. ShureCloud and Zoom's device management tools support remote provisioning and monitoring across rooms.

What warranty applies to this kit?
Shure covers IMXRK70Z components under its standard manufacturer warranty; a 3-year extended warranty (IMXRK70Z-EXTW3) is available separately for 5 years of total coverage. Contact Creation Networks for current terms.

Does Creation Networks provide installation support for this kit?
Yes, our AV integration team can assist with network planning, Zoom Rooms provisioning, and on-site commissioning.
