Shure IMXRK70 IntelliMix Large Kit 70 for Microsoft Teams Rooms

Shure IntelliMix Room Kit 70 Audio/Video Conferencing System for Large Rooms

Boost collaboration with simple and secure Microsoft Teams Rooms conferencing kits. With zero-touch provisioning, you can effortlessly deliver high-quality audio and video experiences in your small, medium, and large meeting and collaboration spaces, up to 33 x 18 ft (10 x 5.5 m). The component-based systems provide everything you need - automatically. No programming or adjusting of audio and video settings is required. All kits include a powerful Windows-based Teams Rooms compute with Shure’s premium audio signal processing, an intuitive touch panel, a superior all-in-one ceiling array microphone + loudspeaker, and intelligent, high-resolution video.

Get The Team Together

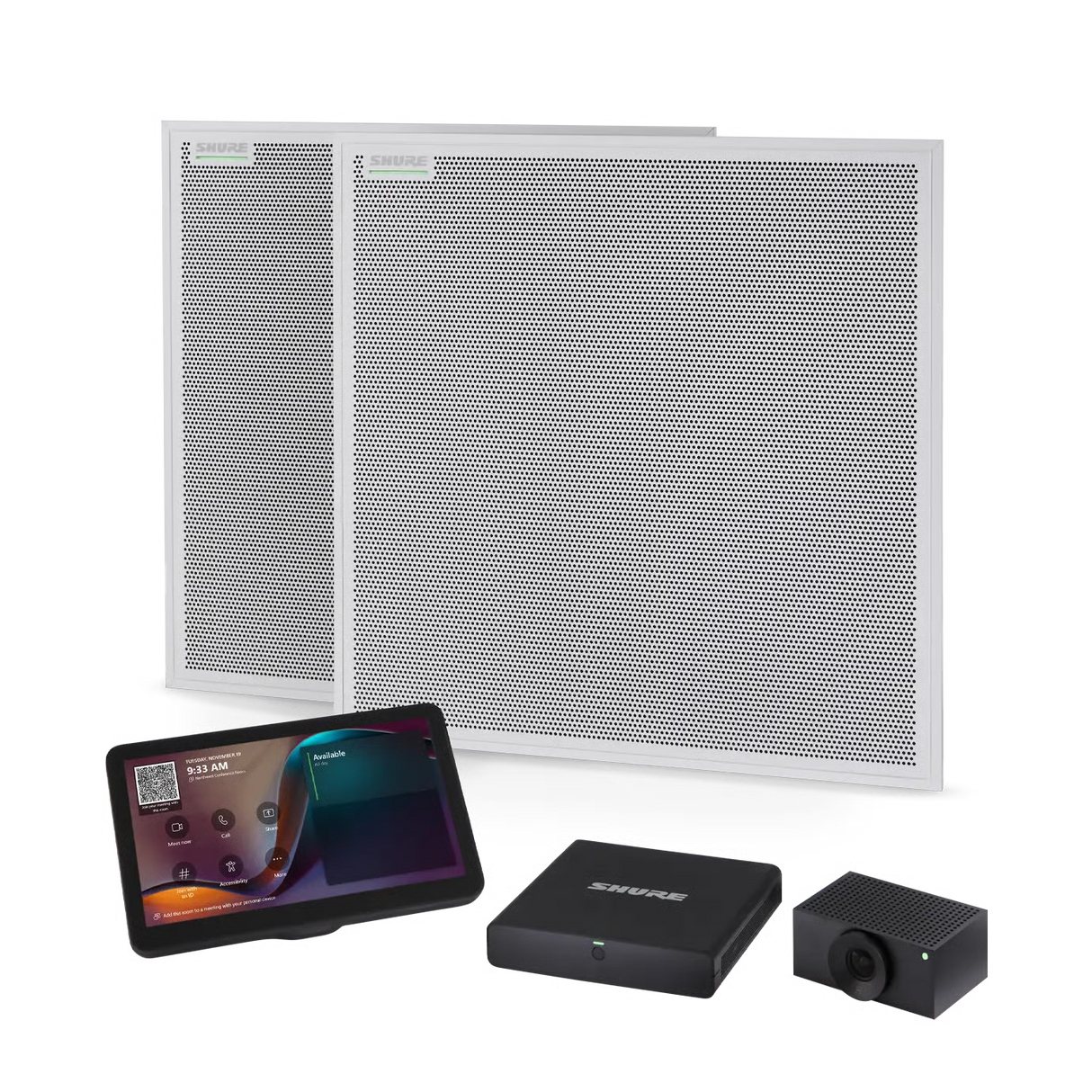

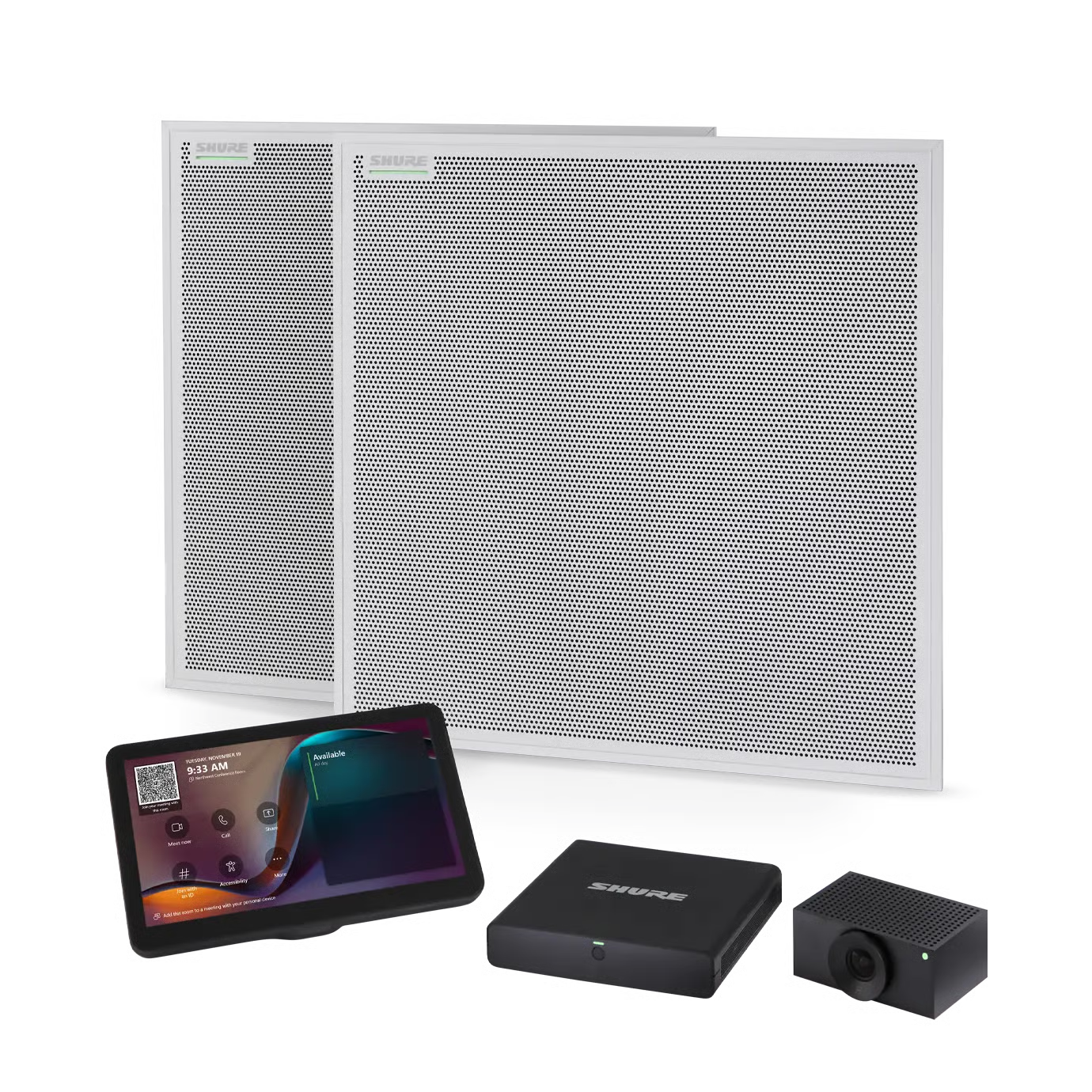

What’s in the Box

• 1 × IntelliMix Foundation System (Teams Rooms compute with IntelliMix DSP, touch panel, network switch, cables, and accessories)

• 2 × MXA902 Integrated Ceiling Array Microphone + Loudspeakers

• 1 × Huddly L1 Networked Camera

• 1 × PoE+ Network Switch

• 1 × Enterprise Network Package

• All necessary hardware and cables

Technical Specifications

IntelliMix Foundation Compute

• CPU: Intel® Core™ i5 (12th Gen)

• Memory: 16 GB DDR4

• Storage: 256 GB SSD

• Graphics: Intel UHD Graphics (12th Gen)

• OS: Windows 11 IoT Enterprise (x64)

• Software: Microsoft Teams Rooms, IntelliMix Room (8-channel)

• Weight: 2.4 lb (1.1 kg)

MXA902 Ceiling Array Microphone + Loudspeaker

• Coverage: 20 × 20 ft (6.1 × 6.1 m) each

• Power: PoE+ (Class 4)

• Mic Frequency Response: 125 Hz – 20 kHz

• DSP Features: Automatic mixing, AEC, noise reduction, AGC, compressor, delay, EQ, mute/gain control

• Weight: 12.7 lb (5.8 kg) each

Huddly L1 Networked Camera

• Sensor: 20.3 MP 1" CMOS

• Resolution: 1080p / 720p @ 30 fps

• Field of View: 103° (D) / 92° (H) / 65° (V)

• Zoom: 5× digital

• Weight: 1.3 lb (0.6 kg)
