Shure IMXBPK-W

Product Overview

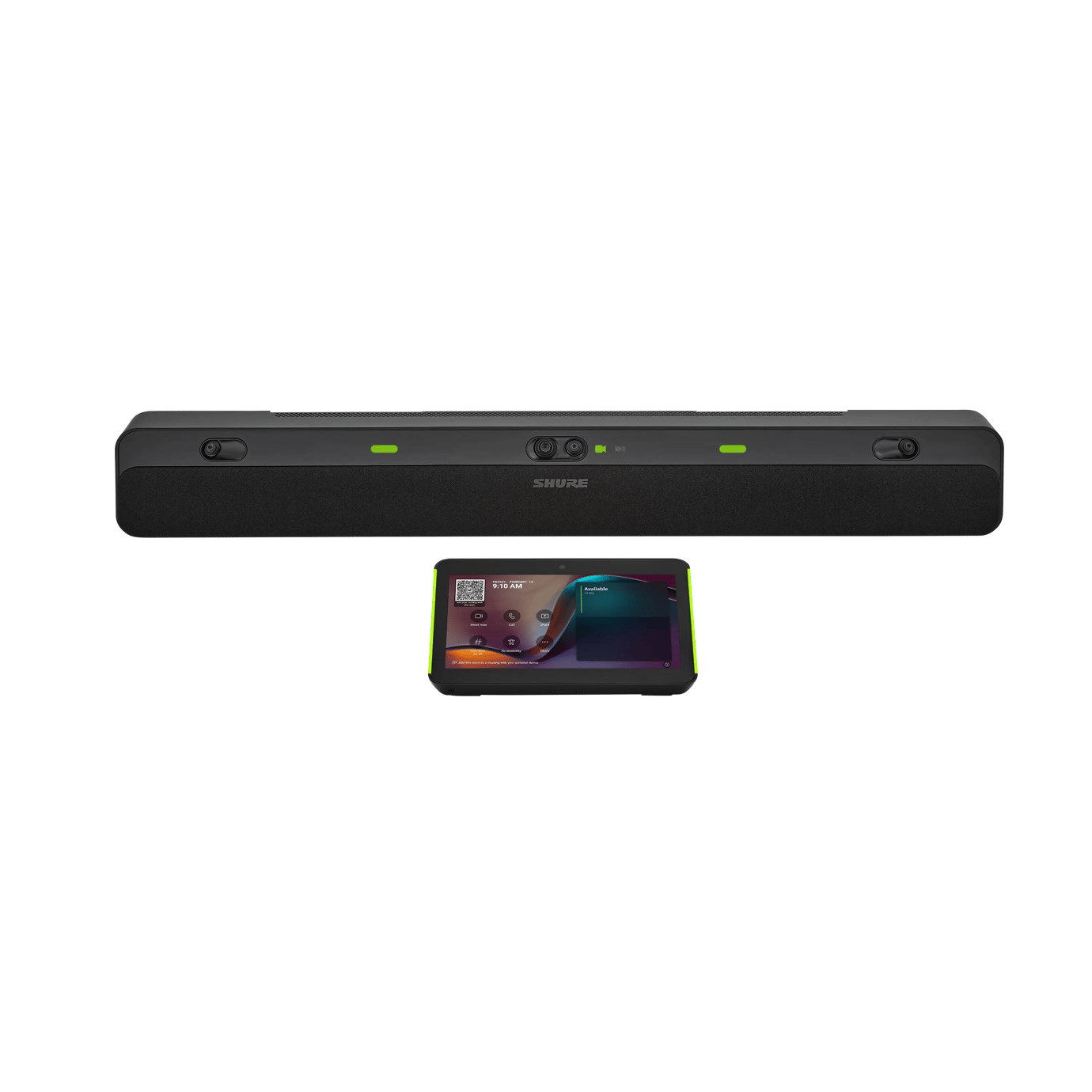

The Shure IMXBPK-W is an all-in-one video conference bar kit built for medium to large collaboration spaces that need integrated audio, video, and touch control in a single device rather than separate microphone, camera, and DSP hardware. This IntelliMix Bar Pro Kit pairs a 24-microphone array and dual stereo loudspeakers with dual 4K AI-powered cameras and a 10-inch touch panel, giving AV integrators a video conference bar installation that reduces the component count typically required for a large-room deployment. It is designed for AV system designers specifying an Android-based, zero-touch-provisioned conferencing bar for large conference rooms and training spaces.

Product Description

The IMXBP bar at the center of this kit integrates 24 microphones into a single array with a 7.5-meter pickup range, paired with dual stereo loudspeakers for full-room sound reproduction, combining Shure's patented array microphone technology with premium stereo audio output in one device. Dual 4K AI-powered cameras provide a wide 135-degree field of view along with telephoto lenses, so every participant is clearly captured whether seated near the bar or at the far end of a large room.

The included IMXTP10 touch panel offers a 10-inch capacitive display at 1920 x 1200 resolution with a PIR motion sensor for automatic wake-up when someone enters the room. The panel connects over Ethernet or Wi-Fi LAN and mounts flexibly with a variable kickstand, 45-degree tilt stand, or optional wall mount, giving integrators placement options depending on the room's furniture layout. A built-in PoE+ switch, Wi-Fi 6 support, and multiple HDMI and USB interfaces simplify networking and peripheral connectivity during installation.

Built on an Android platform with zero-touch provisioning, the IMXBPK-W is designed for AV integrators deploying multiple rooms quickly without manual device configuration at each location, making it a practical option for large-room video conference bar installation projects that need fast, repeatable deployment across a facility.

Key Features

• 24-Microphone Integrated Array — 7.5-meter pickup range captures speech across large rooms without a separate ceiling or table microphone.
• Dual Stereo Loudspeakers — Full-room spatial sound reproduction built into the same bar as the microphone array.
• Dual 4K AI-Powered Cameras — 135-degree wide field of view plus telephoto lenses capture every participant clearly.
• 10-Inch IMXTP10 Touch Panel — 1920 x 1200 capacitive display with PIR motion sensor for automatic wake-up.
• Flexible Mounting — Variable kickstand, 45-degree tilt, or optional wall mount for the touch panel.
• Built-In PoE+ Switch and Wi-Fi 6 — Simplifies networking and power for connected AV peripherals.
• Zero-Touch Provisioning — Android-based platform speeds deployment across multiple rooms.

Typical Applications

• Conference room
• Boardroom
• Training room
• Multi-purpose room
• All-hands room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What room size is the IMXBPK-W designed for?
The IMXBPK-W is built for medium to large collaboration spaces, using its 7.5-meter microphone pickup range and dual 4K cameras to cover rooms larger than a typical huddle room.

Does the touch panel need to sit on the table?
No. The IMXTP10 touch panel supports a variable kickstand, a 45-degree tilt stand, or an optional wall mount, depending on the room's layout.

Is a separate DSP or mixer required with this kit?
No. Audio processing is built into the IMXBP bar itself, combining the microphone array, loudspeakers, and processing in one device.

How does this kit connect to the network?
The kit includes a built-in PoE+ switch and supports Wi-Fi 6, with the touch panel able to connect over Ethernet or Wi-Fi LAN.

Does this kit support zero-touch deployment across multiple rooms?
Yes. The Android-based platform supports zero-touch provisioning, which speeds deployment when installing multiple IMXBPK-W kits across a facility.

What warranty applies to the IMXBPK-W?
Shure covers the IMXBPK-W under its standard manufacturer warranty; a 3-year extended warranty (IMXBPK-EXTW3) is available separately. Contact Creation Networks for current terms.

Does Creation Networks provide installation support for this kit?
Yes, our AV integration team can assist with network planning, mounting, and on-site commissioning for IMXBPK deployments.
