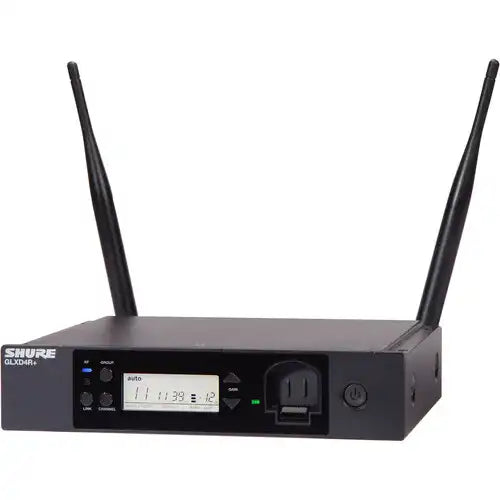

Shure GLXD4R+ Dual-Band Wireless Rack Receiver (Z3)
The Shure GLXD4R+ is a single-channel digital wireless receiver designed for reliable audio transmission in professional environments. Operating across both 2.4 GHz and 5.8 GHz frequency bands, it automatically scans and selects the optimal channel to minimize interference and ensure clear audio. With a typical indoor operating range of up to 100 feet and 65 feet outdoors, this receiver is suitable for presentations, performances, and events. It features front-panel charging for the SB904 transmitter battery and provides real-time battery status updates. The receiver offers a flat frequency response from 20 Hz to 20 kHz and a dynamic range of 120 dB, preserving the integrity of the audio signal. Connectivity options include a balanced XLR output switchable between mic and line levels, and a balanced 1/4" Inst/Aux output.
Features
| Feature | Description |
|---|---|
| Dual-Band Operation | Operates in both 2.4 GHz and 5.8 GHz frequency bands for optimal performance |
| Automatic Channel Selection | Scans and selects the best channel to minimize interference |
| Front-Panel Charging | Charges SB904 transmitter battery directly from the receiver |
| Real-Time Battery Monitoring | Displays remaining battery time in hours and minutes |
| Wide Frequency Response | 20 Hz to 20 kHz for accurate audio reproduction |
| High Dynamic Range | 120 dB ensuring clear and detailed sound |
| Multiple Audio Outputs | XLR and 1/4" TRS outputs for versatile connectivity |
| Rackmount Design | 1/2 rack-width chassis with included mounting hardware |
Specifications
| Specification | Value |
|---|---|
| Type | Digital Wireless Receiver |
| Frequency Bands | 2.4 GHz (2400–2483.5 MHz), 5.8 GHz (5725–5850 MHz) |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | 120 dB |
| Maximum Operating Range | 100 ft (30.5 m) indoors, 65 ft (19.8 m) outdoors |

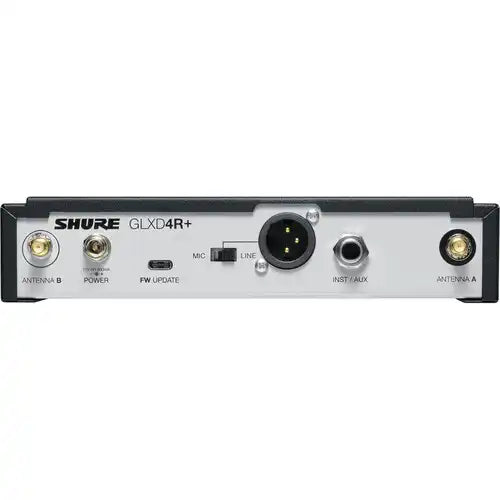

| Audio Outputs | 1 x XLR (mic/line switchable), 1 x 1/4" TRS (Inst/Aux) |
| Antennas | 2 x detachable 1/2-wave dipole |
| Power Supply | 15 V DC via included PS43 power supply |
| Mounting | 1/2 rack-width, rackmountable with included hardware |
| Dimensions (H x W x D) | 1.6" x 7.7" x 6.4" (40 mm x 196 mm x 163 mm) |
| Weight | 1.9 lbs (0.86 kg) |
