Shure GLXD16+ Digital Wireless Guitar Pedal System

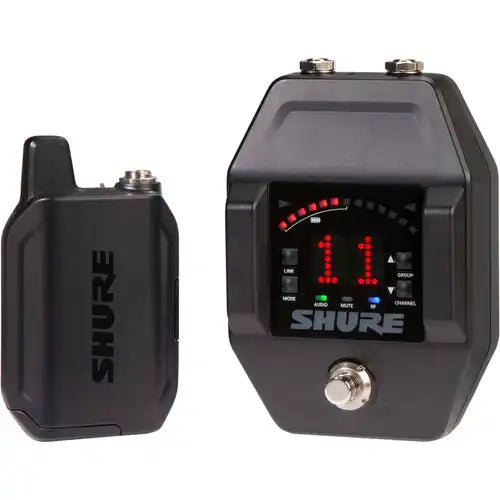

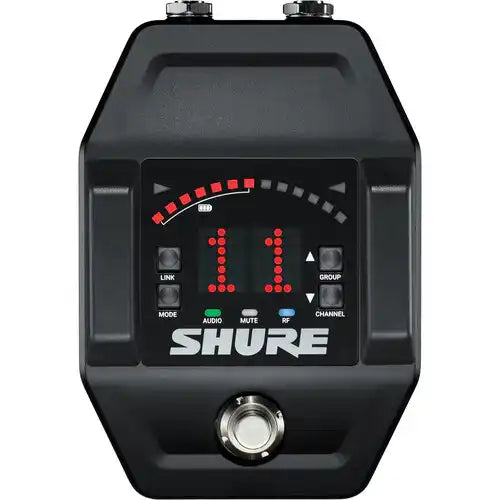

The Shure GLXD16+ delivers reliable digital wireless performance for guitar and bass players with its stompbox-style GLXD6+ pedal receiver and GLXD1+ bodypack transmitter. Operating across dual bands of 2.4 GHz and 5.8 GHz, the system automatically selects the clearest channel to avoid interference while providing up to 100 feet of operating range. The included WA305 premium instrument cable connects directly to the bodypack for clear signal transmission without compromising tone. The rugged metal pedal receiver integrates easily into pedalboards and features a built-in tuner with strobe or needle modes plus adjustable reference pitch. It supports switching between wired and wireless instruments via a true bypass 1/4-inch input for seamless transitions during live performances.
This system simplifies rig setup while maintaining exceptional audio clarity and is ideal for rehearsals, gigs, and touring. The SB904 lithium-ion battery provides up to 12 hours of runtime with convenient recharging options. The pedal includes 1/4-inch output for daisy-chaining with other effects and runs on standard 9V power supplies.
Features Chart
| Feature | Benefit |
|---|---|
| Dual Band 2.4 and 5.8 GHz operation | Doubles available bandwidth for greater reliability and reduced interference |
| Automatic Frequency Management | Instantly selects the best channel and switches as needed for consistent performance |
| Rugged metal pedal receiver | Integrates seamlessly into pedalboards with durable construction |
| Built-in tuner with strobe/needle modes | Provides accurate tuning with selectable reference pitch from 432 to 447 Hz |
| True bypass 1/4-inch input | Allows easy switching between wired and wireless instruments during performance |
| WA305 premium instrument cable | Delivers clear tone without signal loss or coloration |
| Up to 12-hour battery runtime | Extended operation from the rechargeable SB904 lithium-ion battery |
| 1/4-inch output for daisy-chaining | Enables straightforward integration with other pedals and effects |
Specifications Table
| Specification | Details |
|---|---|
| Frequency Bands | 2.4 GHz and 5.8 GHz Dual Band |
| System Range | Up to 100 feet |
| Battery Life | Up to 12 hours with SB904 lithium-ion |
| Audio Frequency Response | 20 Hz to 20 kHz |
| Pedal Power | 9V DC (minimum 400 mA) |

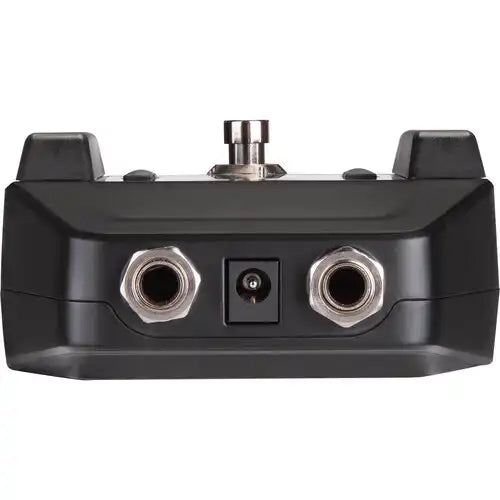

| Connectors | 1/4-inch true bypass input, 1/4-inch output |

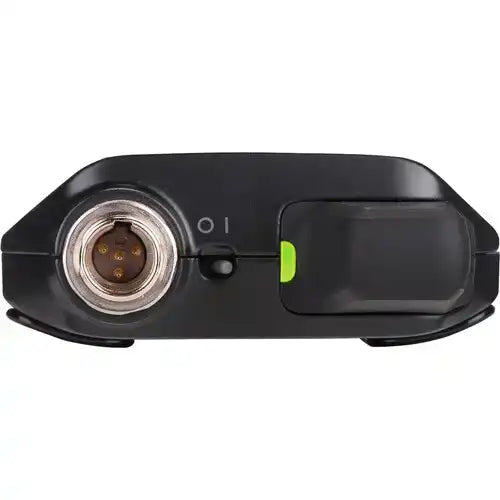

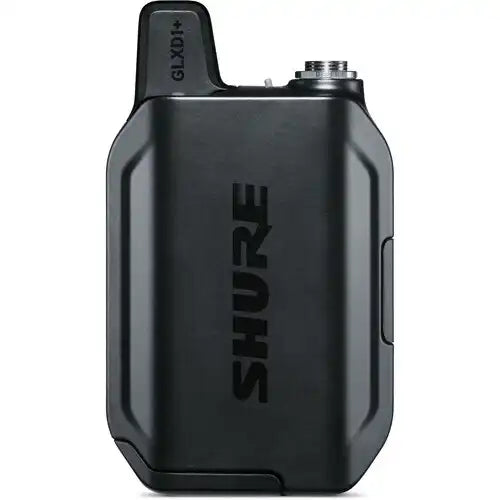

| Transmitter | GLXD1+ bodypack with TA4F input |
| Receiver | GLXD6+ guitar pedal with tuner |

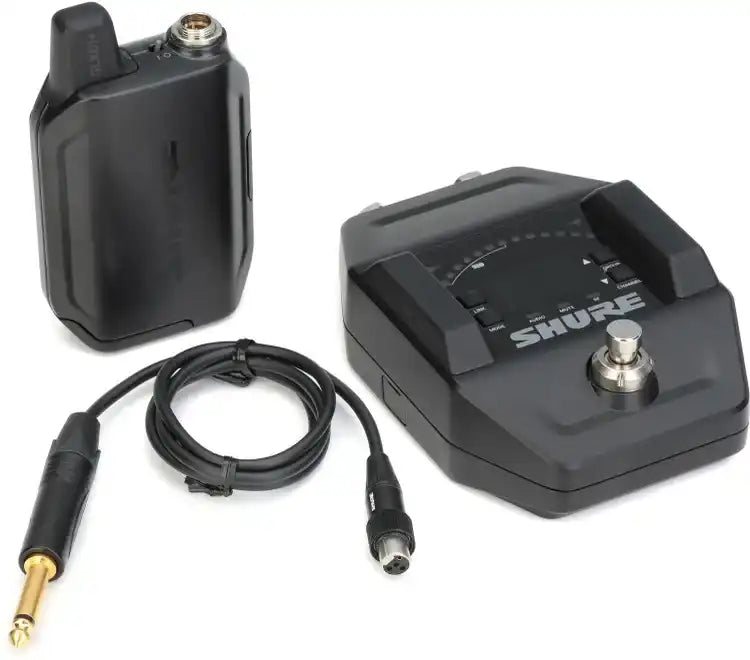

| Included Accessories | WA305 cable, SB904 battery, PS24 power supply, SBC10-USBC charger |
Compare Chart
| Aspect | Shure GLXD16+ | Shure GLXD14+/PGA31 | Boss WL-50 Wireless |
|---|---|---|---|
| Application | Guitar/Bass Pedal System | Headset/Spoken Word | Guitar Wireless |
| Form Factor | Stompbox pedal receiver | Tabletop receiver | Compact pedal receiver |
| Frequency Bands | 2.4 and 5.8 GHz Dual Band | 2.4 and 5.8 GHz Dual Band | 2.4 GHz |
| Battery Life | Up to 12 hours | Up to 12 hours | Up to 12 hours |
| Tuner Included | Yes with adjustable pitch | No | No |
| Instrument Switching | True bypass input | Not applicable | Basic |
| Audio Quality | Digital 24-bit | Digital 24-bit | Digital |
| Best For | Pedalboard integration | Vocal/instrument wireless | Simple guitar wireless |
FAQ
- What instruments is the GLXD16+ designed for? It is optimized for electric guitar and bass with the included premium instrument cable and pedal receiver.
- How long does the battery last on a full charge? The included SB904 lithium-ion battery provides up to 12 hours of runtime and supports convenient recharging.
- Can I switch between wired and wireless instruments live? Yes, the true bypass 1/4-inch input on the pedal allows seamless switching between two instruments during performance.
- Is the pedal compatible with standard pedalboards? Yes, its rugged metal chassis and 9V power compatibility make it easy to integrate with other effects pedals.
- Does the system include a tuner? Yes, the GLXD6+ pedal features a built-in tuner with strobe or needle display modes and selectable reference pitch.
