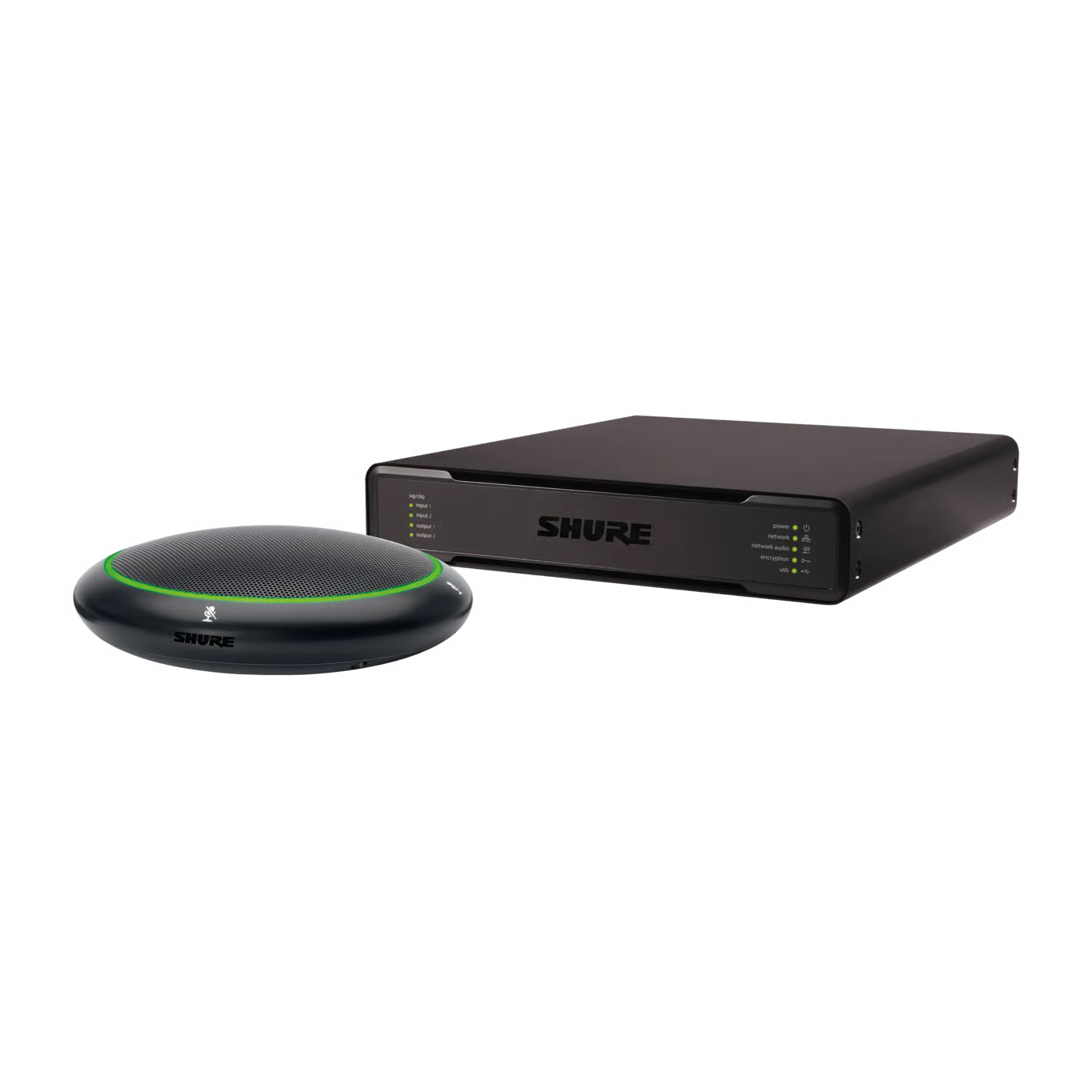

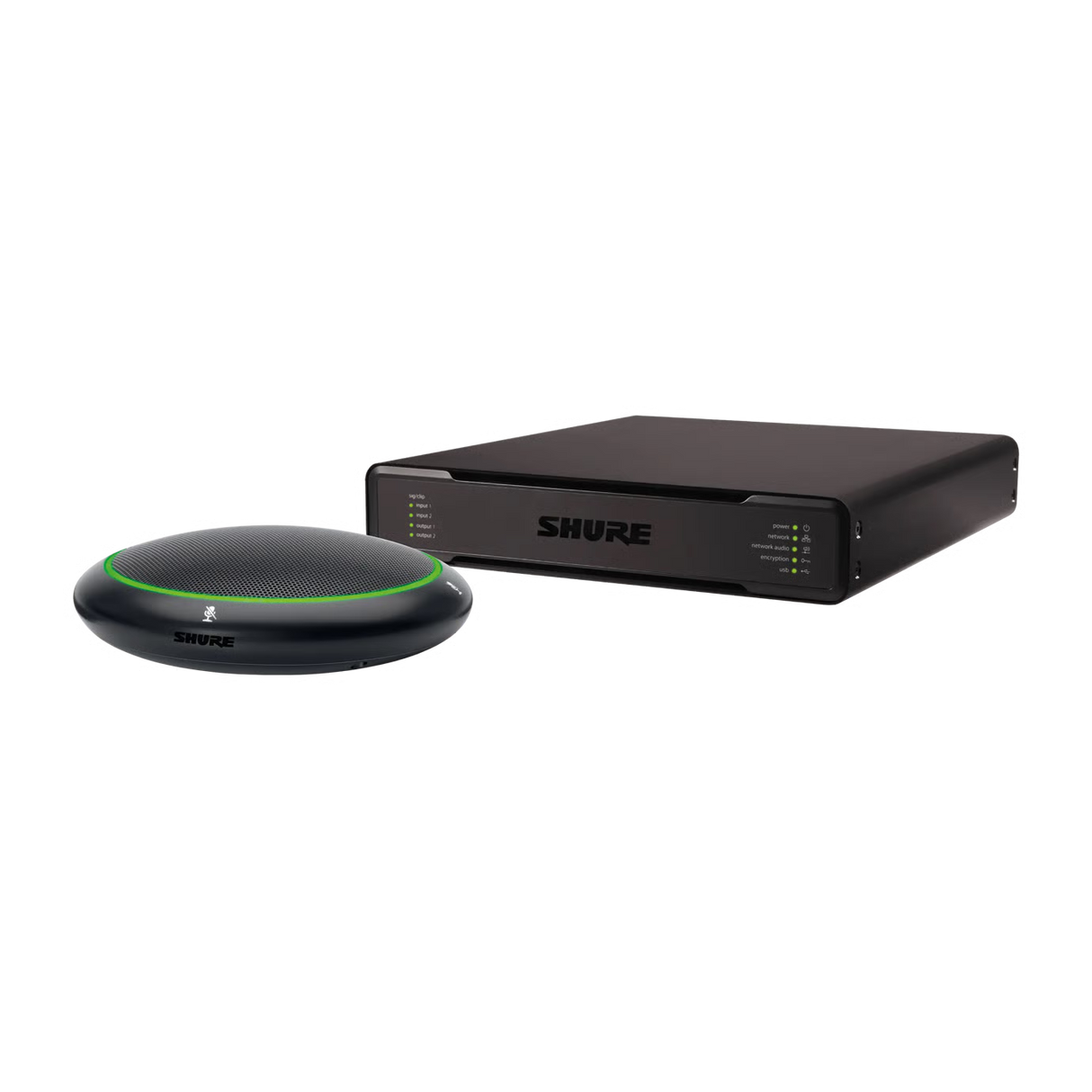

Shure MXA310 + P300-IMX – Dual Array Conferencing Bundle

Product Overview

The Shure MXA310 + P300-IMX bundle is a table array conferencing system scaled for larger boardrooms and meeting spaces where a single microphone does not provide adequate table coverage. This conference room microphone bundle pairs two MXA310 table array microphones with the P300-IMX audio conferencing processor and two MXN5W-C ceiling speakers, giving AV system designers a matched DSP and speaker configuration for a longer conference table. It is built for AV integrators handling boardroom AV bundle installations where speech intelligibility across a larger table and flexible AV system integration options both matter.

Product Description

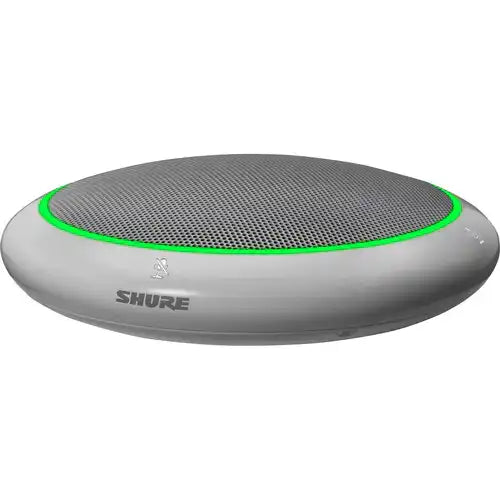

Each MXA310 Table Array Microphone in this bundle uses Shure's Steerable Coverage technology to create up to four discrete pickup lobes, plus a Toroid polar pattern that rejects overhead HVAC and projector fan noise; running two units end-to-end on a table extends usable pickup coverage for longer boardroom tables. The P300-IMX IntelliMix Audio Conferencing Processor combines both microphones' audio through 8 channels of acoustic echo cancellation, noise reduction, and automatic mixing, and provides Dante (10 in / 2 out), analog (2 in / 2 out), USB, and 3.5mm connectivity so it can integrate with a wide range of room codecs and PC-based conferencing platforms. Two MXN5W-C networked ceiling speakers distribute audio evenly across the larger room from low-profile, plenum-rated enclosures.

Because the MXA310 microphones and MXN5W-C speakers are PoE powered and run on Dante, this AV conferencing installation reduces the number of separate low-voltage cable runs compared to legacy analog microphone and speaker wiring. The P300-IMX mounts under the table or behind a display, keeping DSP hardware discreet while remaining accessible to AV technicians for on-site configuration or troubleshooting. This bundle suits organizations standardizing on the Shure Microflex ecosystem across multiple conference rooms who need consistent DSP behavior and speaker coverage as room size increases.

Included in the box: (2) MXA310 table array microphones, (1) P300-IMX audio conferencing processor, (2) MXN5W-C networked ceiling speakers with tile bridges.

Key Features

• Dual MXA310 Table Array Microphones — Extended table coverage using Steerable Coverage and Toroid pattern rejection of overhead noise.
• P300-IMX Audio Conferencing Processor — 8-channel echo cancellation, noise reduction, and automatic mixing across both microphones.

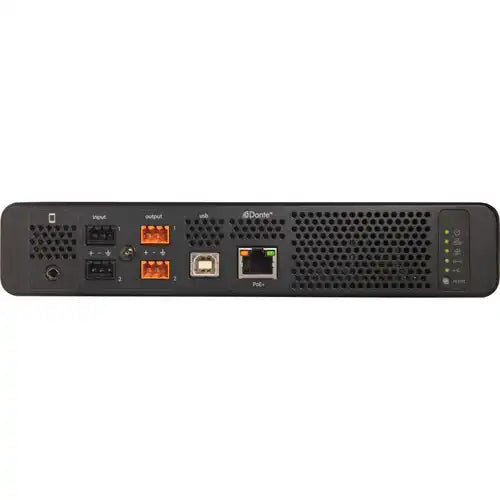

• Multiple Connectivity Options — Dante (10 in / 2 out), analog (2 in / 2 out), USB, and 3.5mm inputs for flexible AV system integration.
• Dual MXN5W-C Ceiling Speakers — Even audio distribution across a larger table or room footprint.
• Shure Network Audio Encryption — Secured audio transmission across the Dante network.
• PoE-Powered Microphones and Speakers — Simplifies cabling for a larger room installation.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Why use two MXA310 microphones instead of one?
Two MXA310 arrays extend usable table coverage for longer conference tables and larger boardrooms compared to a single-array installation.

Can both microphones run through a single P300-IMX processor?
Yes. The P300-IMX processes audio from both MXA310 units together, applying the same 8 channels of DSP across the combined system.

What AV system integration options does this bundle support?
The P300-IMX offers Dante, analog, USB, and 3.5mm connectivity, allowing integration with hardware codecs, PC-based conferencing software, or mobile devices.

Does this bundle include a camera?
No. This bundle covers audio only (microphones, DSP, and ceiling speakers); a camera can be added separately based on the room's video requirements.

What network requirements apply to installation?
The MXA310 microphones and MXN5W-C speakers require PoE and Dante networking; the P300-IMX requires PoE+ due to its higher power draw.

What warranty coverage applies to this bundle?
Each hardware component carries Shure's standard manufacturer warranty. Contact Creation Networks for current terms.

Can Creation Networks help design the room layout for this bundle?
Yes. Our AV consultants can help plan microphone placement, speaker coverage, and Dante network design for boardroom deployments using this bundle.
