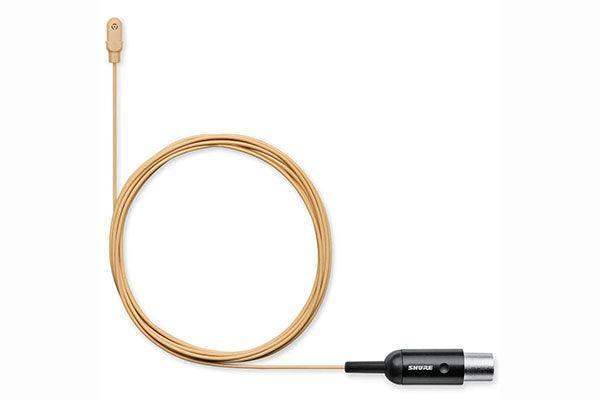

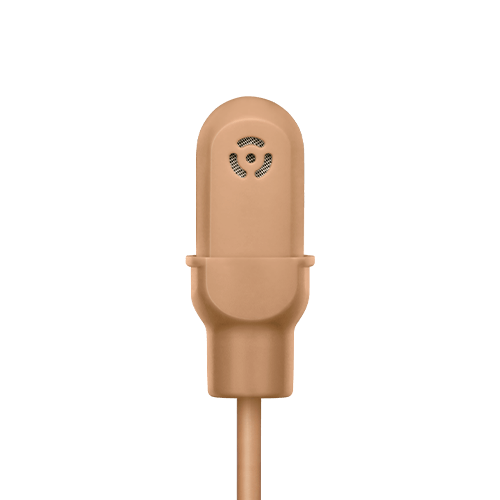

Shure DL4 DuraPlex Series Lavalier Microphone (Tan)

Product Overview

The Shure DL4 DuraPlex in Tan is a professional MEMS condenser lavalier microphone rated IP57 for dust resistance and waterproof operation, built for broadcast, theater, film, and commercial AV deployments requiring environmental durability alongside professional audio quality. The Tan finish offers a discreet match for light-to-medium complexion talent in camera-facing and audience-facing production environments where microphone visibility must be minimized. The omnidirectional 5.2 mm subminiature capsule delivers 20 Hz to 20 kHz response with 132 dB maximum SPL handling, supporting professional vocal capture across a wide range of performance and speech applications. The DL4T is available with MTQG or LM3 connector options for compatibility with Shure TA4F wireless bodypack transmitters.

Product Description

The DL4 DuraPlex's 1.6 mm Shure Plex cable is paintable, kink-resistant, and constructed with dual redundant ground wiring for mechanical and electrical durability that outlasts standard lavalier cables in professional high-use environments. The IP57 rating confirms the DL4 withstands submersion to 1 m for 30 minutes and resists dust ingress without audio degradation — performance suited to outdoor broadcast, sports audio, and theatrical productions with demanding physical requirements. An included presence cap adds an optional 3–4 dB boost near 10 kHz for speech clarity without console EQ. The full accessory kit (carrying case, single tie clip, sticky mount, snap-fit windscreen, foam windscreen, threaded TA4F adapter) is included for immediate deployment across mounting scenarios.

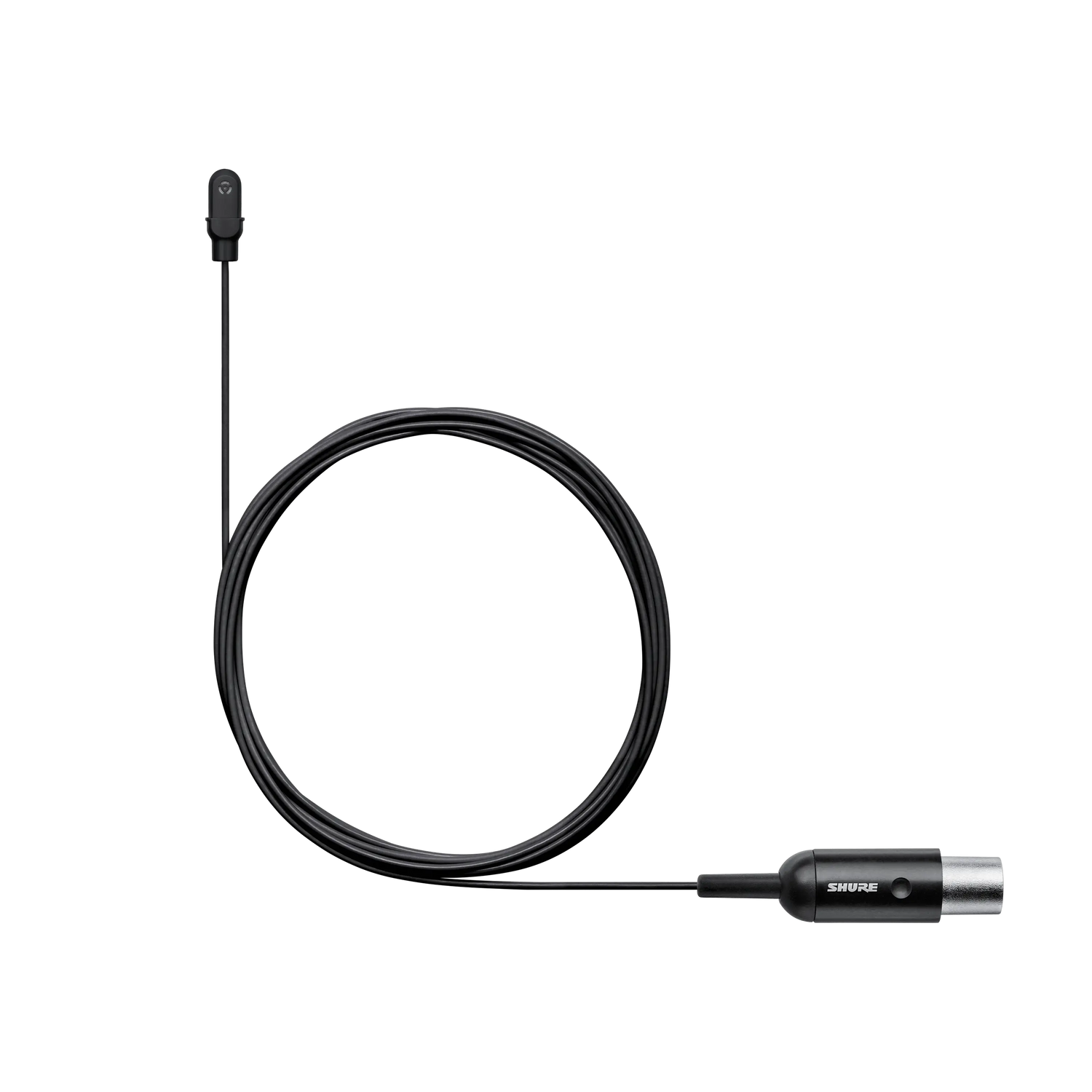

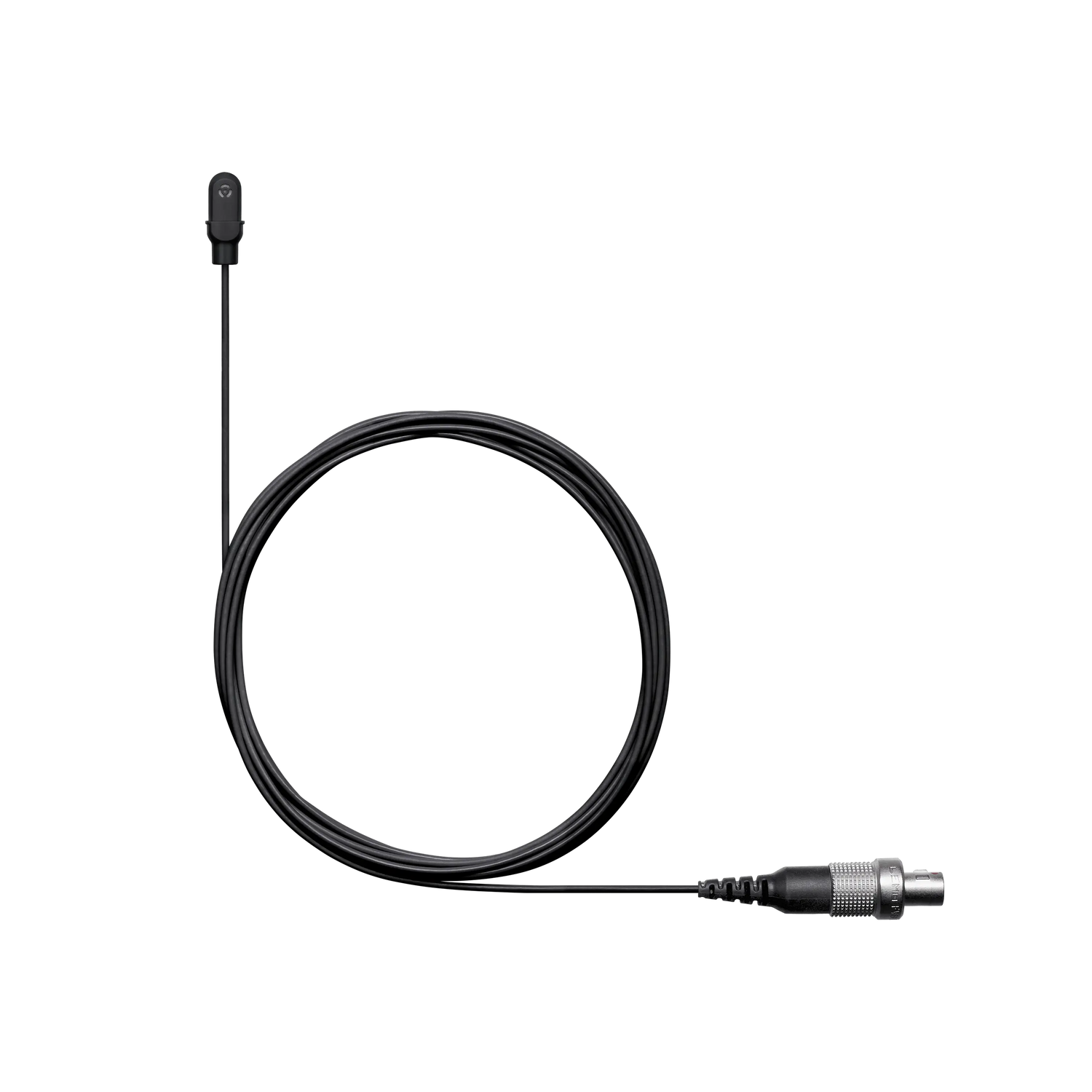

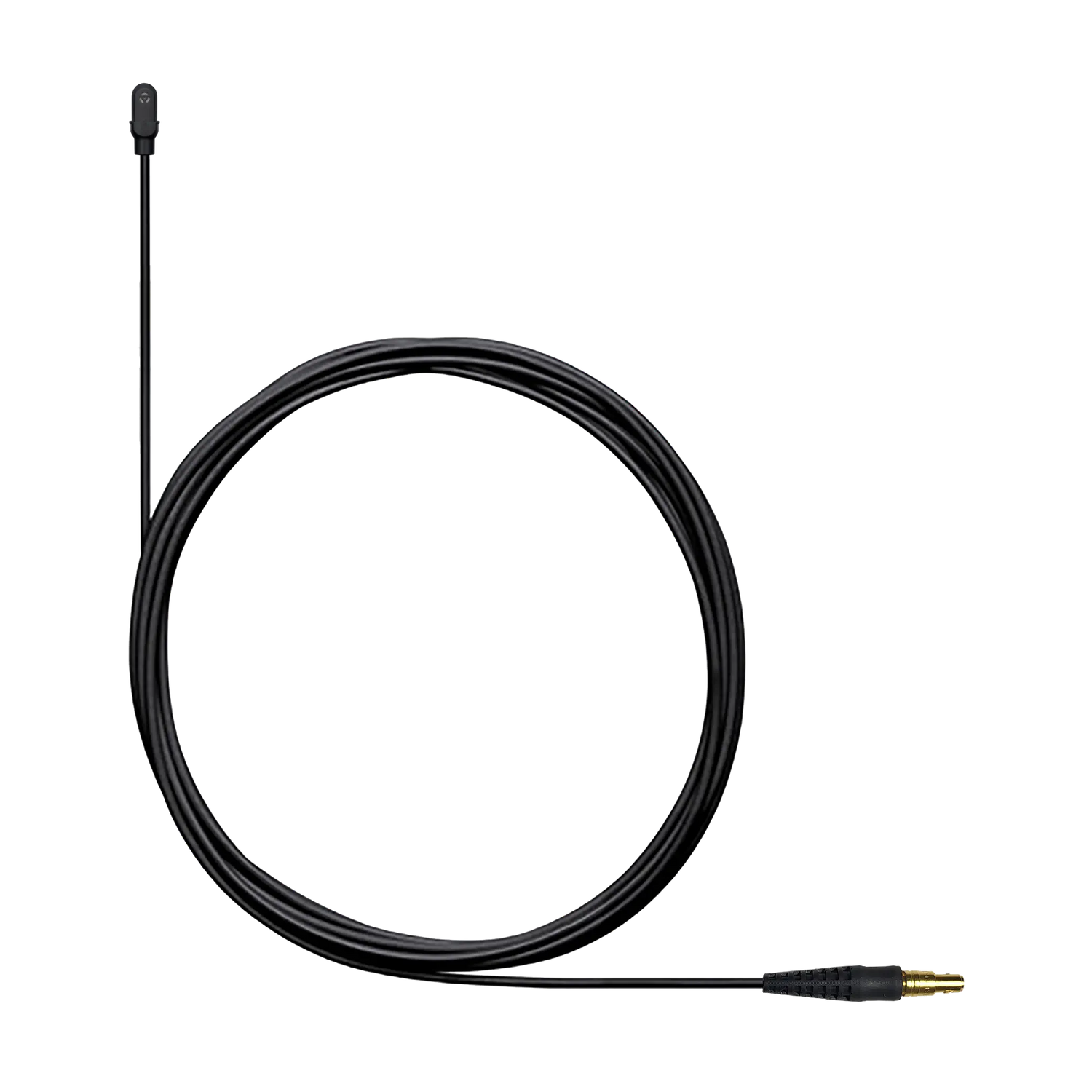

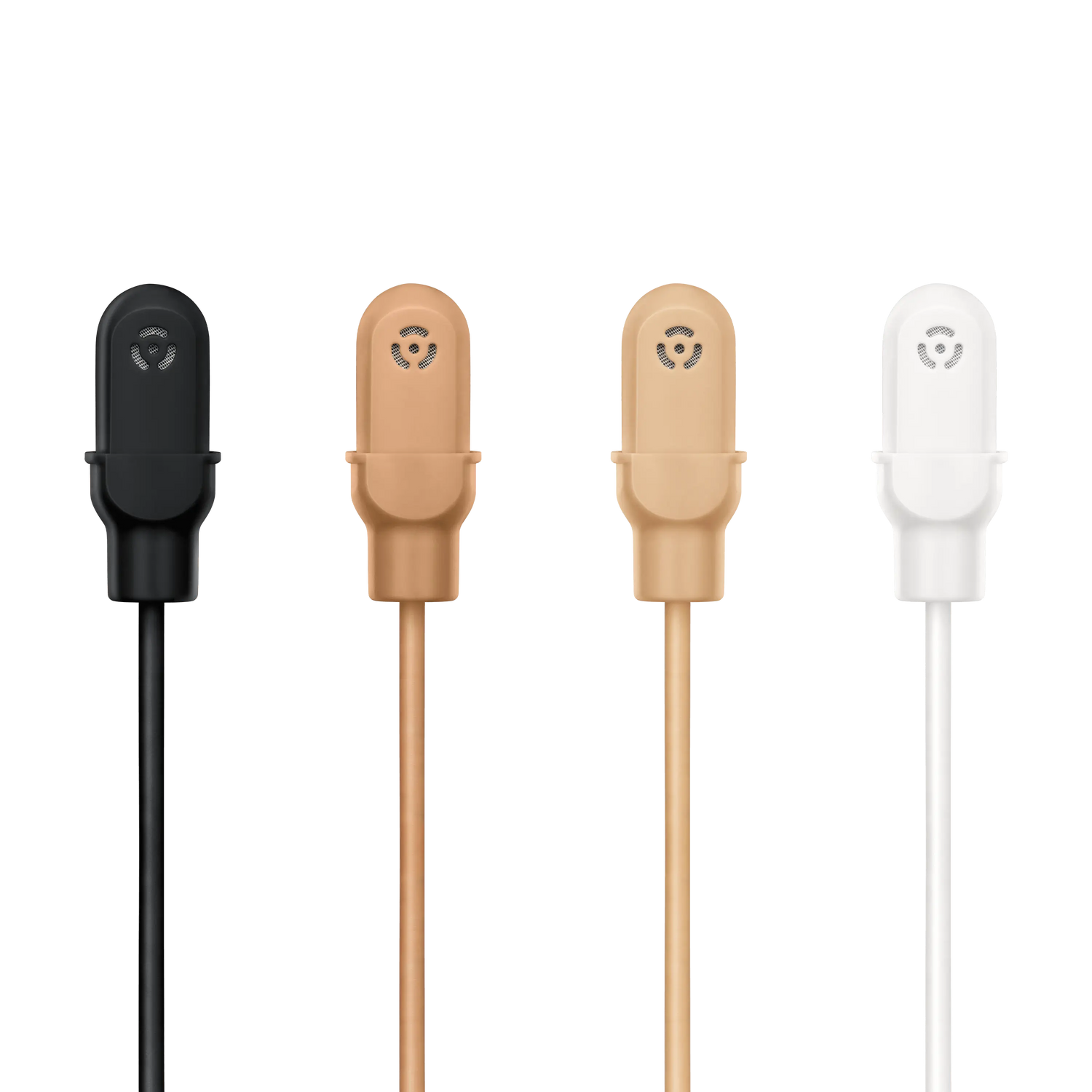

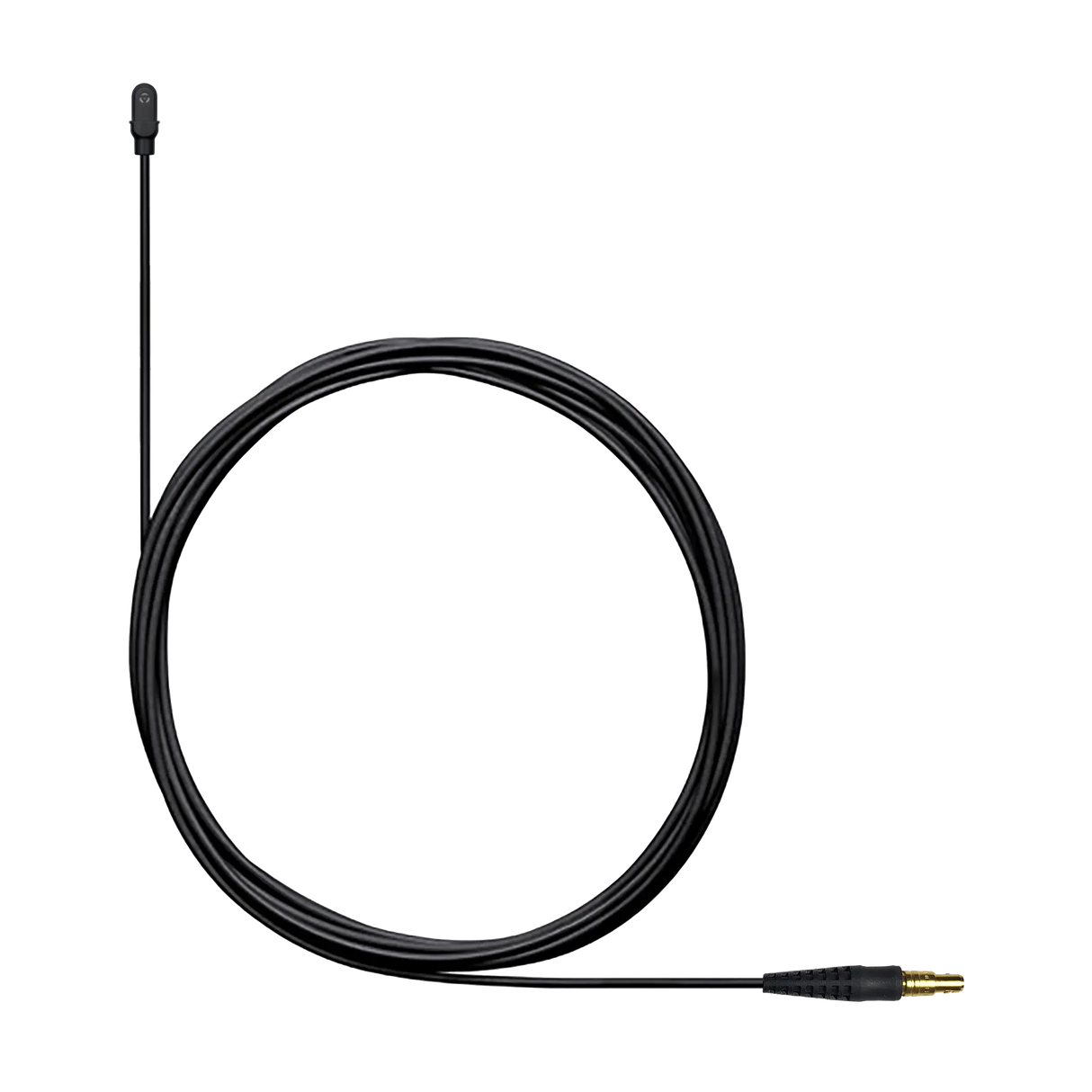

Also available at Creation Networks in Black, Cocoa, and White. For an alternative Shure lavalier, see the Shure MX150B/C-TQG Microflex subminiature lavalier.

Key Features

• IP57 Waterproof and Dust-Resistant Rating — Submersible to 1 m for 30 minutes and dust-protected per IEC IP57, enabling use in outdoor broadcast, sports audio, and high-sweat theatrical productions that standard lavaliers cannot accommodate.
• Tan Color for Discreet Placement — Formulated to blend with light-to-medium complexion talent in camera-facing productions, reducing microphone visibility in broadcast, corporate video, and theater applications.
• MEMS Condenser Capsule — Micro-electromechanical system technology delivers consistent, high-reliability audio with minimal unit-to-unit variation across professional broadcast and live production workflows.
• Omnidirectional Polar Pattern — 360° pickup maintains consistent audio level as talent moves and microphone orientation changes, reducing gain-riding demands in live and broadcast mixing environments.
• 5.2 mm Subminiature Design — Ultra-compact capsule dimensions for under-clothing placement, tie mounting, or headset bridge applications with minimal visual impact on-camera.
• 1.6 mm Shure Plex Cable — Paintable, kink-resistant cable with dual redundant ground for extended durability in high-use commercial installations.
• Presence Cap Included — Optional 3–4 dB high-frequency boost near 10 kHz for speech intelligibility in conference room and presentation environments.
• 132 dB Maximum SPL Handling — High headroom enables placement close to the source without distortion in high-level vocal applications.
• High RF Immunity — Compatible with digital wireless systems without RF interference in RF-dense commercial AV environments.

Typical Applications

• Broadcast studio and field production audio capture
• Theatrical production and live performance vocal reinforcement
• Corporate events, training rooms, and all-hands presentations
• Outdoor events and broadcast in adverse weather conditions
• House of worship and auditorium lavalier installations

Technical Specifications

Frequently Asked Questions

What wireless transmitters is the DL4T compatible with?
The DL4T with MTQG connector is compatible with all Shure TA4F bodypack transmitters (ULXD1, QLXD1, SLXD1, AD1 series). LEMO-terminated variants support Shure LEMO-based bodypacks. Lectrosonics and Q5X systems require specific wiring configurations — consult the DL4 user guide.

What does IP57 mean for practical use?
IP57 means the DL4 is dust-protected (IP5) and submersible in up to 1 m of water for 30 minutes (IP7). In practice this covers heavy rain, talent sweat, outdoor broadcast, and high-activity theatrical productions where non-rated lavaliers would fail.

Why choose Tan over other color options?
The Tan finish is formulated for light-to-medium complexion talent, minimizing microphone visibility in camera and audience-facing productions. All DL4 DuraPlex colors share identical audio specifications; color selection is based on talent skin tone and wardrobe matching.

Can the DL4T cable be painted?
Yes. The 1.6 mm Shure Plex cable is paintable for color-matching to skin tone or wardrobe in theater and broadcast productions where cable visibility is a concern.

What is the presence cap for?
The included presence cap attaches to the capsule and provides a 3–4 dB high-frequency boost near 10 kHz, improving speech intelligibility and vocal presence in presentation and conference environments without requiring console EQ.
