Shure BETA 181/KIT-TA Microphone Kit (TAA-Compliant)
Roll over image to zoom in Click on image to zoom
Shure BETA 181/KIT-TA Microphone Kit (TAA-Compliant)
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Shure BETA 181/KIT-TA Microphone Kit (TAA-Compliant)

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: BETA 181/KIT-TA
No reviews
Price:
$1,206.35 $1,608.85

Description

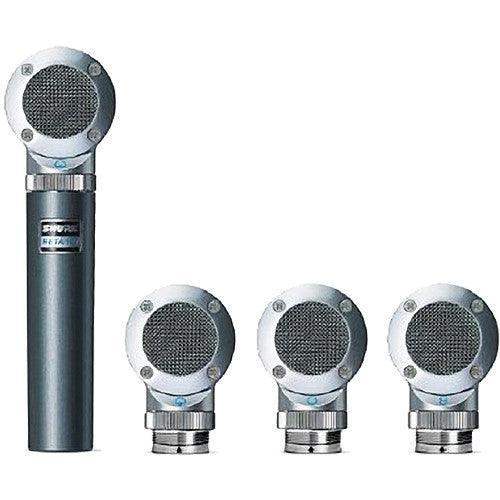

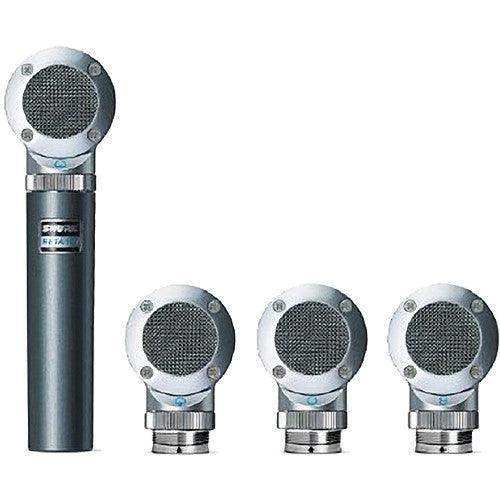

The Beta 181 Microphone Kit from Shure includes a Beta 181 handheld XLR preamplifier and interchangeable side-address cardioid, supercardioid, bi-directional, and omnidirectional condenser capsules. This line-up of capsules allows you to use the Beta 181 on a variety of sources ranging from drum overheads to piano to acoustic instruments and vocals.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

  • Beta 181 XLR Preamplifier
  • Interchangeable Condenser Capsules
  • Cardioid, Supercardioid Capsules
  • Bi-Directional, Omnidirectional Capsules
  • Works on a Variety of Music Sources
Type Condenser
Frequency Response 20 to 20,000 Hz
Polar Pattern 181/C: Cardioid
181/S: Supercardioid
181/O: Omnidirectional
181/BI: Bidirectional
Sensitivity Cardioid: -46.5 dBV/Pa[1] (2.4 mV)
Supercardioid: -49.5 dBV/Pa[1] (2.5 mV)
Omnidirectional: -52.0 dBV/Pa[1] (2.6 mV)
Bidirectional: -51.0 dBV/Pa[1] (2.6 mV)
Output Impedance 110 ohms (at 1 kHz)
Signal to Noise Ratio Cardioid: 73.5 dB
Supercardioid: 71.5 dB
Omnidirectional: 70.5 dB
Bidirectional: 71.0 dB
Self Noise Cardioid: 20.5 dB SPL-A
Supercardioid: 22.5 dB SPL-A
Omnidirectional: 23.5 dB SPL-A
Bidirectional: 23.0 dB SPL-A
Common Mode Rejection ≥55 dB
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements 11-52 V DC[4] phantom power (IEC-61938) 2.4 mA, maximum
Maximum SPL 1000 Ohm Load
Cardioid: 149.0 dB SPL
Supercardioid: 152.0 dB SPL
Omnidirectional: 154.0 dB SPL
Bidirectional: 153.5 dB SPL

2500 Ohm Load
Cardioid: 151.5 dB SPL
Supercardioid: 154.5 dB SPL
Omnidirectional: 157.0 dB SPL
Bidirectional: 156.0 dB SPL
Dynamic Range 1000 Ohm Load
Cardioid: 128.5 dB
Supercardioid: 129.5 dB
Omnidirectional: 130.5 dB
Bidirectional: 130.5 dB

2500 Ohm Load
Cardioid: 131.0 dB
Supercardioid: 132.0 dB
Omnidirectional: 133.5 dB
Bidirectional: 133.0 dB
Clipping Level 1000 Ohm Load
7.5 dBV

2500 Ohm Load
10.5 dBV
Weight 5.1 oz (145 grams)

Shure RPM181/C Cardioid Polar Pattern Capsule Specs
General
Type Condenser
Frequency Response 20 to 20,000 Hz
Polar Pattern Cardioid
Sensitivity -46.5 dBV/Pa (2.4 mV)
Output Impedance 110 ohms (at 1 kHz)
Signal to Noise Ratio 73.5 dB
Self Noise 20.5 dB SPL-A
Common Mode Rejection ≥55 dB
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum
Weight 5.1 oz (145 grams)
Maximum SPL
1000 Ohm Load 149.0 dB (1,000 ohm load)
2500 Ohm Load 151.5 dB SPL
Dynamic Range
1000 Ohm Load 128.5 dB
2500 Ohm Load 131.0 dB
Clipping Level
1000 Ohm Load 7.5 dBV
2500 Ohm Load 10.5 dBV

Shure RPM181/S Supercardioid Polar Pattern Capsule Specs
General
Type Condenser
Frequency Response 20 to 20,000 Hz
Polar Pattern Supercardioid
Sensitivity -49.5 dBV/Pa (2.5 mV)
Output Impedance 110 ohms (at 1 kHz)
Signal to Noise Ratio 71.5 dB
Self Noise 22.5 dB SPL-A
Common Mode Rejection ≥55 dB
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum
Weight 5.1 oz (145 grams)
Maximum SPL
1000 Ohm Load 152.0 dB (1,000 ohm load)
2500 Ohm Load 154.5 dB SPL
Dynamic Range
1000 Ohm Load 129.5 dB
2500 Ohm Load 132.0 dB
Clipping Level
1000 Ohm Load 7.5 dBV
2500 Ohm Load 10.5 dBV

Shure RPM181/O Omnidirectional Polar Pattern Capsule Specs
General
Type Condenser
Frequency Response 20 to 20,000 Hz
Polar Pattern Omnidirectional
Sensitivity -52.0 dBV/Pa (2.6 mV)
Output Impedance 110 ohms (at 1 kHz)
Signal to Noise Ratio 70.5 dB
Self Noise 23.5 dB SPL-A
Common Mode Rejection ≥55 dB
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum
Weight 5.1 oz (145 grams)
Maximum SPL
1000 Ohm Load 154.0 dB (1,000 ohm load)
2500 Ohm Load 157.0 dB SPL
Dynamic Range
1000 Ohm Load 130.5 dB
2500 Ohm Load 133.5 dB
Clipping Level
1000 Ohm Load 7.5 dBV
2500 Ohm Load 10.5 dBV

Shure RPM181/BI Bidirectional Polar Pattern Capsule Specs
General
Type Condenser
Frequency Response 20 to 20,000 Hz
Polar Pattern Bidirectional
Sensitivity -51.0 dBV/Pa (2.6 mV)
Output Impedance 110 ohms (at 1 kHz)
Signal to Noise Ratio 71.0 dB
Self Noise 23.0 dB SPL-A
Common Mode Rejection ≥55 dB
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum
Weight 5.1 oz (145 grams)
Maximum SPL
1000 Ohm Load 153.50 dB (1,000 ohm load)
2500 Ohm Load 156.0 dB SPL
Dynamic Range
1000 Ohm Load 130.5 dB
2500 Ohm Load 133.0 dB
Clipping Level
1000 Ohm Load 7.5 dBV
2500 Ohm Load 10.5 dBV
