Shure AD4Q-US Axient Digital Four-Channel Wireless Receiver — 470–636 MHz
Shure AD4Q-US Axient Digital Four-Channel Wireless Receiver — 470–636 MHz is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure AD4Q-US Axient Digital Four-Channel Wireless Receiver — 470–6...

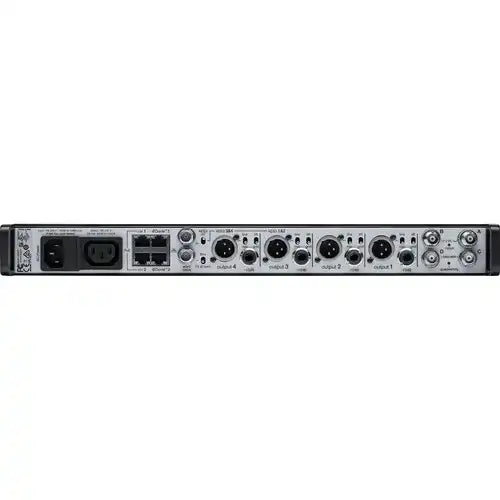

The Shure AD4Q-US Axient Digital Four-Channel Wireless Receiver is engineered for professional productions that demand flawless execution. Housed in a rugged 1U rackmount chassis, it offers four independent channels of transparent digital audio with a 166 MHz ultrawide tuning range from 470 to 636 MHz. This receiver is designed to deliver mission-critical signal stability and clear, transparent sound for high-profile applications such as televised live performances, award shows, corporate events, Broadway stages, secure government installations, and state-of-the-art meeting and training facilities.
Key features include Quadversity mode, which allows placement of two pairs of antennas in different zones or doubling antennas in one zone, enhancing coverage and signal quality. The receiver also supports Frequency Diversity mode, providing additional protection against dropouts by transmitting identical signals on two discreet frequencies. With a low 2ms latency, it ensures seamless audio performance. The AD4Q-US is compatible with over 120 simultaneous channels and supports AD1, ADX1, ADX1M, AD2, ADX2, and ADX2FD transmitters.
Connectivity options include XLR/AES3 analog outputs, AES67/Dante digital outputs, and a front-panel headphone jack for Dante Cue and Dante Browse monitoring. The receiver also features 256-bit encryption for secure transmission. The AD4Q-US is compatible with the AXT600 Spectrum Manager and AD610 ShowLink Access Point for advanced interference detection and avoidance, ensuring uninterrupted audio in complex RF environments.
Features
-
Four independent channels of transparent digital audio
-
166 MHz ultrawide tuning range (470–636 MHz)
-
Quadversity mode for enhanced antenna coverage
-
Frequency Diversity mode for dropout protection
-
Low 2ms latency for seamless audio performance
-
Supports over 120 simultaneous channels
-
Compatible with AD1, ADX1, ADX1M, AD2, ADX2, and ADX2FD transmitters
-
XLR/AES3 analog outputs and AES67/Dante digital outputs
-
Front-panel headphone jack for Dante Cue and Dante Browse monitoring
-
256-bit encryption for secure transmission
-
Compatible with AXT600 Spectrum Manager and AD610 ShowLink Access Point
Specifications Table
| Feature | Specification |
|---|---|
| Audio Channels | 4 independent channels |
| Tuning Range | 470–636 MHz |
| Antenna Configuration | Quadversity and Frequency Diversity modes |
| Latency | 2ms |
| Simultaneous Channels | Supports over 120 channels |
| Outputs | XLR/AES3 analog, AES67/Dante digital |
| Encryption | 256-bit |
| Monitoring | Dante Cue and Dante Browse via front-panel jack |
| Compatibility | AD1, ADX1, ADX1M, AD2, ADX2, ADX2FD transmitters |
| Accessories | Includes cable, connectors, and antenna |
Compare Table
| Feature | AD4Q-US Axient Digital Receiver | AD4D Dual-Channel Receiver | ADX5 Dual-Channel Receiver |
|---|---|---|---|
| Audio Channels | 4 | 2 | 2 |
| Tuning Range | 470–636 MHz | 470–636 MHz | 470–636 MHz |
| Antenna Configuration | Quadversity and Frequency Diversity | Standard | Standard |
| Latency | 2ms | 2ms | 2ms |
| Simultaneous Channels | Supports over 120 channels | Supports up to 47 channels | Supports up to 47 channels |
| Outputs | XLR/AES3 analog, AES67/Dante digital | XLR/AES3 analog, AES67/Dante digital | XLR/AES3 analog, AES67/Dante digital |
| Encryption | 256-bit | 256-bit | 256-bit |
| Monitoring | Dante Cue and Dante Browse via front-panel jack | Dante Cue and Dante Browse via front-panel jack | Dante Cue and Dante Browse via front-panel jack |
| Compatibility | AD1, ADX1, ADX1M, AD2, ADX2, ADX2FD transmitters | AD1, ADX1, ADX1M, AD2, ADX2, ADX2FD transmitters | AD1, ADX1, ADX1M, AD2, ADX2, ADX2FD transmitters |
| Accessories | Includes cable, connectors, and antenna | Includes cable, connectors, and antenna | Includes cable, connectors, and antenna |
