Shure ANX4US

Product Overview

The Shure ANX4US is a scalable multi-channel wireless receiver built for large-venue AV installation projects that need to consolidate many wireless channels into a single rack space. This ANX4 scalable wireless receiver supports up to 16 channels of Axient Digital or 24 channels of ULX-D wireless audio, letting AV integrators grow channel count over time through software licenses instead of adding more rack hardware. It is designed for AV system designers specifying multi-channel wireless microphone systems for auditoriums, houses of worship, and government facilities where rack space and future channel growth both matter.

Product Description

The ANX4US covers a wide 174 MHz to 2 GHz tuning range, spanning nearly all Axient Digital and ULX-D frequency options in a single 1.7 x 19.0 x 11.3 inch, one-rack-unit chassis. Rather than shipping with a fixed channel count, the receiver ships without active wireless channels; integrators purchase 1-channel or 4-channel licenses separately and activate them through a ShureCloud account, which also allows licenses to be transferred between ANX4 receivers as a venue's channel needs change.

Ethernet and Dante connectivity let the ANX4US integrate directly into a networked audio installation, with four RF antenna connectors (antennas sold separately) supporting distributed antenna placement for better RF coverage in large rooms. A 6.6-inch front panel color display with a five-segment channel quality meter gives on-site AV techs a quick view of RF and audio status without a laptop. Full 256-bit AES encryption protects wireless audio in security-sensitive AV integration projects, and switchable 12 to 13.5V DC bias voltage (150 mA max per antenna) powers active antennas and in-line amplifiers directly from the receiver.

Because channel licenses are perpetual and transferable, this scalable wireless receiver installation lets a facility start with a smaller channel count and expand later without replacing the receiver itself, which is a practical procurement approach for venues anticipating growth in wireless microphone demand across auditoriums, training rooms, and multi-purpose event spaces.

Key Features

• Scalable Channel Capacity — Supports up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space.
• Wide Tuning Range — Covers 174 MHz to 2 GHz, spanning nearly all Axient Digital and ULX-D frequency bands.
• Perpetual, Transferable Channel Licenses — 1-channel and 4-channel licenses activate through ShureCloud and can move between ANX4 receivers.
• Ethernet and Dante Connectivity — Integrates directly into networked audio installations.
• 256-Bit AES Encryption — Protects wireless audio for security-sensitive AV integration projects.

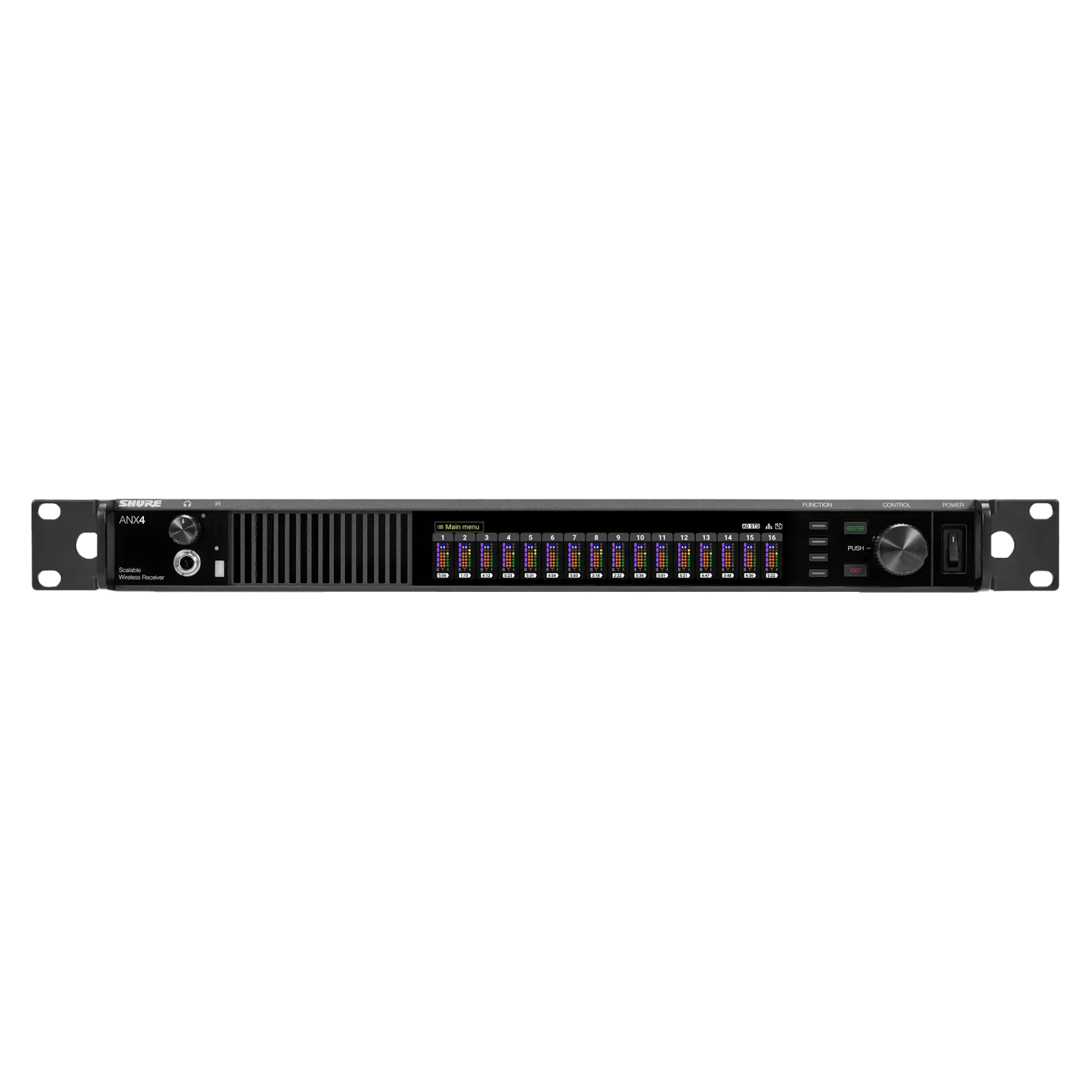

• 6.6-Inch Color Front Panel Display — Five-segment channel quality meter for at-a-glance RF and audio status.
• Four RF Antenna Connectors — Supports distributed antenna placement for improved coverage in large rooms.

Typical Applications

• Auditorium
• House of worship
• Government space
• Broadcast studio
• Training room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Does the ANX4US include active wireless channels out of the box?
No. The ANX4US ships without active channels; 1-channel or 4-channel licenses must be purchased and activated separately through ShureCloud.

Can channel licenses be moved to a different receiver?
Yes. Licenses are perpetual and can be transferred between ANX4 receivers through a ShureCloud account.

What wireless systems is the ANX4US compatible with?
The ANX4US supports both Shure Axient Digital and ULX-D wireless systems, with capacity for up to 16 Axient Digital or 24 ULX-D channels.

Is the ANX4US compatible with Dante audio networks?
Yes. The receiver includes Dante networking alongside Ethernet connectivity for control and monitoring.

Are antennas included with the ANX4US?
No. The receiver includes four RF antenna connectors, but antennas are sold separately.

What warranty applies to the ANX4US?
Shure covers the ANX4US under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.

Does Creation Networks help plan channel licensing and RF coordination?
Yes, our AV consultants can help plan channel license quantities, frequency coordination, and antenna distribution for ANX4-based systems.
