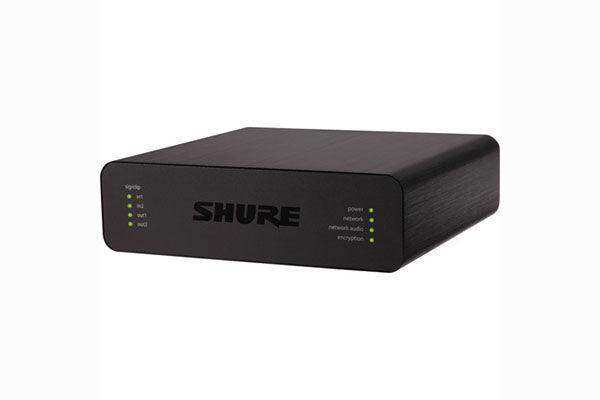

Shure ANIUSB-MATRIX USB Audio Network Interface

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: ANIUSB-MATRIX
No reviews
Price:
$730.00 $1,022.00

Description

The ANIUSB-MATRIX USB Audio Network Interface from Shure is designed for audio/video conferencing installations in small and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).

An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs. The ANIUSB-MATRIX is compact and easy to mount without an equipment rack.

  • Connects 4 Dante audio inputs and 1 analog input to an A/V conferencing system or a PC-based videoconferencing application
  • Flexible signal routing and connectivity: analog audio (1 block in/1 block out) to room A/V conferencing system; USB (1 in/out) to connect to laptop or room PC
  • Power over Ethernet (PoE) eliminates the need for an outboard power supply
  • Compact form factor is easy to mount without equipment rack

Spec Sheet

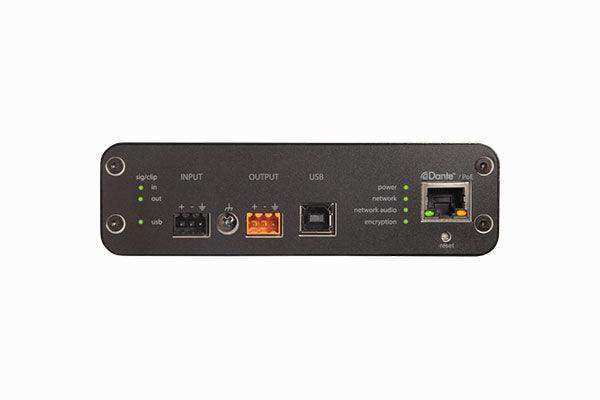

Inputs (Analog) 1 x 3-pin block connector (active balanced)
Outputs (Analog) 1 x 3-pin block connector (impedance balanced)
USB Connection 1 x USB 2.0, Type-B
Dante Connection 1 x RJ45
Channel Count: 4 inputs, 2 outputs
Polarity Non-inverting, any input to any output
Power Requirements Power over Ethernet (PoE), Class 0 (PoE Plus compatible)
Power Consumption 6.5 W maximum
Application Control HTML5 browser based
Operating Temperature Range 20 to 104°F (-6.7 to 40°C)
Storage Temperature Range 20 to 165°F (-29 to 74°C)
Thermal Dissipation Maximum: 6.8 W (23.0 BTU/hr)
Typical: 6.0 W (20.8 BTU/hr)
Audio
Frequency Response 20 Hz to 20 kHz +1, -1.5 dB
Dante Audio Flows Sampling Rate: 24-bit/48 kHz
USB Audio 16-, 24-bit/44.1, 48 kHz
Latency Does not include Dante latency
Analog to Analog: 0.98 ms
Analog to Dante 0.39 ms
Dante to Analog: 0.72 ms
Dante to Dante: 0.14 ms
Dynamic Range 20 Hz to 20 kHz, A-weighted, typical
Analog to Dante: 113 dB
Dante to Analog: 117 dB
Equivalent Input Noise 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
Line: -86 dBV
Aux: -98 dBV
Total Harmonic Distortion (THD) <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain
Common Mode Rejection Ratio >70 dB, 150 Ohms balanced source @ 1 kHz
Impedance 10.6 kOhms
Input Clipping Level Line: +27 dBV
Aux: +15 dBV
Output Clip Level Line: +20 dBV
Aux: 0 dBV
Mic: -26 dBV
Digital Signal Processing (DSP) Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range)
System: Matrix mixer
Networking Cat 5e or higher (shielded cable recommended)
Dimensions 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm)
Weight 1.5 lb (672 g)
