Shure ADX5DUSTA=-C Digital Dual-Channel Slot-Mount Wireless Receiver (925 to 1000 MHz) (TAA-Compliant)

Product Overview

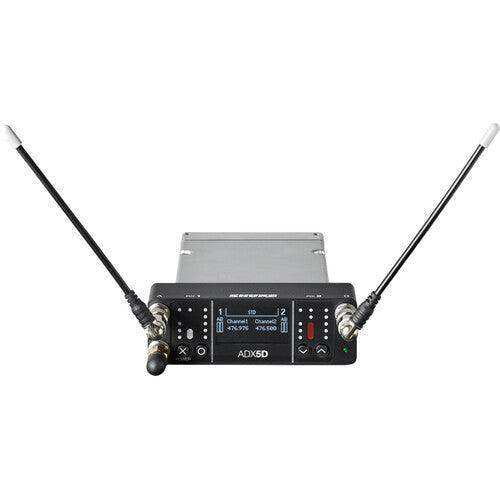

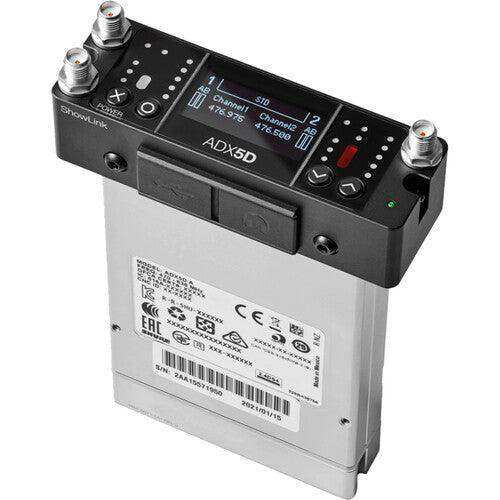

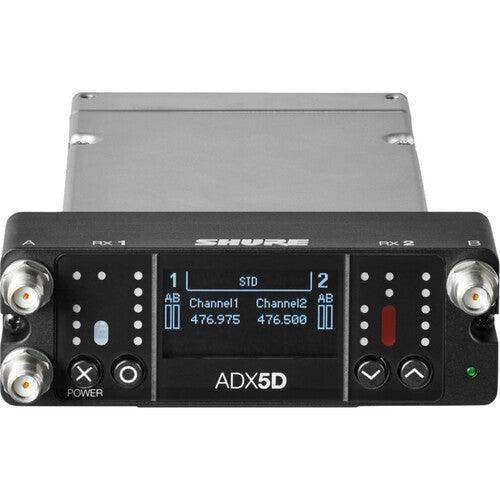

The Shure ADX5D (Band C: 925–1000 MHz) is a TAA-compliant dual-channel portable slot-in wireless receiver for broadcast, film, and field production deployments operating in the 900 MHz frequency range. Compatible with all Shure AD-series and ADX-series transmitters in the matching band, it delivers 129 dB dynamic range, 2.08 ms latency in Standard Density mode, and ShowLink Direct Mode—all in a machined aluminum slot-in form factor designed for camera hot shoes and multi-couplers.

Product Description

The ADX5DUSTA=-C addresses productions that benefit from operating in Band C (925–1000 MHz), a frequency range often less impacted by TV broadcast and public safety RF activity compared to lower UHF bands. True digital diversity per channel and High Density mode provide reliable multi-channel operation in spectrum-dense environments, while ShowLink Direct Mode allows wireless transmitter control directly from the receiver at up to 30 meters without a separate access point. The interchangeable backplate system supports TA3, DB15, and DB25 output configurations for broad camera and recorder compatibility. Machined aluminum construction delivers the durability required in ENG, sports video, and on-location film production. TAA compliance qualifies this receiver for government broadcast facilities and institutional purchasing contracts. Pair with the Shure ADX5-MOUNT-TA for camera hot shoe mounting.

Key Features

• Band C: 925–1000 MHz — Operates in a frequency range that can offer fewer conflicts with broadcast television and public safety allocations in many US markets, providing an additional coordination option for complex multi-system deployments.
• Dual-Channel Slot-In Receiver — Compact form factor compatible with SuperSlot and UniSlot multi-couplers, camera hot shoes (via ADX5-MOUNT), and audio bag organizer plates.
• High Density (HD) Mode — Advanced digital modulation enables more simultaneous wireless channels in available spectrum, supporting large-scale productions with high channel counts.
• 2.08 ms Analog Output Latency — Standard Density mode delivers near-zero latency critical for broadcast and film post-production synchronization workflows.
• True Digital Diversity Per Channel — Independent diversity reception on both channels minimizes dropout risk in RF-challenging field production locations.
• ShowLink Direct Mode — Enables wireless control of Axient Digital transmitters from the receiver itself at up to 30 meters, without a dedicated engineering workstation or separate ShowLink hardware.
• Interchangeable Backplate System — TA3, DB15, and DB25 backplate options provide flexible audio output and power connectivity for professional cameras and recorders.
• 129 dB Dynamic Range — Captures the full dynamic range of live performance and field audio without compression or limiting artifacts.
• Machined Aluminum Housing — Field-grade durability for ENG, sports video, and on-location production environments.
• TAA Compliance — Meets Trade Agreements Act requirements for federal government and institutional procurement programs.

Typical Applications

• Sports video and live event field production
• Broadcast studio ENG and news gathering
• Film and reality TV on-location audio
• Government broadcast facilities requiring TAA-compliant wireless
• House of worship broadcast and livestreaming production
• Auditorium AV and video production workflows

Technical Specifications

Frequently Asked Questions

Why use Band C (925–1000 MHz) compared to lower UHF bands?
Band C can offer fewer RF conflicts with broadcast television and public safety allocations in some US markets, making it useful when lower UHF bands are congested. Verify spectrum availability in your specific market with a frequency coordination tool before purchasing. All Axient Digital transmitters in the same band are compatible.

What cameras and multi-couplers is the ADX5D compatible with?
The ADX5D fits SuperSlot and UniSlot multi-coupler interfaces used in professional camera wireless systems. With the ADX5-MOUNT cold shoe accessory, it also mounts directly to camera hot shoes. The TA3, DB15, and DB25 backplate options cover most professional audio output connectors.

Does ShowLink Direct Mode require a computer or network connection?
No. ShowLink Direct Mode on the ADX5D allows the receiver itself to communicate with and control Axient Digital transmitters wirelessly without a connected computer or separate access point. It is ideal for field crews or solo operators who need transmitter control without a dedicated engineering workstation.

Is the ADX5DUSTA=-C TAA-compliant?
Yes. The TAA designation confirms compliance with the Trade Agreements Act, qualifying this receiver for federal government procurement through GSA schedules and qualifying institutional purchasing vehicles.

What is the difference between Standard Density and High Density modes?
Standard Density mode provides a 75 m line-of-sight working range and 2.08 ms latency. High Density mode allows more wireless channels to operate simultaneously in the same spectrum at the cost of reduced working range (40 m line-of-sight) and slightly higher latency (2.96 ms). High Density mode is recommended for large-scale productions with many simultaneous channels.
