Shure ADX5BS-L L-Type Battery Sled for ADX5D
Product Overview

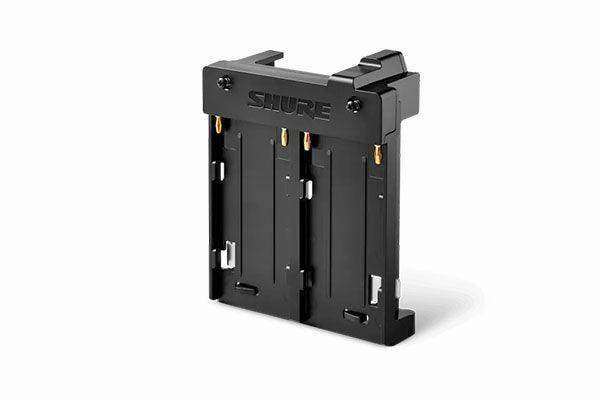

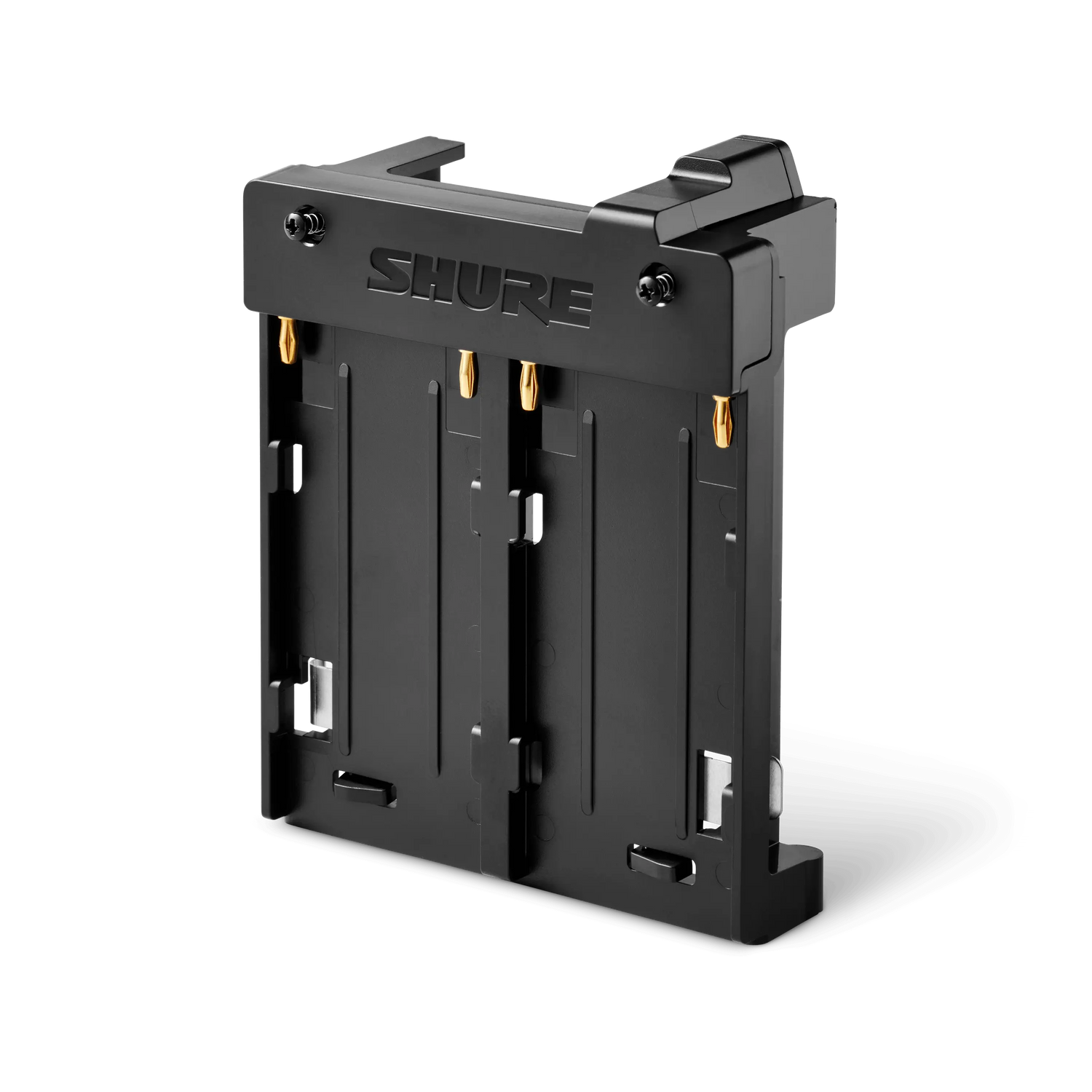

The Shure ADX5BS-L is an L-type battery sled for the Axient Digital ADX5D portable wireless receiver, enabling battery operation with hot-swap capability. It is built for location sound engineers and broadcast crews who run the ADX5D off-grid in bag and cart configurations. The sled powers the receiver from industry-standard L-type batteries and works in conjunction with the ADX5BP-TA3 backplate.
Product Description

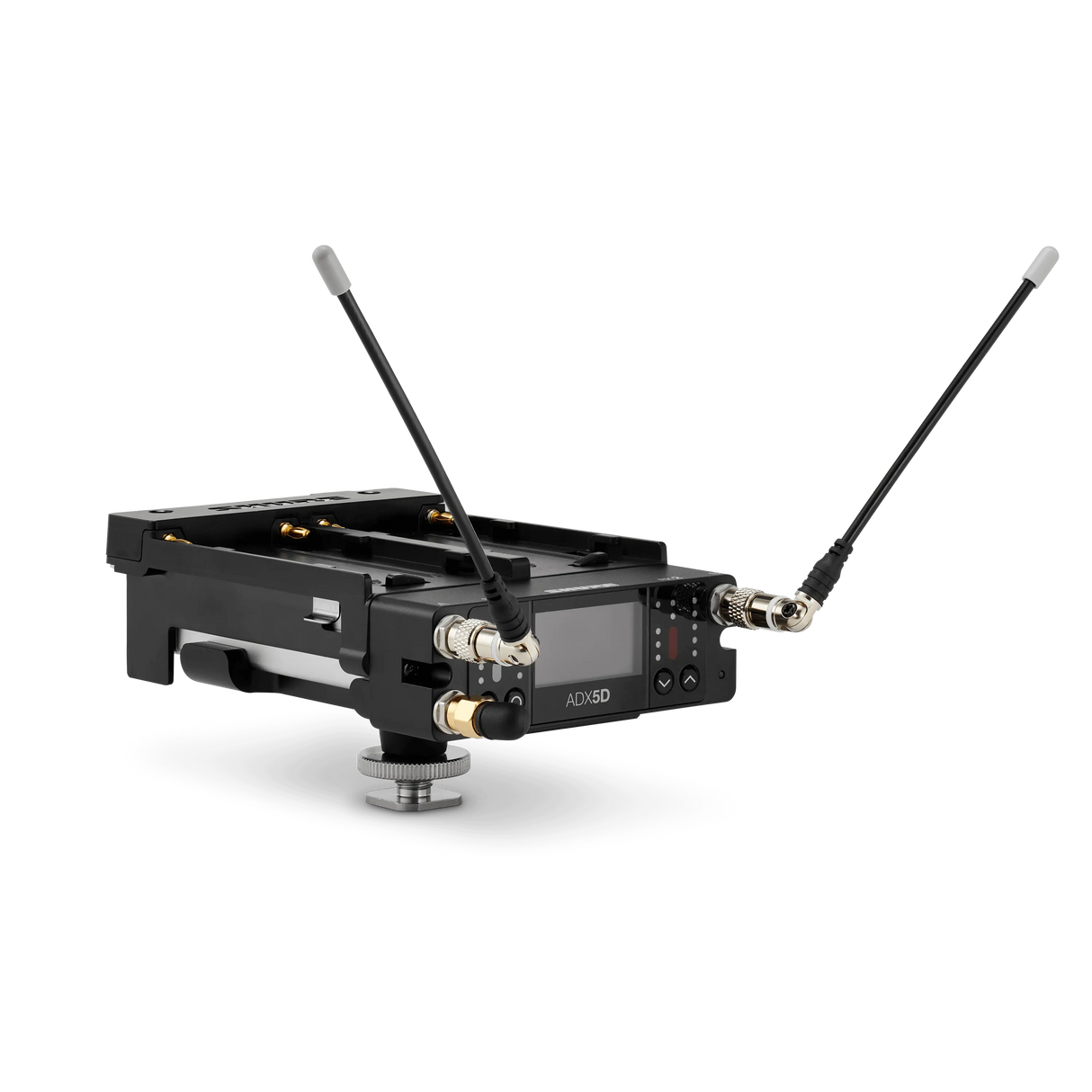

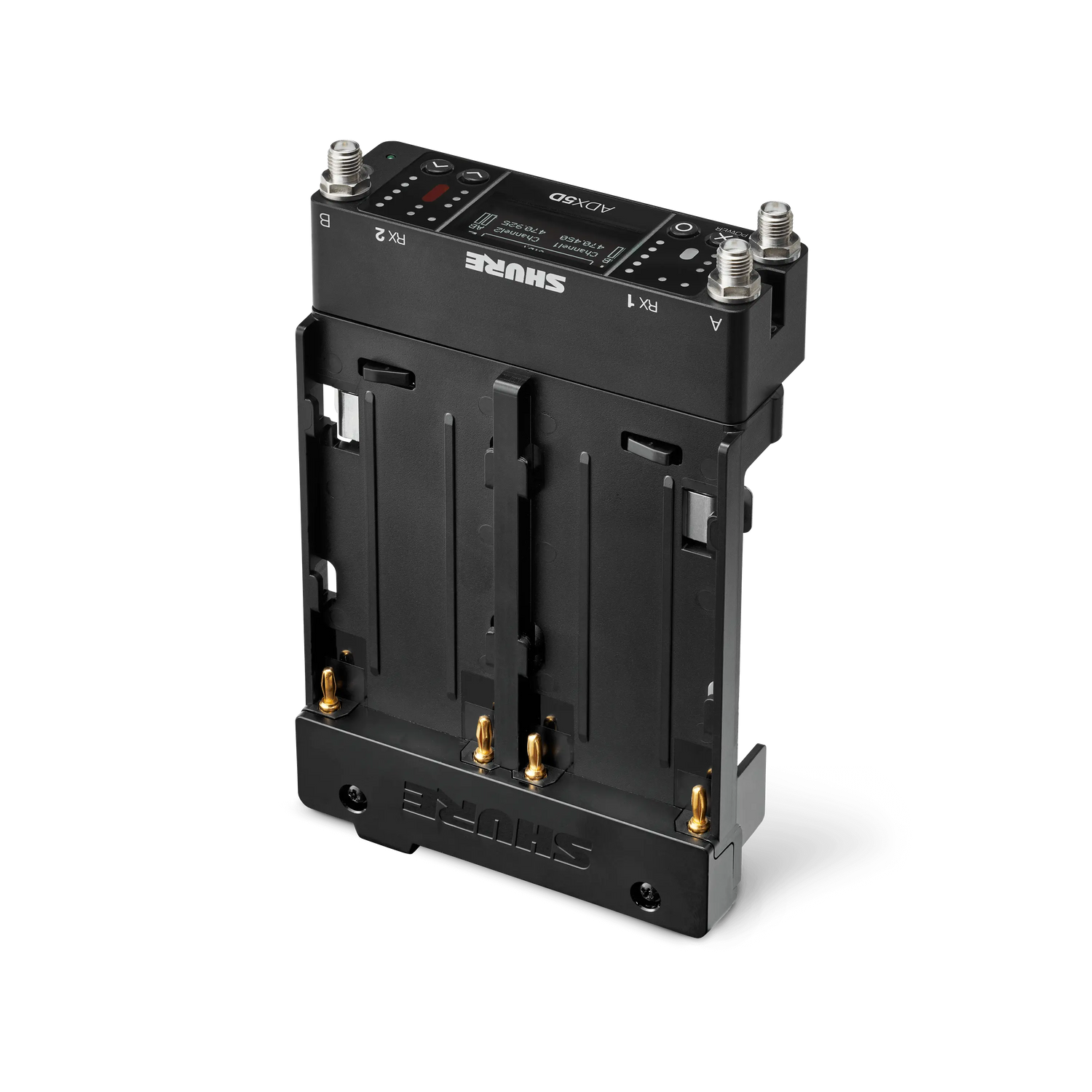

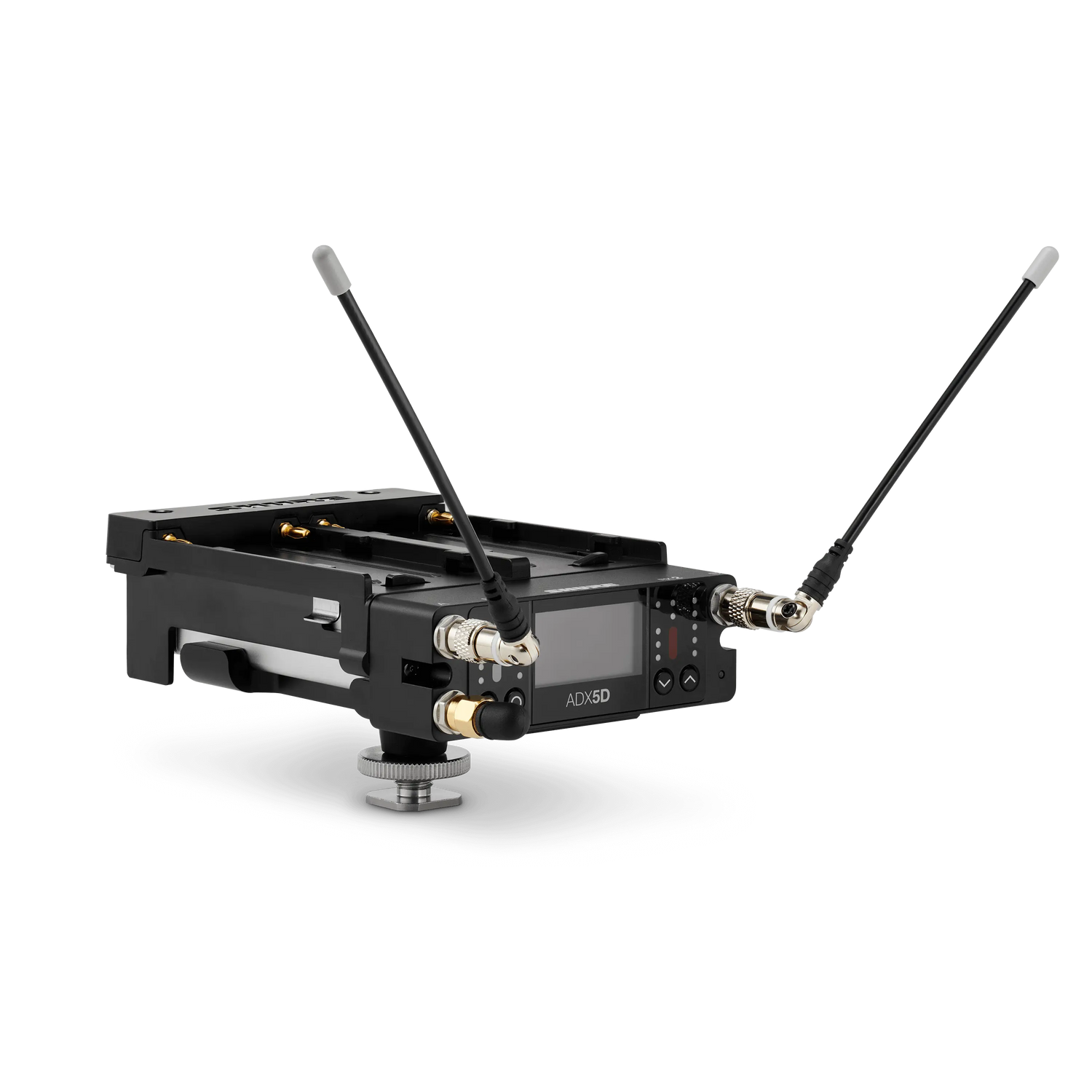

With the ADX5BS-L, the Axient Digital ADX5D can be powered by one or two L-type batteries. When two batteries are installed, one can be replaced without interrupting operation, allowing continuous runtime during long shoots and live events. The battery sled must be used with the ADX5BP-TA3 backplate, which includes the 4-pin connector required for the two components to mate and pass power. For film, broadcast, ENG, and sports production, the L-type battery sled gives the ADX5D the runtime flexibility and uninterrupted power that mobile workflows demand, using batteries already common in professional video kits.
Key Features
- Single or Dual Battery Operation — The sled powers the ADX5D from one or two L-type batteries to match runtime requirements.
- Hot-Swap Capability — With two batteries installed, one can be replaced without interrupting receiver operation for continuous uptime.
- Industry-Standard Batteries — L-type batteries are widely used across professional video kits, simplifying power logistics on location.
- Backplate Integration — The sled mates with the ADX5BP-TA3 backplate, which carries the 4-pin power connector required for operation.
Technical Specifications
| Function | L-type battery sled for Axient Digital ADX5D |
| Battery Capacity | One or two L-type batteries |
| Hot-Swap | Yes, when two batteries are installed |
| Required Backplate | ADX5BP-TA3 |
| Host Receiver | Shure ADX5D portable receiver |
This sled requires the Shure ADX5BP-TA3 backplate to mate and pass power to the ADX5D.
