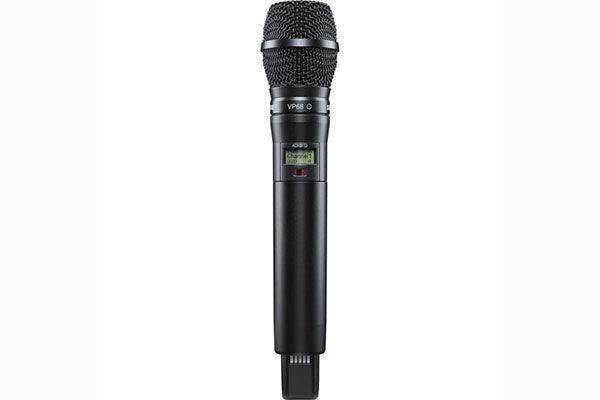

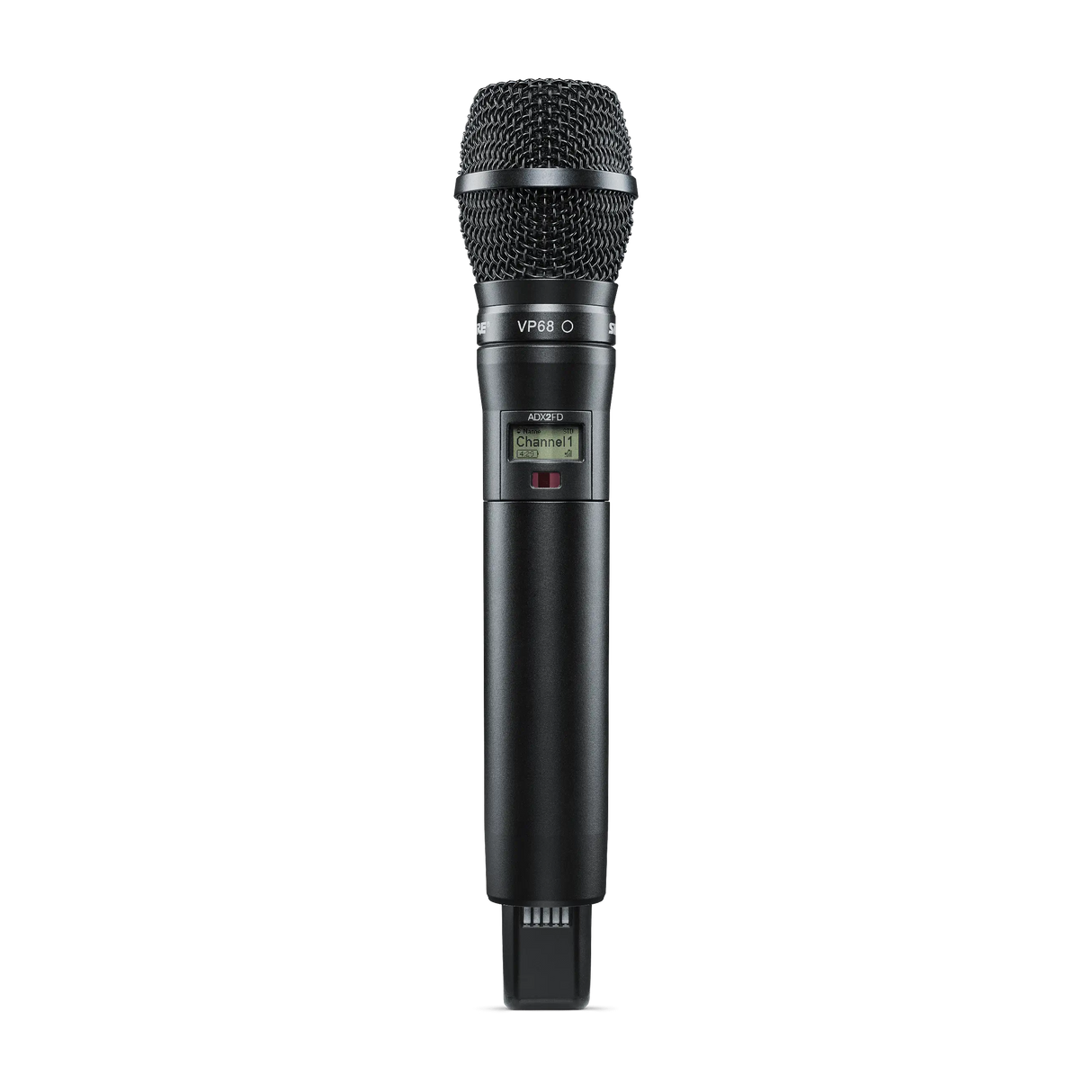

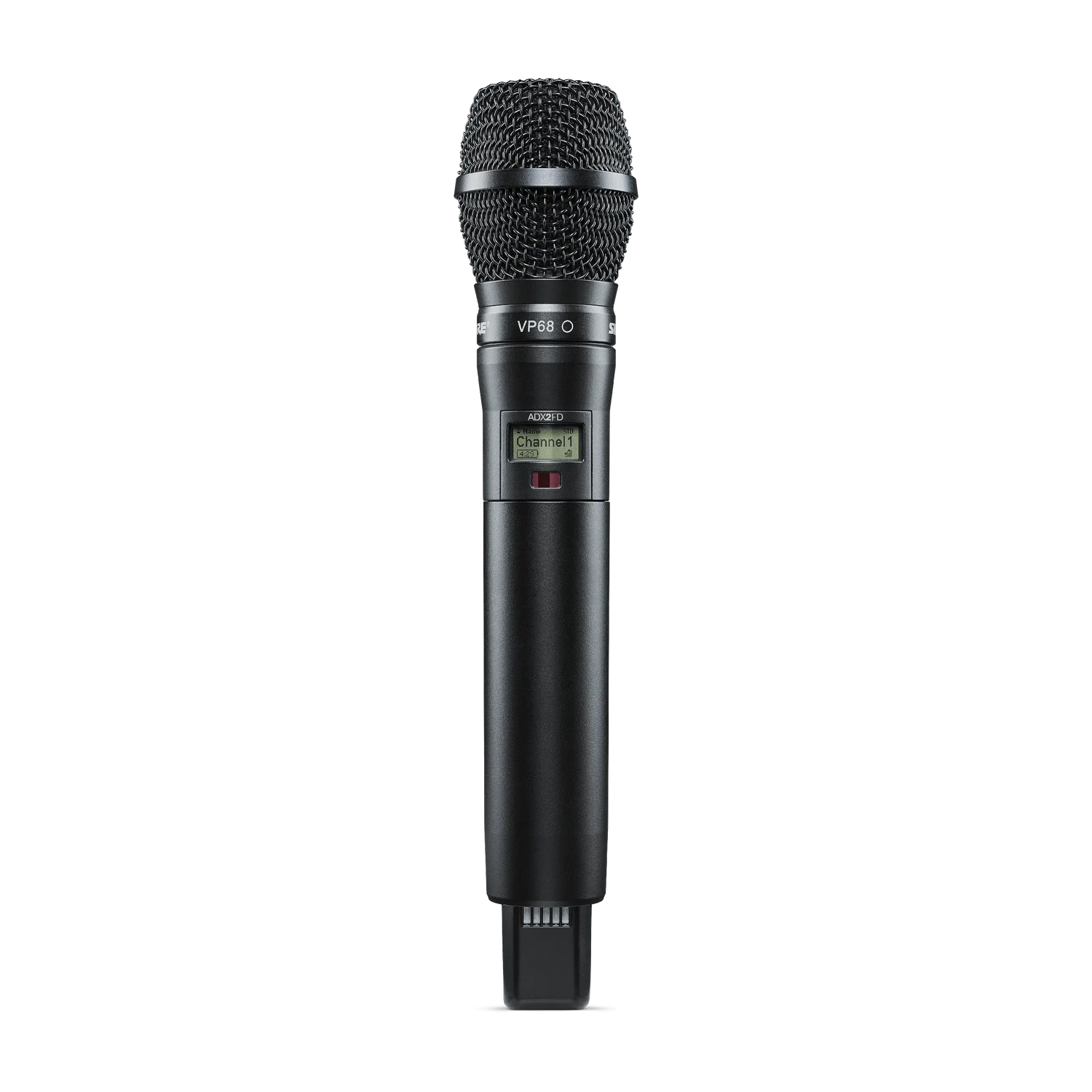

Shure ADX2FD/VP68 Digital Handheld Wireless Microphone Transmitter with VP68 Capsule

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: ADX2FD/VP68=-G57
No reviews
Model: ADX2FD/VP68=-G57 (941-960 MHZ)
Price:
$2,781.00 $3,476.00

Description

The Shure ADX2FD/VP68 is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters. The transmitter also features Frequency Diversity for seamless audio in even the most challenging RF environments.

The ADX2FD/VP68 comes equipped with a VP68 condenser capsule that delivers a natural sound optimized for speech intelligibility. The capsule's omnidirectional polar pattern ensures that the sound remains consistent, even when moving the mic between speakers.

  • For Axient Digital Systems
  • VP68 Condenser Omnidirectional Mic
  • Frequency Diversity & ShowLink Control
  • Automatic Gain Adjustment
  • 2/10/50mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • Interchangeable Capsule Design
  • 9 Hours with SB920 Rechargeable Battery

Data Sheet

Wireless Technology Digital UHF
RF Frequency Band 417 to 616 MHz
RF Bandwidth 146 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1' / 100 m (Line of Sight)
Latency 2 to 2.9 ms (Selectable)
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Handheld
RF Output Power 2 / 10 / 20 / 50 mW (Switchable)
Audio I/O None
Pad 12 dB
Muting Mute Switch
Audio Input Level 145 dB
Gain Range -12 to +21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x Internal (Handheld)
Power Requirements Battery
Battery Type 1 x Rechargeable (Included, Replaceable)
Approx. Battery Life Med.:
9 Hours (Lithium)
High:
5 Hours (Lithium)
Display & Indicators 1 x LCD (Battery Status, Channel, Group, Signal Strength)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 2 x 10" / 51 x 254 mm
Weight 11.9 oz / 338 g (without Batteries)
Microphone
Microphone Type Handheld Capsule
Sound Field Mono
Capsule Condenser
Polar Pattern Omnidirectional
Frequency Range 40 Hz to 20 kHz
Maximum SPL 136.5 dB SPL
Sensitivity 41 dBV/Pa at 1
Dynamic Range 118 dB
