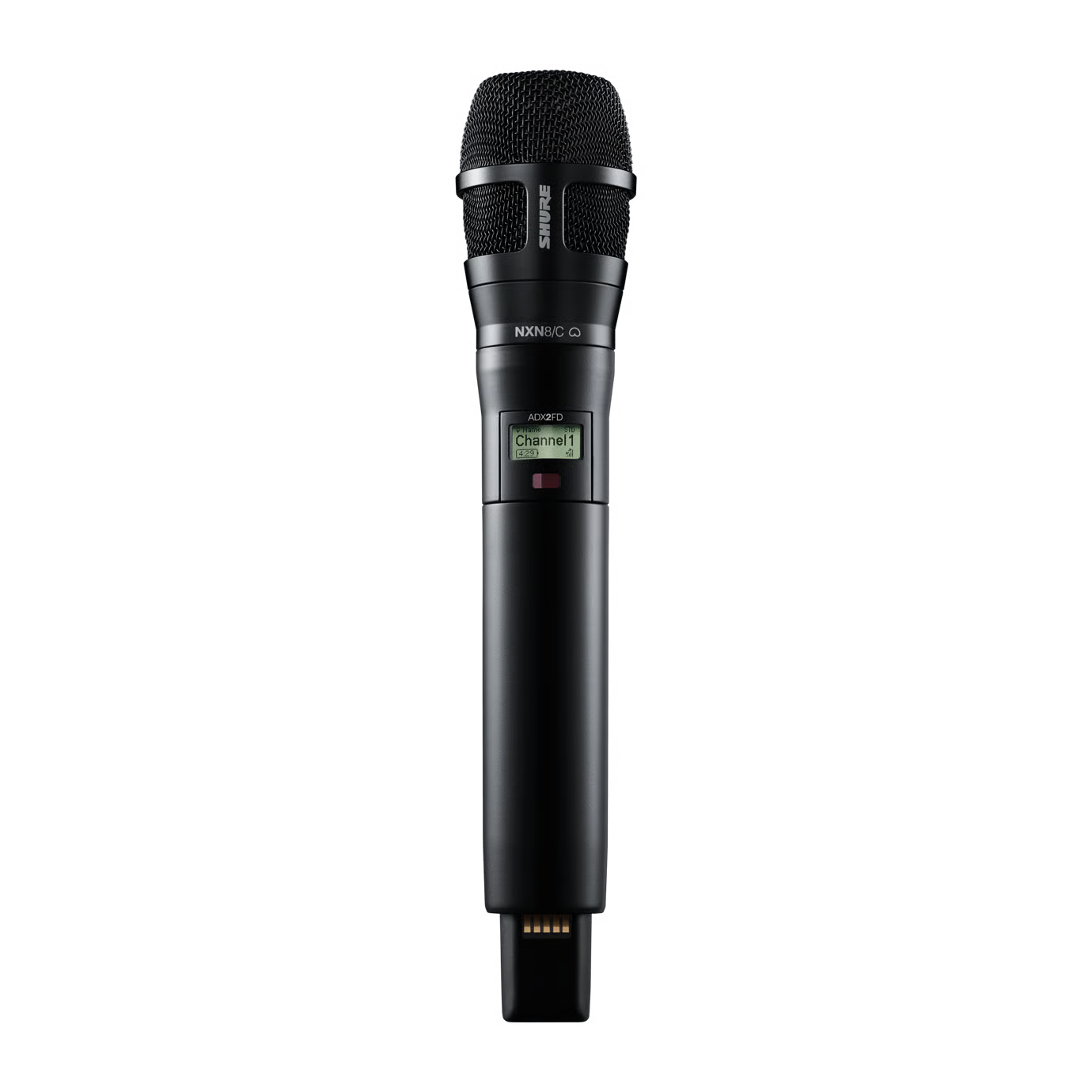

Shure ADX2FD/N8CB-G57 Axient Digital Frequency Diversity Handheld Transmitter with Nexadyne 8/C Capsule - Black

Product Overview

The Shure ADX2FD/N8C is an Axient Digital frequency-diversity handheld wireless microphone transmitter built for mission-critical productions where a dropped channel is not an option. As a frequency-diversity model, it transmits on two discrete RF carriers at once, so the system can hold a reliable link even when one frequency encounters interference. It pairs the Nexadyne 8/C cardioid dynamic capsule with Revonic Transducer Technology for natural vocal capture with classic cardioid pickup, and adds Diversity ShowLink remote control for real-time parameter changes from the booth. This listing is the black finish on the G57 band.

Product Description

The ADX2FD/N8C sits at the top of the Axient Digital handheld range and is intended for broadcast, large-venue worship, touring, and high-stakes corporate and government events. Its defining feature is frequency diversity: the transmitter sends the same audio on two independent carriers, and the receiver combines them to ride through RF dropouts that would interrupt a single-frequency link. The Nexadyne 8/C cardioid capsule offers a forgiving pickup pattern suited to presenters and vocalists who move on and off axis. Wide tuning of up to 184 MHz gives RF coordinators room to find clean spectrum in congested environments, while an optional 50 mW High Power mode increases range on a single frequency when conditions call for it. Two transmission modes let engineers choose Standard for optimal coverage or High Density for maximum channel count in dense deployments. Diversity ShowLink enables remote transmitter control and automatic interference avoidance, and encryption-enabled transmission protects sensitive audio in government and corporate settings. The durable, moisture-resistant metal body delivers up to 6.5 hours of runtime on two carriers with the SB920A rechargeable battery, and external contacts support docked charging. Match frequency bands across components for proper operation. Compatible Axient Digital receivers and accessories are available at creationnetworks.net.

Key Features

• Frequency Diversity Transmission — Sends audio on two discrete RF carriers so the link survives interference on a single frequency.
• Wide Tuning up to 184 MHz — Gives RF coordinators broad spectrum to find clean frequencies in congested venues.
• Optional 50 mW High Power Mode — Increases range on a single frequency when conditions require more output.
• Nexadyne 8/C Cardioid Capsule — Uses Revonic Transducer Technology for natural vocal capture with a forgiving cardioid pattern.
• Diversity ShowLink Control — Allows real-time remote parameter changes and automatic interference avoidance from the booth.
• Standard and High Density Modes — Selects optimal coverage or maximum channel count to match the deployment.
• Encrypted Secure Transmission — Protects sensitive audio for government, corporate, and broadcast use.
• Advanced Rechargeability — Delivers up to 6.5 hours on two carriers with the SB920A battery and supports docked charging.
• Durable Metal Body — Moisture-resistant, lightweight construction in a black finish for demanding touring use.

Typical Applications

• Broadcast studio — Frequency diversity protects on-air audio where dropouts are unacceptable.
• Auditorium — Reliable handheld vocal capture for large productions and events.
• House of worship — Dependable wireless for large sanctuaries with active RF environments.
• Government space — Encrypted transmission supports secure proceedings in chambers and hearings.
• All-hands room — Robust presenter audio for large corporate gatherings.
• Multi-purpose room — Adapts to changing events that demand reliable handheld wireless.

Technical Specifications

Competitor Comparison

This comparison reflects general product positioning; competitor specifications change over time and should be verified against current manufacturer documentation before purchase.

Frequently Asked Questions

What does the FD in ADX2FD mean?
FD stands for frequency diversity: the transmitter sends audio on two discrete RF carriers so the system can maintain a reliable link if one frequency is affected by interference.

Why choose the cardioid (8/C) capsule?
The Nexadyne 8/C cardioid pattern is more forgiving of movement on and off axis, which suits presenters and vocalists who are not always directly on the microphone.

How long does the battery last?
With the SB920A rechargeable battery it provides up to 6.5 hours when transmitting on two carriers, or up to 9 hours on a single carrier, and supports docked charging.

Which receivers is it compatible with?
It is compatible with Shure Axient Digital Wireless Systems. Match the frequency band (G57) across transmitter and receiver for proper operation.

What about installation support and warranty?
The transmitter carries the manufacturer warranty. Contact the Creation Networks team for frequency coordination help, system integration, and warranty support.
