Shure ADX2/VP68 – Axient Digital Handheld Transmitter with VP68 Capsule

Product Overview

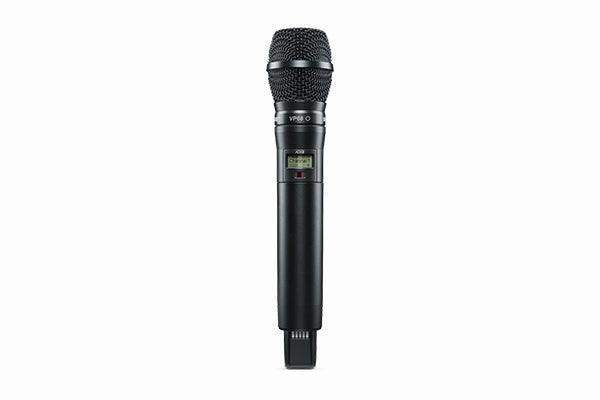

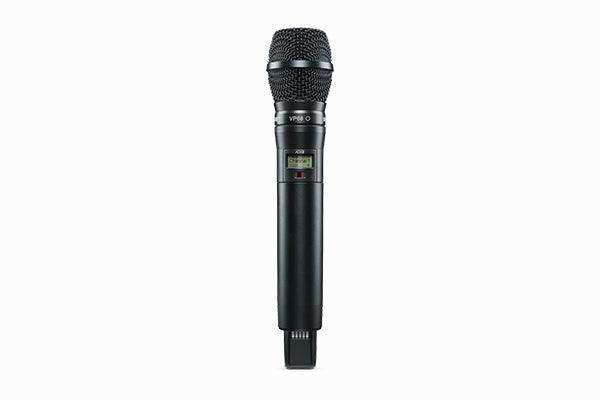

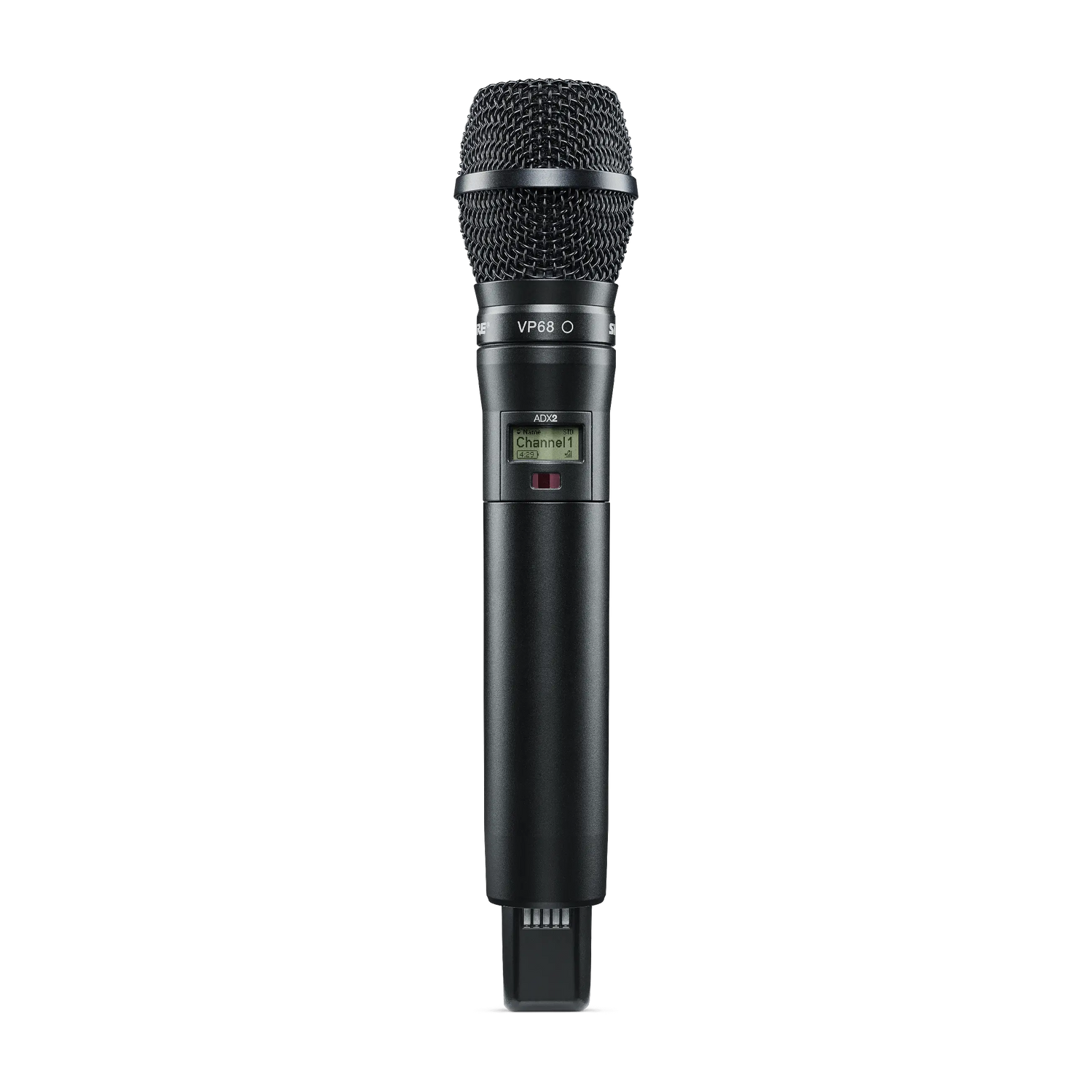

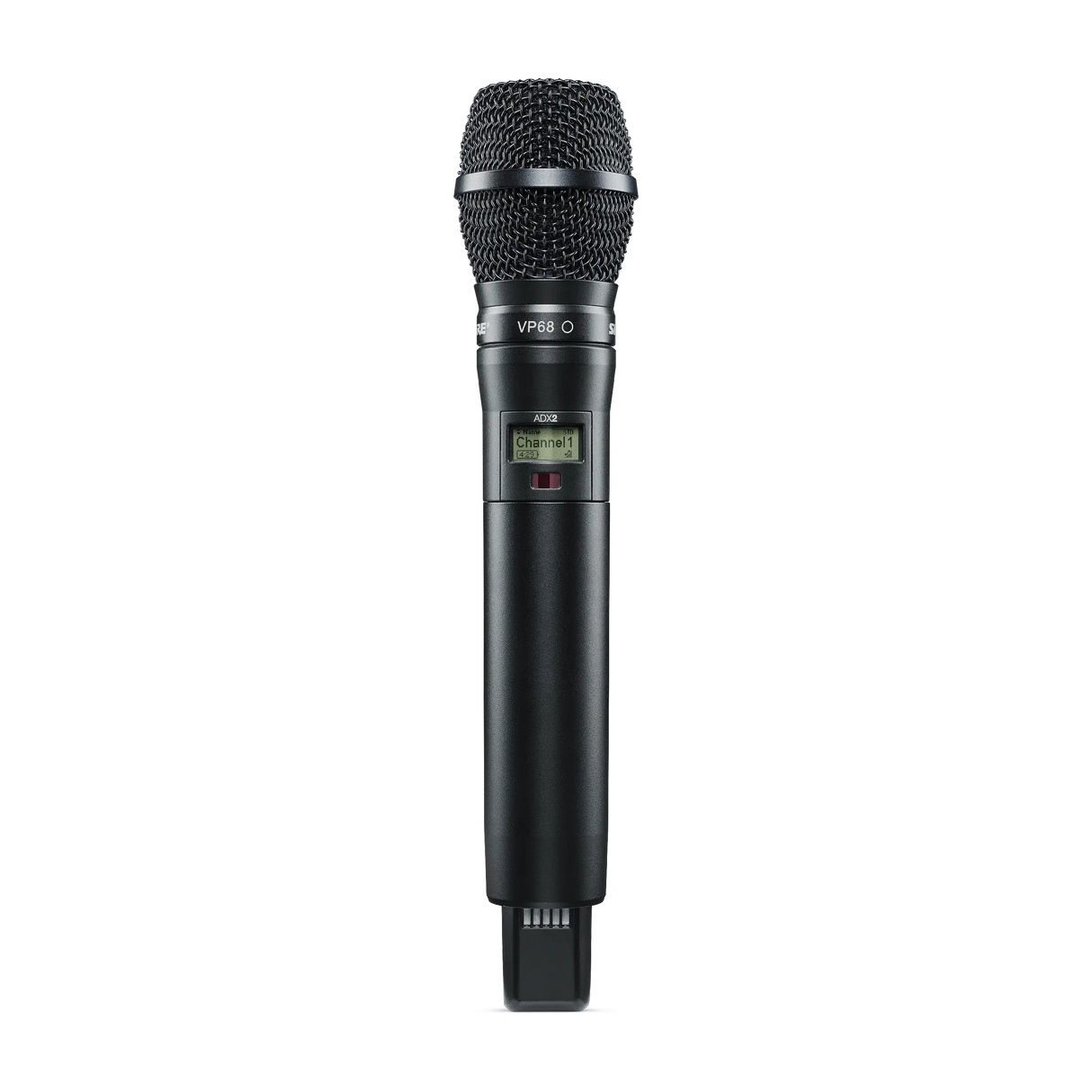

The Shure ADX2/VP68 is a ShowLink-enabled Axient Digital handheld wireless transmitter equipped with the VP68 omnidirectional condenser capsule, designed for commercial AV deployments where consistent speech intelligibility is required regardless of mic angle or position. The ADX2 platform adds ShowLink remote control over the entry-level AD2 series, allowing FOH operators to adjust gain, mute, and RF output on the transmitter in real time from the booth. Operating on Shure’s Axient Digital platform with AES-256 encryption and 2-ms latency, it is available in G57 (470–616 MHz) and X55 (941–960 MHz) frequency bands.

Product Description

The ADX2/VP68 is the ShowLink-capable step-up from the AD2/VP68, making it the right choice for installations where remote transmitter management is an operational requirement — corporate boardrooms, government meeting spaces, multi-panelist conference rooms, and auditorium Q&A formats. The VP68’s omnidirectional polar pattern delivers natural, consistent sound from any direction, eliminating the positioning sensitivity of cardioid capsules when multiple speakers pass the microphone. ShowLink requires an AD610 access point and Wireless Workbench 6 software to enable real-time wireless parameter control from the FOH position. The transmitter runs up to 9 hours on the included SB920 rechargeable lithium-ion battery, with external charging contacts supporting docked charging via compatible Shure chargers. For a compatible dual-channel receiver, see the Shure AD4DNP Two-Channel Digital Wireless Receiver. For a cost-effective entry to Axient Digital with the same VP68 capsule, see the Shure AD2/VP68.

Key Features

• VP68 Omnidirectional Condenser Capsule — Captures clear, natural sound from all directions, making it ideal for panel discussions, corporate meetings, and government spaces where the mic moves between speakers without repositioning.
• ShowLink Remote Control — Enables the FOH engineer to wirelessly adjust gain, RF output, mute, and other transmitter parameters in real time from the booth using the AD610 access point and Wireless Workbench 6.
• AES-256 Encryption — Provides secure digital audio transmission for government, corporate, and sensitive commercial AV installations where confidentiality is required.
• 146 MHz Tuning Range — Wide UHF tuning within the G57 band supports large-scale channel coordination and interference avoidance in dense RF environments.
• Selectable RF Output (2/10/40 mW) — Allows system designers to balance transmission range against channel density requirements, supporting up to 100 m (328 ft) line of sight.

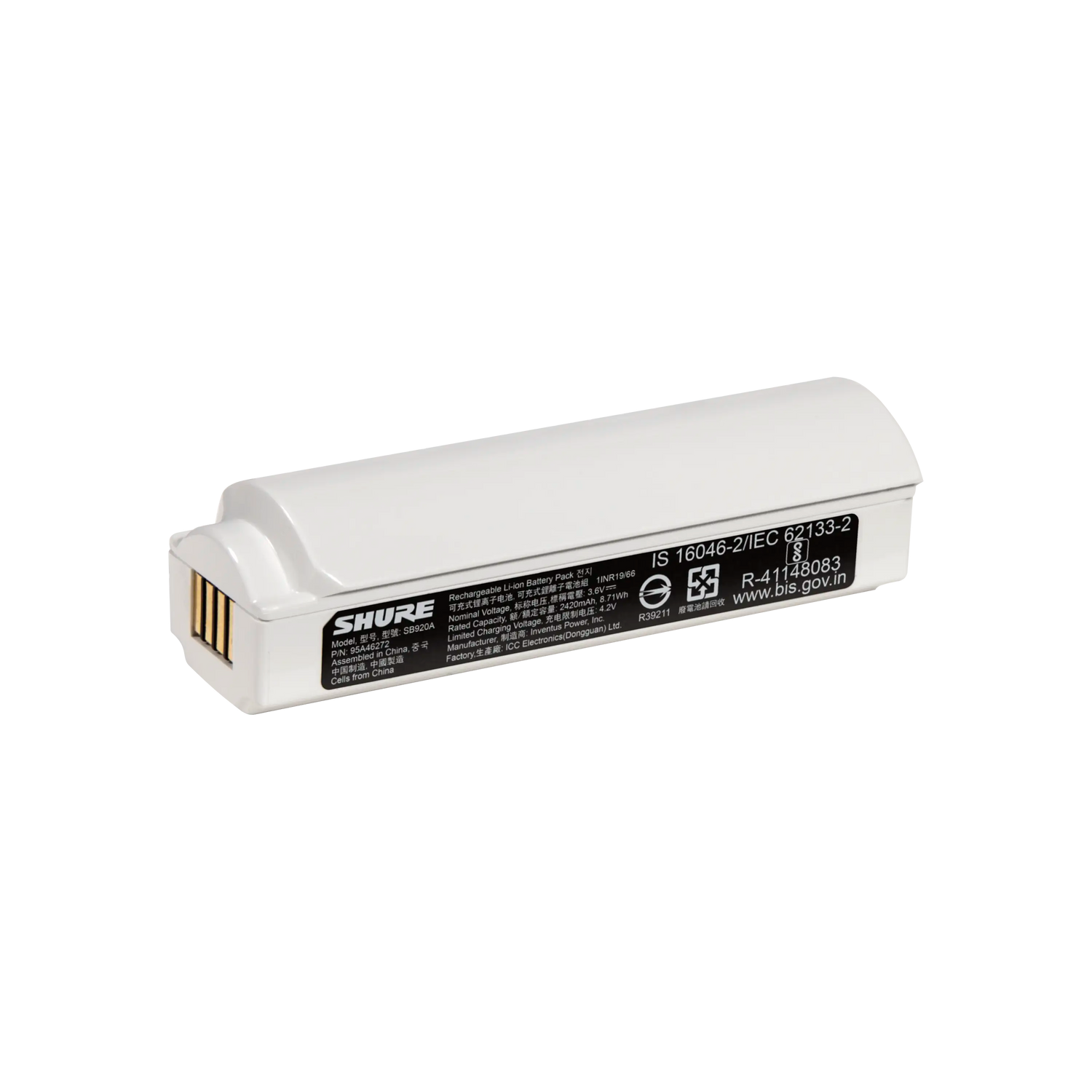

• 9 Hours Battery Life — SB920 rechargeable lithium-ion battery (2x included) provides up to 9 hours of runtime at 10 mW, with precision time-remaining display.
• IR Sync — One-touch infrared synchronization with Axient Digital receivers simplifies frequency coordination during installation setup and event changeovers.
• Automatic Gain Adjustment — Onboard auto-gain reduces setup time for AV operators managing multiple wireless channels across a complex system.
• Interchangeable Capsule Design — The VP68 capsule can be swapped for other compatible Shure wireless capsules (KSM9, KSM8, SM58, Beta 87A, Beta 87C, and others) to adapt the transmitter to different applications.
• High-Density Mode — Supports maximum simultaneous channel counts in spectrum-limited venues alongside standard coverage mode for flexible system design.
• Lightweight Aluminum Housing — Durable, moisture-resistant construction at 340 g (12 oz) without battery, suited for continuous use in commercial AV and meeting space deployments.

Typical Applications

• Corporate boardroom and all-hands room panel discussions requiring remote operator management via ShowLink
• Government and municipal meeting spaces where omnidirectional coverage simplifies multi-speaker operation
• Conference room and commercial meeting space AV systems with multiple speakers sharing a single wireless channel
• Auditorium Q&A formats and training room installations requiring consistent coverage from varying mic angles
• Broadcast studio news and field-interview applications where ShowLink and VP68 omnidirectional response are operationally required

Technical Specifications

Frequently Asked Questions

What is the practical difference between the ADX2/VP68 and the AD2/VP68?
Both use the same VP68 omnidirectional capsule. The ADX2/VP68 adds ShowLink remote control, which allows real-time parameter adjustment (gain, mute, RF output) from the FOH position via the AD610 access point and WWB6 software. The AD2/VP68 does not support ShowLink. For installations where remote management is required, the ADX2/VP68 is the appropriate choice.

Which Axient Digital receivers are compatible with the ADX2/VP68?
The ADX2/VP68 is compatible with all Axient Digital receivers, including the AD4D dual-channel and AD4Q four-channel rack-mount units. Match frequency bands (G57 or X55) between transmitter and receiver when ordering.

Can the VP68 capsule be swapped for a directional capsule?
Yes. The interchangeable capsule design allows no-tools field replacement with any compatible Shure wireless capsule — including the KSM9, KSM8, SM58, Beta 87A, and Beta 87C — to adapt the transmitter body to different applications.

What is needed to use ShowLink with the ADX2/VP68?
ShowLink requires the separate Shure AD610 ShowLink access point and Shure Wireless Workbench 6 (WWB6) software, both connected to the same network. Once configured, ShowLink enables wireless parameter control of the ADX2/VP68 from front-of-house without physically accessing the transmitter.

What warranty does the ADX2/VP68 carry?
Shure provides a limited 2-year manufacturer warranty. Contact Creation Networks for warranty support and Axient Digital system design consultation.
