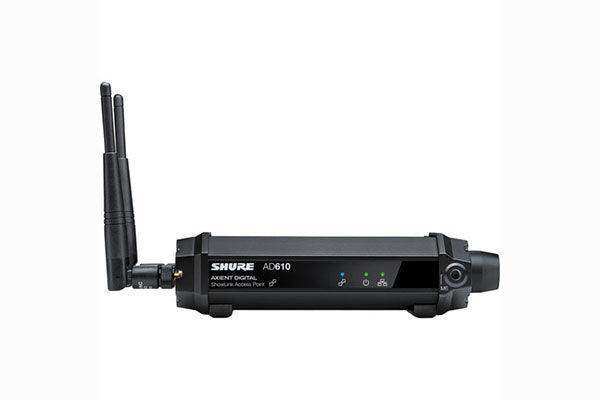

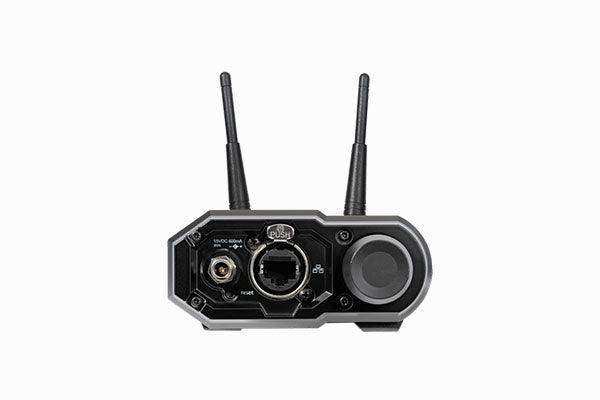

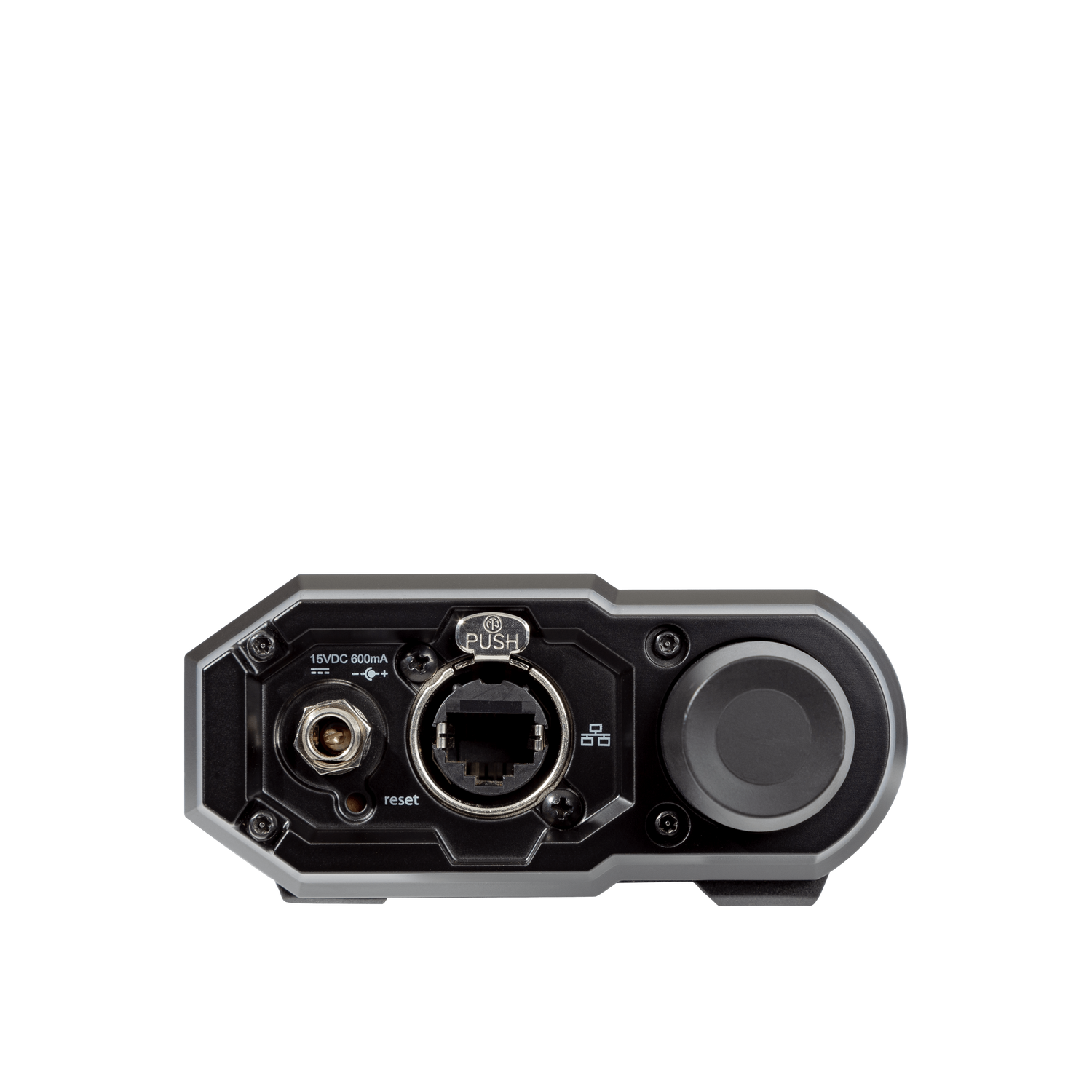

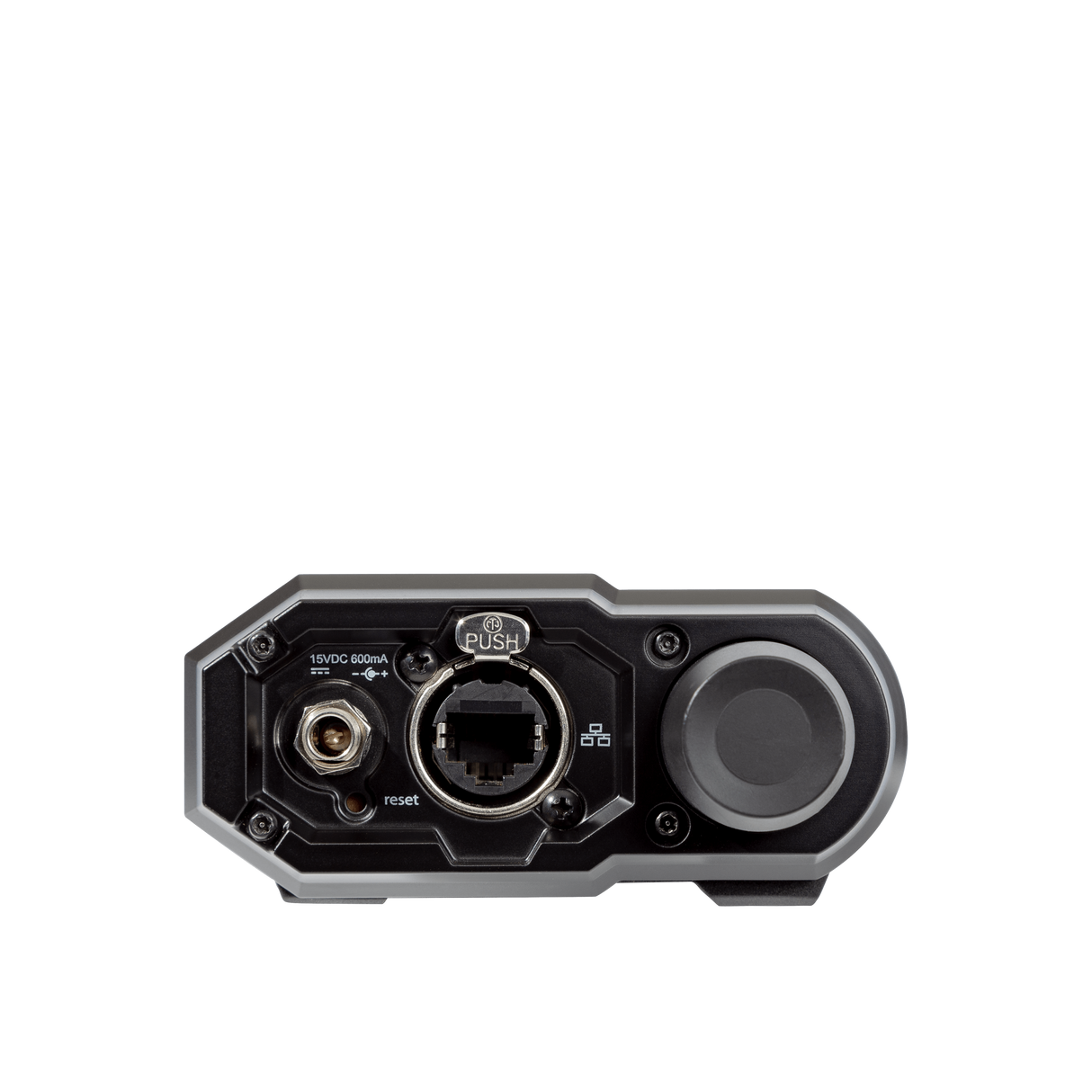

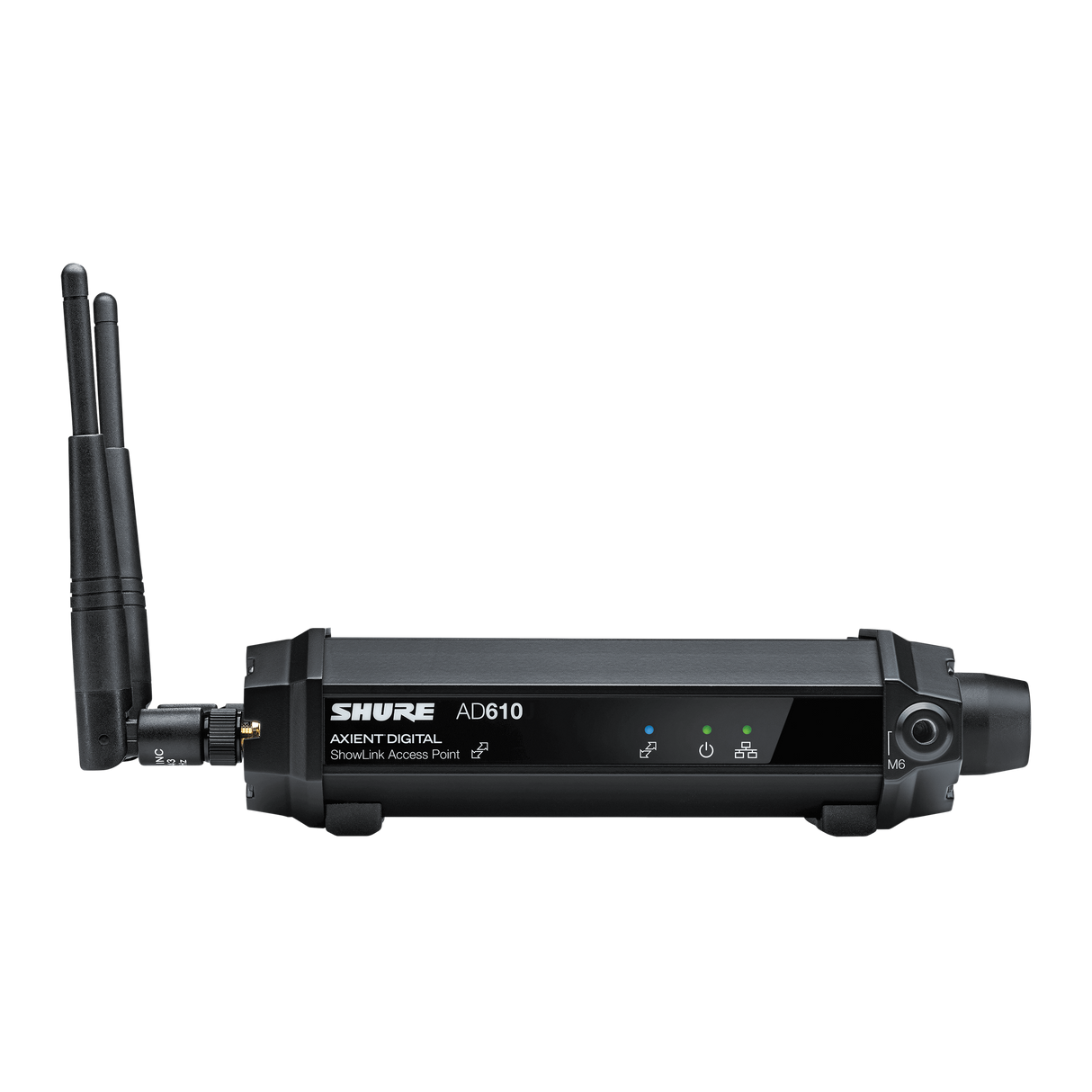

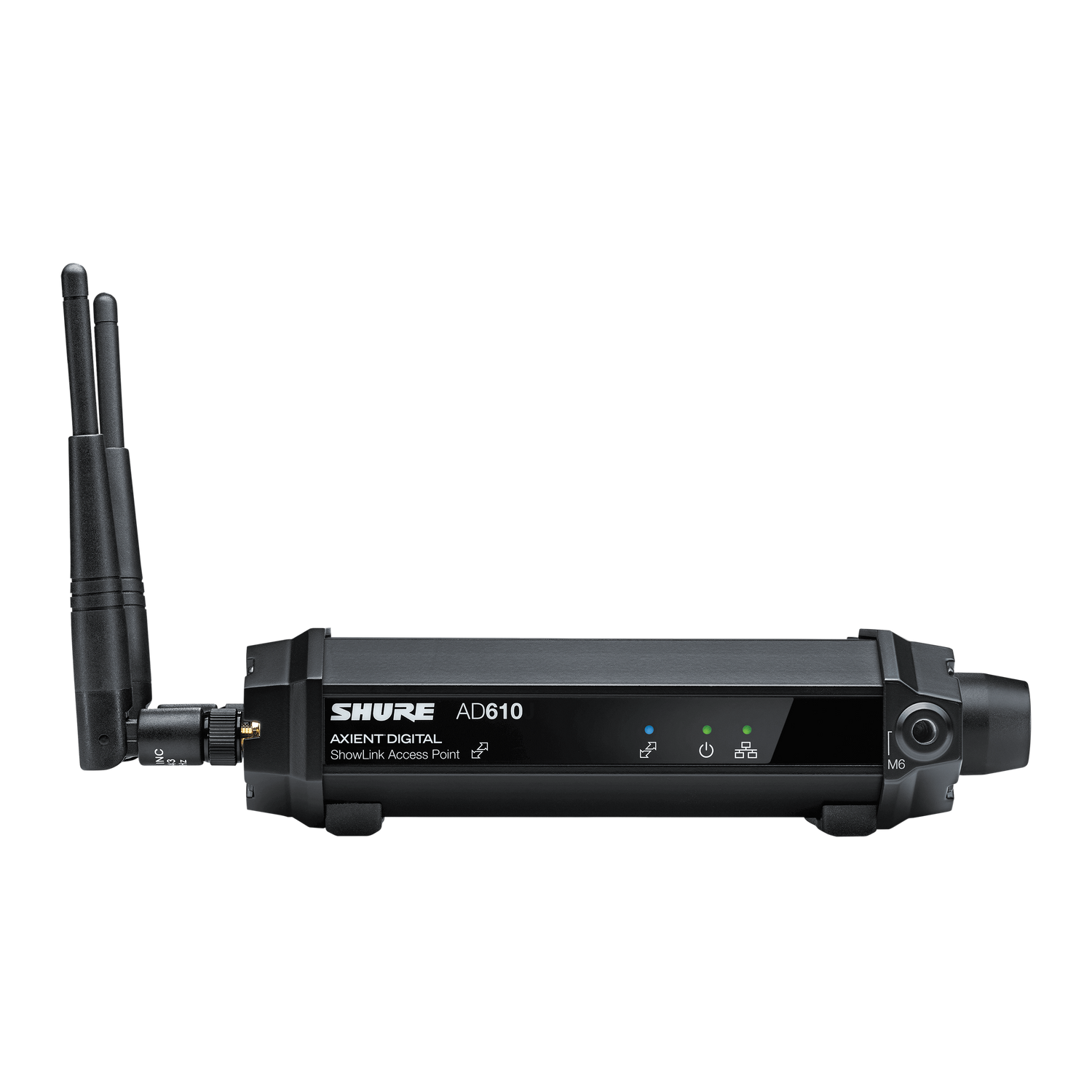

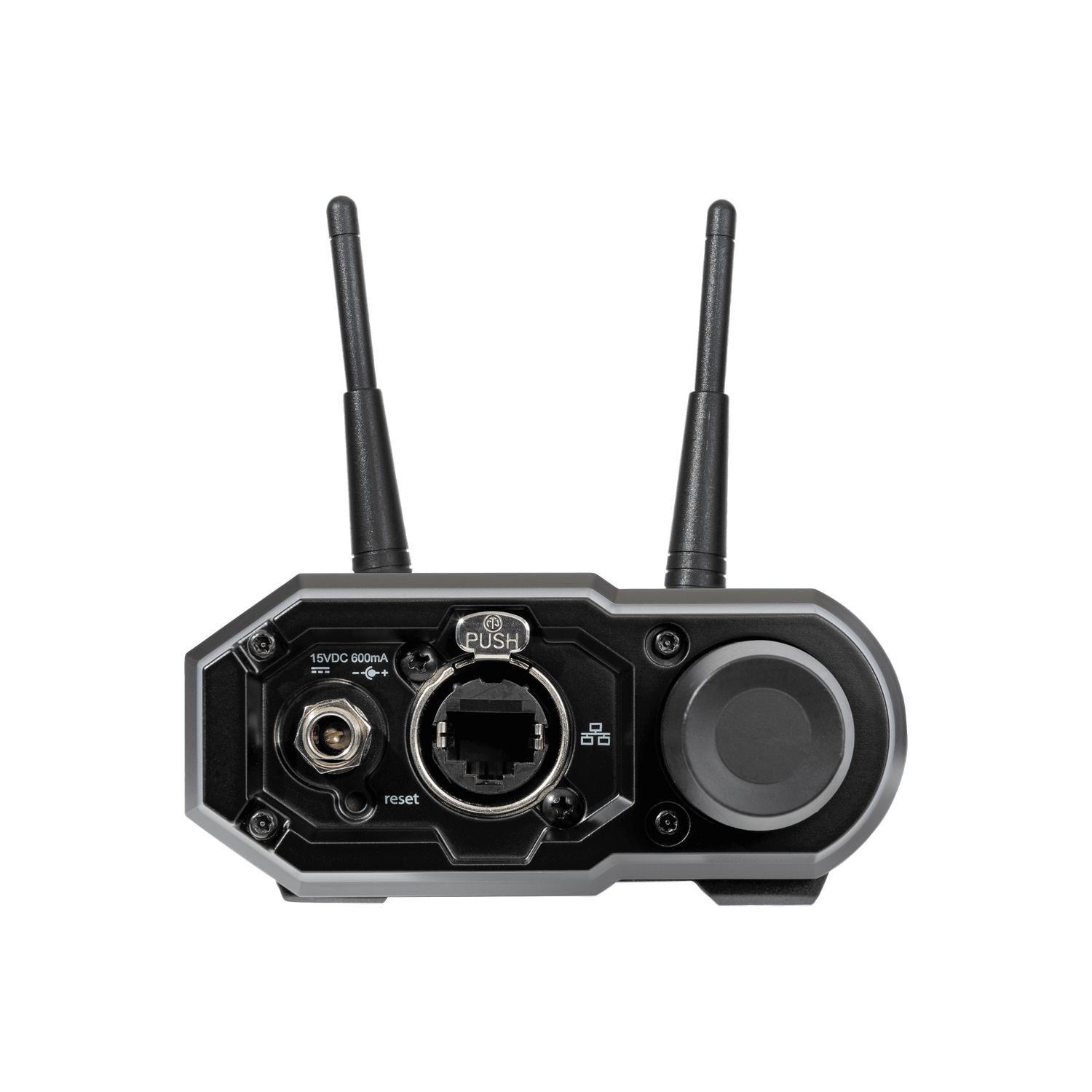

Shure AD610 Showlink® 2.4 GHz Access Point, without power supply

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: AD610
No reviews
Price:
$508.00 $635.00

Description

The AD610 provides a wireless ShowLink® connection between all linked transmitters and receivers. ShowLink technology offers unprecedented remote control and monitoring for easy coordination of clean, usable frequencies no matter what kind of RF environment you face.

  • Wireless network connectivity between all linked transmitters and access points
  • Enables real-time wireless remote control of up to 24 transmitters per access point
  • ShowLink® offers ability to adjust gain, change frequencies, mute signals, and more
  • True Diversity antenna scheme maintains a robust link in the 2.4GHz frequency range
  • Automatic channel selection scans the 2.4GHz range for the best channel. Scans can be saved for future analysis in Wireless Workbench
  • Automatic frequency agility moves the network to the best available channel if single degrades
  • High power option for extended range, accessible via Wireless Workbench (region-dependent)
  • Compatible with Axient Digital ADX series and Axient analog systems

Data Sheet

Antennas 2 x Omnidirectional 2.4 GHz
Capacity 24 Axient ShowLink transmitters (AXT or ADX models)
Network Type IEEE 802.15.4
Frequency Range 2.40 to 2.4835 GHz (16 channels)
RF Output Power 10 dBm ERP / 20 dBm ERP
Working Range 500 to 1600' / 150 to 500 m
Antenna Connector 2 x SMA
Antenna Impedance 50 Ohms
RF Sensitivity -106 dBm, typical (integrated antenna)
Network Interface Ethernet 10/100 Mb/s
Network Addressing Capability DHCP or manual IP address
Mounting WA371 microphone clip or 1/4"-20 thread mount
Power Requirement Power over Ethernet (PoE) Class 1: 36 to 57 VDC/VAC
External Power Supply: 15 VDC, 600 mA, double insulated
Certifications WEEE Directive 2002/96/EC, as amended by 2008/34/EC
RoHS Directive 2011/65/EU
Housing Extruded aluminum
Protection Rating IPX3
Operating Temperature 0 to 140°F / -18 to 60°C
Storage Temperature -20 to 165°F / -29 to 74°C
Dimensions 7.4 x 4.0 x 1.8" / 19.0 x 10.2 x 4.7 cm without antennas
Weight 16.3 oz / 464 g without antennas
Data Sheet
