Shure AD4QNPTA=-B Axient Digital Four-Channel Wireless Receiver with No Accessories (B: 606 to 810 MHz) (TAA-Compliant)

Product Overview

The Shure AD4QNPTA=-B is a TAA-compliant four-channel Axient Digital wireless receiver designed for commercial AV integrators expanding existing wireless systems. Packaged without accessories — no power supply, cables, or mounting hardware — this Band B (606–810 MHz) receiver is purpose-built as an additional unit in rack deployments where power infrastructure is already in place. It accepts all Shure AD series and ADX series transmitters and delivers four independent simultaneous channels with Dante, AES3, and AES67 digital audio output for professional wireless microphone systems in government and commercial AV environments.

Product Description

When expanding a multi-receiver Axient Digital installation, the Shure AD4QNPTA=-B eliminates redundant accessories and reduces procurement cost for integrators who already own compatible power supplies and rack infrastructure. Like all AD4Q receivers, it features Quadversity diversity using four antennas simultaneously across two channel pairs, delivering superior RF coverage in auditoriums, government spaces, conference rooms, and multi-purpose event venues. Audio outputs include XLR analog, AES3, and Dante/AES67 for seamless integration with Dante-networked mixing consoles and DSP platforms. High Density (HD) mode supports up to 47 active transmitters per 6 MHz TV channel for dense wireless deployments in spectrum-congested urban environments. Full system management via Wireless Workbench 6 (WWB6) enables centralized frequency coordination and ShowLink remote control of compatible ADX transmitters. The TAA compliance designation satisfies Trade Agreements Act requirements for federal, state, and municipal government procurement.

For compatible TAA-compliant transmitters, see the Shure ADX1LEMO3TA=-G57 TAA Bodypack Transmitter at Creation Networks.

Key Features

• TAA-Compliant — Meets Trade Agreements Act requirements for federal, state, and local government procurement contracts, including GSA schedule purchases.
• Packaged Without Accessories — Ships without power supply, cable, or mounting accessories — the correct choice for multi-unit rack expansions where existing infrastructure is already deployed.

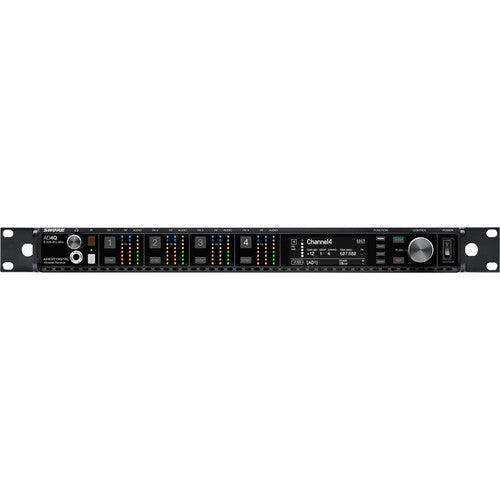

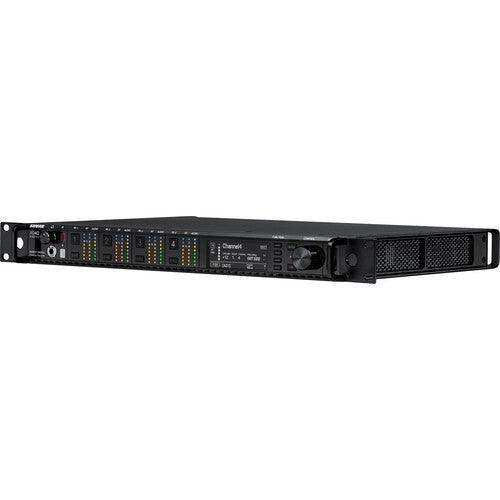

• Four Independent Channels in 1RU — Manages four simultaneous wireless microphone channels from a single rack-mount unit, maximizing channel density in equipment racks.
• High Density (HD) Mode — Supports up to 47 active transmitters per 6 MHz TV channel for dense wireless deployments in spectrum-limited urban and government environments.

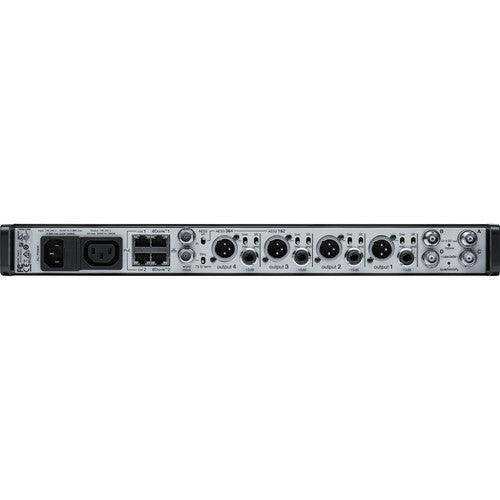

• Dante + AES3 + AES67 Audio Output — Delivers digital audio over Ethernet via Dante and AES67, with AES3 outputs for direct connection to digital consoles and DSP platforms.
• Quadversity Diversity — Uses four antennas simultaneously per channel pair, maximizing RF coverage and minimizing dropouts in large-venue and challenging RF environments.
• Band B Coverage — Operates across 606–810 MHz, a broad frequency range providing compatibility with a wide range of ADX and AD series transmitters in this band.
• ShowLink Remote Control — Real-time over-the-air remote control of compatible ADX transmitters for parameter adjustments without requiring physical access to talent-worn transmitters.
• 256-Bit AES Encryption — Secures wireless audio transmissions for government, corporate, and sensitive meeting space deployments.
• Low Latency — 2.08 ms in standard mode and 2.9 ms in HD mode, suitable for live sound reinforcement and broadcast production workflows.
• Wireless Workbench 6 Integration — Full networked monitoring, frequency coordination, and system management via Shure WWB6 software for large-scale wireless deployments.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Government space
• Multi-purpose room
• All-hands room
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

Why choose the no-accessories package?
The AD4QNPTA=-B is designed for multi-unit rack expansions where integrators already own compatible power supplies and rack mounting hardware. It avoids paying for duplicate accessories when deploying several receivers in the same system.

Which transmitters are compatible with the AD4QNPTA=-B?
The AD4QNPTA=-B works with all Shure AD series and ADX series transmitters. Ensure transmitter frequency bands match Band B (606–810 MHz). Compatible transmitters are available at Creation Networks.

What does TAA compliance mean for procurement?
TAA compliance means the product was manufactured or substantially transformed in a designated country, meeting Trade Agreements Act requirements for federal, state, and local government purchases and GSA schedule contracts.

Can the AD4QNPTA=-B integrate with Dante audio networks?
Yes. The receiver includes Dante and AES67 output, enabling direct integration with Dante-enabled mixers, DSP platforms, and AV-over-IP networks without additional conversion hardware.

What warranty does this product carry?
Shure provides a two-year limited warranty. Creation Networks is an authorized Shure dealer and can assist with pre-sale system design, configuration support, and post-purchase technical assistance.
