Description

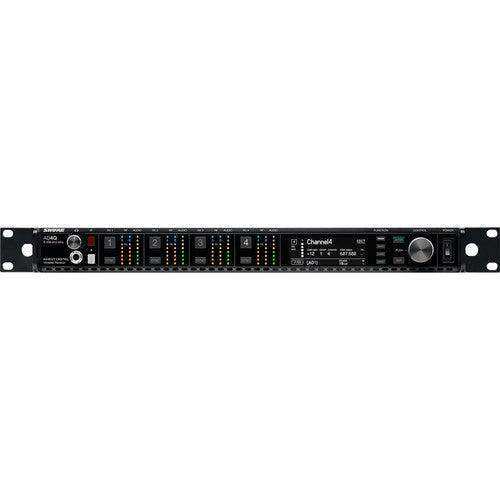

Housed in a rugged, single-rack unit, the Shure AD4Q-DC is a 4-channel wireless receiver with a built-in DC power module, complete with cable and mounting accessories. The unit accepts DC power for use in broadcast production trucks, as well as AC for power redundancy.

Part of the Axient Digital system, the AD4Q-DC delivers mission-critical signal stability and clear, transparent sound for professional productions that demand flawless execution. Every feature has been stress-tested to enable seamless, uninterrupted audio in high-profile applications such as televised live performances, award shows and corporate events, the Broadway stage, secure government installations, and state-of-the-art meeting and training facilities.

The AD4Q-DC operates in a single 166-MHz ultrawide bandwidth that encompasses the entire usable UHF range from 470 to 636 MHz. Quadversity mode allows placement of two pairs of antennas in different zones or doubling antennas in one zone. The Dante Cue and Dante Browse features enable high-fidelity headphone monitoring from any connected Dante-enabled device.

Other highlights include a low 2ms latency, XLR/AES3 + AES67/Dante outputs, 256-bit encryption, and HD mode for up to 47 active transmitters per 6 MHz TV channel. Axient Digital supports over 120 simultaneous channels and is compatible with AD1, ADX1, ADX1M, AD2, ADX2, and ADX2FD transmitters.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

  • For Major Events, High-End Installations
  • DC Power Module
  • 4 x Digital Audio Channels, 1 Rackspace
  • 166 MHz Ultrawide Tuning Range
  • Expandable to 120+ Channels
  • True Digital Diversity Reception
  • 4 x Ethernet/Dante Ports
  • XLR and AES3 Outputs
  • Quadversity Mode, RF Cascade Ports
  • Secure AES-256 Encryption
Wireless Technology Digital UHF
Diversity True Digital Diversity
Max Operating Range 328.1' / 100 m
Receiver Type Rackmount
Number of Audio Channels 4
Audio I/O 4x XLR 3-Pin Male Balanced Output
2x XLR (AES3) 3-Pin Male Balanced Output
4x 1/4" TRS Female Balanced Output
1x 1/4" TRS Female Balanced Headphone Output
Network I/O 4x RJ45 (1 Gb/s)
Power Requirements AC Input, DC Input
