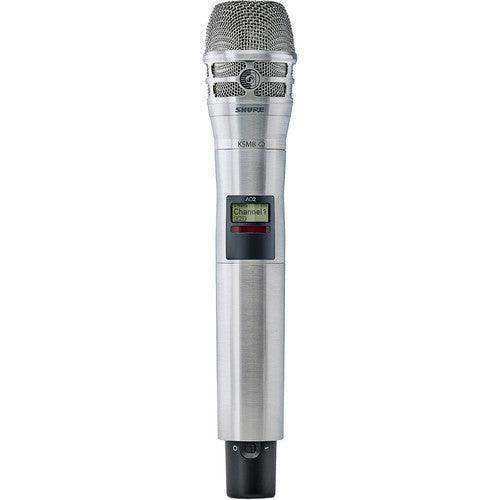

Shure AD2TA/K8N=-G57 Digital Handheld Wireless Microphone Transmitter with KSM8 Capsule (G57: 470 to 616 MHz, Nickel) (TAA-Compliant)

Product Overview

The Shure AD2/KSM8 (TAA-Compliant) in nickel finish is a professional Axient Digital handheld wireless transmitter paired with the KSM8 Dualdyne dynamic capsule, operating in the G57 frequency band (470–616 MHz). The nickel finish is a common specification for productions and installations where the transmitter appearance on stage or at a podium is a consideration, while delivering identical RF performance and audio quality to the black variant. As a TAA-compliant wireless microphone, it meets U.S. federal procurement requirements and integrates into the Axient Digital ecosystem with AES-256 encryption, High Density mode, and Wireless Workbench 6 management. Compatible with Shure Axient Digital receivers (AD4D, AD4Q, ADX4, ADX4D) in the G57 band.

Product Description

The AD2 transmitter body pairs with Shure's KSM8 Dualdyne dynamic capsule — a patented two-diaphragm design with one active and one passive diaphragm in an inverted airflow system. This construction delivers exceptional control of proximity effect, allowing presenters and performers to maintain natural vocal tone at greater working distances with reduced feedback risk. The nickel-finished aluminum housing is moisture-resistant and lightweight, suited for daily commercial deployment in boardrooms, government hearing rooms, training facilities, and broadcast studios. Selectable RF output at 2, 10, or 35 mW lets integrators optimize for either extended range (up to 100 m line of sight) or High Density multi-channel configurations. The backlit LCD provides instant access to frequency, channel, RF level, and battery status, while lockout functions prevent unauthorized changes during live events. The TAA-compliant designation qualifies this transmitter for U.S. government GSA Schedule purchasing. See also the Shure ADX2/B58 Axient Digital Transmitter for ShowLink-enabled wireless system integration.

Key Features

• KSM8 Dualdyne Dynamic Capsule — Patented two-diaphragm design with inverted airflow technology provides natural vocal reproduction with exceptional proximity effect control and feedback rejection suited for commercial AV environments.
• Nickel Finish — Classic nickel appearance is specified for presentations, houses of worship, and broadcast studios where transmitter visibility is a consideration.
• Axient Digital Compatible — Works natively with Shure Axient Digital G57-band receivers (AD4D, AD4Q, ADX4, ADX4D) for centralized enterprise wireless management.
• AES-256 Encryption — Military-grade encryption is standard on every AD2 unit, protecting audio from interception in government, legal, and sensitive commercial installations.
• Wide Tuning Range (up to 184 MHz) — Broad frequency agility across the G57 band enables RF coordination in dense multi-channel wireless environments.
• High Density Mode — Increases simultaneous channel count per RF band, critical for large conference rooms, all-hands spaces, and multi-room commercial deployments.
• Selectable RF Output (2/10/35 mW) — Three RF output levels allow AV system designers to balance transmission range and channel density according to the installation requirements.
• Moisture-Resistant Aluminum Housing — Lightweight, durable construction engineered for daily commercial-grade use in demanding AV environments.
• Rechargeable Battery Support — Compatible with Shure SB900A lithium-ion rechargeable battery (sold separately) for up to 9 hours of operation with precision battery metering.
• Interchangeable Capsule Design — The KSM8 capsule can be replaced with other Shure capsules (KSM9, KSM9HS, SM58, Beta 87A, Beta 87C) to adapt the transmitter body for different applications.
• TAA Compliant — Qualifies for U.S. federal government procurement under the GSA Schedule and applicable federal contract vehicles.

Typical Applications

• Boardroom and executive conference room
• Government hearing room and legislative chamber
• Training room and corporate learning center
• Broadcast studio and live production
• Auditorium and large-venue sound reinforcement
• House of worship with multi-zone audio
• All-hands room and town hall venue
• Multi-purpose commercial meeting space

Technical Specifications

Frequently Asked Questions

Why would I specify the nickel finish over black?
Nickel finish is common in productions and installations where the microphone is visible to the audience or on camera, such as podium presentations, broadcast sets, and houses of worship. Both black and nickel variants offer identical RF performance and audio quality; finish selection is primarily aesthetic.

What receivers are compatible with this transmitter?
The AD2/KSM8 G57-band requires Shure Axient Digital receivers in the G57 band, including the AD4D, AD4Q, ADX4, and ADX4D. Both transmitter and receiver must operate in the same frequency band for proper system operation.

What does TAA compliant mean for this transmitter?
TAA compliance qualifies this unit for U.S. federal procurement under GSA Schedule and applicable contract vehicles. Government agencies and contractors on federal projects can purchase this transmitter through compliant procurement channels.

Can the capsule be swapped for a different Shure capsule?
Yes. The AD2 uses an interchangeable capsule design. The KSM8 Dualdyne can be replaced with other Shure capsules including the KSM9, KSM9HS, SM58, Beta 87A, and Beta 87C, making the transmitter body adaptable across applications.

What are the battery and charging options?
The AD2 accepts 2x AA alkaline batteries for up to 8 hours of operation. The Shure SB900A rechargeable battery (sold separately) provides up to 9 hours. Shure SBC220 and SBC840 networked chargers support remote battery monitoring via Wireless Workbench 6.

What warranty coverage applies?
Shure provides a limited 2-year manufacturer warranty. Contact Creation Networks for commercial installation support and warranty registration assistance.
