Shure AD2/N8C Handheld Wireless Microphone Transmitter with Nexadyne™ 8/C Cardioid Dynamic Capsule (G57: 470–608 + 614–616 MHz)
Shure AD2/N8C Handheld Wireless Microphone Transmitter with Nexadyne™ 8/C Cardioid Dynamic Capsule (G57: 470–608 + 614–616 MHz) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure AD2/N8C Handheld Wireless Microphone Transmitter with Nexadyn...

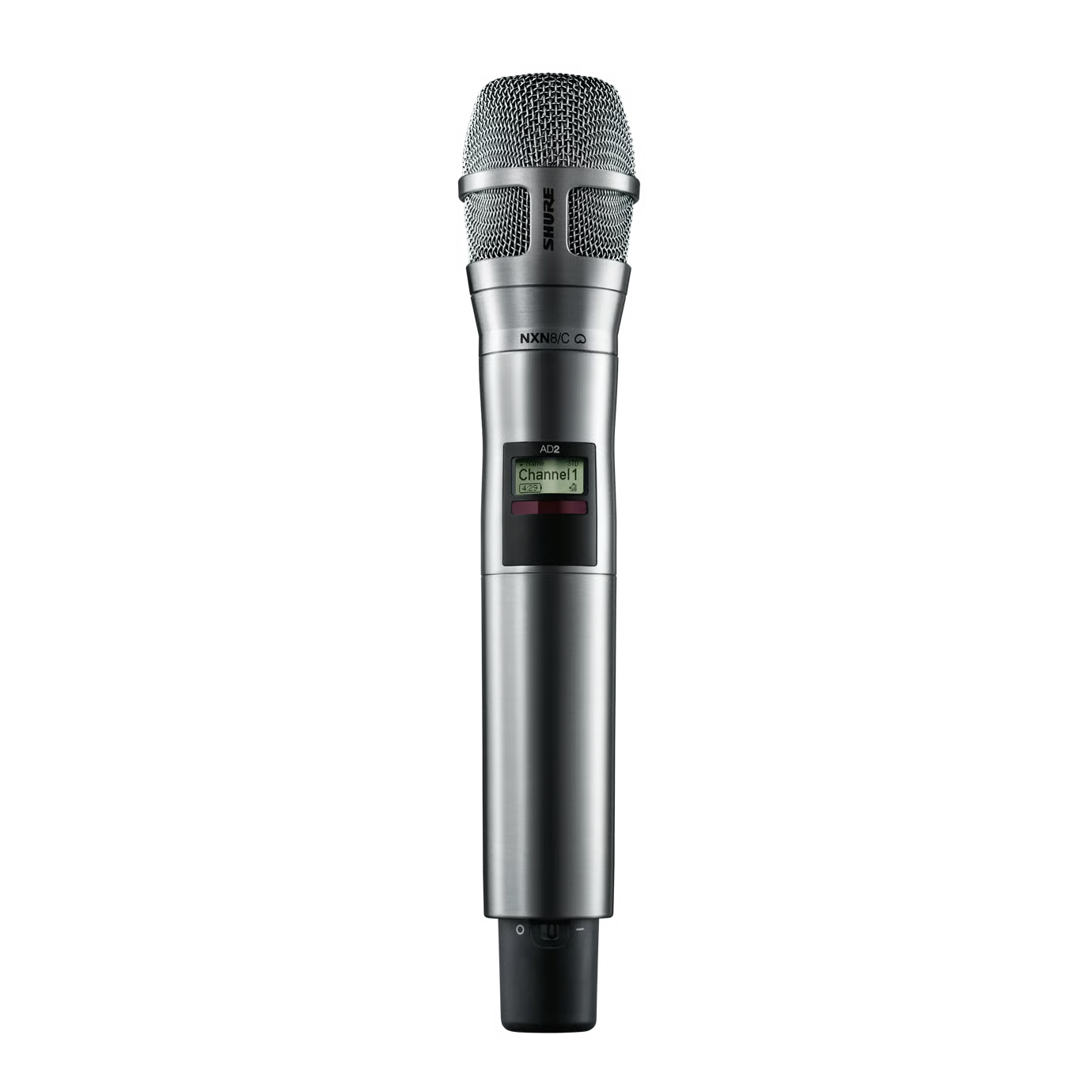

The Shure AD2/N8C is a professional-grade handheld wireless microphone transmitter designed for demanding audio environments. It features the Nexadyne™ 8/C cardioid dynamic microphone capsule, incorporating Shure's Revonic™ dual-engine transducer technology. This innovative design utilizes two separate, but interdependent sets of diaphragms, voice coils, and magnets, delivering condenser-like clarity with a crisp, yet natural high-end and plenty of detail. The cardioid polar pattern reduces off-axis pickup, minimizing bleed from other sources and feedback issues.
The transmitter operates in an ultrawide 140 MHz UHF bandwidth with selectable 2/10/35mW RF output power and a transmission range up to 330 feet. It offers up to 8 hours of operation on two AA batteries and up to 9 hours with an SB900A lithium-ion rechargeable battery (available separately). The durable, moisture-resistant, lightweight aluminum case ensures reliability in various environments. AES 256-bit encryption provides secure wireless transmission, making it ideal for high-profile sound reinforcement applications.
Features Chart:
| Feature | Description |
|---|---|
| Microphone Capsule | Nexadyne™ 8/C cardioid dynamic with Revonic™ dual-engine transducer technology |
| Frequency Range | G57: 470–608 + 614–616 MHz |
| Transmission Modes | Standard and High Density for optimal coverage and maximum channel count |
| Remote Control | ShowLink enabled for real-time parameter adjustments |
| Encryption | AES-256 for secure wireless transmission |
| Battery Options | AA or SB900A lithium-ion rechargeable batteries |
| Charging | External contacts for docked charging |
| Construction | Durable, moisture-resistant, lightweight aluminum case |
| Display | Backlit LCD with easy-to-navigate menu and controls |
| Power Switch | Low-profile, lockable power switch |
Specifications Table:
| Specification | Details |
|---|---|
| Model | AD2/N8CB=-G57 |
| Frequency Band | G57: 470–608 + 614–616 MHz |
| Polar Pattern | Cardioid |
| Microphone Type | Dynamic |
| RF Output Power | Selectable 2/10/35mW |
| Battery | AA or SB900A rechargeable lithium-ion |
| Battery Life | Up to 9 hours |
| Encryption | AES-256 |
| Construction | Lightweight aluminum, black finish |
| Dimensions (L x D) | 10.1 x 2.0 inches (256 x 51 mm) |
| Weight | 12.0 oz (340 g) |
| Included Accessories | Zipper bag, threaded adapter, swivel adapter |
