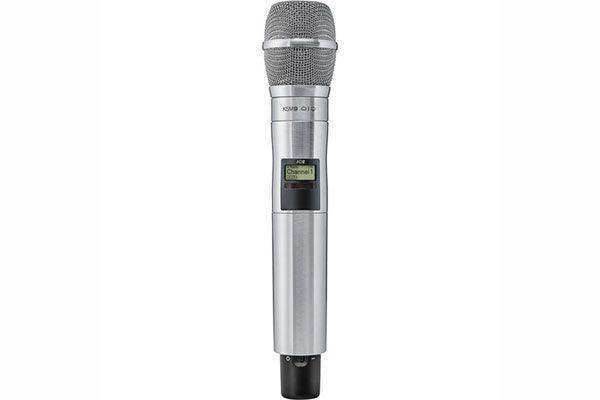

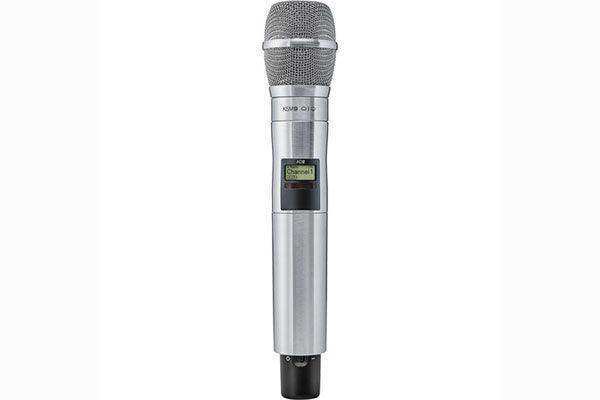

Shure AD2/K9N Handheld Wireless Microphone Transmitter (Nickel)
Shure AD2/K9N Handheld Wireless Microphone Transmitter (Nickel) - AD2/K9N=-G57 AD HH 470-616 MHZ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure AD2/K9N Handheld Wireless Microphone Transmitter (Nickel)
Product Overview
The Shure AD2/K9N is an Axient Digital handheld wireless transmitter paired with the KSM9 dual-pattern condenser capsule in nickel finish, designed for professional commercial AV deployments, broadcast, and live reinforcement applications. The KSM9 offers selectable cardioid and supercardioid polar patterns for operational flexibility across different acoustic environments. The AD2 platform delivers AES 256-bit encryption, High Density mode, and 184 MHz tuning with dual battery support—without ShowLink—at a professional price point.
Product Description
The AD2/K9N pairs the AD2 transmitter body with the KSM9 condenser capsule (RPW188, nickel) at the AD series price tier. The KSM9’s cardioid/supercardioid dual-pattern capability gives integrators and operators the ability to configure the capsule for wider coverage (cardioid) in conference rooms and corporate presentations, or for tighter off-axis rejection (supercardioid) in stage and auditorium applications—all without swapping the capsule. The nickel finish is appropriate for on-camera, broadcast, and talent-visible installations where a silver/nickel aesthetic is preferred. The AD2 transmitter supports both SB900C rechargeable batteries (up to 11 hours at 10 mW) and 2× AA alkaline batteries (up to 8 hours), and operates in Standard and High Density modes for channel density management.
Key Features
- KSM9 Dual-Pattern Condenser Capsule (Nickel) — Selectable cardioid and supercardioid polar patterns in a single capsule; cardioid for wider coverage, supercardioid for tighter off-axis rejection on stage or in feedback-prone environments.
- Axient Digital RF Platform — Professional digital wireless with AES 256-bit encryption and tuning up to 184 MHz.
- AES 256-Bit Encryption — Secure audio for broadcast, government, and enterprise AV deployments.
- High Density Mode — 125 kHz channel spacing for more simultaneous channels in limited spectrum allocations.
- Dual Battery Support — SB900C rechargeable (up to 11 hours) or 2× AA alkaline (up to 8 hours) at 10 mW.
- Selectable RF Output: 2/10/35 mW — Configurable for density-optimized or extended-range deployments.
- Interchangeable RPW-Series Capsules — Field-swappable to any Shure RPW wireless cartridge.
- Cast Aluminum Housing — Commercial-grade durability for rental and fixed installation.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
- Conference room
- All-hands room
- Government space
Technical Specifications
| Transmitter Series | Axient Digital AD (without ShowLink) |
| Capsule | KSM9 Dual-Pattern Condenser — Nickel (RPW188) |
| Frequency Bands Available | G57 (470–616 MHz), K54 (606–663 MHz) |
| Tuning Range | Up to 184 MHz |
| RF Output Power | 2 / 10 / 35 mW |
| Encryption | AES 256-bit |
| Channel Spacing — Standard Mode | 350 kHz |
| Channel Spacing — High Density Mode | 125 kHz |
| Battery Options | Shure SB900C rechargeable or 2× AA alkaline |
| Battery Runtime @ 10 mW (SB900C) | Up to 11 hours |
| Battery Runtime @ 10 mW (AA) | Up to 8 hours |
| Dynamic Range | >120 dB (A-weighted) |
| Line-of-Sight Range | 100 m (300 ft) |
| Housing | Cast Aluminum |
| Dimensions | 256 mm × 51 mm (10.1 in. × 2.0 in.) L × Dia. |
| Weight | 340 g (12.0 oz.) without battery |
Frequently Asked Questions
What is the difference between the AD2/K9N and AD2/K9B?
The AD2/K9N uses the nickel-finish KSM9 capsule (RPW188) and a nickel transmitter body. The AD2/K9B equivalent would use the black capsule (RPW184) and black body. The acoustic performance of the KSM9 capsule is identical in both finishes.
What is the difference between the AD2/K9N and ADX2/K9N?
The ADX2/K9N includes ShowLink remote control for real-time Wireless Workbench management and supports 40 mW maximum output. The AD2/K9N does not include ShowLink but is priced lower and supports AA batteries in addition to the SB900C rechargeable.
What Axient Digital receivers are compatible?
AD4D, AD4Q, and ADX5D. Match receiver frequency band to transmitter band (G57 or K54 for this product).
What warranty is included?
Shure provides a 2-year limited warranty. Contact Creation Networks for support.
