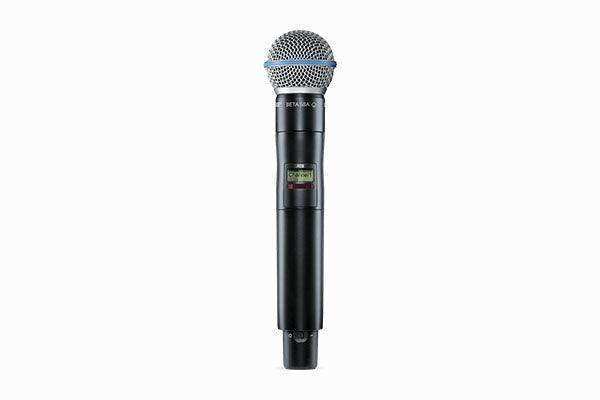

Shure AD2/B58 Handheld Wireless Microphone Transmitter

Product Overview

The Shure AD2/B58 is an Axient Digital handheld wireless transmitter fitted with the Beta 58A supercardioid dynamic capsule, offering professional-grade RF performance at a lower price point than the ADX2 series. Featuring AES 256-bit encryption, High Density mode, and wide tuning up to 184 MHz, the AD2/B58 is a reliable Axient Digital wireless transmitter for live performance, houses of worship, and commercial meeting spaces. It is compatible with all Axient Digital receivers and uses the same Axient Digital RF platform as the ADX series without ShowLink remote control.

Product Description

The AD2/B58 delivers the core Axient Digital wireless technology—stable RF, AES-256 encryption, and High Density mode—in a rugged cast aluminum handheld body with the industry-standard Beta 58A supercardioid dynamic capsule. For commercial AV integrators who need professional wireless system performance without the added cost of ShowLink, the AD2 series provides a direct path into the Axient Digital ecosystem. The transmitter supports selectable output power (2/10/35 mW), Standard and High Density operating modes, and is compatible with either Shure rechargeable SB900C batteries (up to 11 hours at 10 mW) or standard AA alkaline batteries (up to 8 hours). Capsules are interchangeable with any RPW-series Shure wireless cartridge, and the body is compatible with all Axient Digital receivers. IR Sync enables fast, automated channel setup directly from the receiver.

Need a lavalier option for the same Axient Digital system? See the Shure AD1LEMO3 Bodypack Transmitter.

Key Features

• Beta 58A Supercardioid Dynamic Capsule — Industry-standard capsule for live vocal reinforcement with proven gain-before-feedback characteristics and wide SPL handling.
• Axient Digital RF Platform — Same core digital wireless technology as the premium ADX2 series, providing low-latency audio (2–2.9 ms) and reliable RF performance.
• AES 256-Bit Encryption — Secure audio transmission for corporate and government applications.
• High Density Mode — 125 kHz channel spacing enables higher simultaneous channel count than Standard mode’s 350 kHz spacing.
• Wide Tuning up to 184 MHz — Full-band frequency agility for reliable operation in any commercial RF environment.
• Selectable RF Output: 2/10/35 mW — Adjustable power for high-density or extended-range system design.
• Dual Battery Support — Compatible with Shure SB900C rechargeable Li-Ion (up to 11 hours at 10 mW) or 2× AA alkaline batteries (up to 8 hours).
• Interchangeable RPW-Series Capsules — Field-swappable to any Shure RPW wireless cartridge without replacing the transmitter body.
• IR Sync — Fast automated frequency and encryption setup from the receiver.
• Rugged Cast Aluminum Housing — Commercial-grade durability for permanent installation and touring inventory.

Typical Applications

• House of worship
• Auditorium
• Conference room
• All-hands room
• Multi-purpose room
• Training room
• Government space

Technical Specifications

Frequently Asked Questions

What is the difference between the AD2/B58 and the ADX2/B58?
Both use the same Beta 58A capsule and Axient Digital RF platform. The ADX2/B58 adds ShowLink remote control (real-time parameter management from Wireless Workbench), 40 mW maximum output power (vs. 35 mW on the AD2), and uses the SB920A rechargeable battery exclusively. The AD2/B58 supports AA batteries in addition to the SB900C rechargeable, offering more flexibility in battery management for longer events.

Can the AD2/B58 use AA batteries?
Yes. The AD2/B58 accepts 2× AA alkaline batteries providing approximately 8 hours of runtime at 10 mW. Alternatively, the optional Shure SB900C rechargeable lithium-ion battery provides up to 11 hours at 10 mW with precision metering.

What Axient Digital receivers are compatible?
The AD2/B58 is compatible with all Axient Digital receivers: AD4D (dual-channel), AD4Q (quad-channel), and ADX5D. The receiver frequency band must match the transmitter band.

Is the Beta 58A capsule replaceable?
Yes. The AD2 transmitter body accepts all RPW-series Shure wireless capsules. The Beta 58A can be swapped for the SM58 (RPW112), Beta 87A (RPW120), KSM9 (RPW184), or any other compatible RPW cartridge.

What warranty is included?
Shure provides a 2-year limited warranty. Contact Creation Networks for support.
