Shure A900-CM Ceiling Mount for MXA902, MXA910, MXA920 Microphones

What is the Shure A900-CM Ceiling Mount?

The Shure A900-CM is a ceiling mount kit that attaches Shure MXA902, MXA910, and MXA920 ceiling array microphones directly to a ceiling for precise, stable positioning. It's a two-piece mounting system designed for permanent installation in drywall, plywood, or concrete ceilings, or into a 4-inch octagon junction box. If you're specifying mounting hardware for a Shure ceiling array microphone install, this is the manufacturer's own bracket kit for that job — not a cable accessory.

What does the Shure A900-CM do?

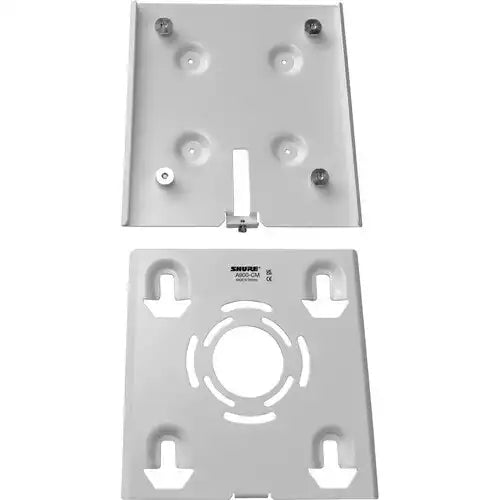

The A900-CM solves the specific problem of getting a Shure ceiling array microphone securely and permanently fixed to a ceiling, at the right height and orientation, without over-engineering the install. The kit ships as two plates: a ceiling plate that anchors to the building structure, and an adapter plate that attaches to the top of the microphone itself.

During installation, the ceiling plate is secured first — to a joist for drywall or plywood ceilings, directly into concrete, or onto a standard 4-inch octagon junction box where one is already in place. The adapter plate is then fastened to the microphone using the included M4 screws. The two plates slide together and lock with the included Allen wrench, so the microphone can be lifted into position and secured in one motion rather than juggling loose hardware overhead.

Because the two plates separate independently of the ceiling anchor, the microphone can also be removed later for service, cleaning, or replacement without disturbing the mounting hardware itself — useful on any install where the AV team may need to service the microphone array after the ceiling is finished and painted. Rated to a 15 lb (6.8 kg) load, it's sized specifically for Shure's own array microphone housings rather than general-purpose AV equipment.

This is the correct mounting solution any time an MXA902, MXA910, or MXA920 ceiling array microphone is going into a boardroom, courtroom, classroom, or other space with a hard or drop ceiling rather than a surface it can simply sit on.

What are the key features of the Shure A900-CM?

• Two-piece slide-together design — the ceiling plate and microphone adapter plate lock together and are secured with the included Allen wrench, simplifying overhead installation.
• Mounts to four ceiling types — drywall/joist, plywood/joist, solid concrete, or a standard 4-inch octagon junction box, covering nearly any commercial ceiling construction.

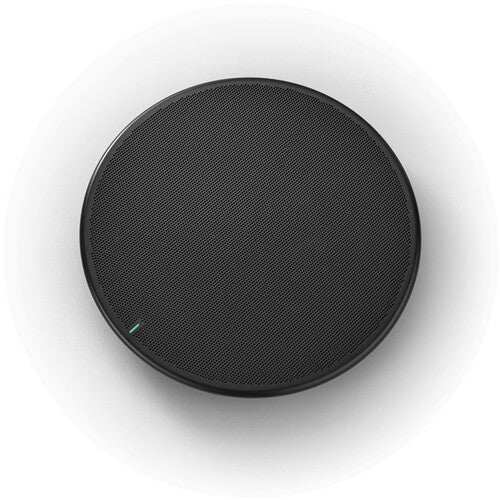

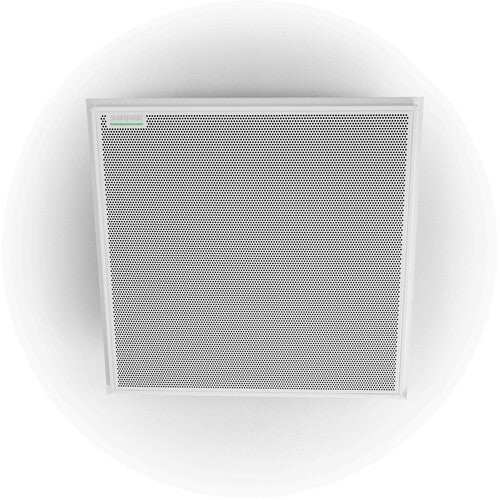

• Compatible with three Shure microphone models — works with MXA902, MXA910, and MXA920, including both square and round MXA920 housings.

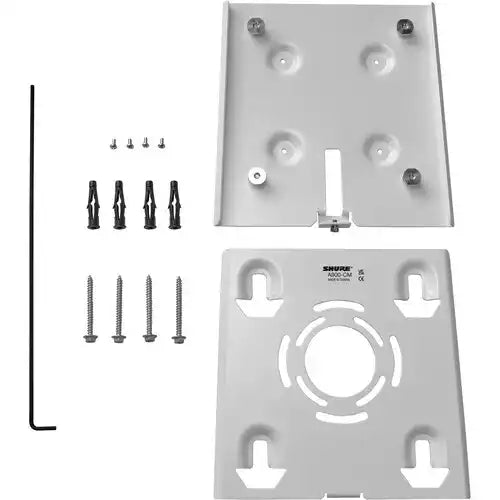

• Complete mounting hardware included — 4x M4 x 8mm screws, 4x 2-1/2" wood screws, 4x 8mm concrete anchors, and an Allen wrench, so the kit is ready to install out of the box.
• 15 lb (6.8 kg) rated load capacity — sized for Shure's ceiling array microphone housings.
• Serviceable after install — the microphone detaches from the ceiling plate independently, so the mic can come down for maintenance without removing the anchor hardware from the ceiling.
• Backed by Shure's 2-year limited warranty.
