Shure MXA710-2FT wall-mount medium room audio system

Product Overview

The Shure MXA710-2FT wall-mount medium room audio system is a complete conference room audio solution built around the MXA710 2-foot linear array microphone and the IntelliMix P300 audio conferencing processor. This audio configuration pairs steerable microphone coverage with two MXN5W-C networked ceiling loudspeakers for Dante networked conference room audio. It is designed for commercial AV integrators who need echo- and noise-free voice pickup in a boardroom or mid-size meeting space without table-mounted microphones.

Product Description

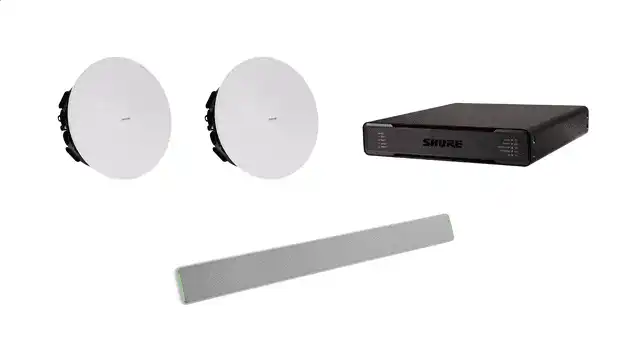

This system integrates the Shure MXA710 2-foot linear array microphone, the IntelliMix P300 conferencing processor, and two MXN5W-C networked ceiling loudspeakers with tile bridges. The MXA710 uses Steerable Coverage and Autofocus technology to track talkers anywhere in the room, while onboard IntelliMix DSP handles automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. The P300 extends processing across up to eight Dante channels and connects the system to a PC-based or appliance-based video platform over USB. The MXA710's linear form factor mounts on a wall, around a display, or on the ceiling, making it well suited to rooms where a table or ceiling-tile array is impractical. The two networked loudspeakers install into standard drop-ceiling tiles and reproduce far-end voice with full-range clarity. For larger rooms, the 712X dual-microphone bundle adds a second array, and the IntelliMix P300 processor is available on its own.

Key Features

• Steerable Coverage Microphone — The MXA710 2-foot array forms up to four independent pickup lobes that capture participants across the room without manual aiming.
• Autofocus Technology — Lobe positions adjust in real time as participants lean back or stand, holding consistent voice levels through the meeting.
• Onboard IntelliMix DSP — Automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control are built into the microphone and extended by the P300.
• IntelliMix P300 Processor — Provides AEC, noise reduction, AGC, matrix mixing, delay, compression, and parametric EQ across up to eight Dante channels for echo-free conference room audio.
• Networked Ceiling Loudspeakers — Two MXN5W-C loudspeakers deliver far-end audio over Dante and install into standard drop-ceiling tiles for full-range playback.
• Flexible Microphone Placement — The linear form factor mounts on a wall, around a display, or on the ceiling, fitting rooms where table or ceiling-tile microphones are impractical.
• PoE-Powered Installation — Microphone, processor, and loudspeakers draw power and audio over the network, reducing cabling on commercial-grade installs.
• Dante Networked Audio — All components connect over a Dante network for scalable conference room integration and centralized configuration in Shure Designer.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What size room is this MXA710 system designed for? A single MXA710 2-foot array with two ceiling loudspeakers suits small-to-medium conference rooms, boardrooms, and meeting spaces. Larger rooms are better served by a dual-microphone configuration such as the 712X.

Can the microphone really be wall-mounted? Yes. The MXA710's linear form factor is designed to mount on a wall, around a display, or on the ceiling, which is useful where overhead tile arrays or table microphones are not practical.

Is the system compatible with Microsoft Teams and Zoom? Yes. The P300 connects to a room PC or conferencing appliance over USB and works with Microsoft Teams Rooms, Zoom Rooms, and other soft codec platforms. The Shure components are Microsoft Teams certified.

How is the system powered and cabled? The MXA710, P300, and loudspeakers are PoE-powered and carry audio over a Dante network, reducing analog cabling. A PoE or PoE Plus switch with adequate power budget is required.

How is the audio configured? All Shure devices are configured through Shure Designer software, where integrators set coverage lobes, routing, and DSP. The P300 ships with presets to shorten commissioning.

What warranty and support apply? The Shure components carry Shure's manufacturer limited warranty. Contact Creation Networks for current warranty terms, lead times, and integration support.
