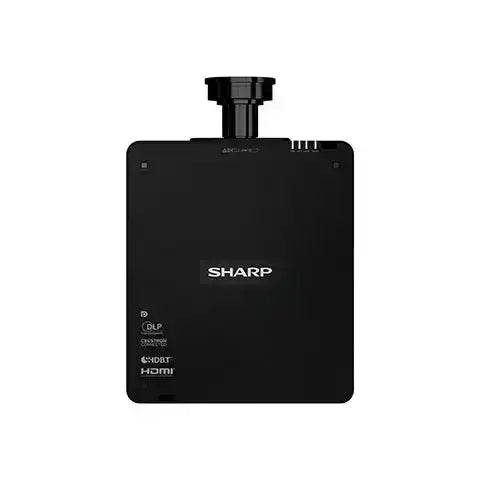

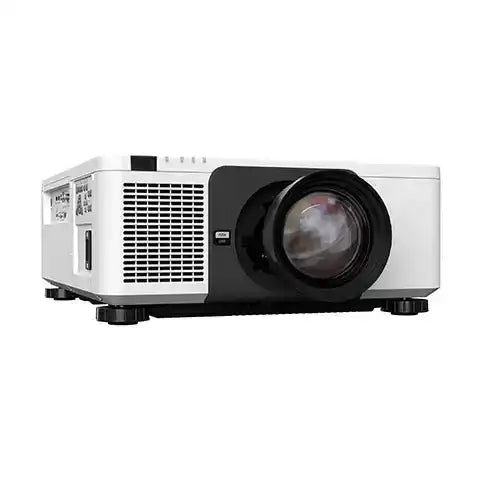

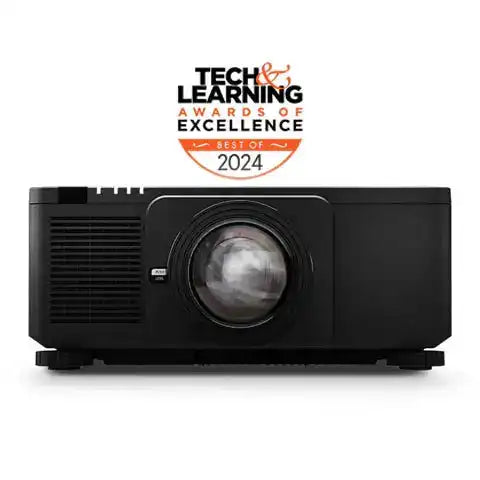

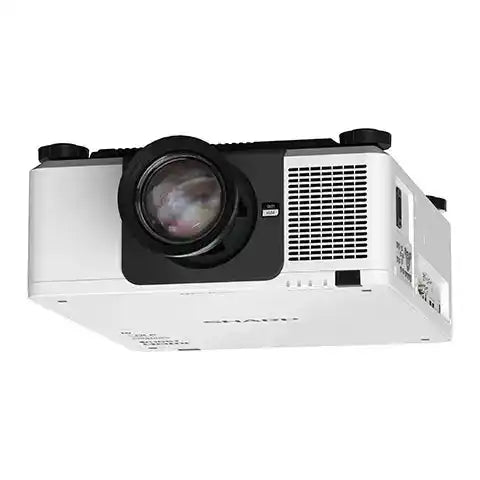

Sharp XP-X171Q – 16,500-Lumen 4K UHD Laser DLP Projector

Product Overview

The Sharp XP-X171Q is a professional installation projector delivering 16,500 lumens from a laser light source, making it a strong choice for large-venue AV deployments in higher education, corporate, and museum environments. Built around a 1-chip DLP architecture with 4K UHD (3840×2400) input support and 10-bit color processing, the XP-X171Q handles demanding visual tasks including CAD/CAM visualization, digital signage, and high-resolution multi-projector arrays. With a 20,000-hour laser lifespan and comprehensive digital connectivity—including dual HDMI 2.0, dual DisplayPort, HDBaseT, and 12G-SDI—this commercial-grade projector is engineered for always-on installations where maintenance downtime is not acceptable.

Product Description

The Sharp XP-X171Q belongs to Sharp's flagship X series of high-brightness laser DLP projectors, targeting the premium end of commercial AV integration. At 16,500 lumens typical (17,000 center lumens), this projector maintains image clarity even in brightly lit venues. The 3,000,000:1 dynamic contrast ratio and 10-bit color pipeline (approximately 1.07 billion colors) deliver accurate, consistent images for professional display contexts.

The XP-X171Q ships without a lens, pairing with the full range of Sharp XP motorized zoom lenses (XP-57UL through XP-62ZL) to cover throw ratios from 0.31:1 to 4.00:1—providing installation flexibility from short-throw boardrooms to large auditorium throws. The integrated edge blending and roll-free installation capability make it straightforward to deploy in multi-projector stacked or blended configurations. The 12G-SDI input and output support broadcast-quality signal routing, while HDBaseT enables single-cable runs for video, audio, Ethernet, and control over distances up to 100 meters.

ProAssist software enables centralized network control, image adjustment, and multi-projector management from a connected computer—an essential tool for integrators managing large-format blended display walls. NaViSet Administrator 2 and support for RS-232, RJ-45, and HDBaseT control interfaces ensure compatibility with standard AV control systems.

Key Features

• 16,500-Lumen Laser Light Source — Delivers sustained high-brightness output rated to 20,000 hours, eliminating lamp replacement costs and scheduled maintenance downtime.
• 4K UHD Input (3840×2400) — Native WUXGA panel with maximum 4K UHD input support produces fine image detail for data visualization, CAD graphics, and large-screen presentations.
• 10-Bit Color Processing — Approximately 1.07 billion displayable colors with 3,000,000:1 dynamic contrast ratio for accurate color rendering in professional display environments.
• No-Lens Design with Full XP Lens Compatibility — Compatible with six Sharp XP motorized zoom lenses (0.31–4.00:1 throw ratio range), allowing integrators to optimize projection distance for any venue.
• 12G-SDI Input and Output — Broadcast-standard signal connectivity for integration into live event and broadcast studio signal chains.
• HDBaseT Input — Single-cable connection carries uncompressed 4K video, audio, Ethernet, and control signals up to 100 meters, simplifying long-distance AV infrastructure.

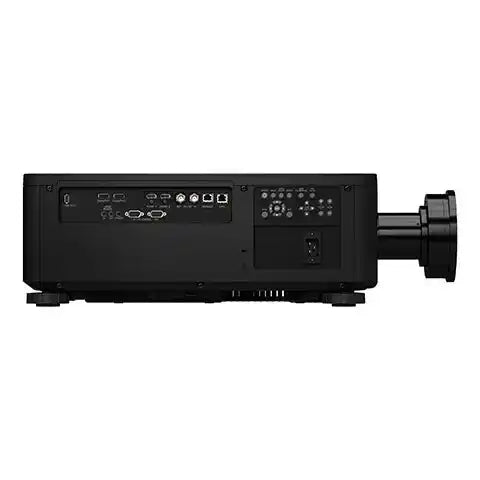

• Dual HDMI 2.0 and Dual DisplayPort 1.3 — Four digital inputs with HDCP 2.2/1.4 support accommodate multiple sources simultaneously.
• Edge Blending and Multi-Projector Support — Integrated edge blending enables seamless multi-projector installations for large-format display walls.
• Roll-Free Installation — Projector can be installed at any rotational angle without performance degradation, expanding mounting flexibility.
• ProAssist Network Management Software — Centralized software control for adjusting and monitoring multiple projectors over a network.
• 5-Year / 20,000-Hour Warranty with InstaCare — Registered owners receive next-business-day exchange service, reducing operational risk for mission-critical installations.
• ECO Mode and Low Standby Power — Power consumption drops to 0.4W in standby, supporting sustainability requirements in commercial deployments.

Typical Applications

• Auditorium large-screen projection
• Higher education lecture hall and classroom AV
• Corporate all-hands room and boardroom presentation
• Museum and exhibit permanent installation
• Broadcast studio background display
• Multi-purpose room with high-ambient-light conditions
• Government and command center display wall

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the XP-X171Q include a lens?
No. This projector ships without a lens. You must purchase a compatible Sharp XP series motorized lens separately. Available options at Creation Networks include the XP-59ZL (0.74-1.08:1), XP-60ZL (1.05-1.41:1), XP-61ZL (1.40-2.11:1), and XP-62ZL (2.10-4.00:1).

What control systems does the XP-X171Q support?
The projector supports RS-232, IR, HDBaseT control, RJ-45 (LAN/IP control), and USB 2.0. It is compatible with Crestron, AMX, PJLink, and NaViSet Administrator 2 for integration into standard commercial AV control systems.

Can this projector be used in a multi-projector edge-blended installation?
Yes. The XP-X171Q includes built-in edge blending and supports roll-free installation orientation, making it well suited for large-format blended display arrays in auditoriums, simulation rooms, and command centers.

What is the laser light source lifespan?
The RB laser module is rated for 20,000 hours of operation. Sharp's 5-year warranty with InstaCare next-business-day exchange covers registered owners for the duration of this rated lifespan.

Does the XP-X171Q support 4K resolution?
The native panel resolution is WUXGA (1920x1200). The projector accepts and processes 4K UHD (3840x2402) input signals via HDMI 2.0, DisplayPort 1.3, and HDBaseT, downscaling to the native panel with advanced AccuBlend scaling.

Where can I purchase the XP-X171Q?
The Sharp XP-X171Q is available at Creation Networks, an authorized Sharp commercial AV reseller offering pre-sales consultation and post-sales support.
